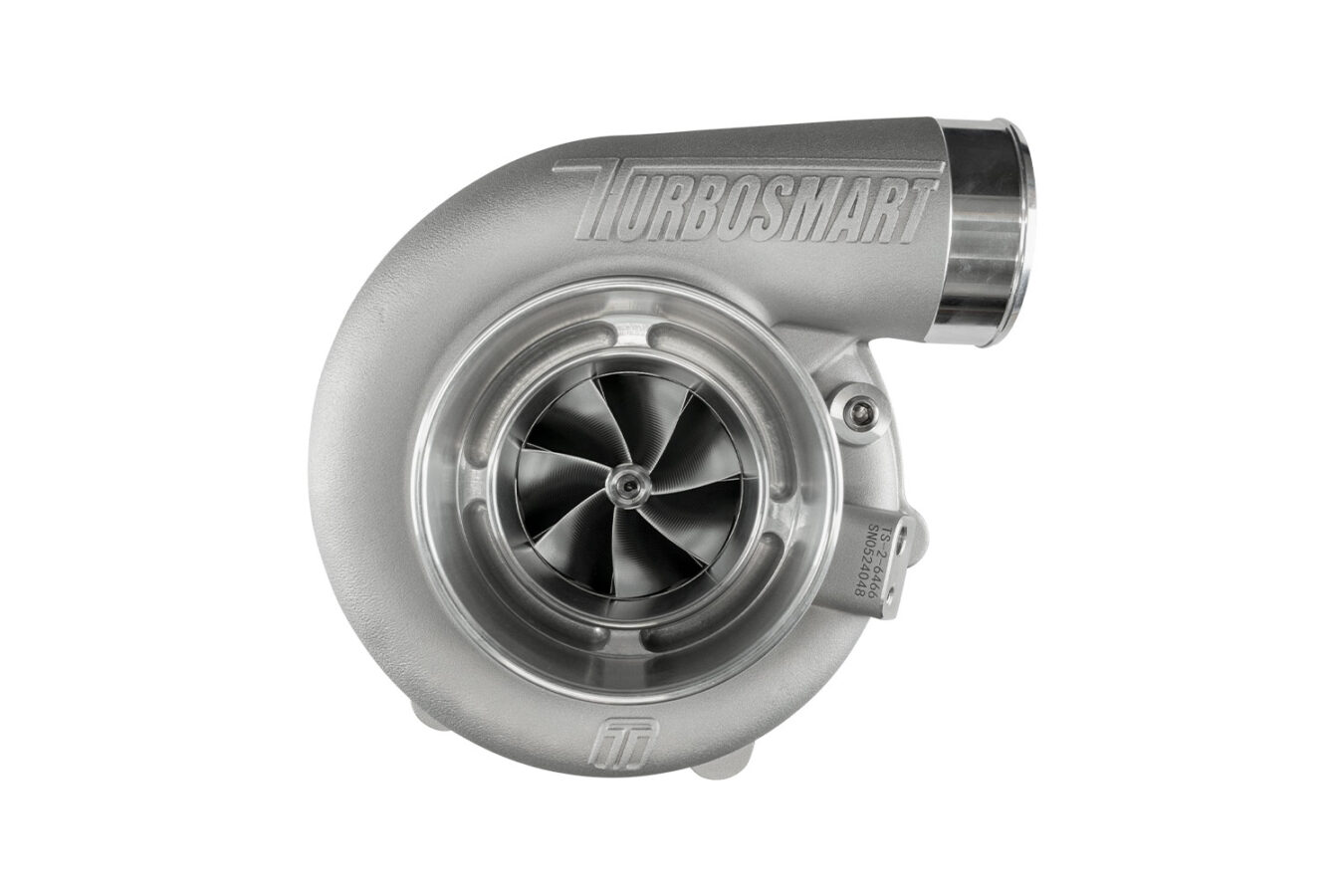

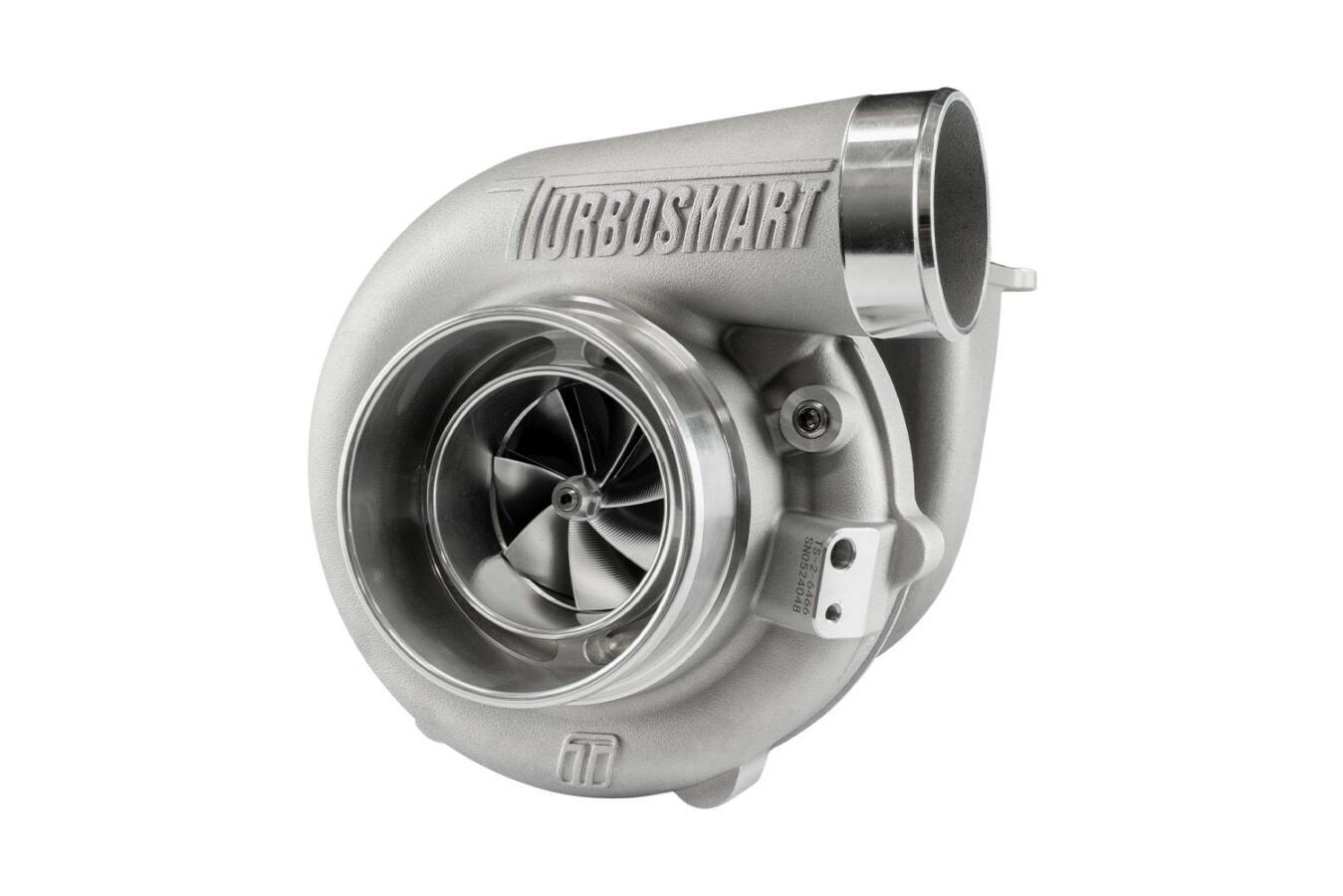

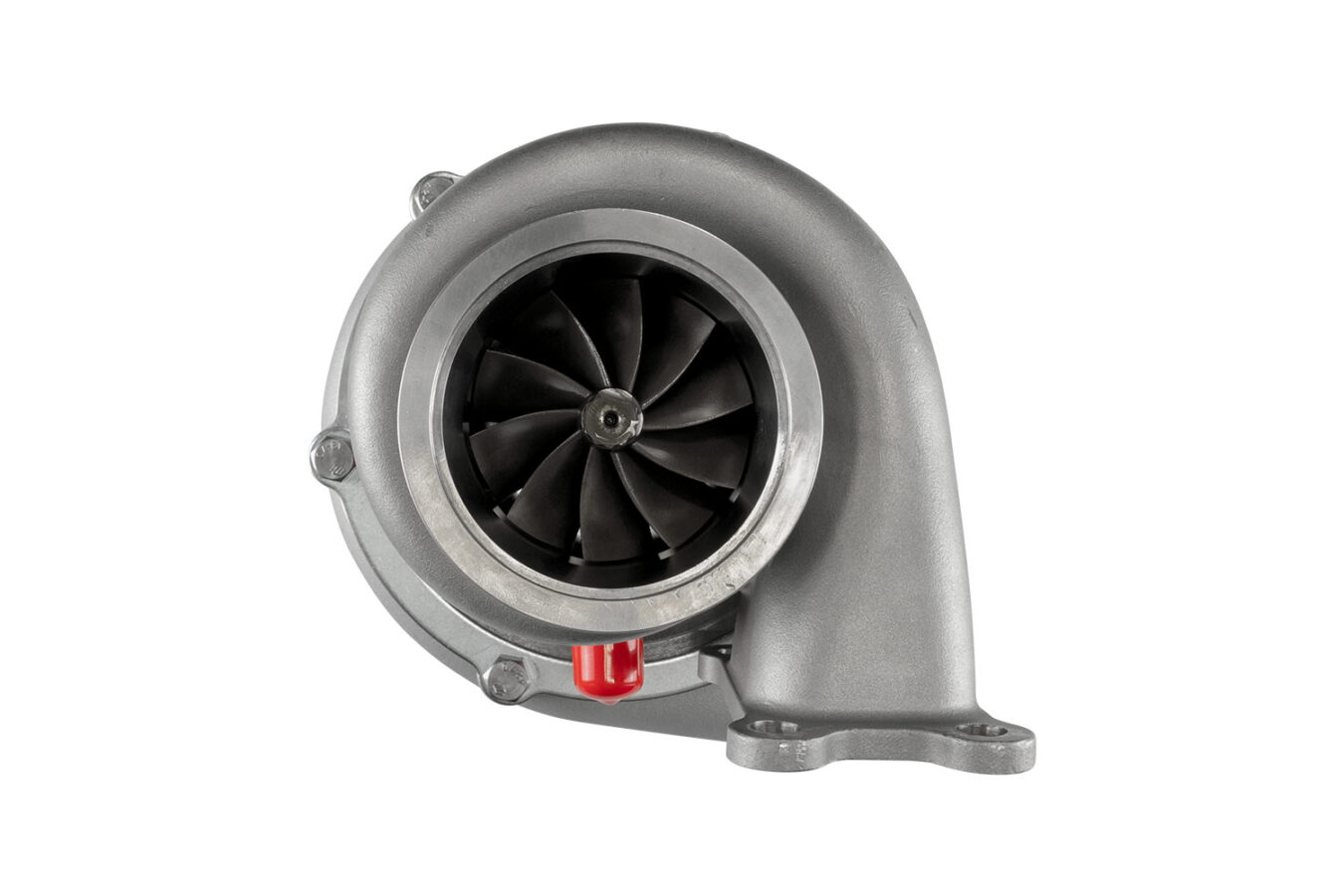

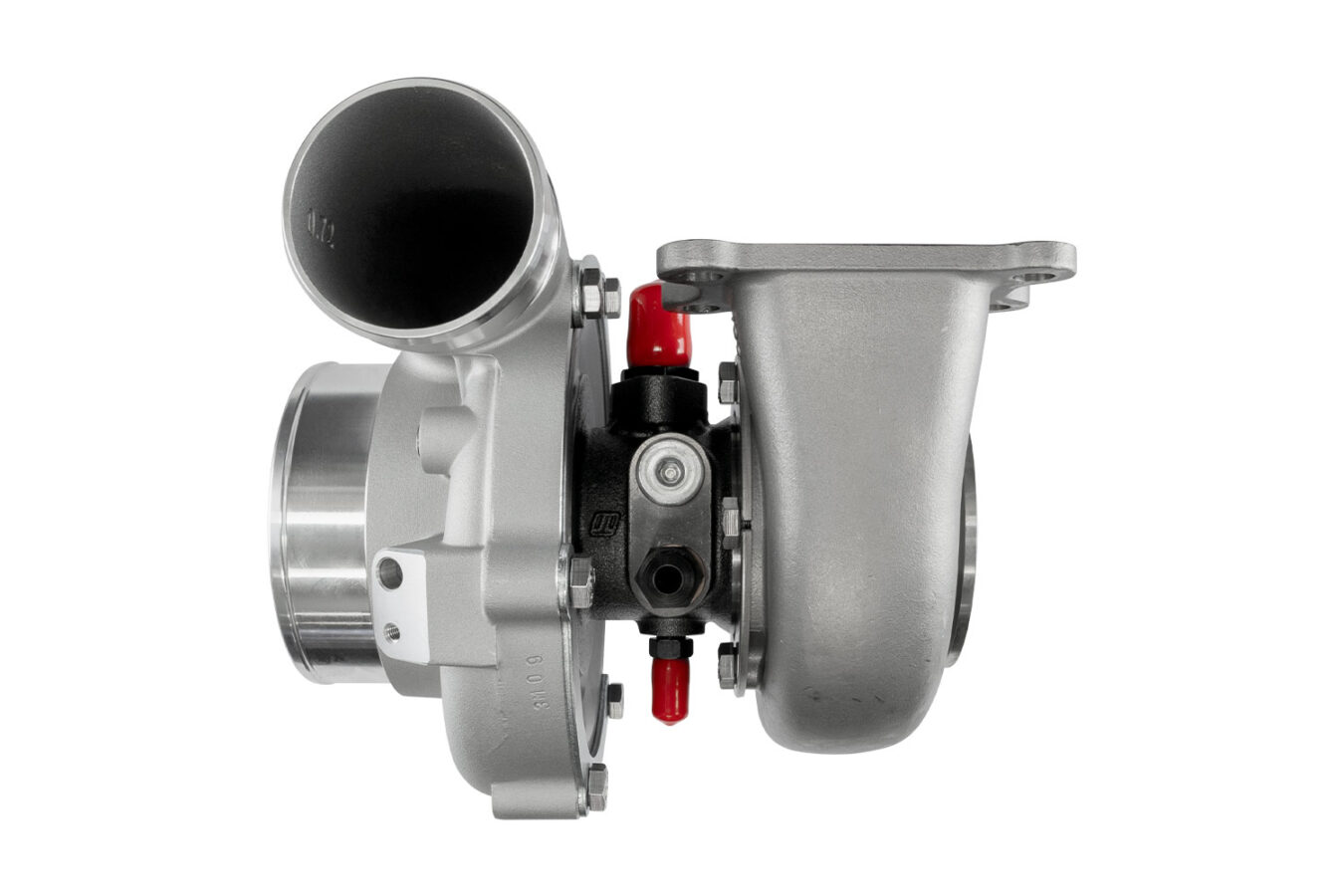

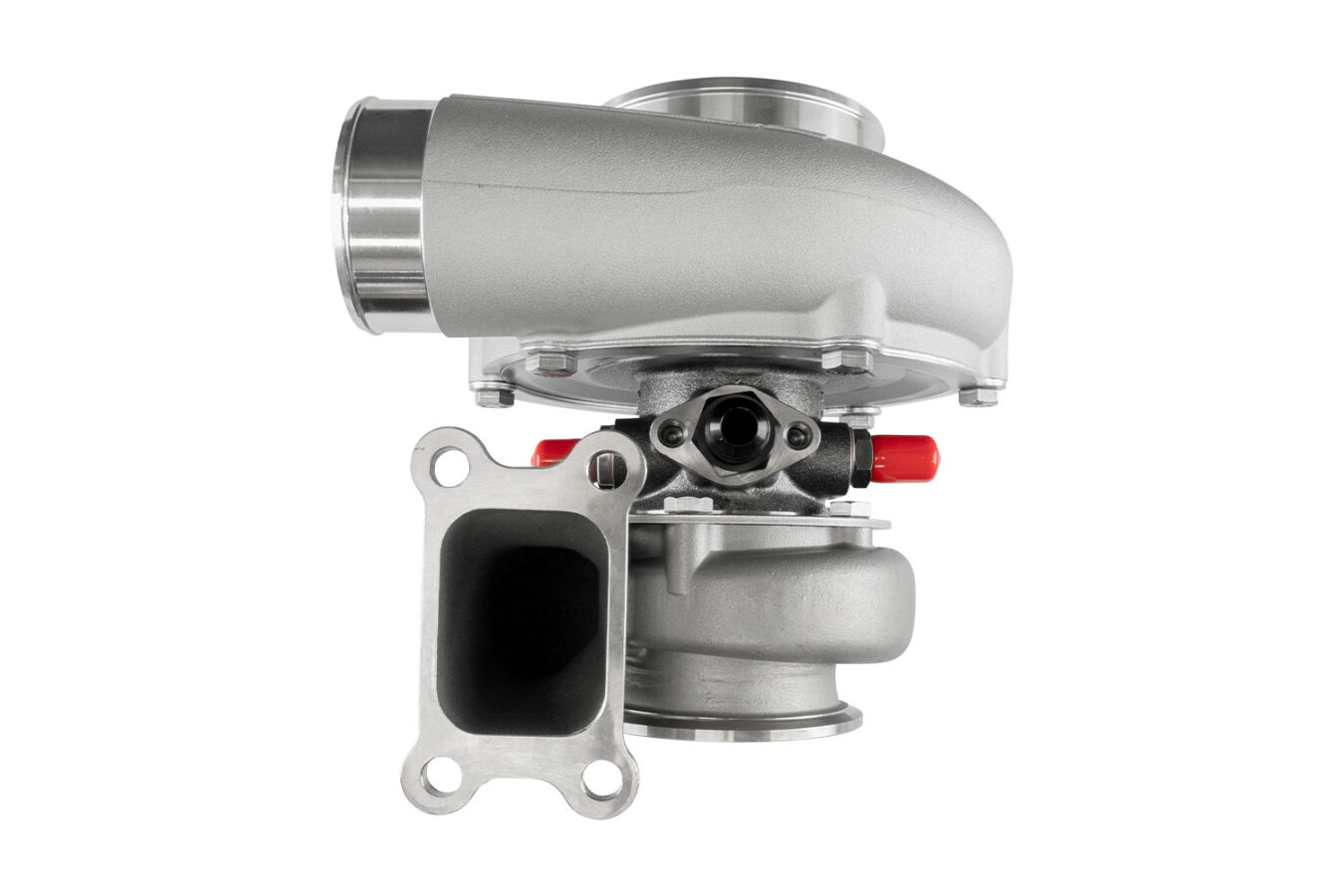

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6466 T3 1.10AR Externally Wastegated

Smaller, lighter, and faster – Turbosmart’s TS-2 turbocharger series is engineered using modern materials, cutting-edge design, and advanced manufacturing to meet the high-performance demands of motorsport and enthusiast builds.

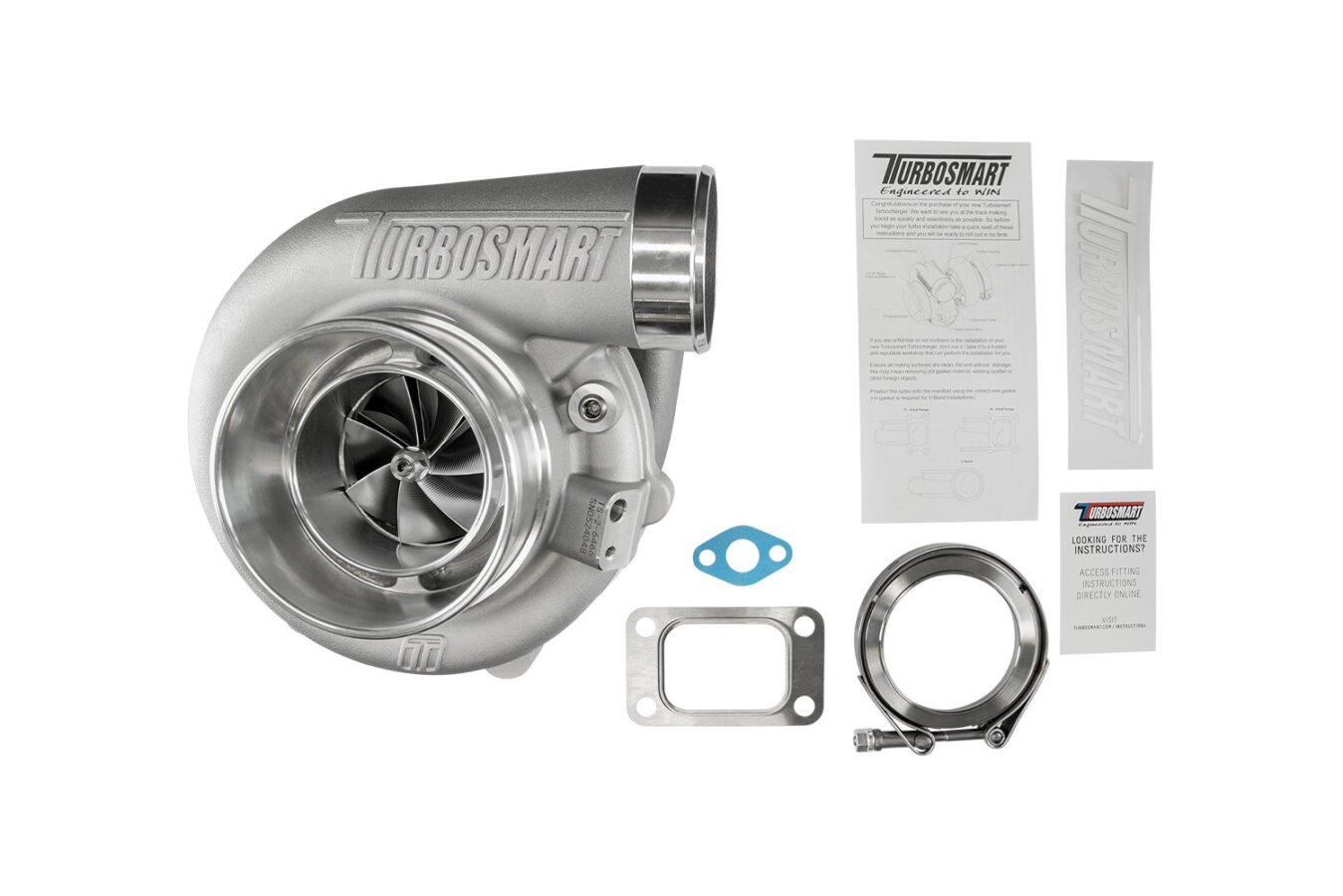

Every Turbosmart turbocharger includes a complete installation kit with weld flanges, V-band clamps, gaskets, oil feed/drain fittings, and water feed/return fittings.

The TS-2 Series is both water and oil cooled and features lightweight investment-cast turbine housings with a proprietary bearing and shaft combination. This results in unmatched transient response, high performance, and the reliability Turbosmart is known for.

With ultra-low rotating mass and aggressive compressor aerodynamics, TS-2 turbos deliver strong performance at lower shaft speeds while maintaining power and flow under load. The design is focused on reducing backpressure and maximizing turbine efficiency—making it smaller, lighter, and faster than competing solutions.

Available Configurations

• TS-1 (Oil cooled)

• TS-2 (Oil & water cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal or external wastegated variants

Key Features

• Unmatched transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• High-flow aluminum compressor covers

• CFD-optimized housing geometry for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 64mm

• Turbine Inlet: T3 Flange

• Turbine Exducer: 66mm

• Turbine A/R: 1.10

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 825–955 HP
