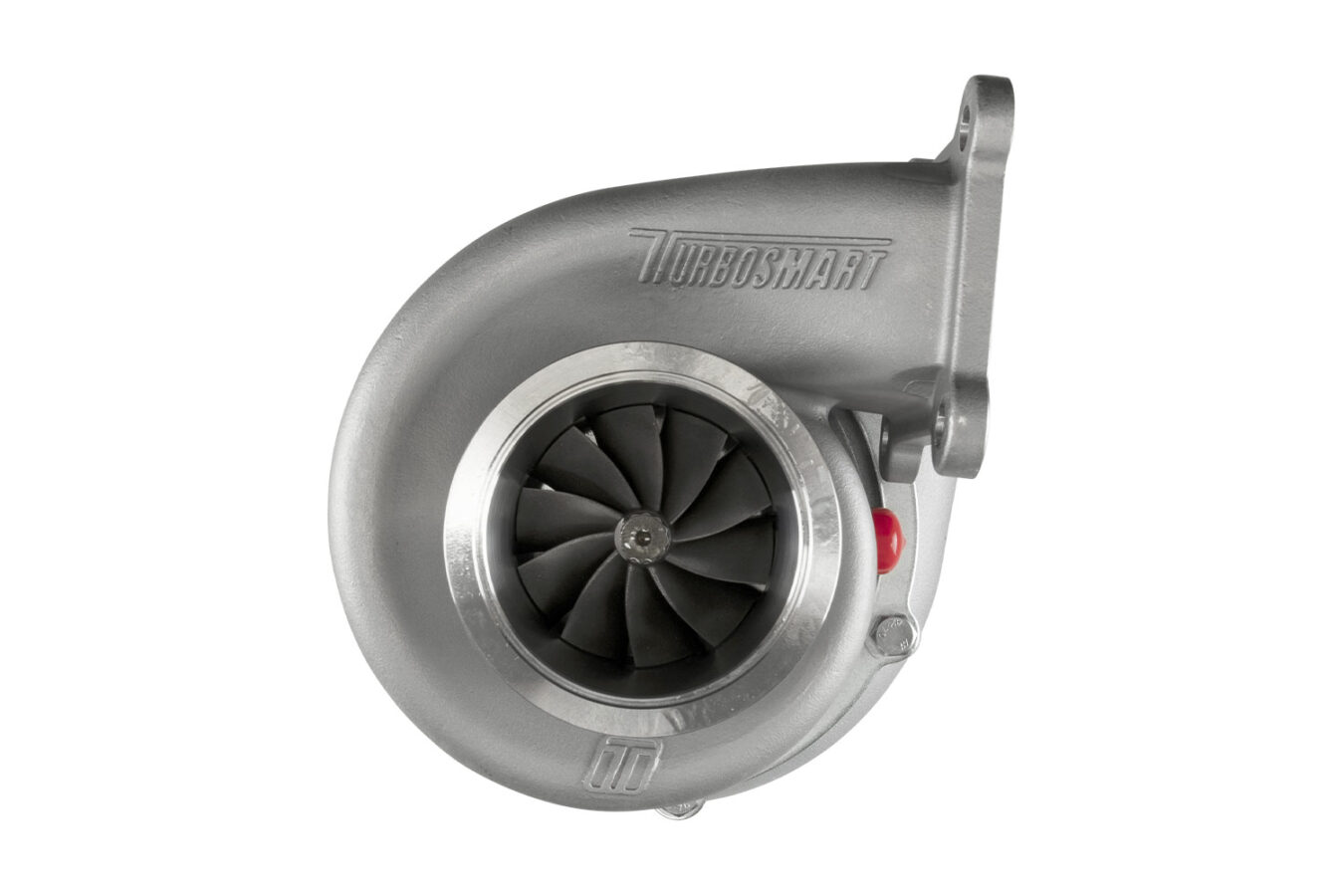

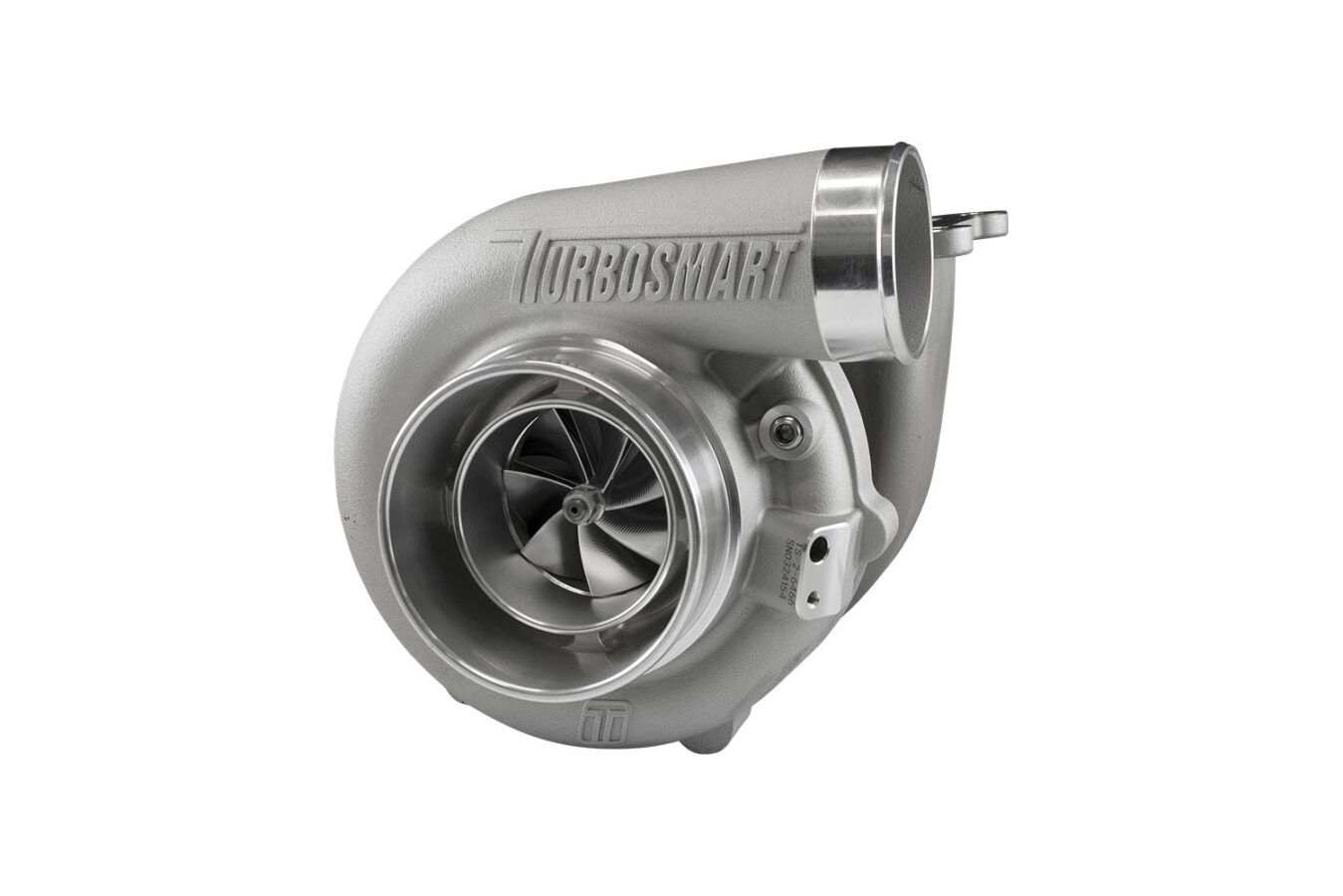

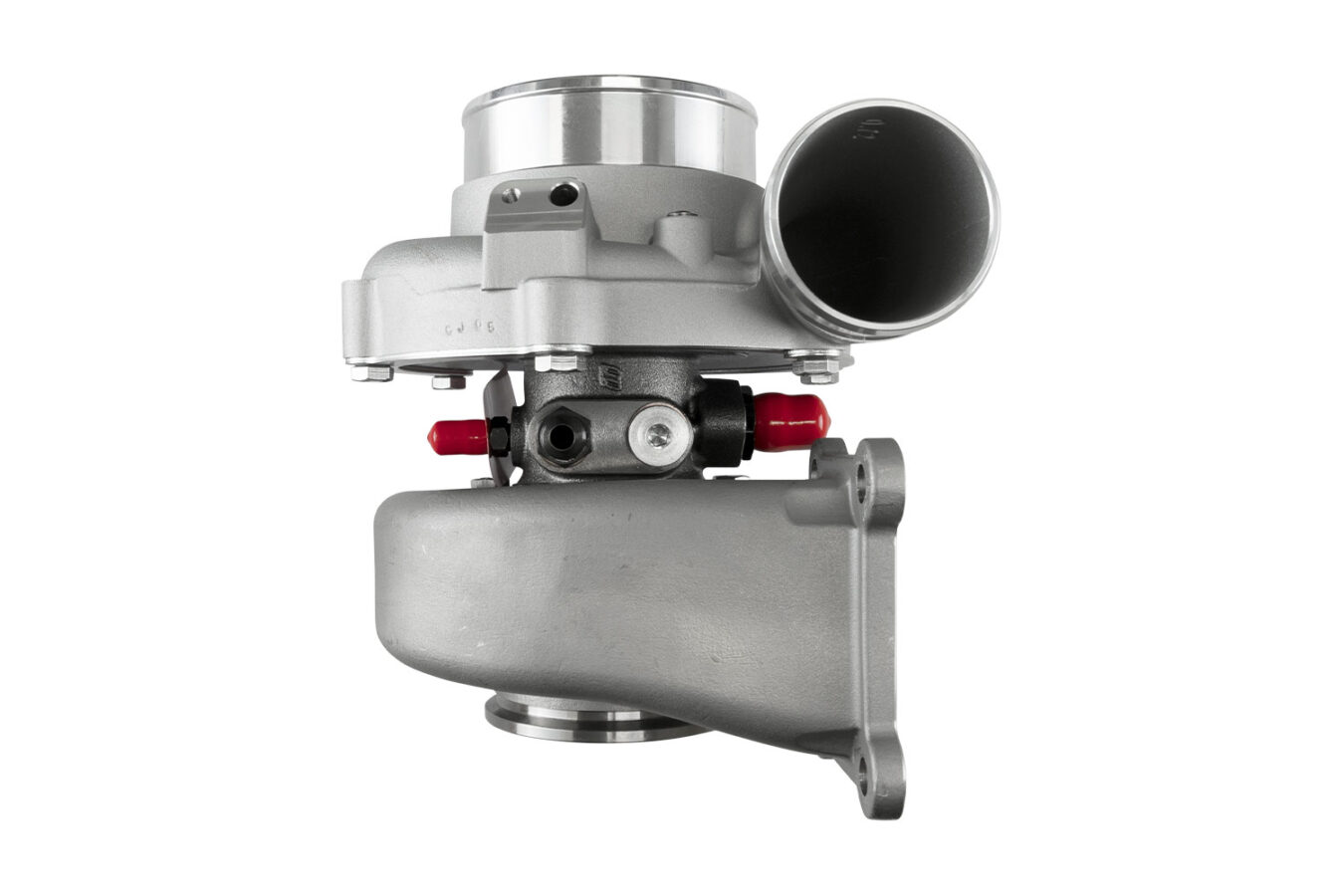

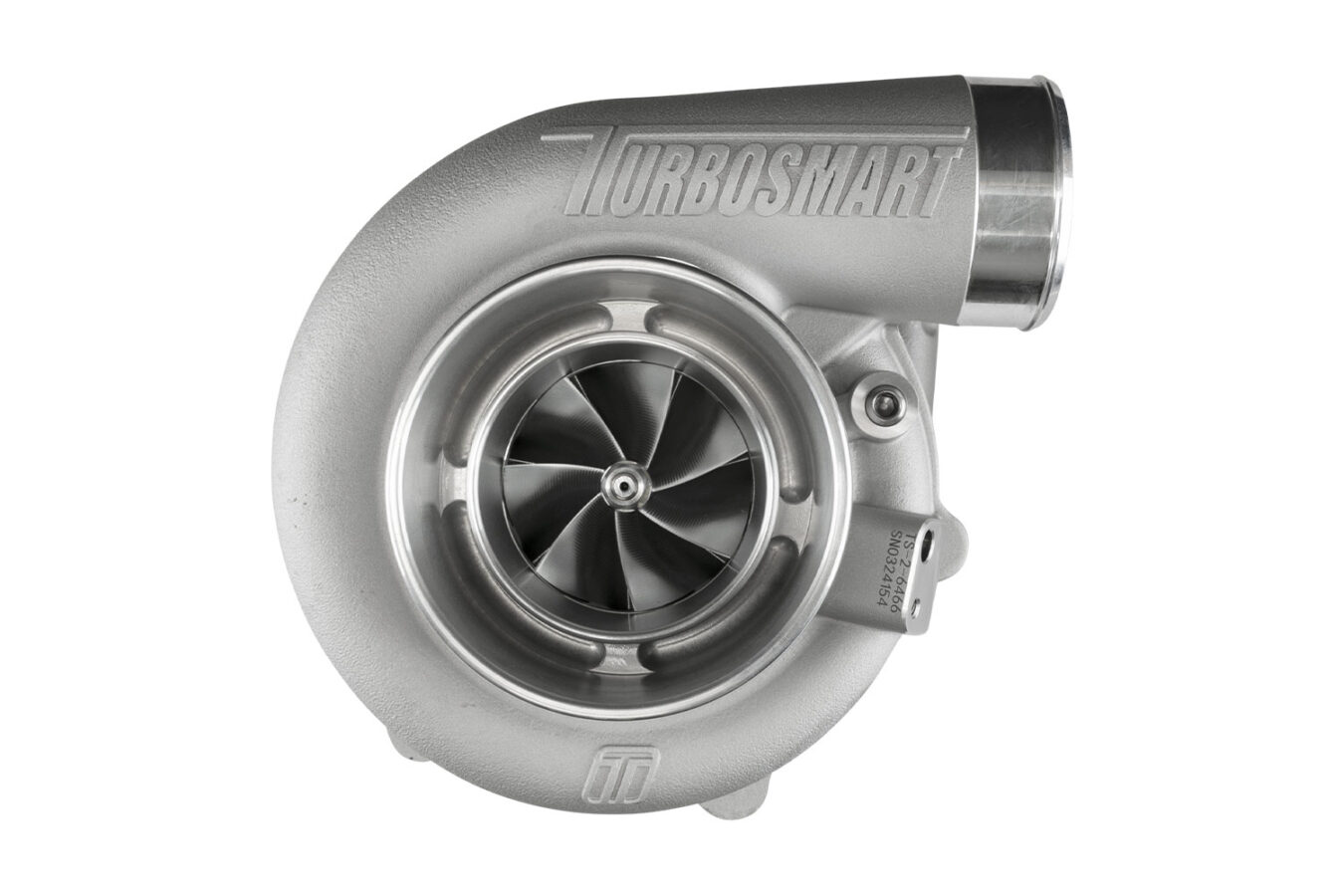

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6466 T4 Divided 1.00AR Externally Wastegated

Smaller, lighter, and faster—Turbosmart’s turbocharger series is engineered with cutting-edge materials and design to meet the demands of motorsport and performance enthusiasts.

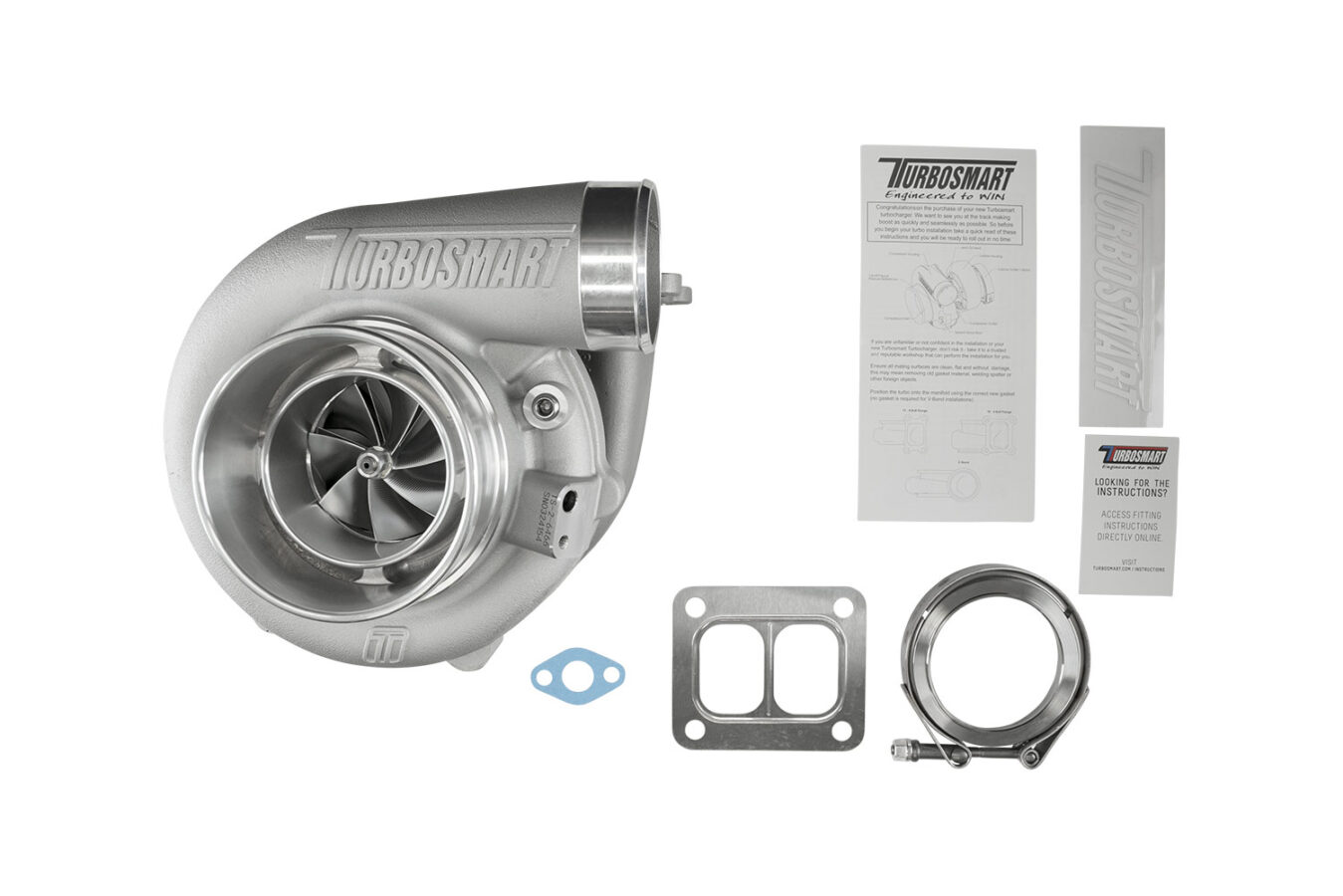

Each turbo includes everything needed for installation: weld flanges, V-band clamps, gaskets, and both oil and water fittings.

The TS-2 series is water and oil-cooled, using lightweight investment cast turbine housings and a proprietary bearing/shaft combo for lightning-fast response, superior performance, and reliability.

Its ultra-low rotating mass pairs with advanced compressor aerodynamics to deliver high performance at lower shaft speeds, while a custom turbine wheel ensures sustained power and flow under load.

Turbosmart’s end-to-end approach reduces back pressure, improves efficiency, and beats the competition with quicker spool and better flow.

Available Options

• TS-1 oil-cooled turbochargers

• TS-2 oil & water-cooled turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Various A/R sizes

• Internal or external wastegated options

Key Features

• Instant transient response

• 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel turbine housings

• Aluminum compressor covers

• CFD-optimized housings

• 713C Inconel turbine wheel (handles extreme EGTs)

• VSR speed balanced

• Dual ceramic bearing system

• Integrated iron backplate

Specifications

• Compressor Inlet: 4″ (101.6 mm)

• Compressor Inducer: 64 mm

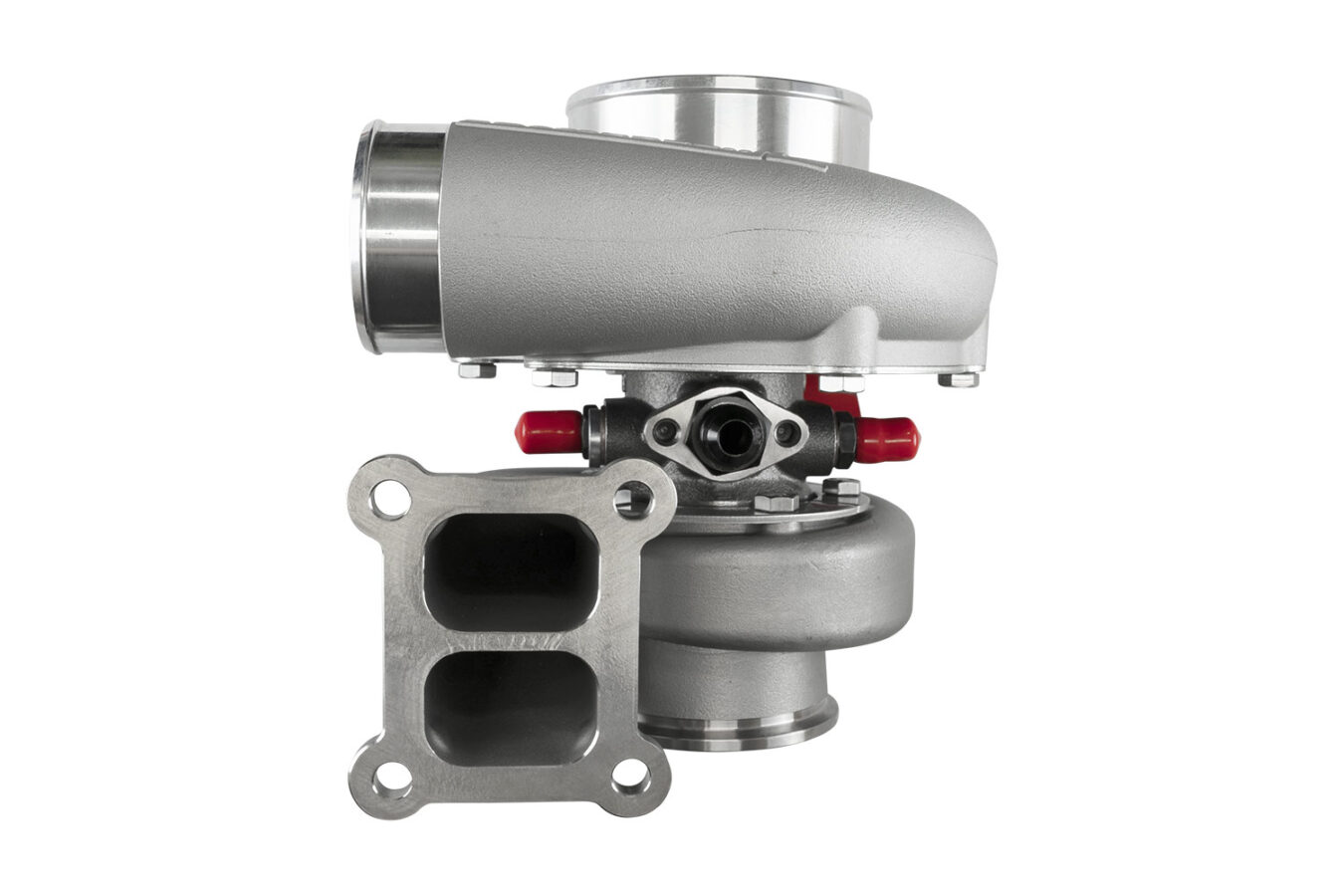

• Turbine Inlet: T4 Divided Flange

• Turbine Exducer: 66 mm

• Turbine A/R: 1.00

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 825–955 HP
