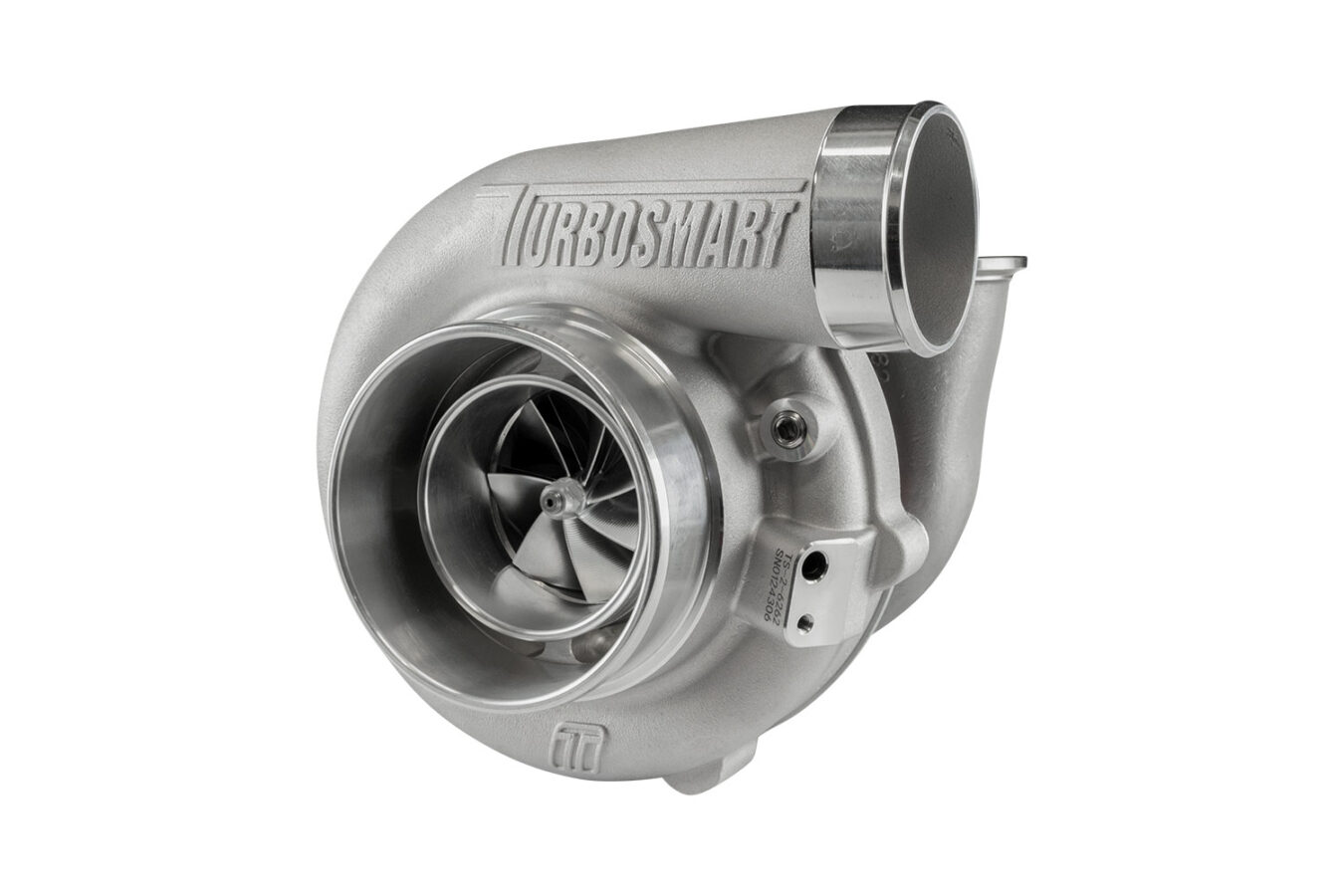

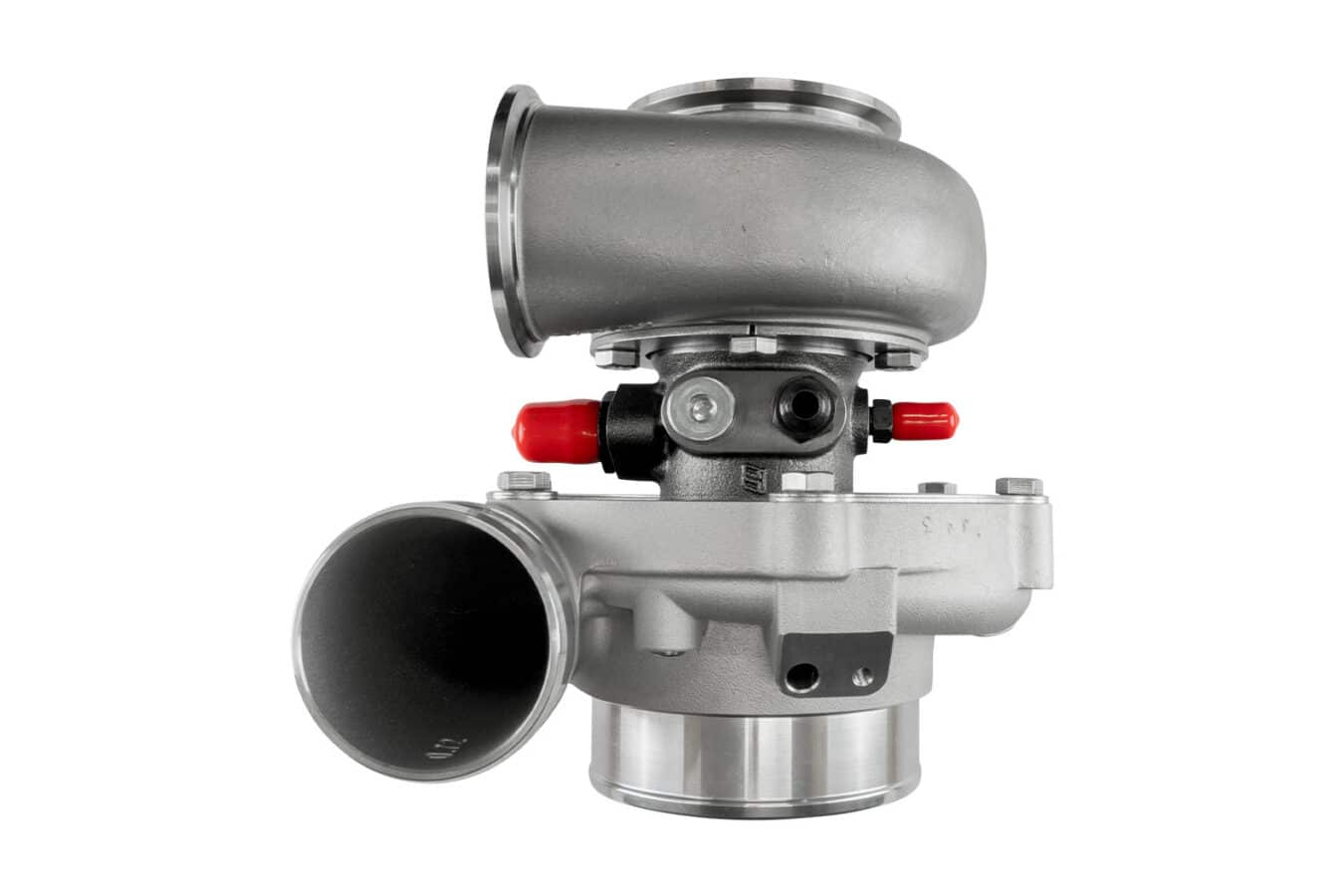

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6466 V-Band 0.82AR Externally Wastegated

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is designed with advanced materials, precision engineering, and cutting-edge manufacturing techniques. The result: a turbocharger range built to satisfy the rigorous demands of motorsport and high-performance enthusiasts alike.

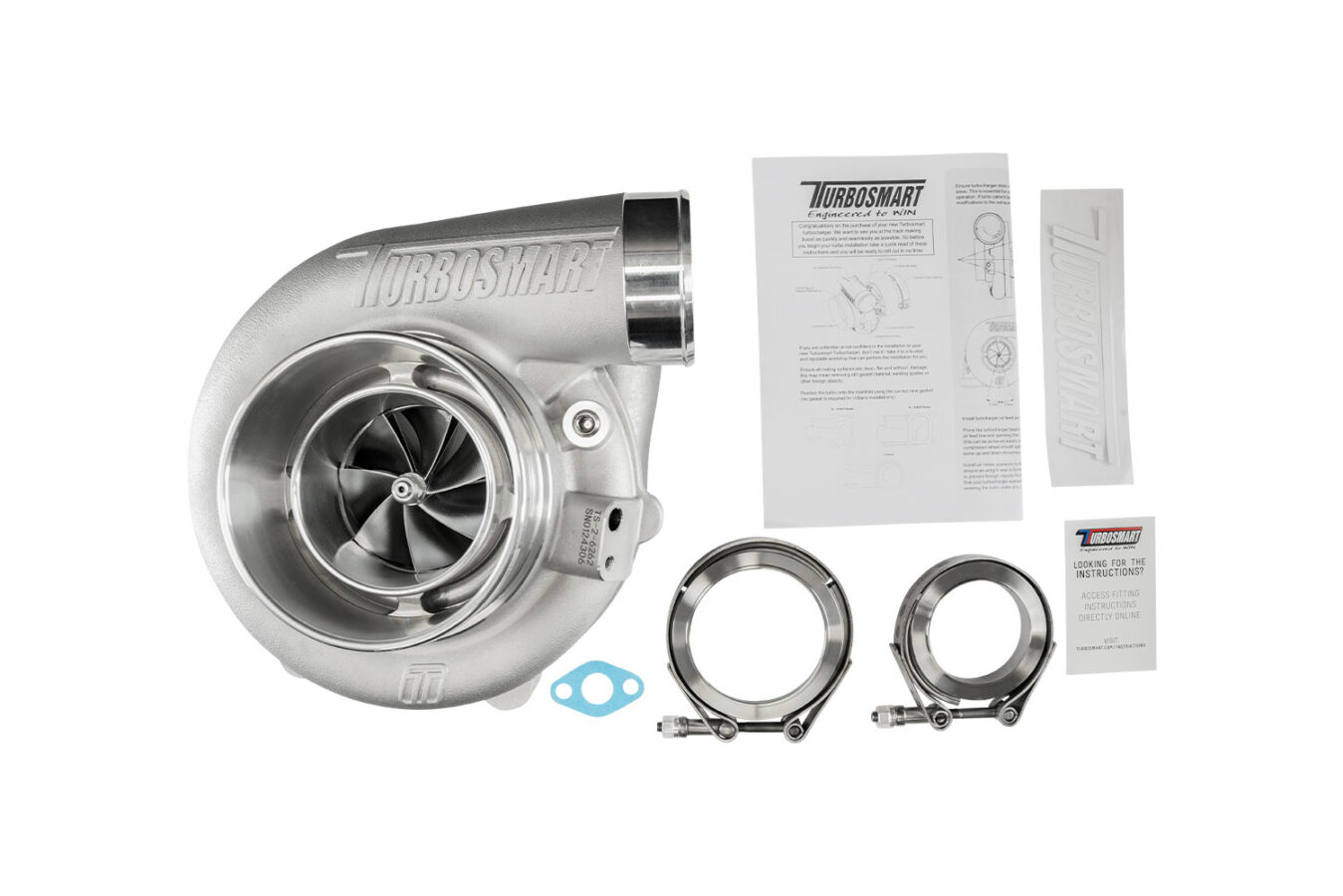

Complete Installation Kit

Every Turbosmart turbocharger includes all necessary components:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

• Water feed and return fittings

TS-2 Series Overview

The TS-2 Series features both water and oil cooling, utilizing lightweight investment cast turbine housings and a proprietary bearing and shaft combo for unmatched transient response.

Engineered with an ultra-low rotating mass and aggressive compressor aerodynamics, these turbos offer high performance at lower shaft speeds. A custom turbine wheel ensures consistent power delivery at high loads and flow rates.

Turbosmart’s engine-wide approach reduces back pressure and enhances performance through efficient turbine technology—all while remaining smaller, lighter, and faster than other solutions on the market.

Available Options

• TS-1: Oil-cooled turbochargers

• TS-2: Oil and water-cooled turbochargers

• V-Band, T3, and T4 flange configurations

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal or external wastegated models

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Aluminum compressor covers

• CFD-optimized housings for optimal A/R and flow

• 713C Inconel turbine wheel for extreme exhaust temps (EGTs)

• VSR speed balanced for precision

• Proprietary dual ceramic bearing system

• Integrated iron backplate in center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 64 mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 66 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 825–955 HP
