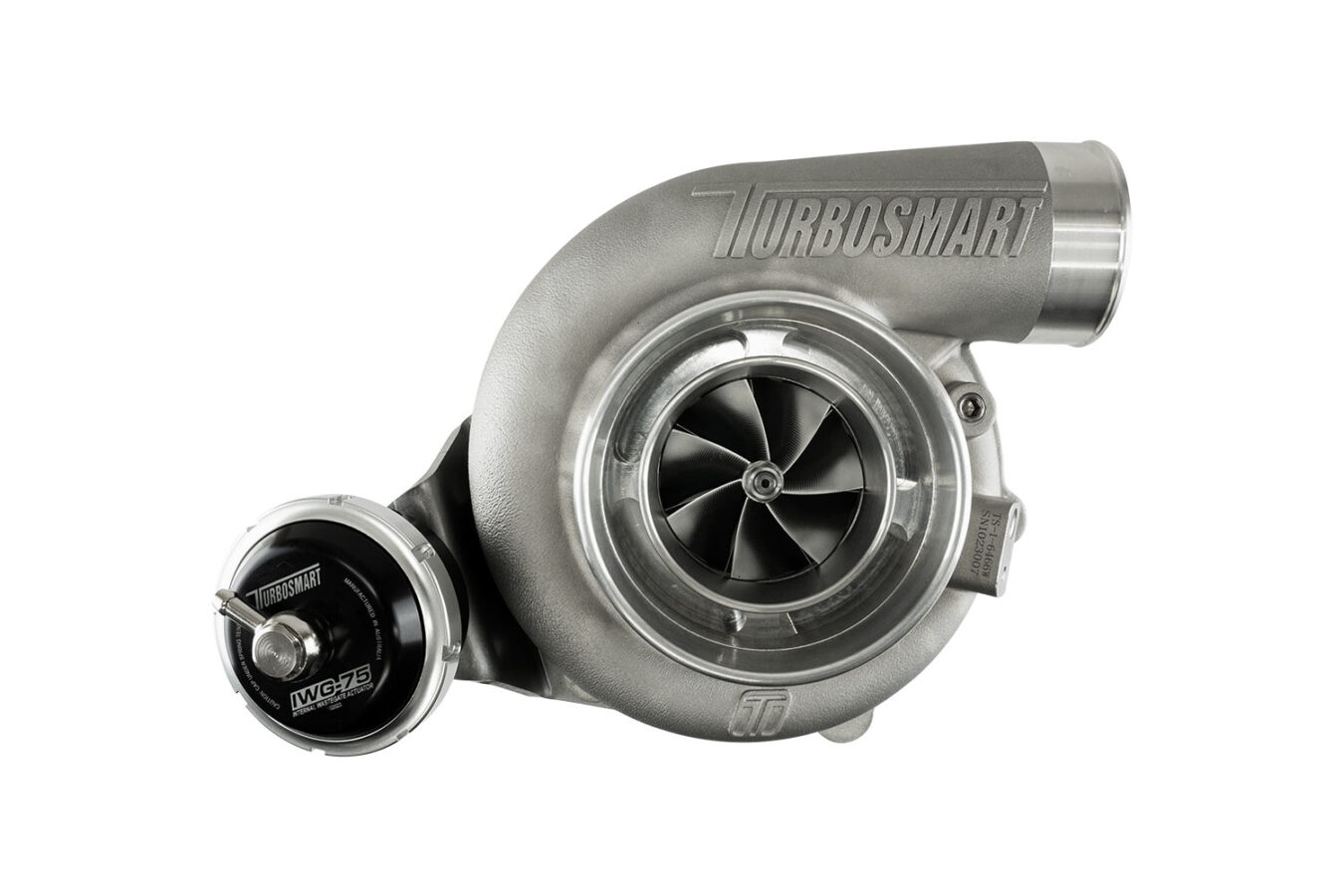

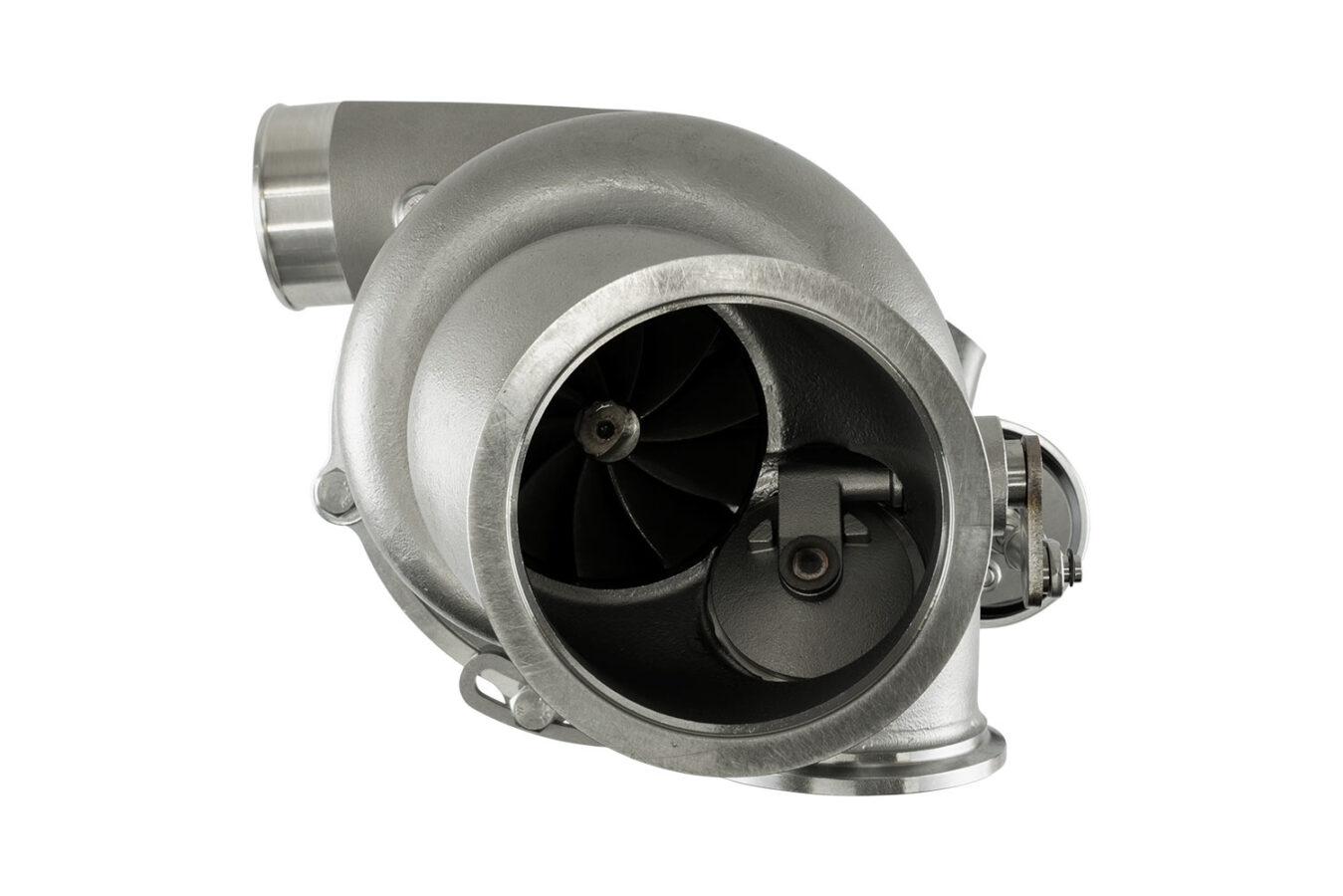

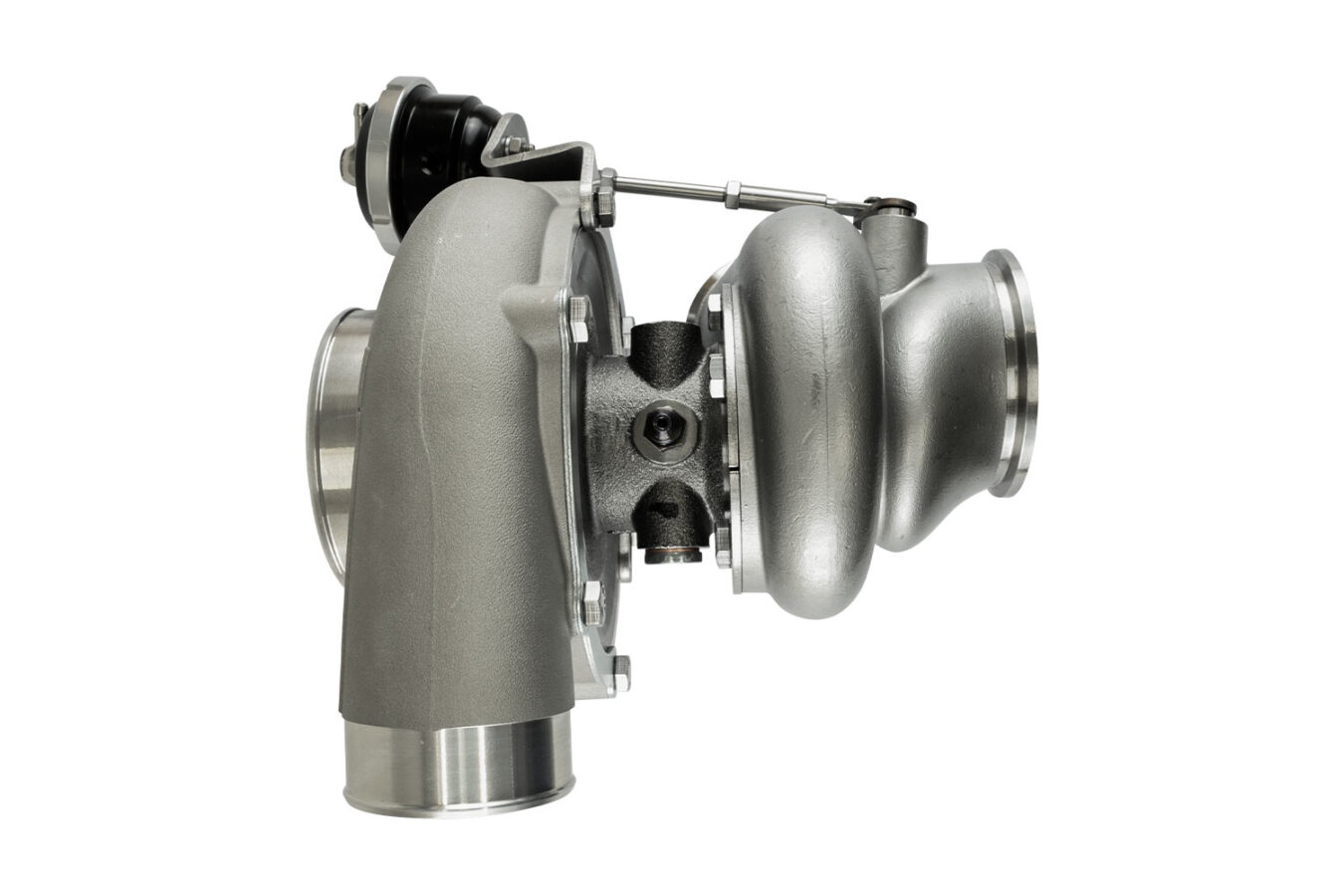

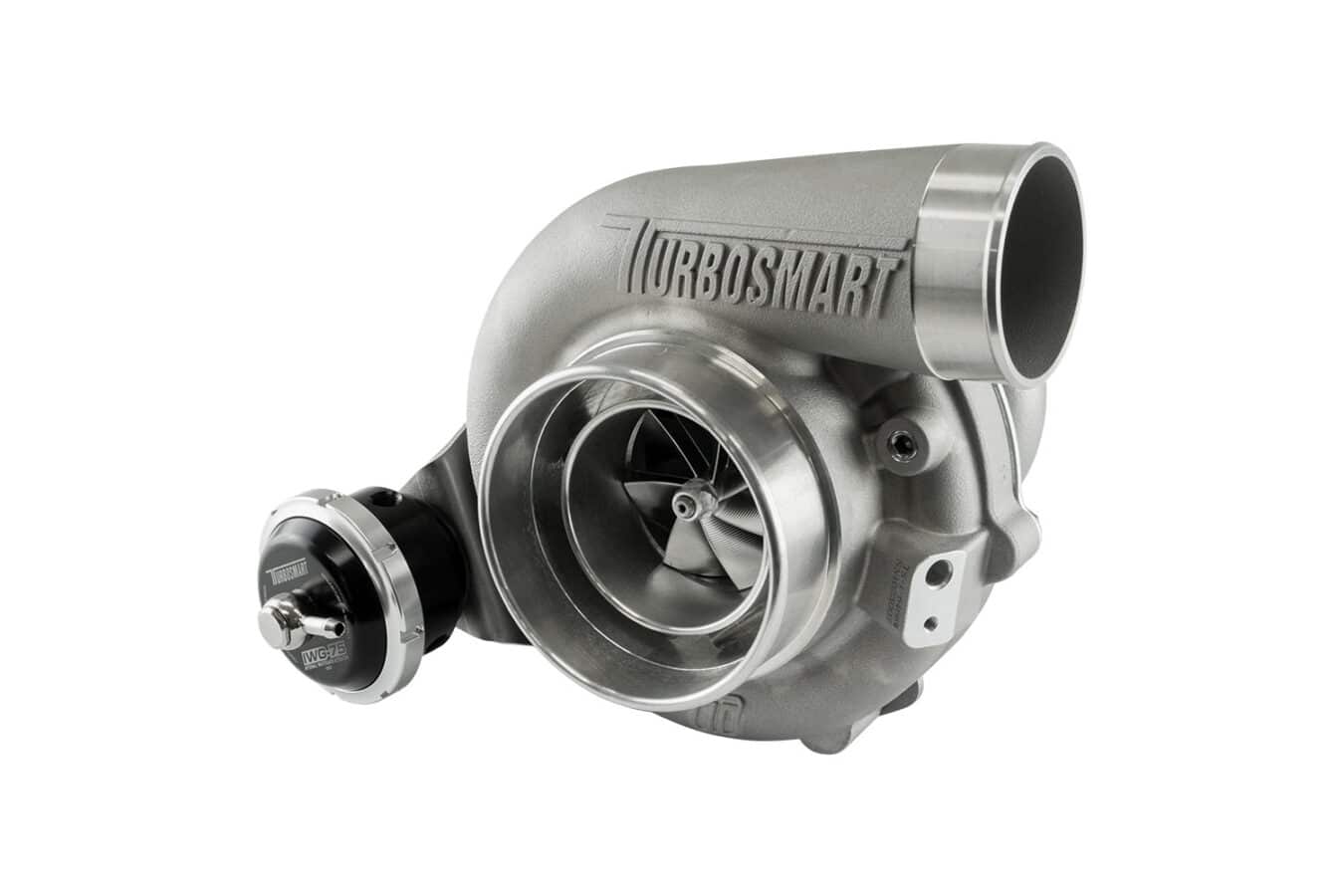

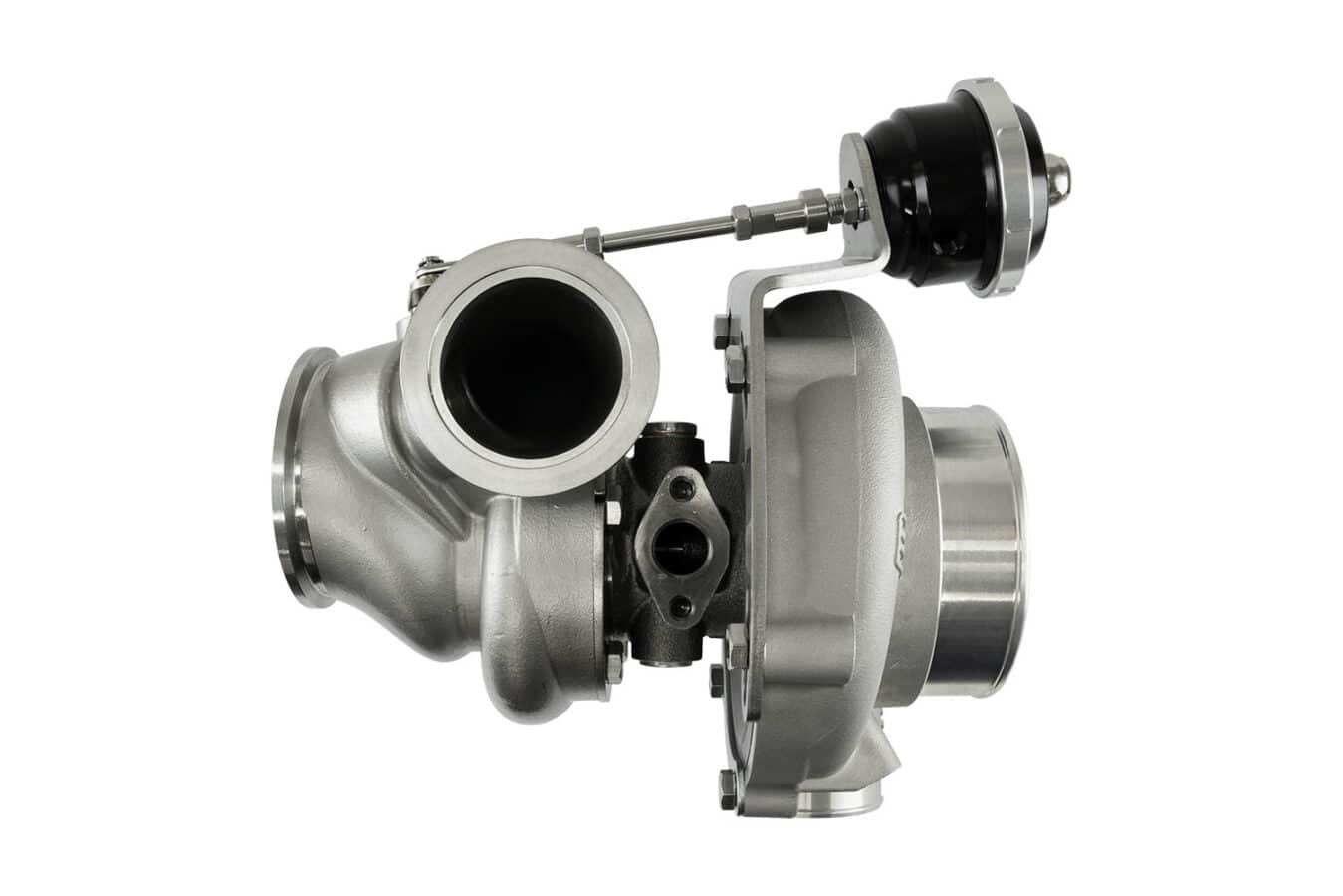

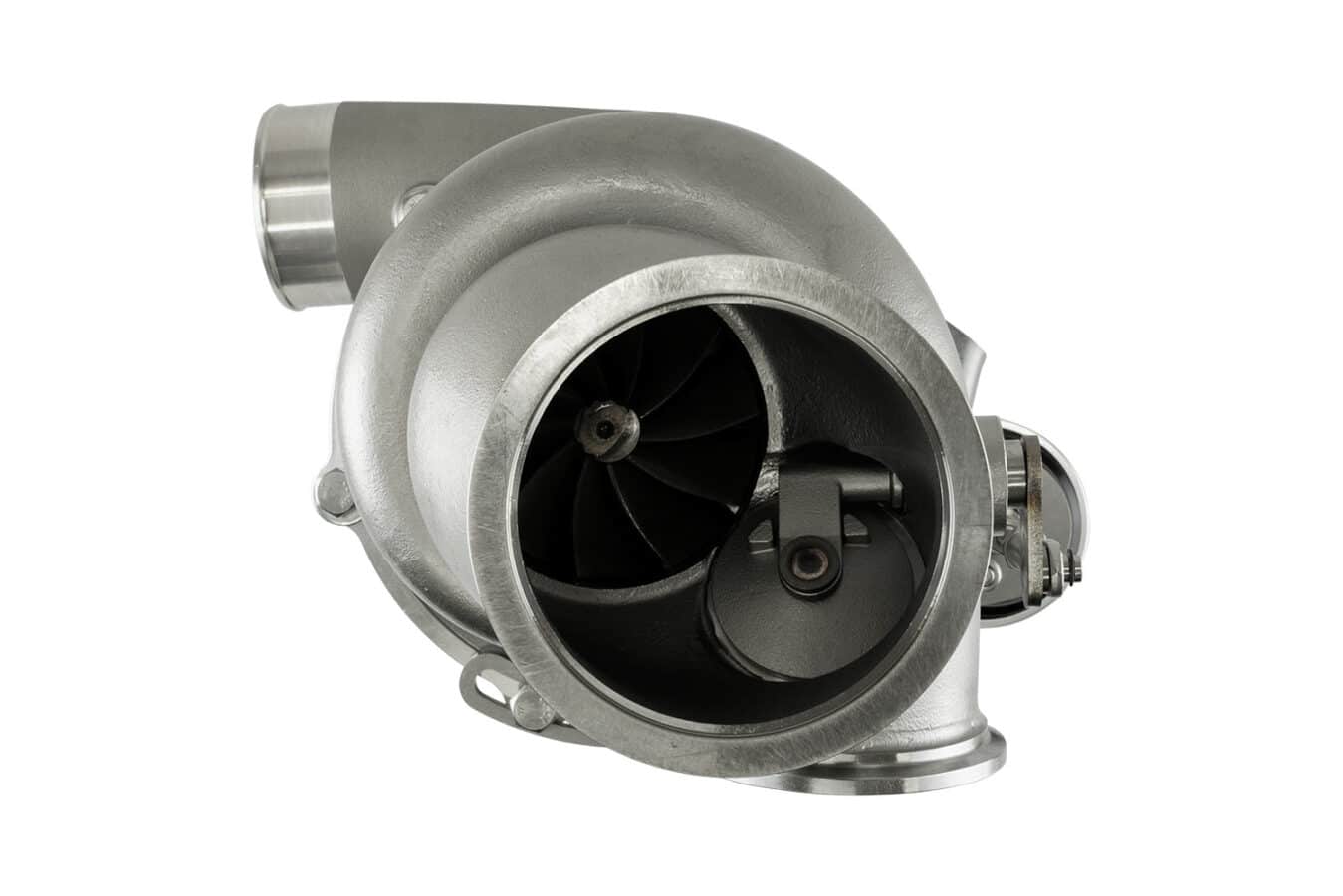

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6466 V-Band 0.82AR Internally Wastegated

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered using modern materials, advanced design, and precision manufacturing to deliver performance that meets the demands of motorsport and performance enthusiasts alike.

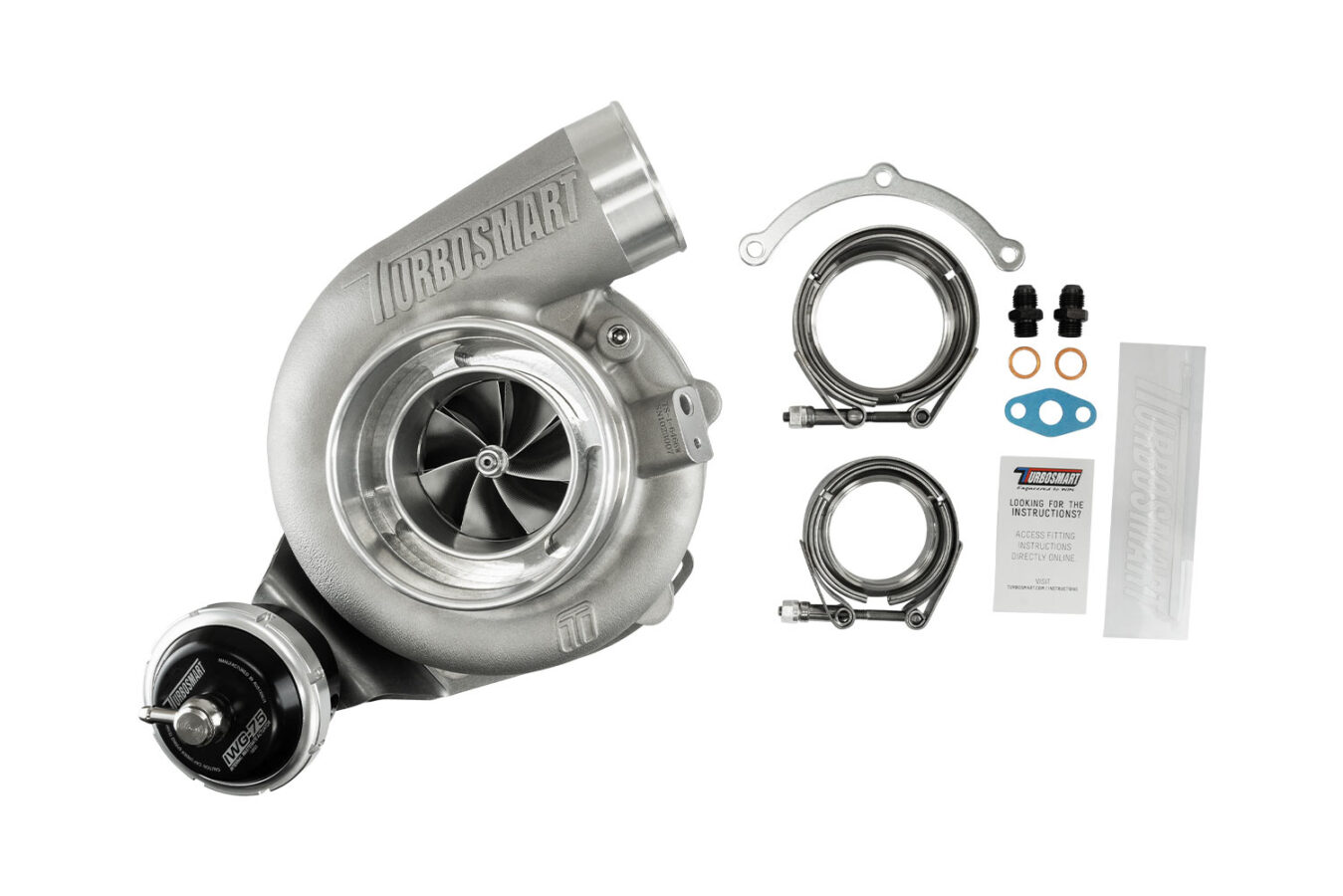

Every Turbosmart turbocharger includes everything required for installation:
Weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed and return fittings come standard.

TS-2 Series Overview

The TS-2 Series turbochargers are both oil and water-cooled, featuring:

• Lightweight investment-cast turbine housings

• A proprietary bearing and main shaft combo for unparalleled transient response

• Ultra-low rotating mass

• Aggressive compressor aerodynamics for peak performance at lower shaft speeds

• A unique turbine wheel design for consistent power at high loads and flow

Turbosmart’s end-to-end engine approach reduces back pressure while increasing turbine performance—all in a smaller, lighter, and faster package than competing solutions.

Available Options

• TS-1 Series: Oil-cooled turbochargers

• TS-2 Series: Oil and water-cooled turbochargers

• V-Band, T3 flange, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R options

• Internal and external wastegated configurations

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for high EGT resistance

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 64 mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 66 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 825–955 HP
