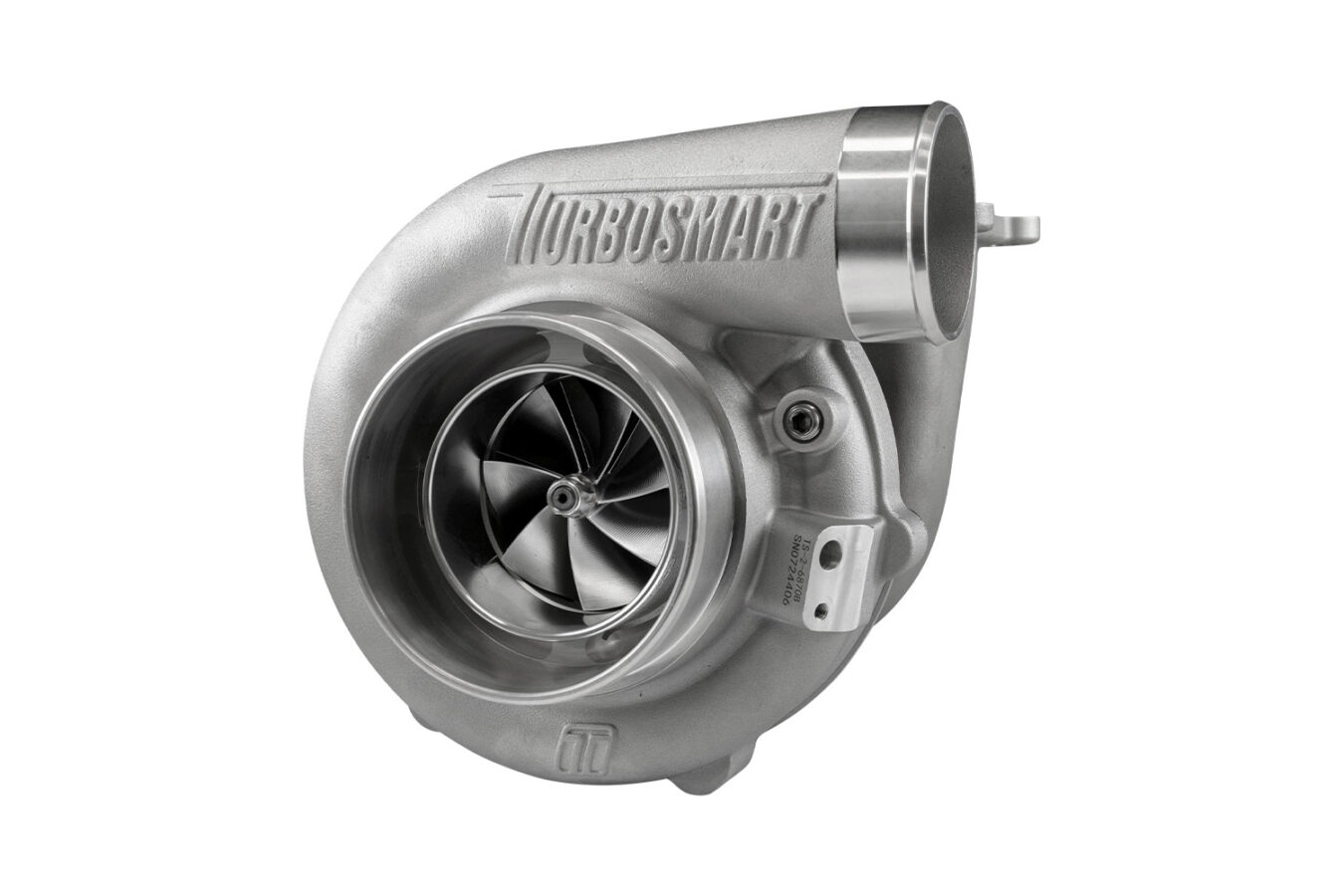

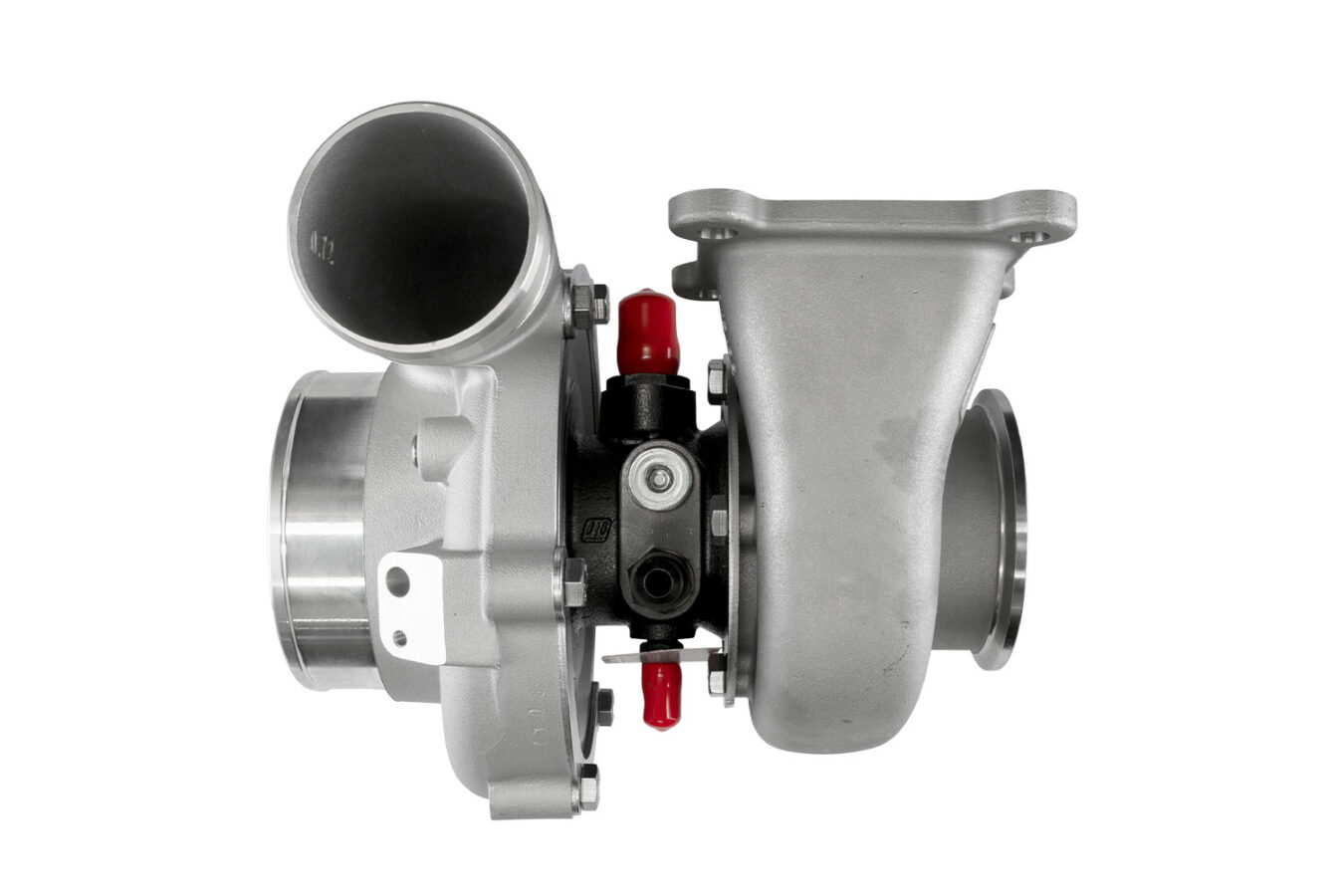

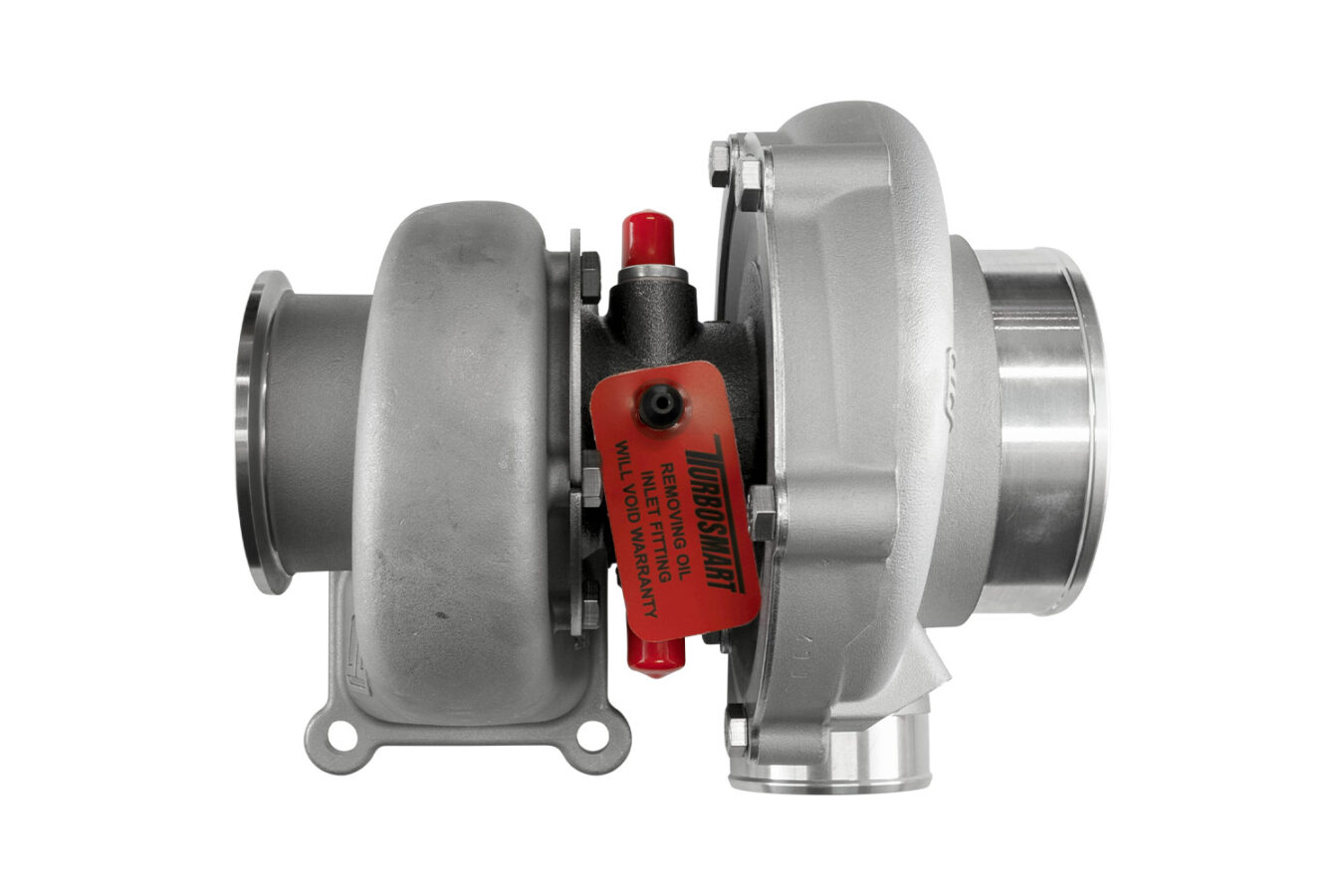

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6870 (Kompact) T4 0.82AR Externally Wastegated

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered using modern materials, precision design, and advanced manufacturing techniques to meet the demands of motorsport and performance enthusiasts alike.

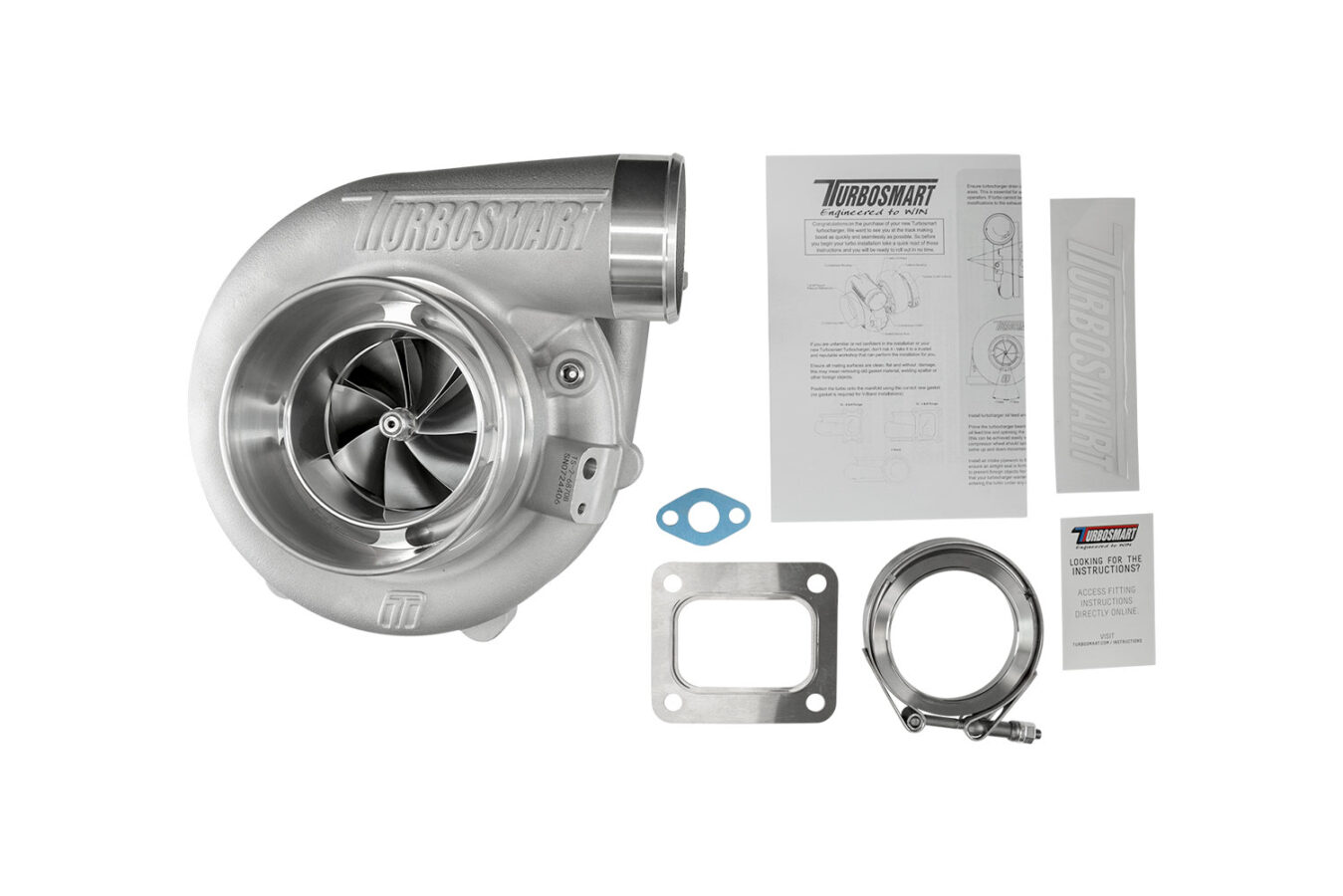

Each turbocharger includes everything you need for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings, as well as water feed and return fittings.

The TS-2 Series is a line of oil- and water-cooled turbochargers featuring lightweight investment-cast turbine housings and a proprietary bearing and shaft combination. These turbos deliver lightning-fast transient response with the performance, quality, and reliability Turbosmart is known for.

With ultra-low rotating mass and aggressive compressor aerodynamics, the TS-2 ensures strong performance at low shaft speeds and maintains power under high load. Its unique turbine design helps reduce backpressure and maximize efficiency—while staying smaller, lighter, and quicker in response than other options on the market.

Available Options

• TS-1 (Oil-Cooled Turbochargers)

• TS-2 (Oil & Water-Cooled Turbochargers)

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Various A/R configurations

• Internal and external wastegate options

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housing for ideal A/R and flow

• 713C Inconel turbine wheel (extreme EGT durability)

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on the center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 68 mm

• Turbine Inlet: T4 Flange

• Turbine Exducer: 70 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 850–990 HP
