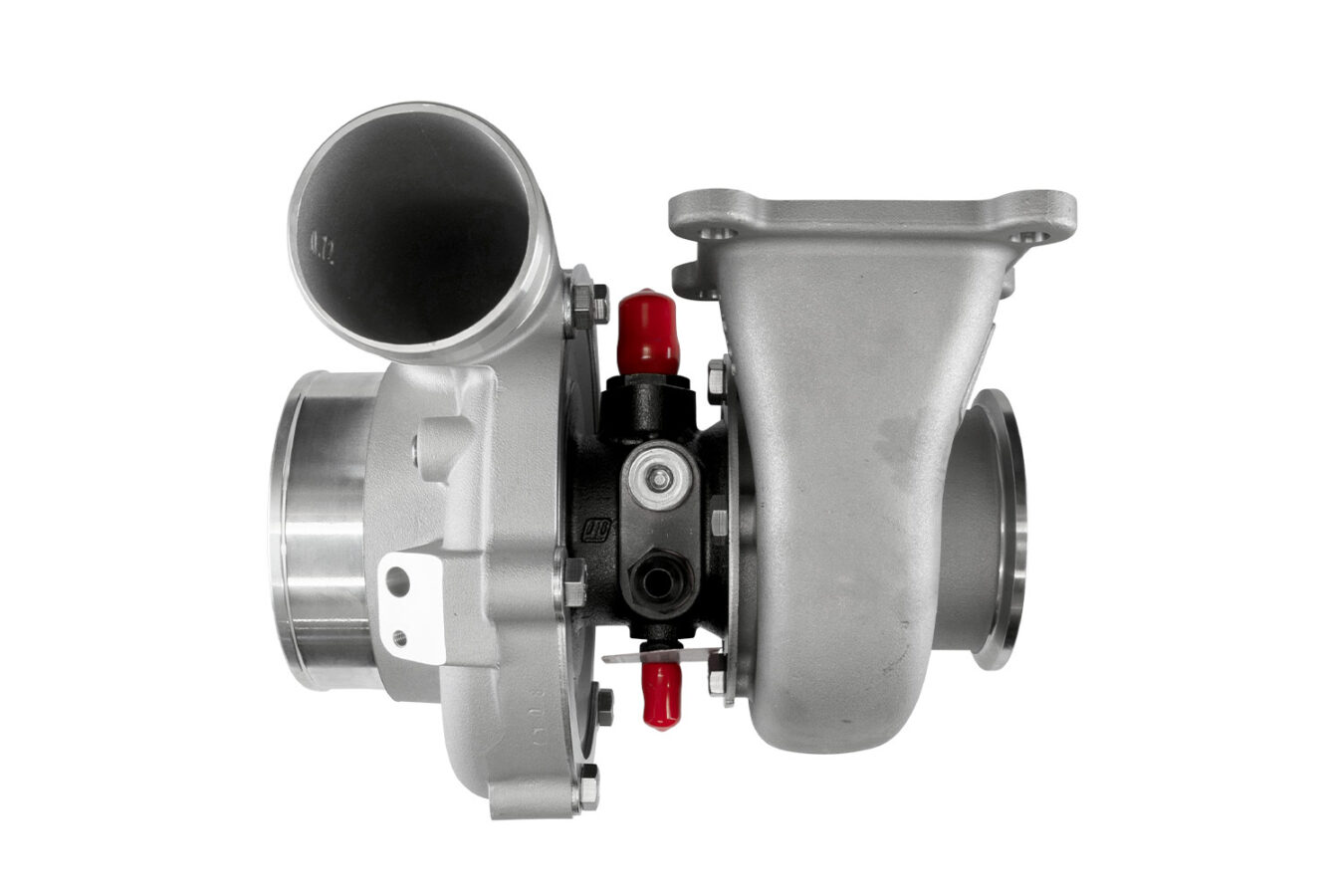

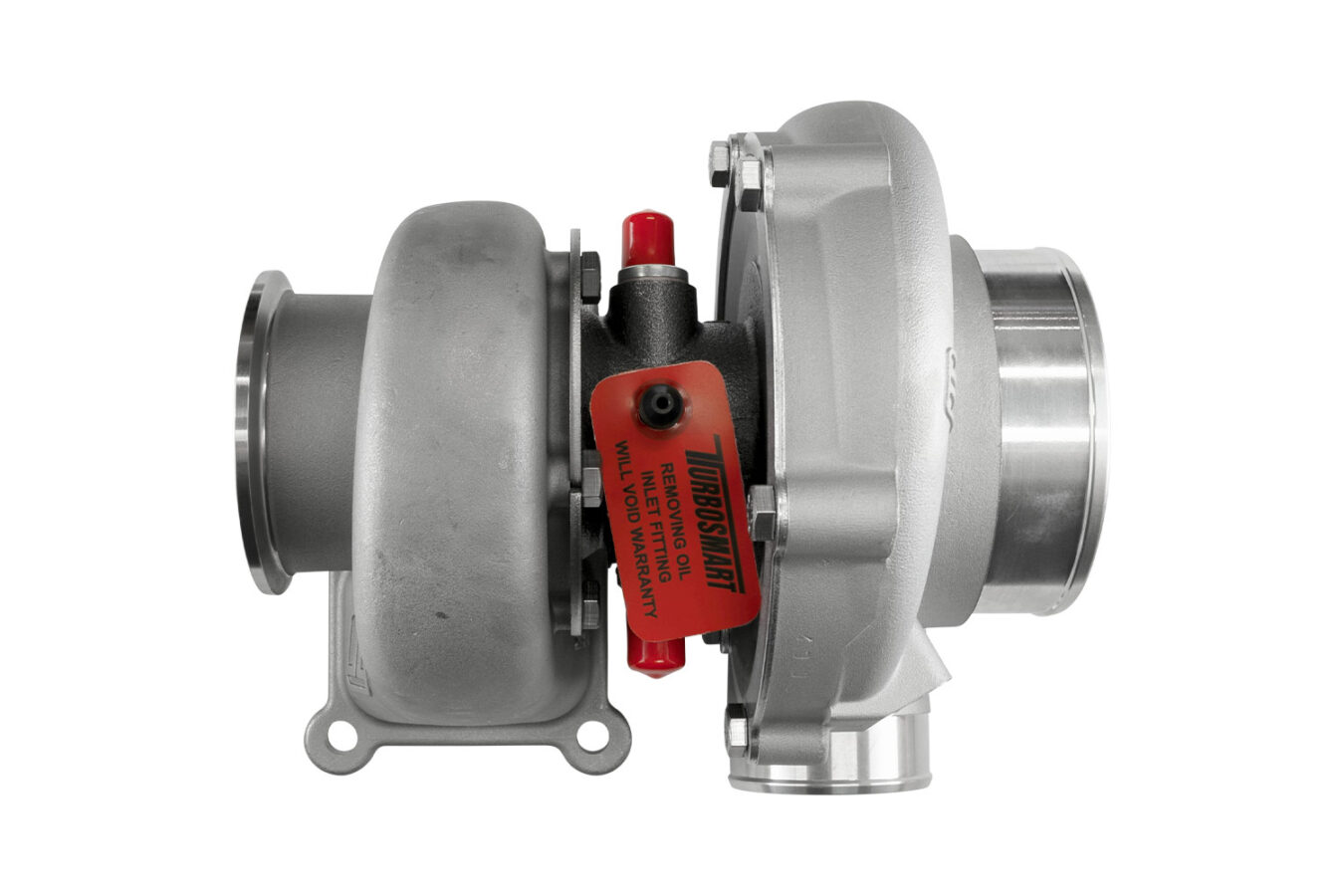

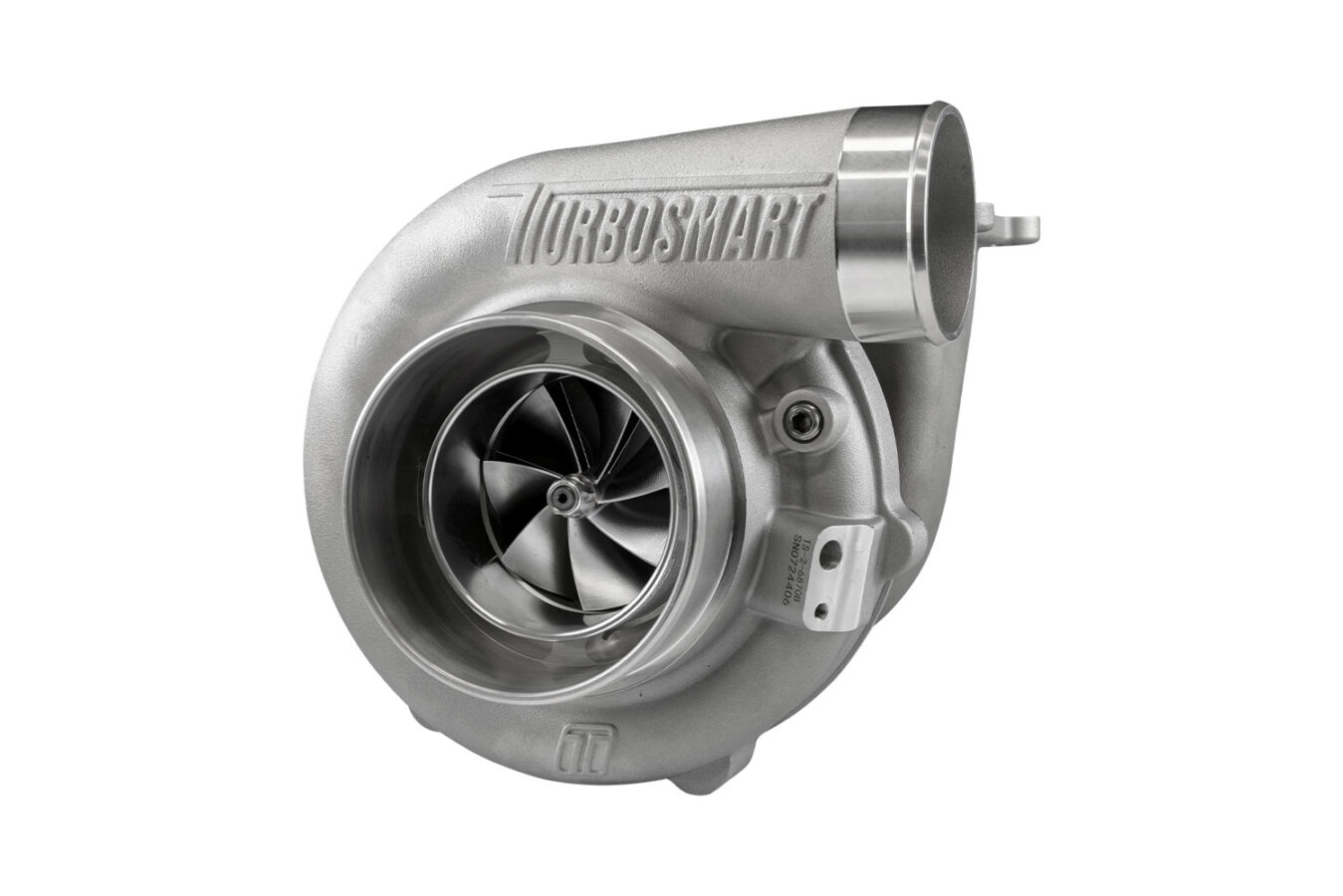

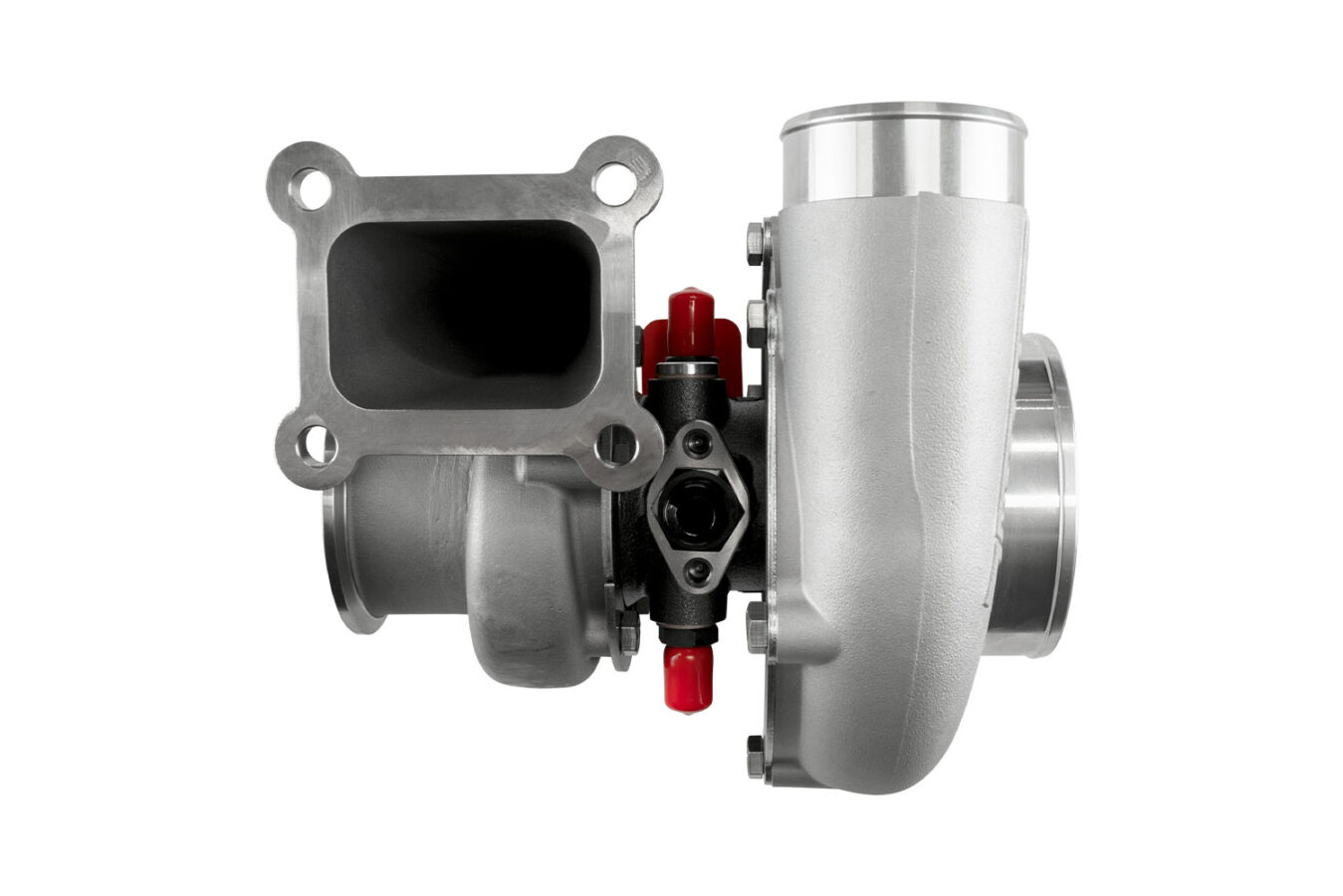

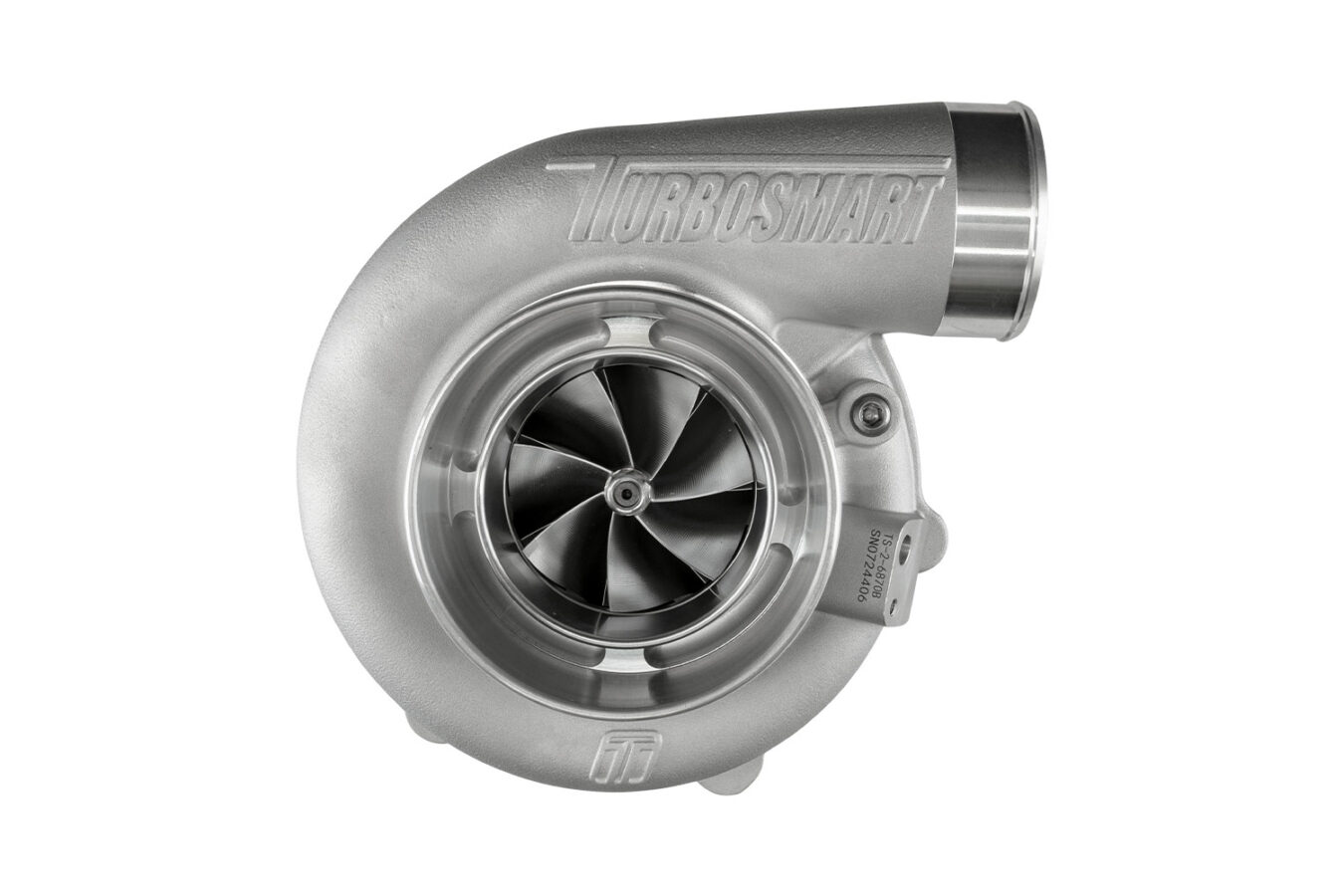

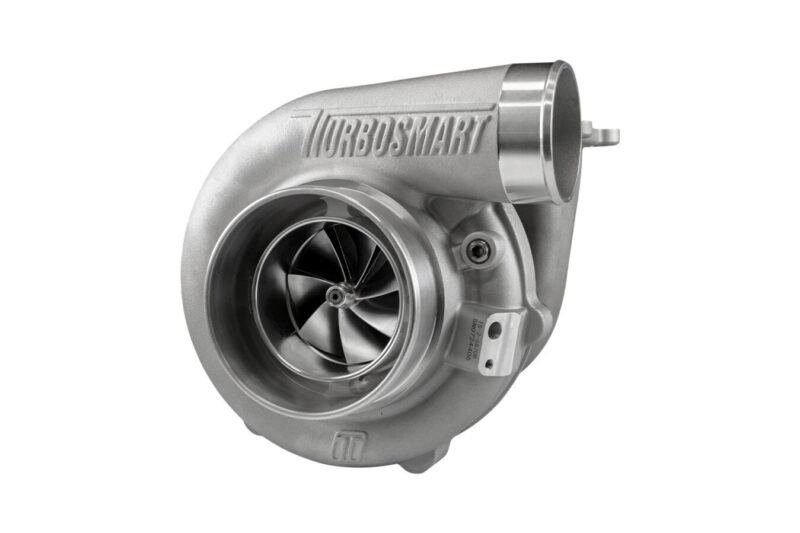

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6870 (Kompact) T4 0.96AR Externally Wastegated

Smaller. Lighter. Faster.
The TS-2 Series by Turbosmart is engineered for peak motorsport performance using cutting-edge materials, design, and manufacturing. Built for racers and performance enthusiasts, the TS-2 offers incredible response, power, and reliability in a compact, lightweight package.

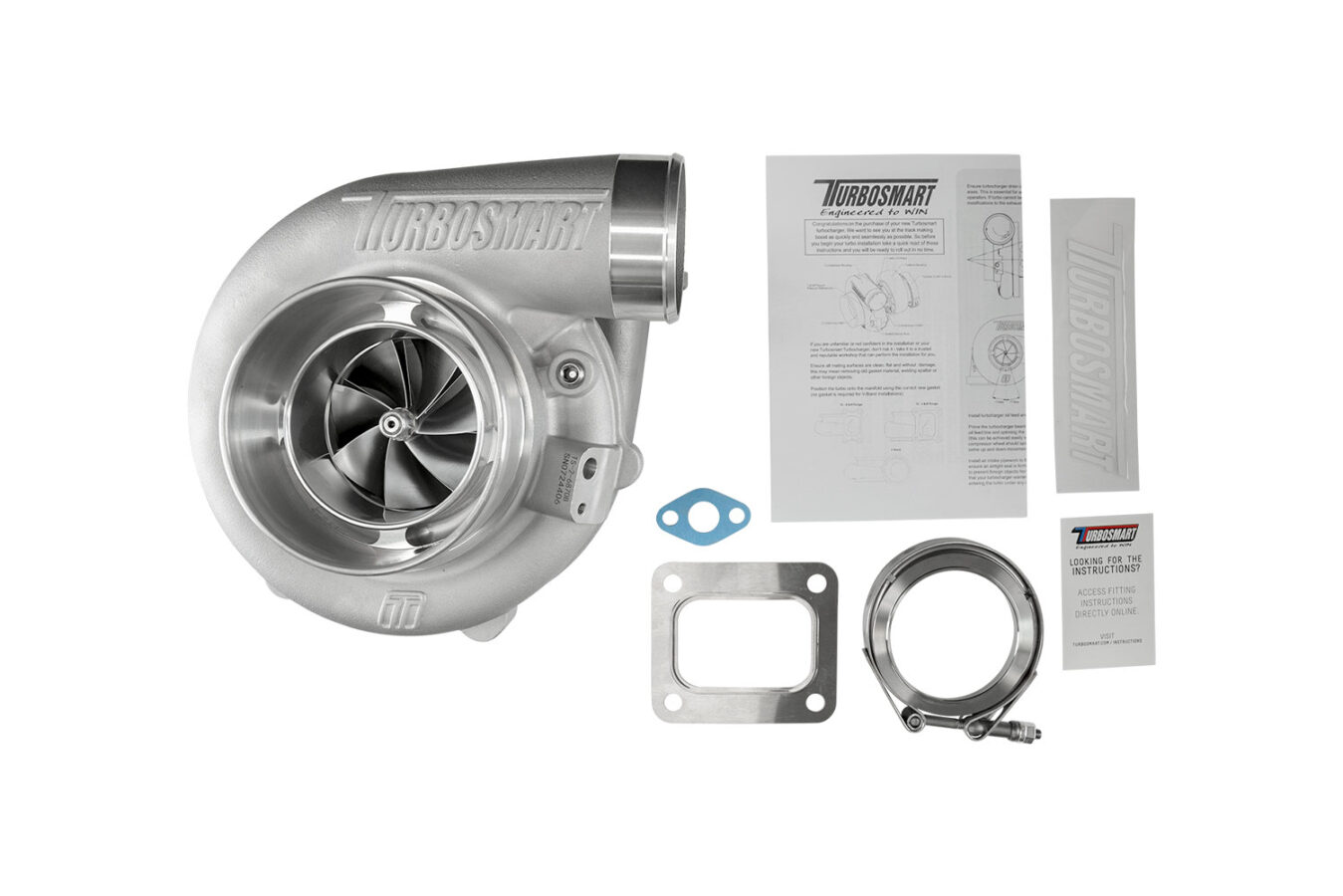

What’s Included:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

• Water feed and return fittings

TS-2 Series Overview:

• Cooling: Dual oil and water-cooled system

• Construction: Lightweight investment-cast stainless steel turbine housings

• Core: Proprietary bearing and shaft assembly for lightning-fast transient response

• Design: Aggressive compressor aerodynamics paired with ultra-low rotating mass

• Performance: Maintains power at high loads and shaft speeds

• Efficiency: Engineered to reduce backpressure and maximize flow

Available Configurations:

• TS-1 (Oil-cooled)

• TS-2 (Oil & water-cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R options

• Internal or external wastegate options

Key Features:

• Outstanding transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced for maximum precision

• Proprietary dual ceramic bearing system

• Integrated iron backplate on the center housing

Specifications:

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 68mm

• Turbine Inlet: T4 Flange

• Turbine Exducer: 70mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 850–990 HP
