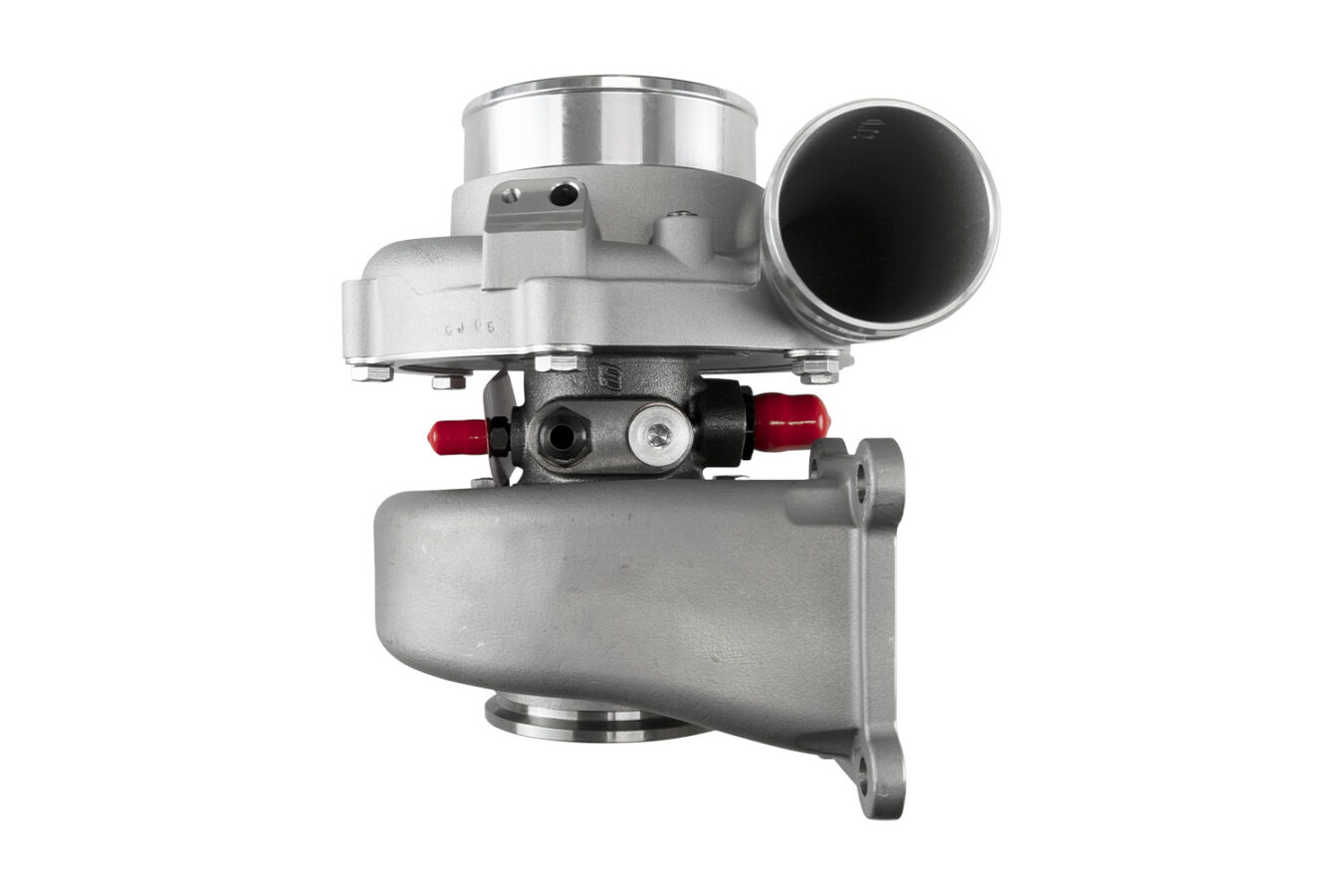

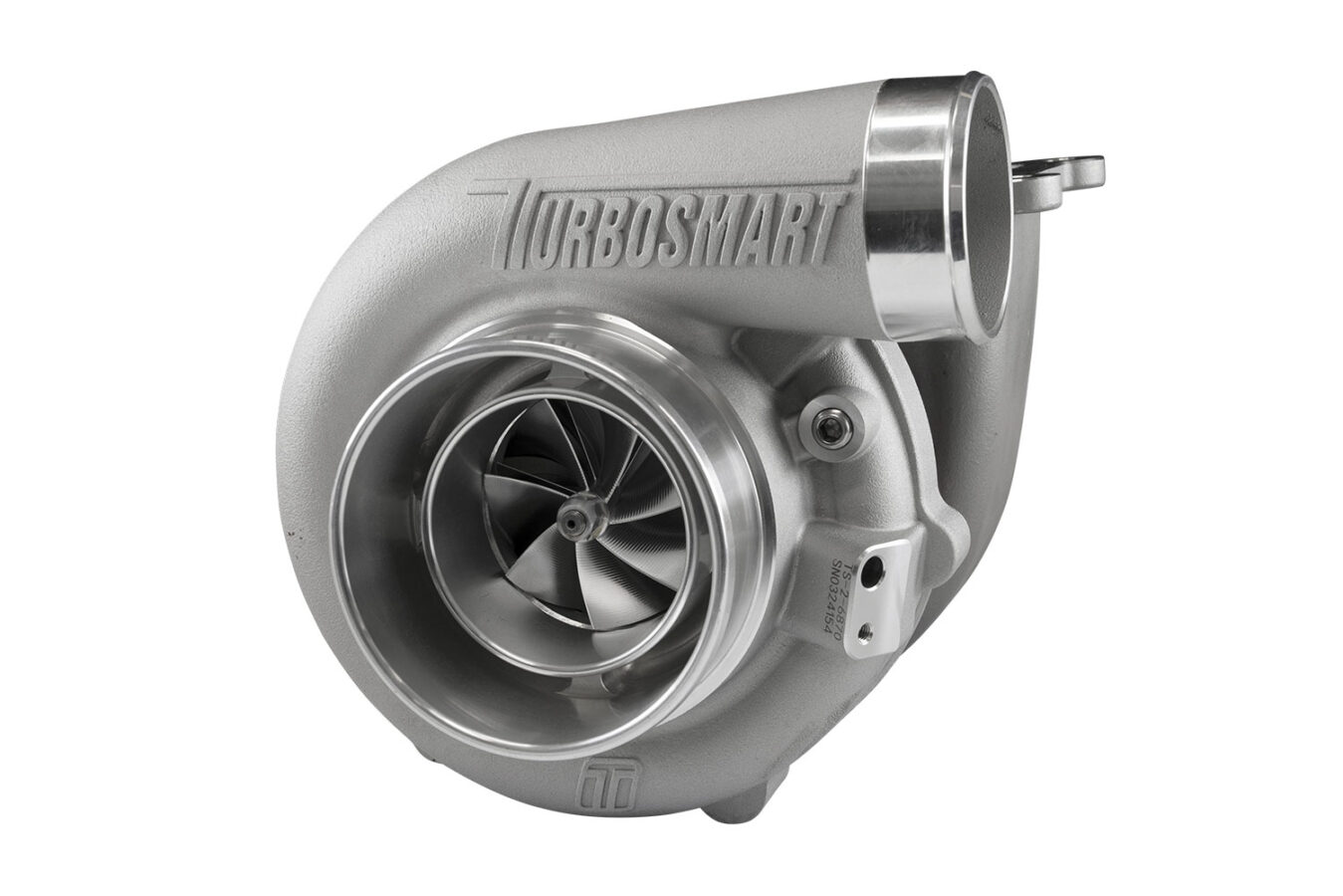

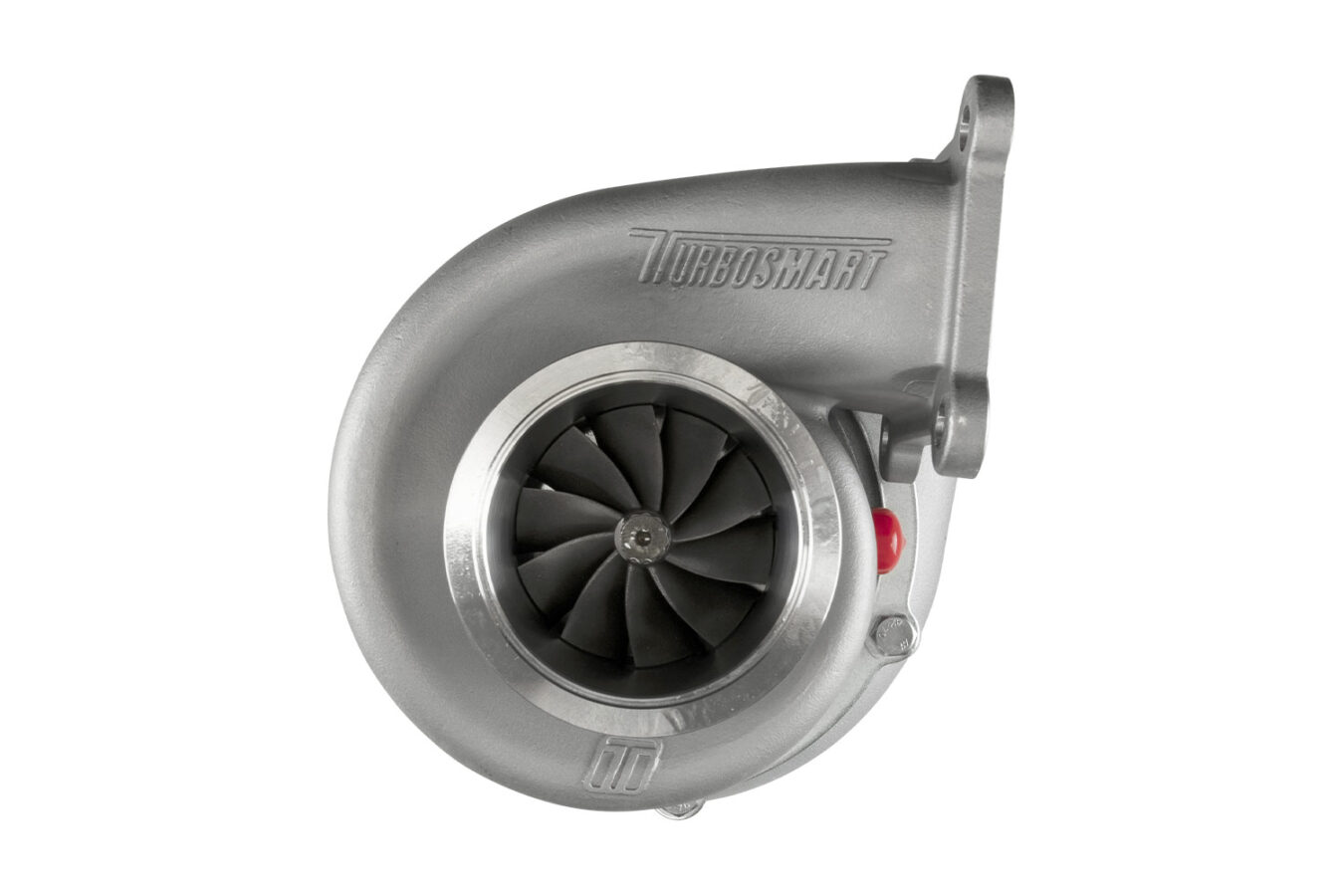

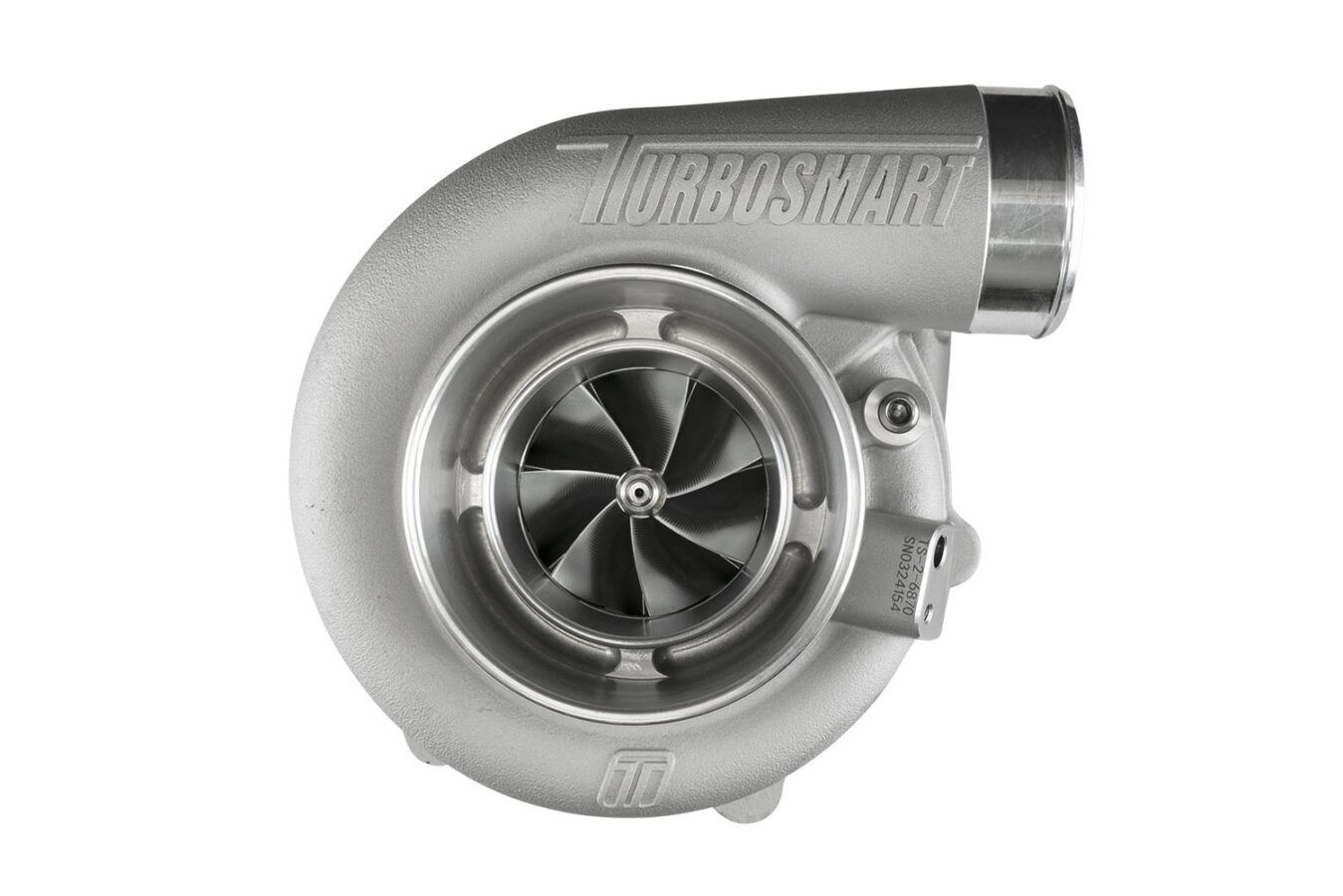

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6870 (Kompact) T4 Divided 1.00AR Externally Wastegated

Turbosmart’s TS-2 turbocharger series is engineered with modern materials, innovative design, and precision manufacturing to meet the extreme performance demands of motorsport and street enthusiasts alike.

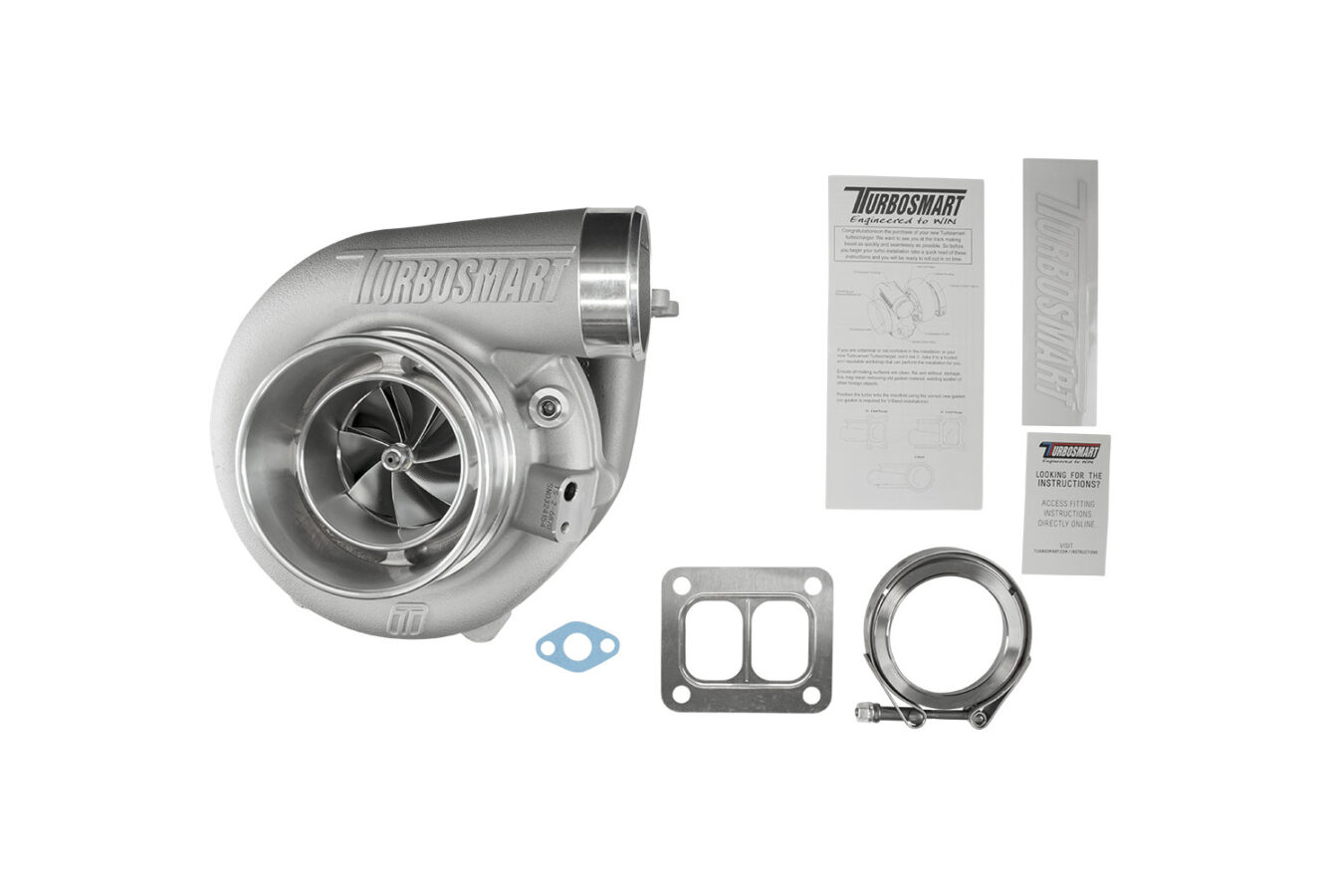

Each turbocharger includes all necessary components for installation:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

• Water feed and return fittings

TS-2 Series Overview

• Oil and water-cooled design

• Lightweight investment-cast turbine housing

• Proprietary bearing and shaft for unmatched transient response

• Ultra-low rotating mass paired with aggressive compressor aerodynamics

• Engineered for high-load power, consistent flow, and reduced backpressure

• Smaller, lighter, and quicker than other turbo solutions

Available Options

• TS-1: Oil-cooled

• TS-2: Oil and water-cooled

• V-Band, T3, and T4 flange configurations

• Reverse rotation (select sizes)

• Multiple A/R ratios

• Internal or external wastegate options

Key Features

• Instant transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT resistance

• VSR speed balanced for durability

• Proprietary dual ceramic bearing system

• Integrated iron backplate in center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 68 mm

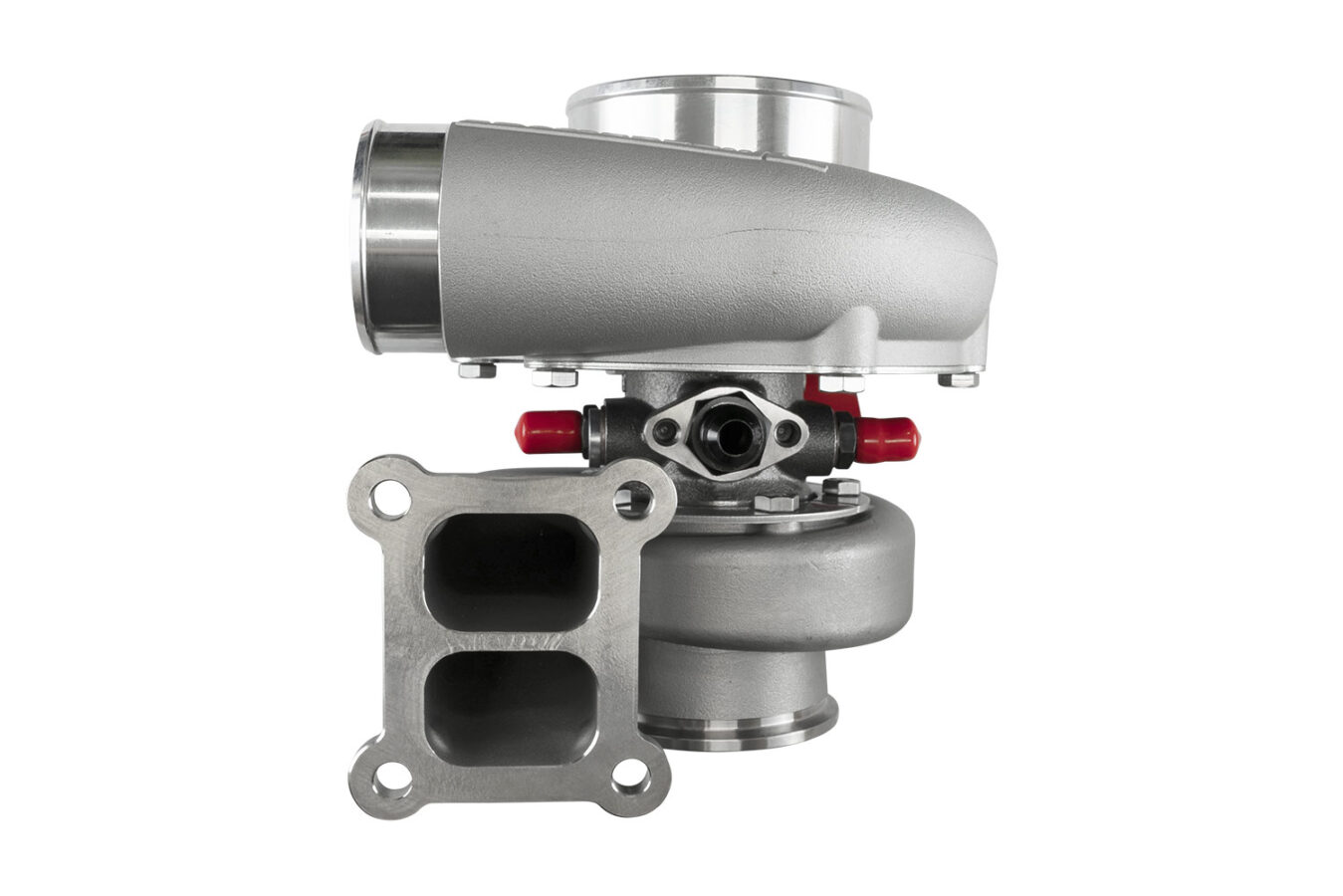

• Turbine Inlet: T4 Divided Flange

• Turbine Exducer: 70 mm

• Turbine A/R: 1.00

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 850–990 HP
