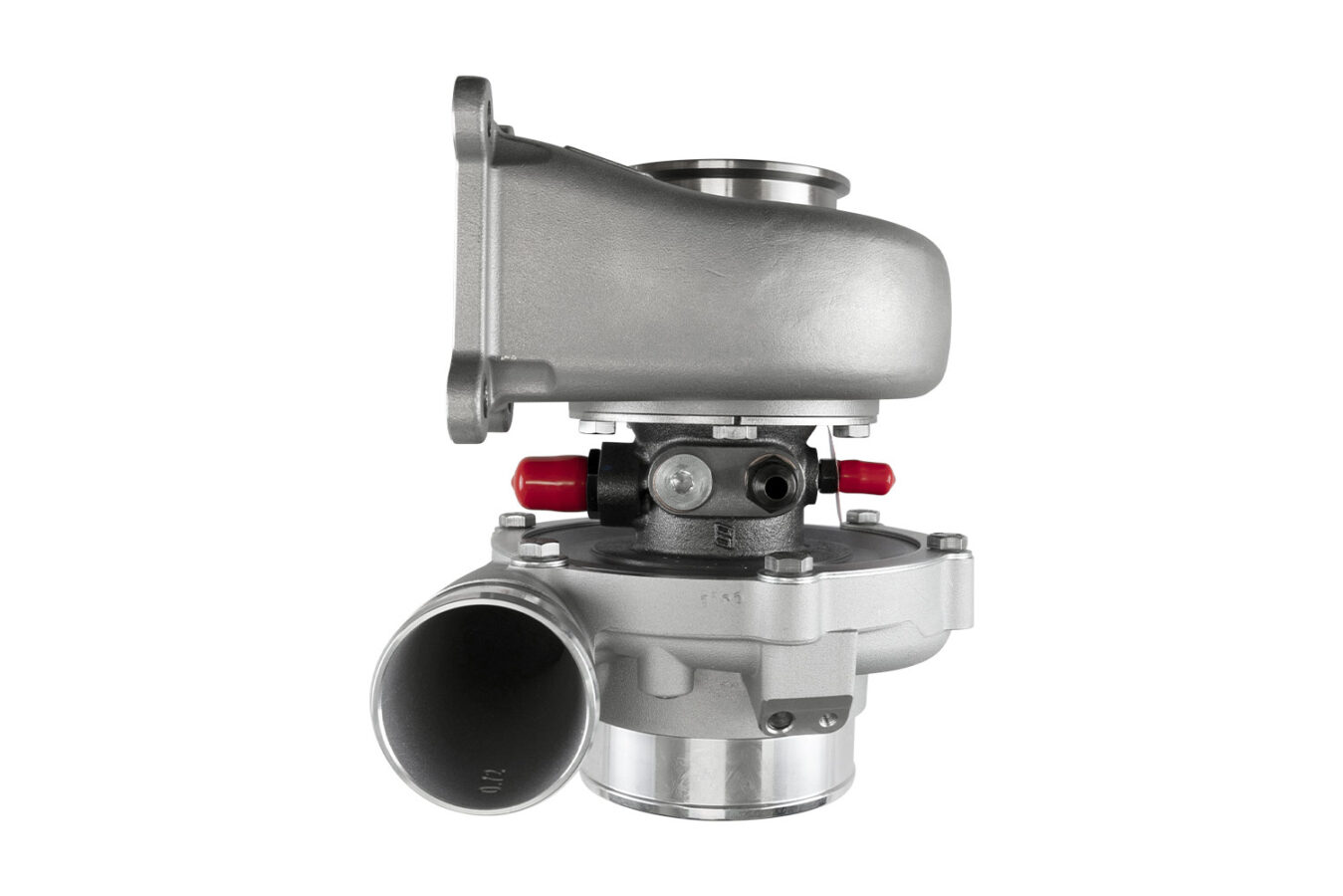

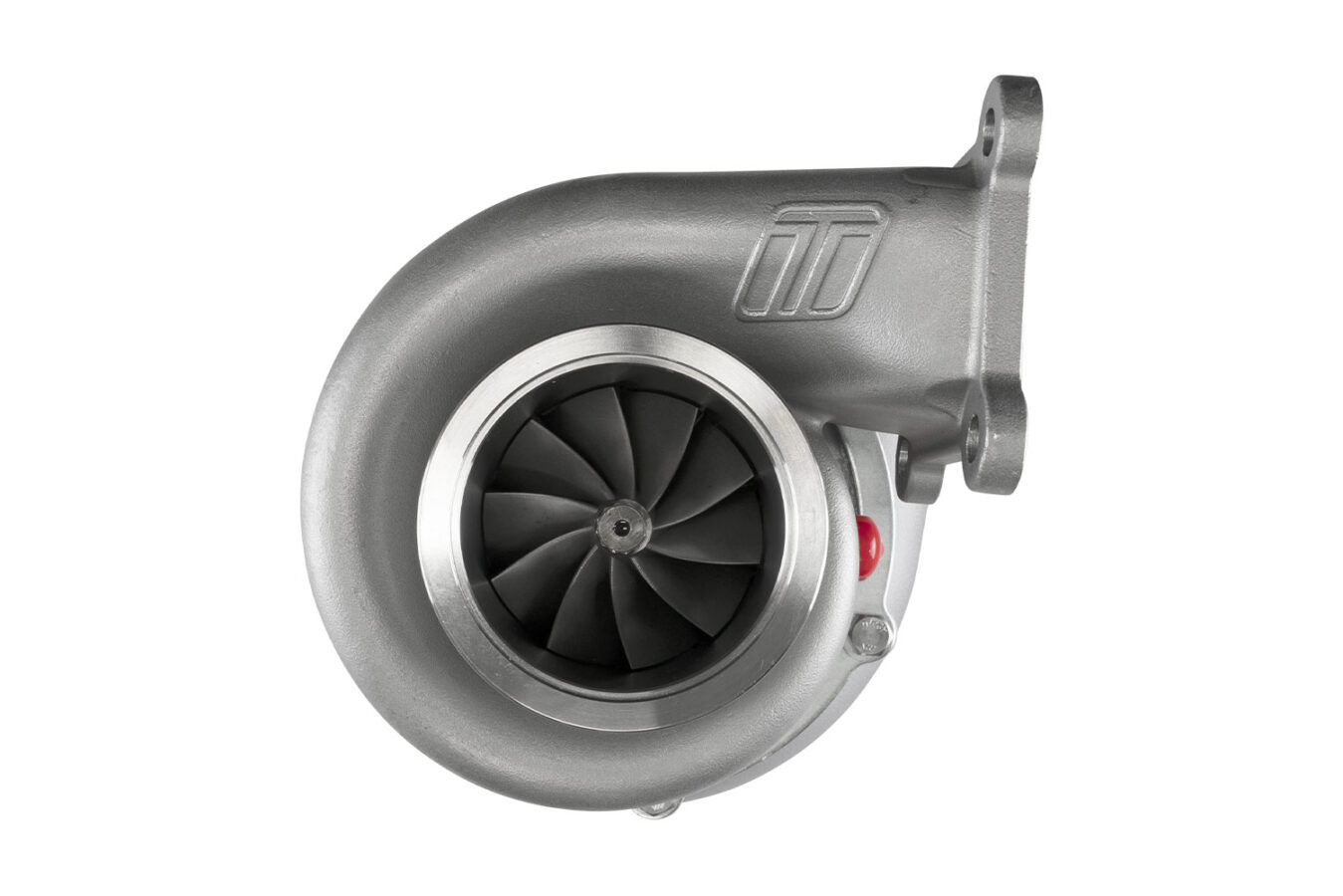

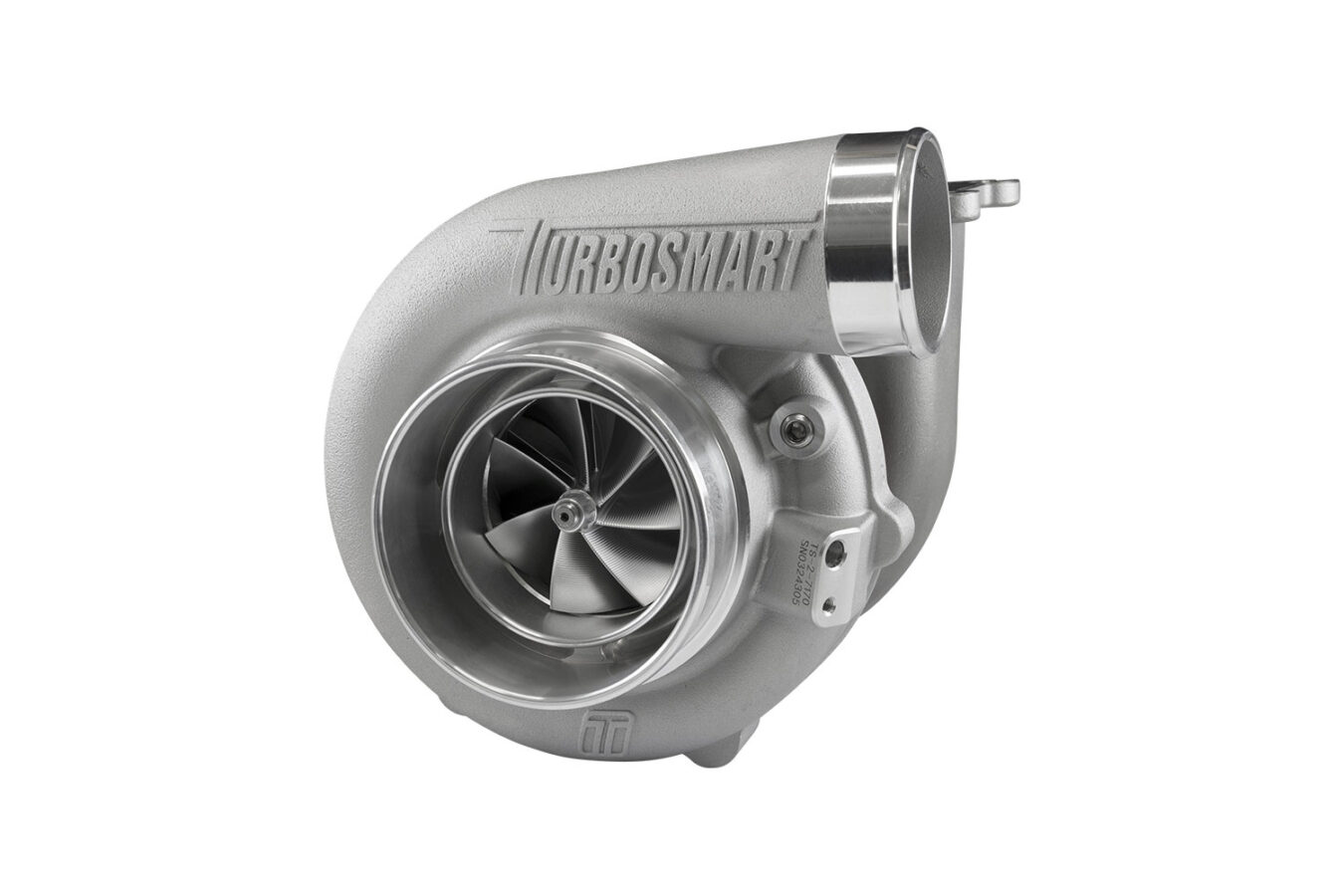

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 7170 (Kompact) T4 0.96AR Externally Wastegated

Turbosmart’s turbocharger lineup is engineered using advanced materials, precision design, and cutting-edge manufacturing to meet the demands of both motorsport and performance enthusiasts.

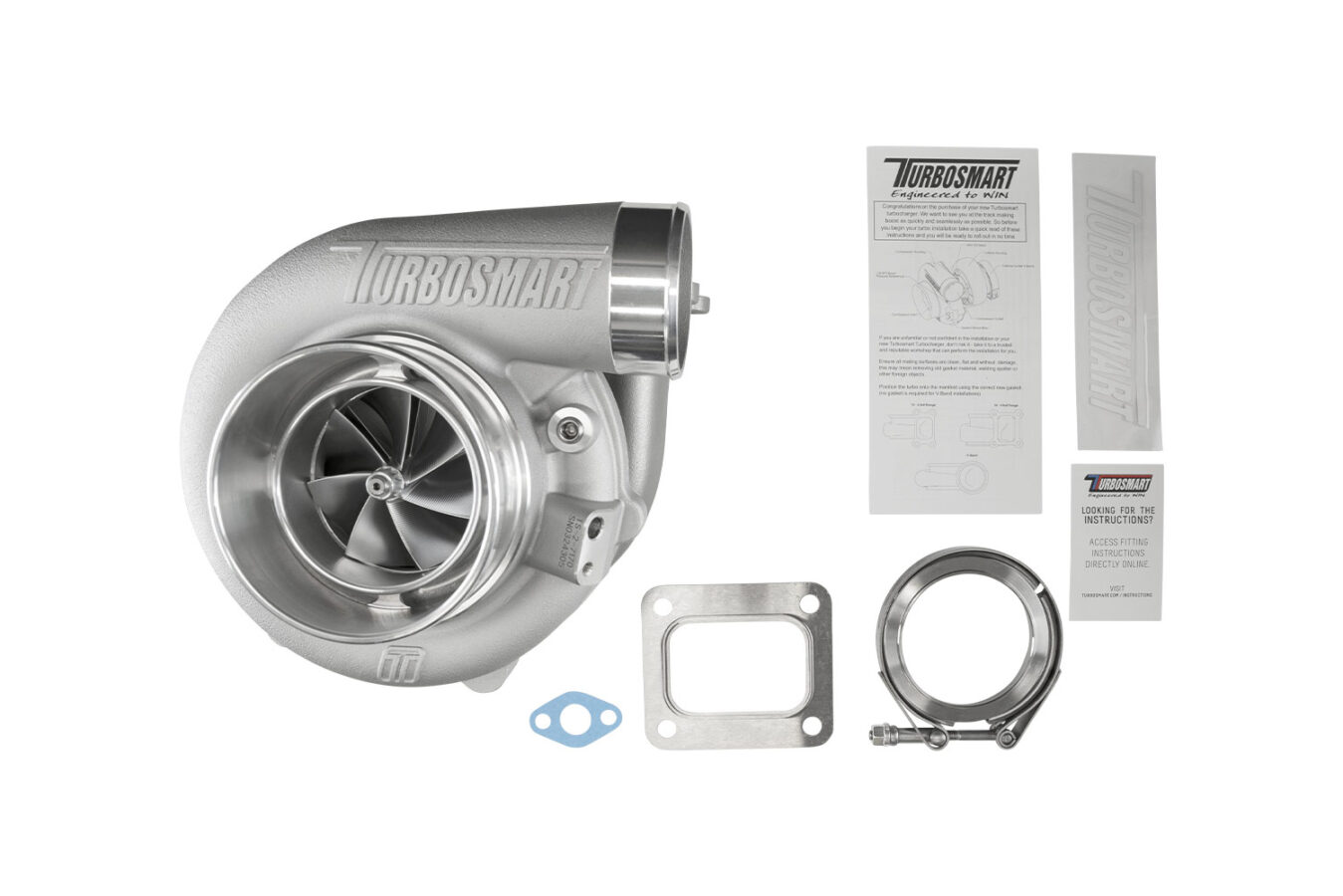

Each turbocharger includes everything you need for installation—weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed and return fittings.

The TS-2 Series features oil and water cooling, lightweight investment-cast turbine housings, and a proprietary bearing and main shaft combination. This results in lightning-fast transient response and the high-quality performance and reliability Turbosmart is known for.

A unique bearing and shaft assembly with ultra-low rotating mass is paired with aggressive compressor aerodynamics, providing excellent performance at low shaft speeds while maintaining power and flow under high load.

The TS-2 turbochargers take an end-to-end engine approach—achieving power through reduced backpressure and high-efficiency turbines—while remaining smaller, lighter, and faster to respond than other market options.

Available Options

• TS-1: Oil-Cooled Turbochargers

• TS-2: Oil & Water-Cooled Turbochargers

• V-Band, T3, and T4 Flange Options

• Reverse Rotation (Select Sizes)

• Various A/R Configurations

• Internal & External Wastegate Options

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT resistance

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 71 mm

• Turbine Inlet: T4 Flange

• Turbine Exducer: 70 mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 875–1010 HP
