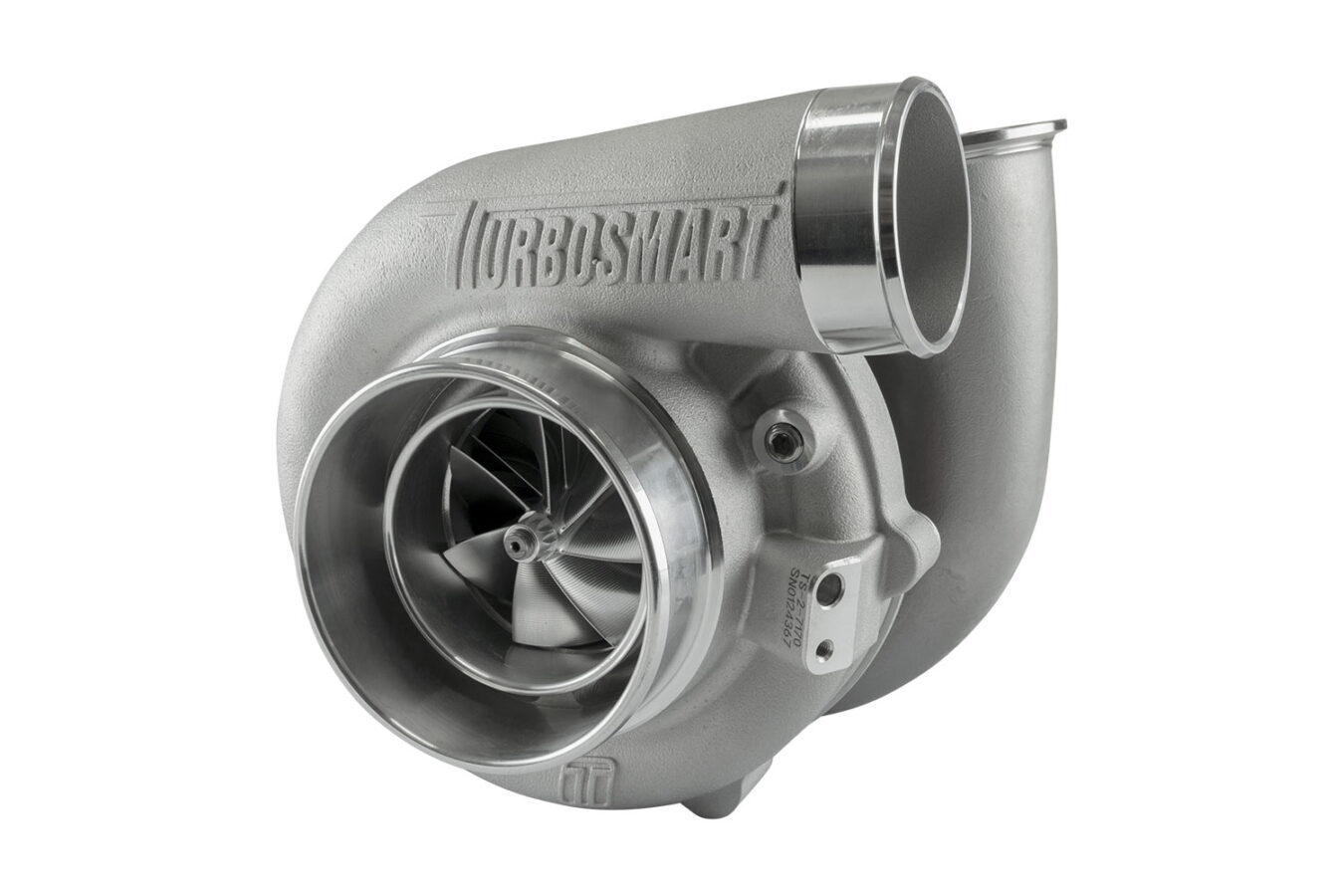

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 7170 (Kompact) V-Band 0.96AR Externally Wastegated

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered with cutting-edge materials, advanced design, and modern manufacturing techniques to meet the rigorous demands of motorsport professionals and performance enthusiasts.

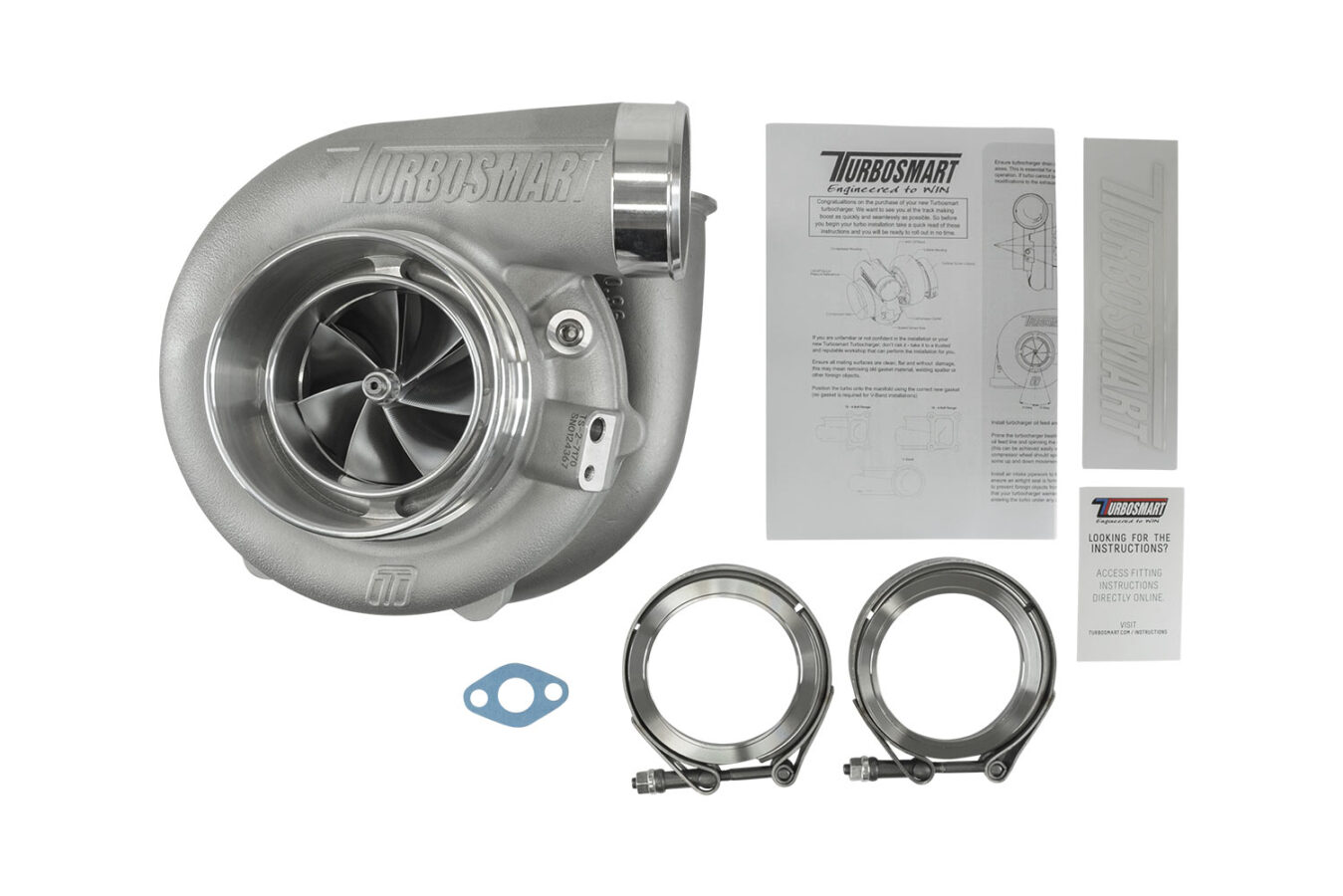

Each Turbosmart turbocharger comes fully equipped for installation, including:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

• Water feed and return fittings

TS-2 Series Overview

The TS-2 Series features water and oil-cooled turbochargers with:

• Lightweight investment cast turbine housings

• A proprietary bearing and main shaft assembly for unmatched transient response

• Ultra-low rotating mass

• Aggressive compressor aerodynamics

• Custom turbine wheel for optimal performance at high loads

Turbosmart takes a complete engine system approach, optimizing turbine performance and minimizing back pressure—delivering more power, faster response, and a lighter footprint compared to other market options.

Available Options

• TS-1 Oil-cooled turbochargers

• TS-2 Oil and water-cooled turbochargers

• V-Band, T3, and T4 flange configurations

• Reverse rotation (select sizes)

• Multiple A/R options

• Internal and external wastegate options

Key Features

• Industry-leading transient response

• Aerodynamic 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow characteristics

• 713C Inconel turbine wheel built for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 71 mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 70 mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 875–1010 HP
