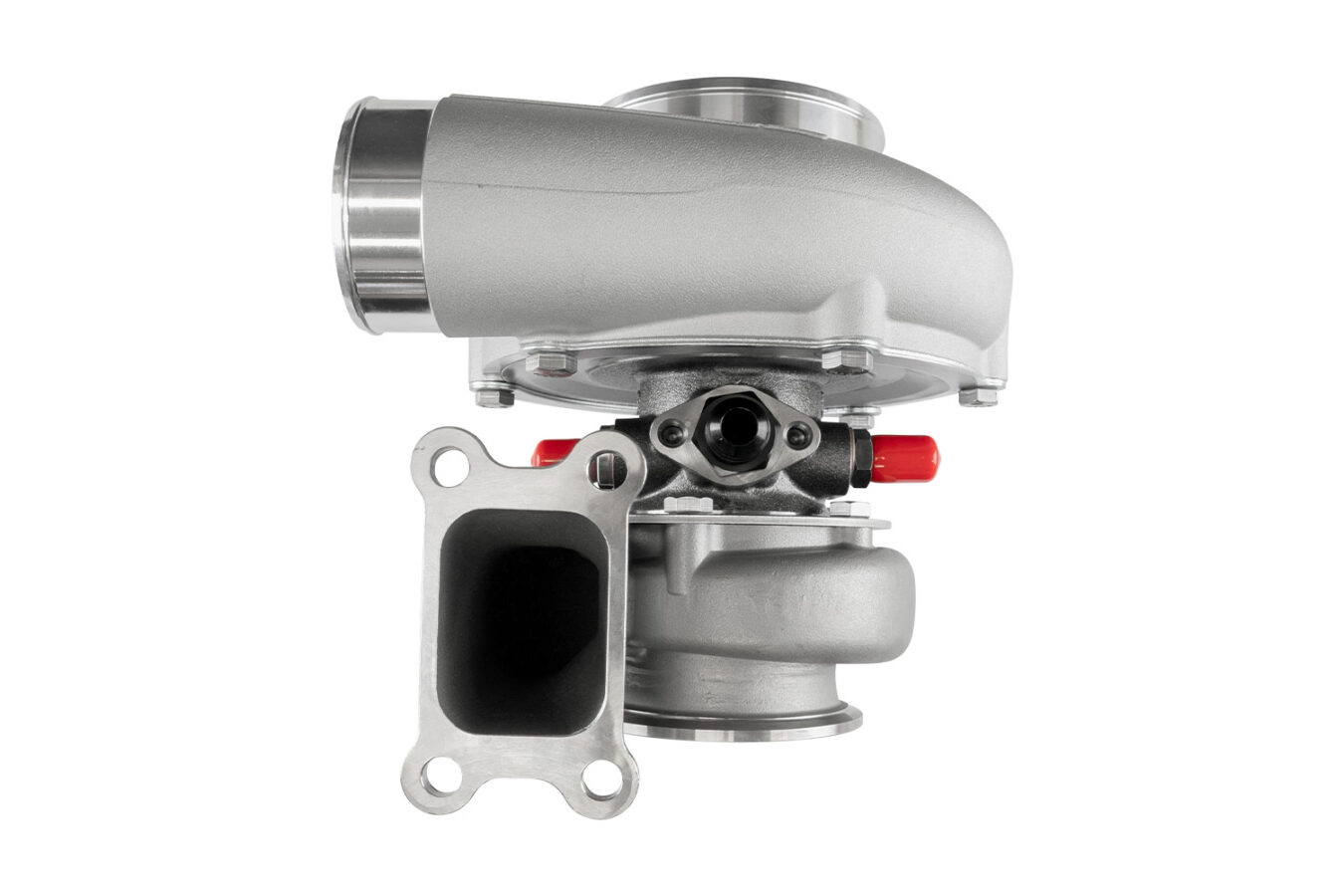

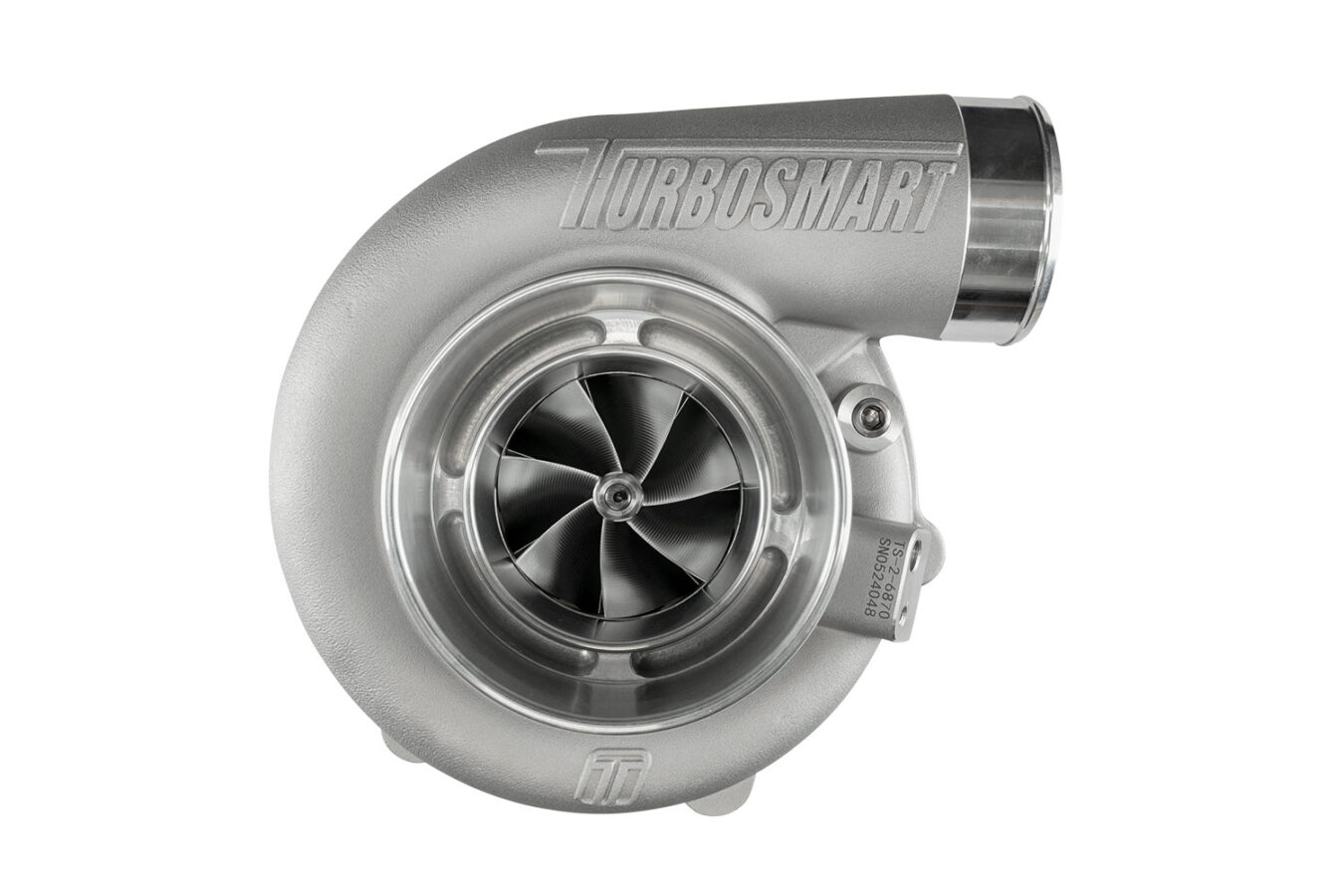

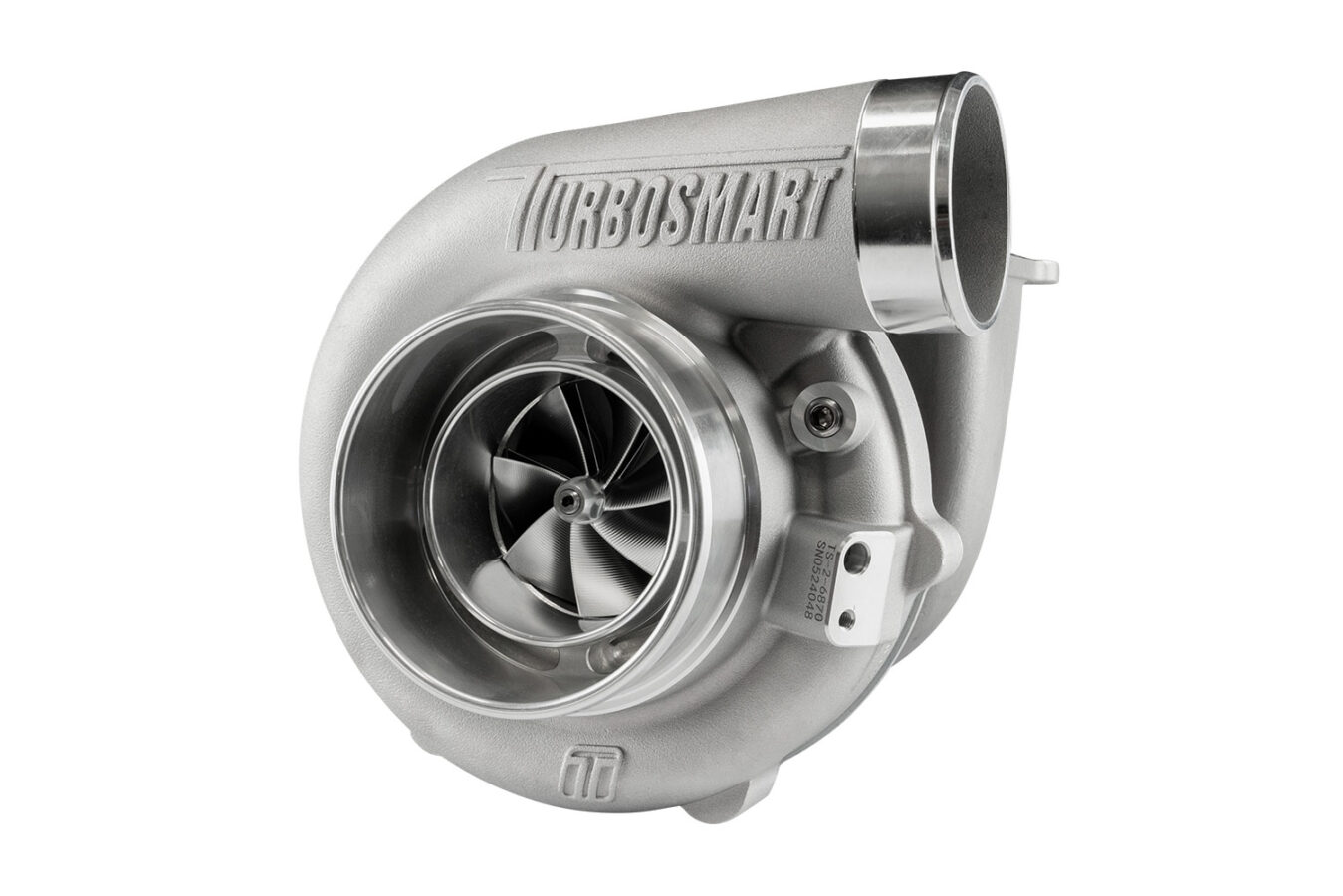

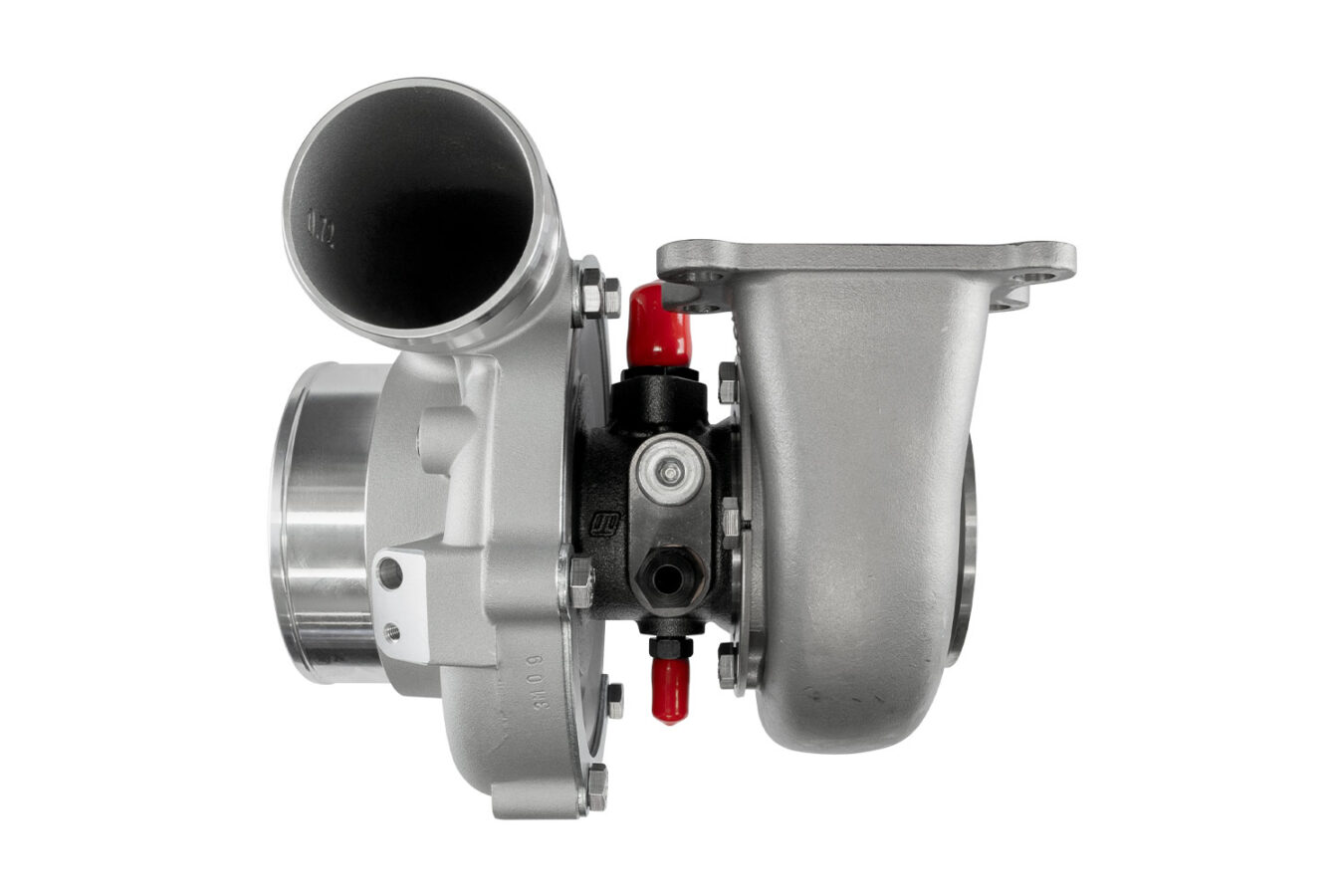

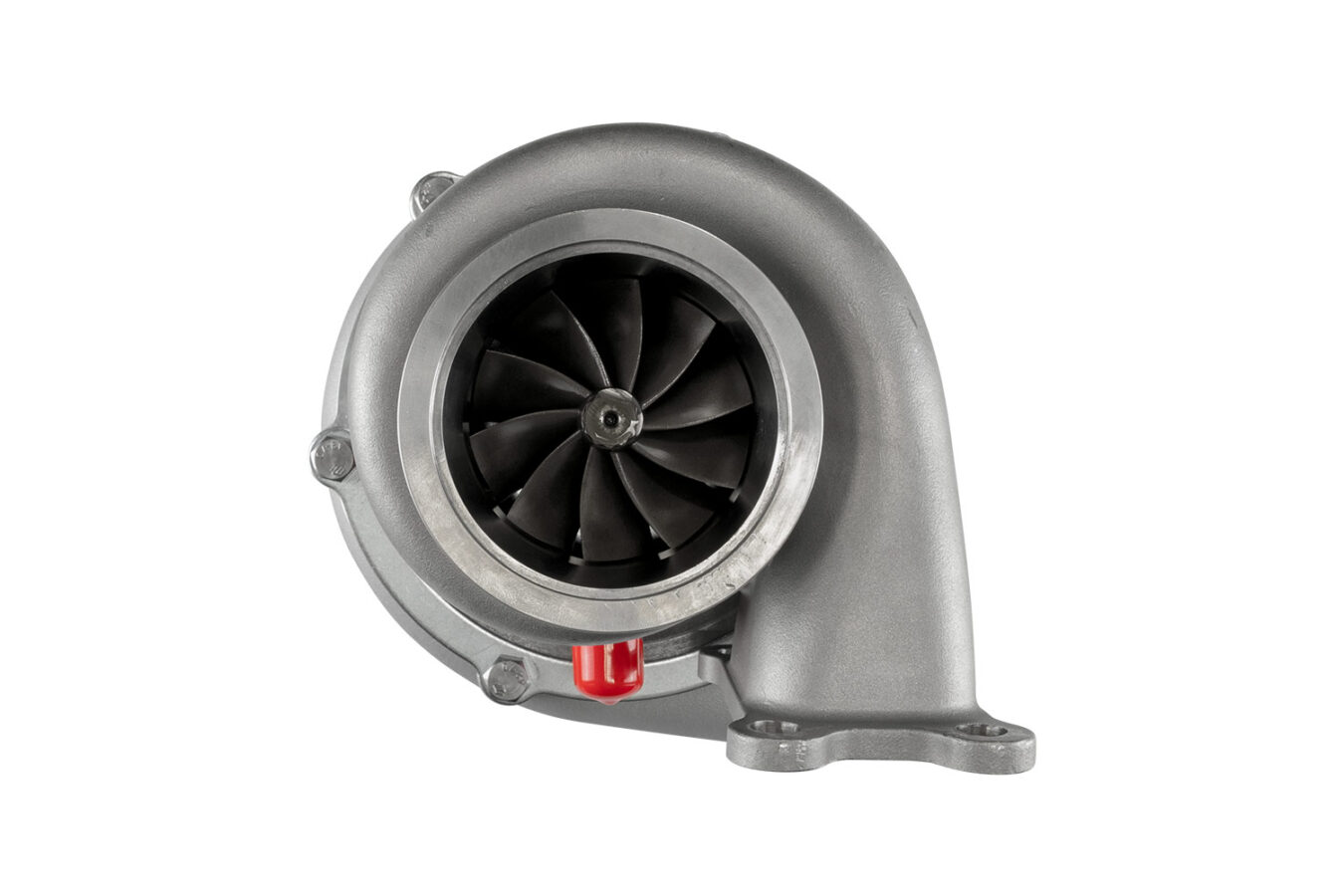

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6870 (Kompact) T3 1.10AR Externally Wastegated

Turbosmart’s turbocharger series is engineered using modern materials, design, and manufacturing techniques to meet the demands of both motorsport and performance enthusiasts alike.

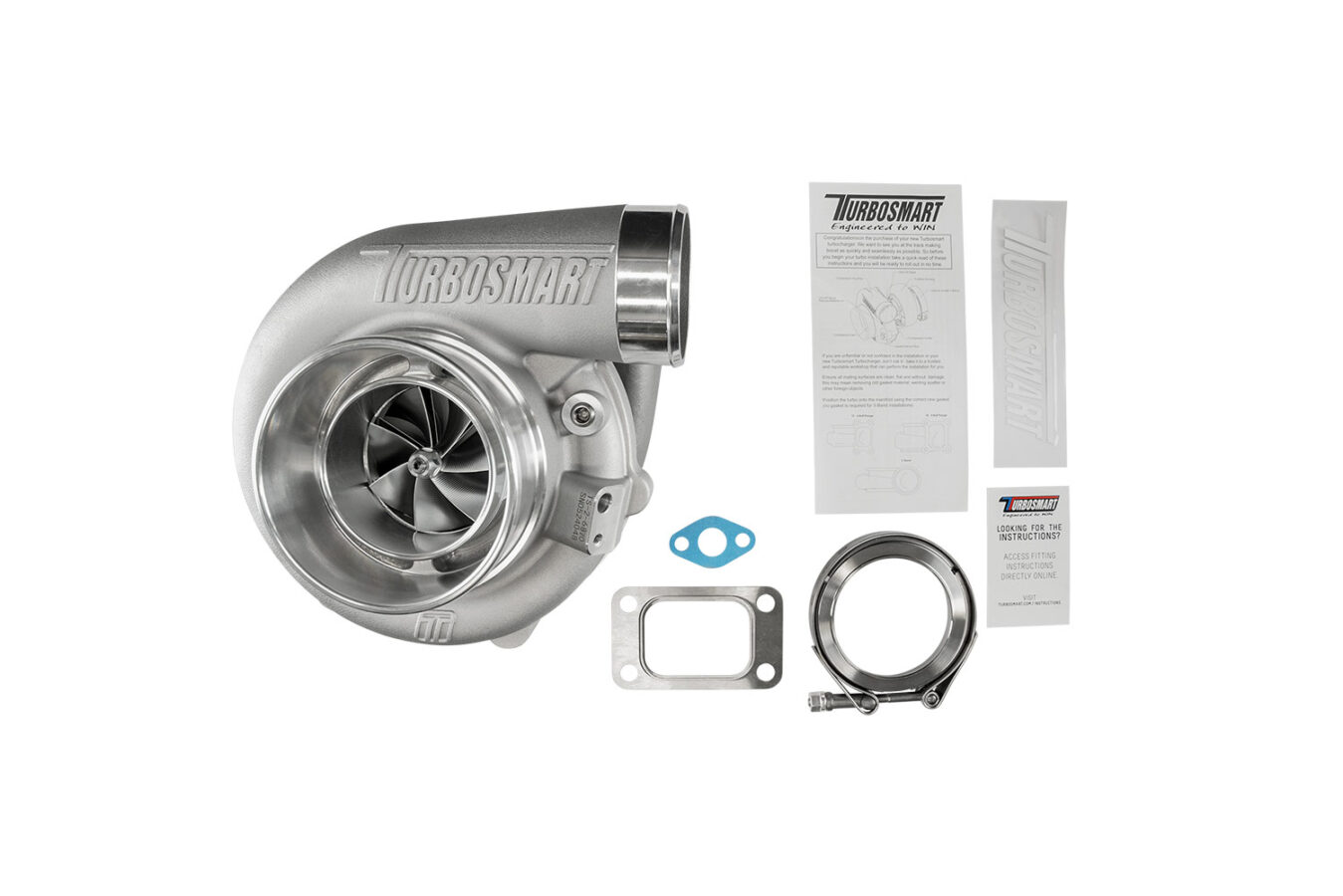

Every Turbosmart turbocharger comes standard with everything you need for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings, as well as water feed and return fittings.

The TS-2 Series are oil- and water-cooled turbochargers featuring lightweight investment-cast turbine housings and a proprietary bearing and main shaft combination. This delivers transient response you never thought possible, with the performance, quality, reliability, and support Turbosmart is known for.

The ultra-low rotating mass of the unique bearing and shaft assembly is paired with aggressive compressor aerodynamics, ensuring strong performance at lower shaft speeds. A unique turbine wheel maintains power at high loads while optimizing flow.

Taking an engine end-to-end approach, the TS-2 series achieves power through reduced backpressure and high-performance turbines—while remaining smaller, lighter, and faster in response than other solutions on the market.

Available In

• TS-1 (Oil-Cooled Turbochargers)

• TS-2 (Oil & Water-Cooled Turbochargers)

• V-Band, Various T3 and T4 Flange Options

• Reverse Rotation (Selected Sizes)

• Various A/R Options

• Internal and External Wastegate Options

Key Features

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 68 mm

• Turbine Inlet: T3 Flange

• Turbine Exducer: 70 mm

• Turbine A/R: 1.10

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 850–990 HP
