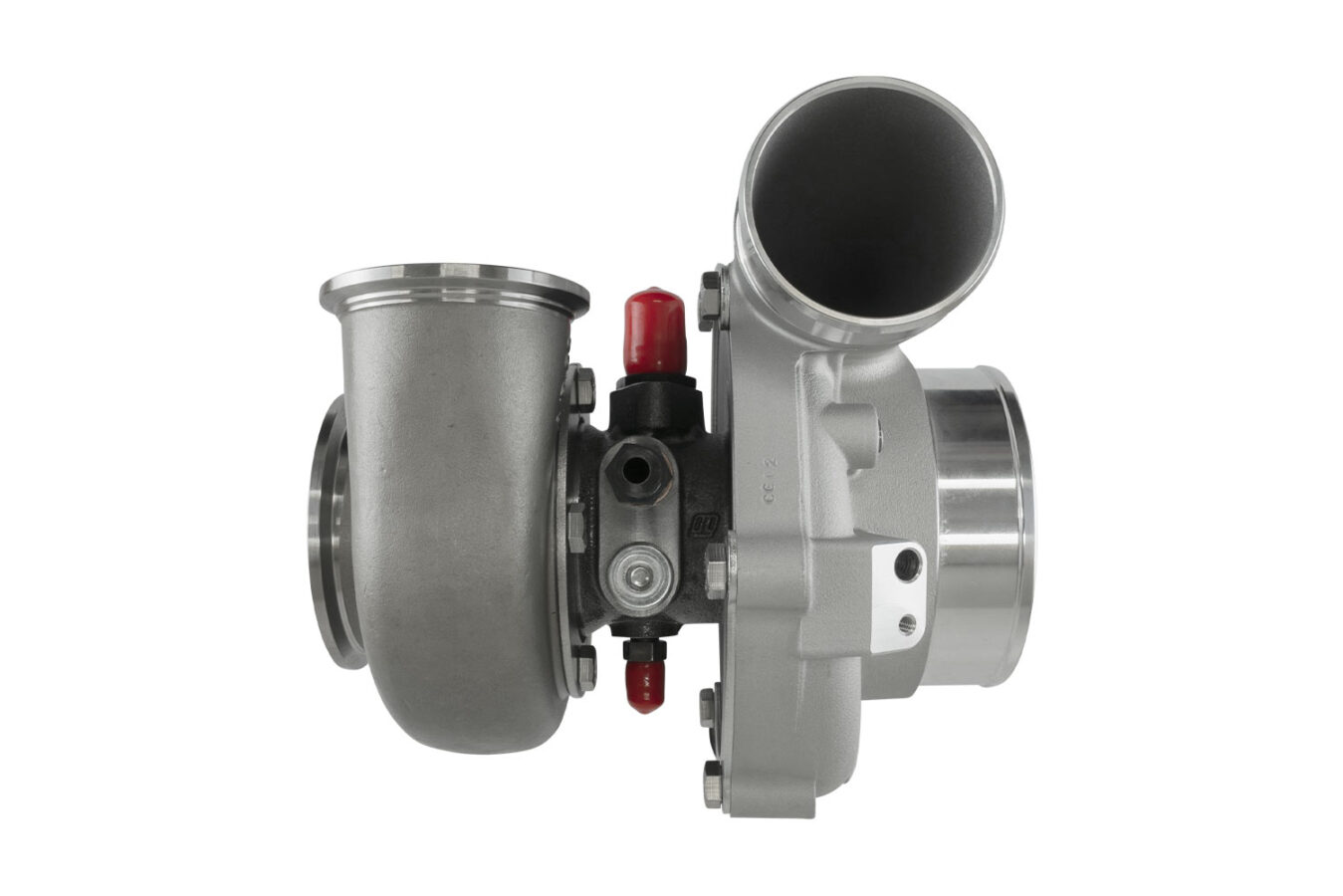

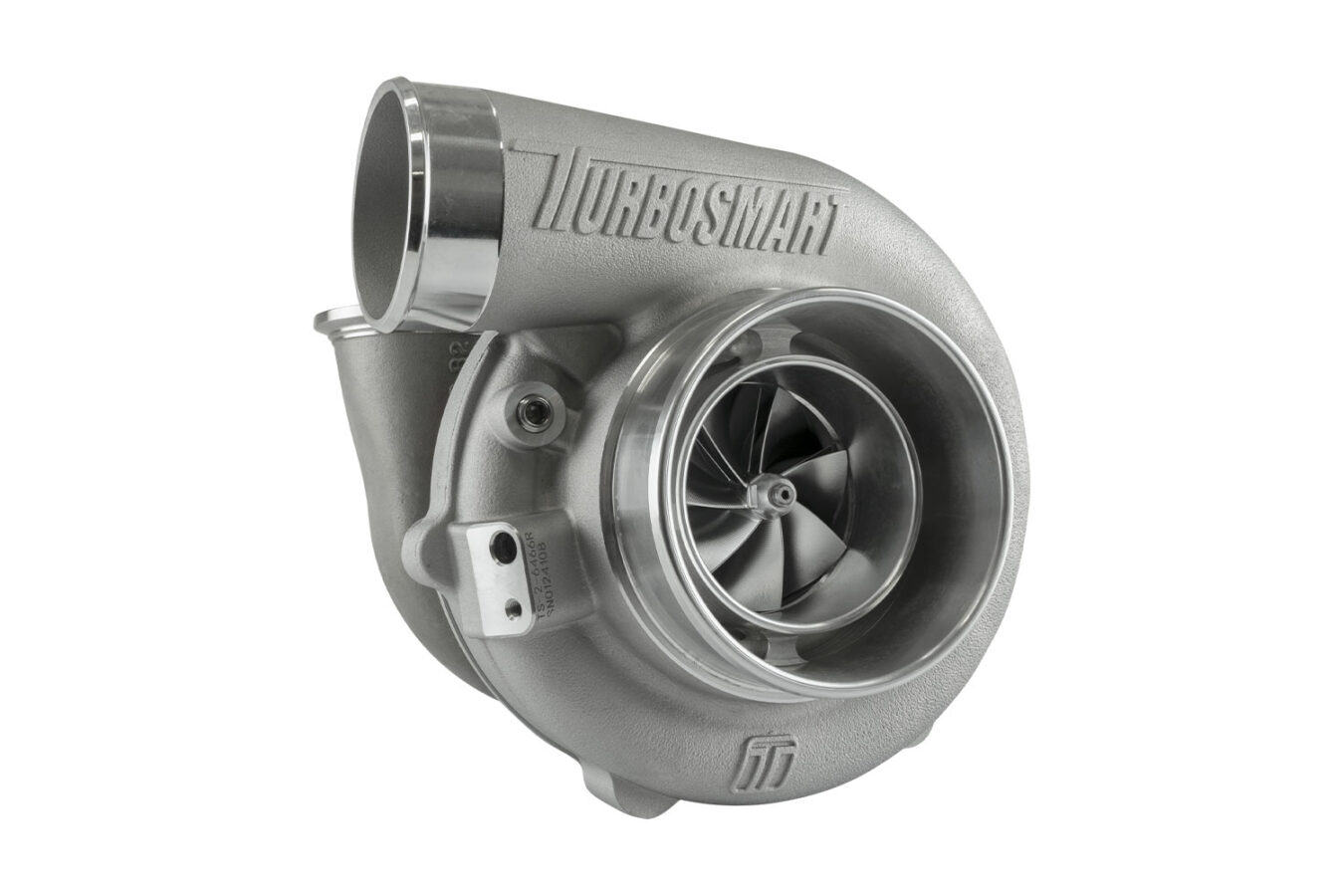

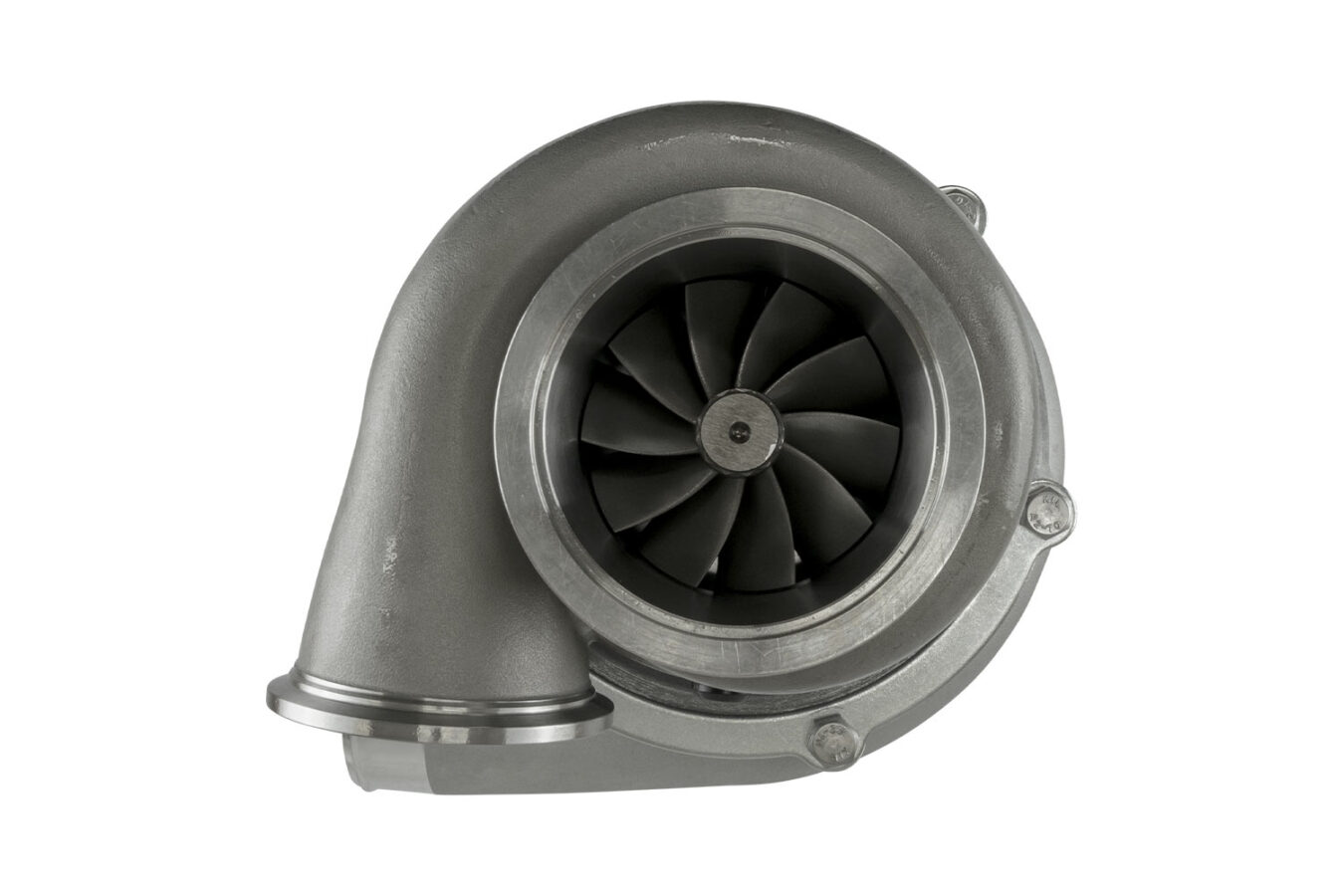

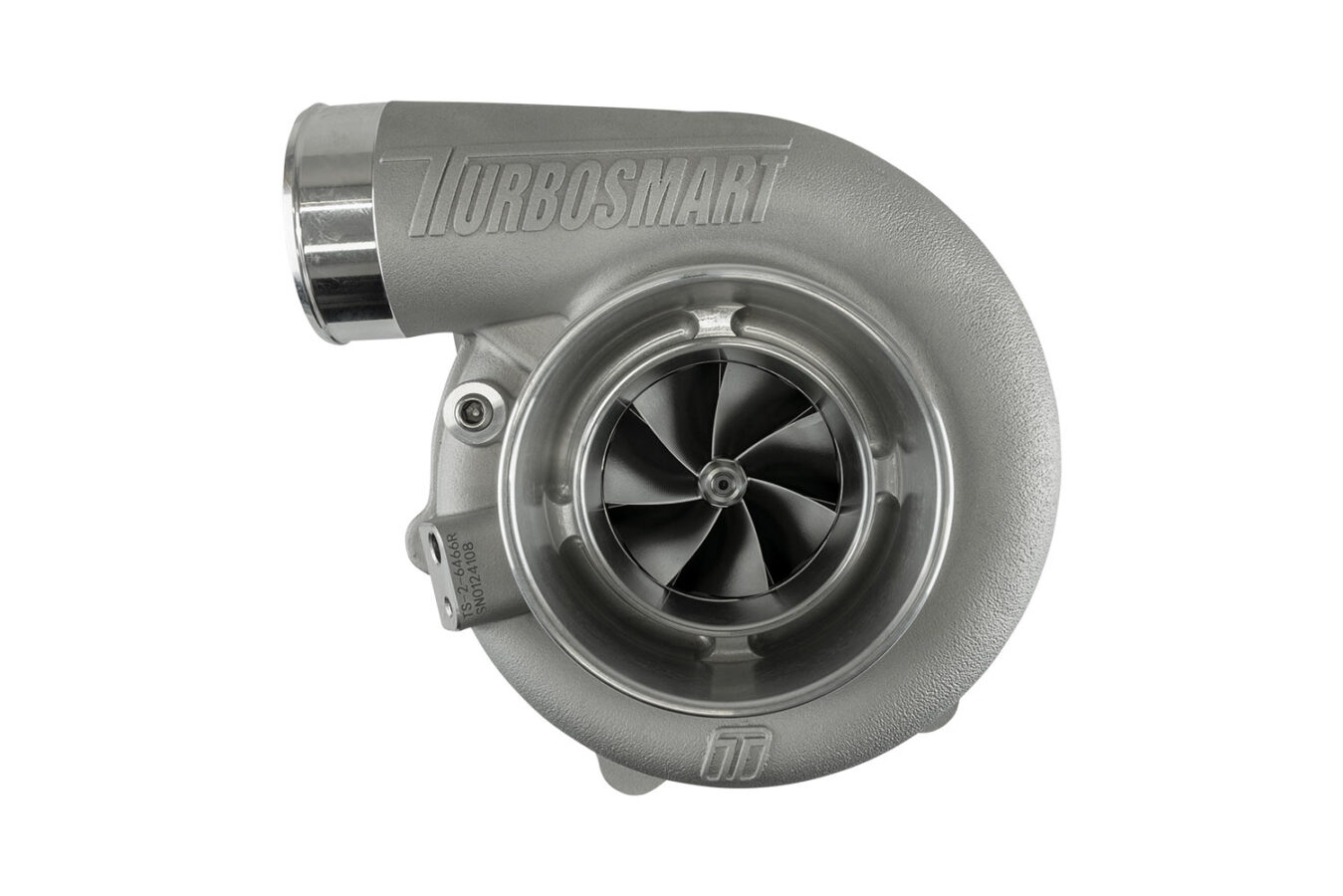

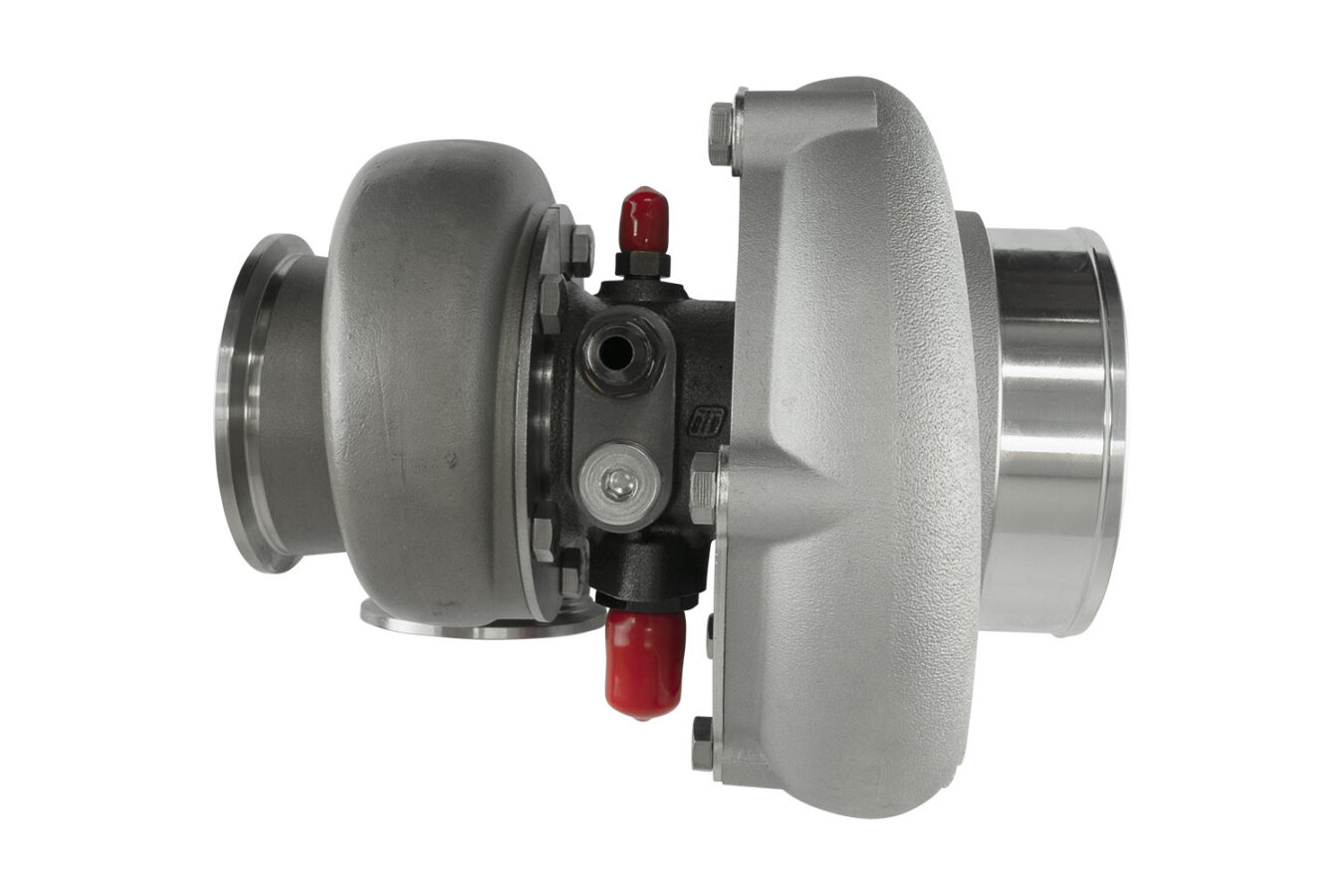

Turbosmart TS-2 Turbocharger (Water Cooled) 6466 V-Band Reverse Rotation 0.82AR Externally Wastegated

Smaller, Lighter, and Faster

Turbosmart’s turbocharger series leverages modern materials, advanced design, and precision manufacturing to meet the demands of motorsport and performance enthusiasts alike.

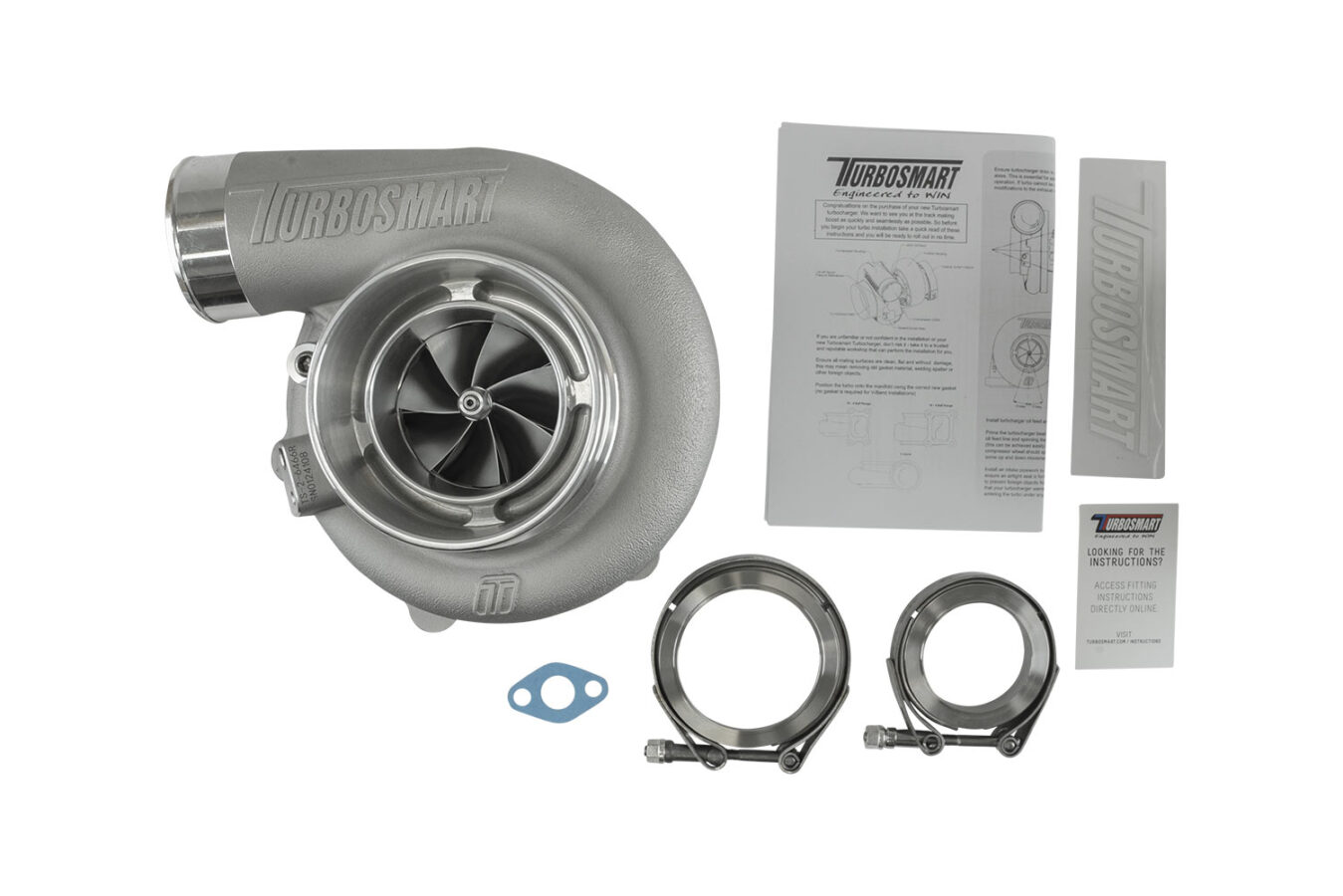

Every Turbosmart turbocharger comes complete with all necessary installation hardware, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, as well as water feed and return fittings.

The TS-2 series features water and oil-cooled turbochargers with lightweight investment-cast turbine housings, and a proprietary bearing and main shaft assembly. This combination delivers transient response and performance levels beyond expectations, backed by the quality, reliability, and support Turbosmart is known for.

With an ultra-low rotating mass matched to aggressive compressor aerodynamics, the TS-2 ensures high performance at lower shaft speeds while maintaining power and flow at high loads with its unique turbine wheel design.

Engineered with an engine end-to-end philosophy, the TS-2 achieves power through reduced back pressure and high-performance turbines—offering a smaller, lighter, and faster response compared to other turbochargers on the market.

Available In:

• TS-1 oil-cooled turbochargers

• TS-2 oil and water-cooled turbochargers

• V-Band, T3 flange, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegate options

Features:

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 2618 aluminium splitter wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-driven designed housings for optimal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications:

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 64mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 66mm

• Turbine A/R: 1.00

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06kg / 13.3lbs

• Horsepower Rating: 825–955 HP
