Turbosmart TS-2 Turbocharger (Water Cooled) 7170 (Kompact) V-Band Reverse Rotation 1.07AR Externally Wastegated

Smaller, Lighter, and Faster – Turbosmart’s TS-2 turbocharger series is designed using advanced materials, cutting-edge design, and precision manufacturing to meet the high demands of motorsport and performance enthusiasts.

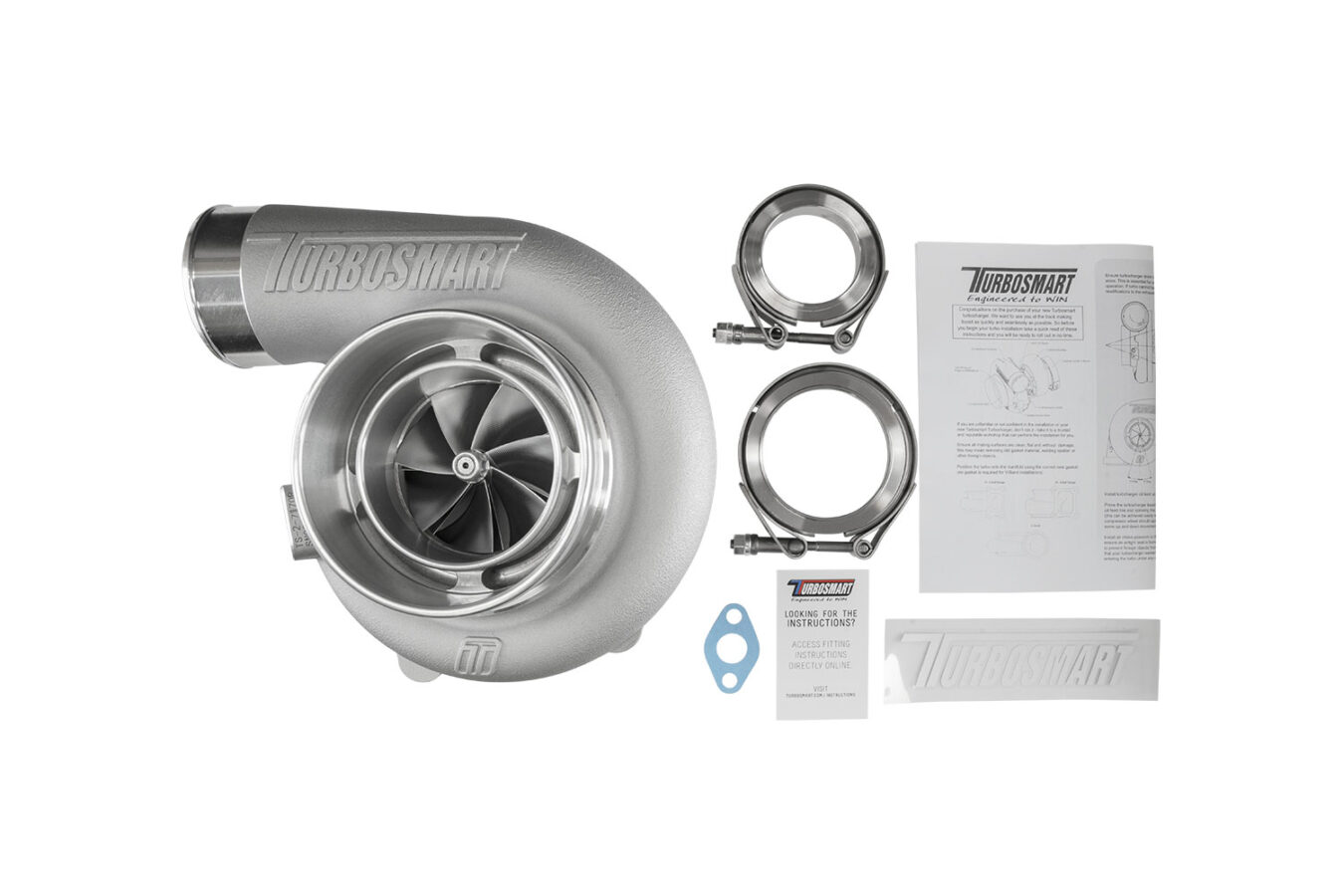

Each turbo comes complete with everything needed for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed and return fittings.

The TS-2 series is water and oil-cooled, featuring lightweight investment-cast turbine housings and a proprietary bearing and shaft combo that delivers unmatched transient response. Designed for maximum performance at lower shaft speeds and sustained power at high loads, the TS-2 excels where others can’t.

Built with an engine-end-to-end approach, the TS-2 reduces back pressure and boosts efficiency—while being smaller, lighter, and quicker in response than traditional solutions.

Available In

• TS-1 (oil-cooled)

• TS-2 (oil and water-cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal & external wastegate configurations

Features

• Unmatched transient response

• 7+7 2618 aluminium splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-designed housings for optimal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 71mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 70mm

• Turbine A/R: 1.07

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06kg / 13.3lbs

• Horsepower Rating: 875–1010 HP
