XDI 2020-2024 Ford Explorer ST HPFP45 + 60% Injector Bundle (700WHP)
XDI's complete 700 WHP direct-injection fuel bundle for the 2020-2024 Ford Explorer ST 3.0L EcoBoost — the HPFP45 high-pressure pump (+45% volume, 260 bar) paired with XDI +60% injectors (flow-matched ±1%). No auxiliary fuel system needed. E85 ready. HP Tuners & Cobb support. Custom tune required.
XDI HPFP45 + 60% INJECTOR BUNDLE
2020-2024 Ford Explorer ST · 3.0L EcoBoost V6 · Direct-Injection Fuel Upgrade · E85 Ready
INSTALL VIDEOS
HPFP Install
Injector Install
WHAT THIS DOES
XDI's complete direct-injection fuel package for the 2020-2024 Explorer ST 3.0L EcoBoost — the HPFP45 high-pressure pump paired with XDI +60% direct-injection injectors. Together they feed serious power without an auxiliary port-fuel system.

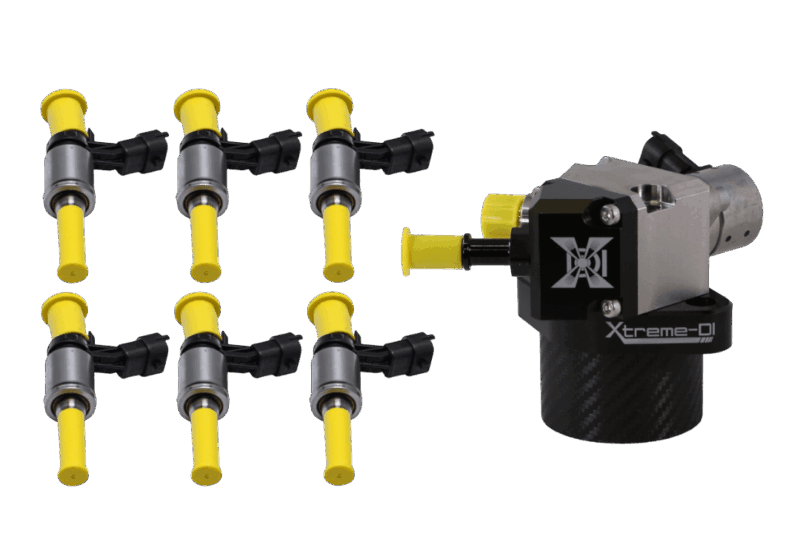

WHAT'S INCLUDED
- 1 × XDI HPFP45 High-Pressure Fuel Pump (+45% (1.87 cc/rev) capacity)
- Electrical pigtail + hardware
- 1 set × XDI +60% Direct-Injection Injectors (flow-matched ±1%)
PUMP SPECIFICATIONS
| Pump | HPFP45 — Top-Tier Pump |
| Geometric Volume | +45% (1.87 cc/rev) vs OEM (1.27 cc/rev) |
| Max Rail Pressure | 260 bar / 3,800 psi (OEM 250 bar / 3,600 psi) |
| Fuel Compatibility | All known fuels · all Ethanol blends (E85) |
| Electric Connector | Bosch Compact 2-pin (pigtail included) |
| Driver Profile | XDI |
| Housing | Stainless steel + hard-coated aluminum |
| Dry Weight | 1,112 g |
| Tuning Support | HP Tuners · Cobb |
INJECTOR SPECIFICATIONS
- Flow: 21 g/s @ 100 bar · 33.85 g/s @ 260 bar
- +60% greater flow than stock
- OEM spray pattern + OEM idle characteristics
- Stable to 260 bar, tested to 300 bar with zero issues
- Flow-matched to ±1%, tested at 100 / 200 / 300 bar on OEM-grade equipment
- Built specifically for the 2020+ Explorer ST — no auxiliary fuel system needed
PROVEN POWER
Records on the 1/4 mile — HPFP25 + 25% = 600 whp / 10.96 @ 125 mph · HPFP45 + 60% = 700 whp / 10.56 @ 129 mph (tuned by Adam Brunson @ TunePlus, Whoosh Stage X turbos).
CONFIRMED FITMENT
- 2020-2024 Ford Explorer ST — 3.0L EcoBoost V6
A custom tune (HP Tuners or Cobb) is required. The XDI fuel filter add-on below is highly recommended to protect your new fuel system.
