BorgWarner 2011-2016 Ford F-150 3.5L EcoBoost OEM Replacement Turbocharger Set
2011-2016 Ford F-150 3.5L EcoBoost — 100% brand-new BorgWarner OEM components. No core charges. Pre-adjusted wastegate. Bolt-on with the original Ford connections, no tuning required. NOTE: 2013-2016 currently backordered, shipping resumes late June. 2011-2012 stock unaffected. Optional Full-Race install kit and Formline manifold upgrades available. Free ground shipping in the contiguous US.
or as low as $52.81/mo with Affirm
Available

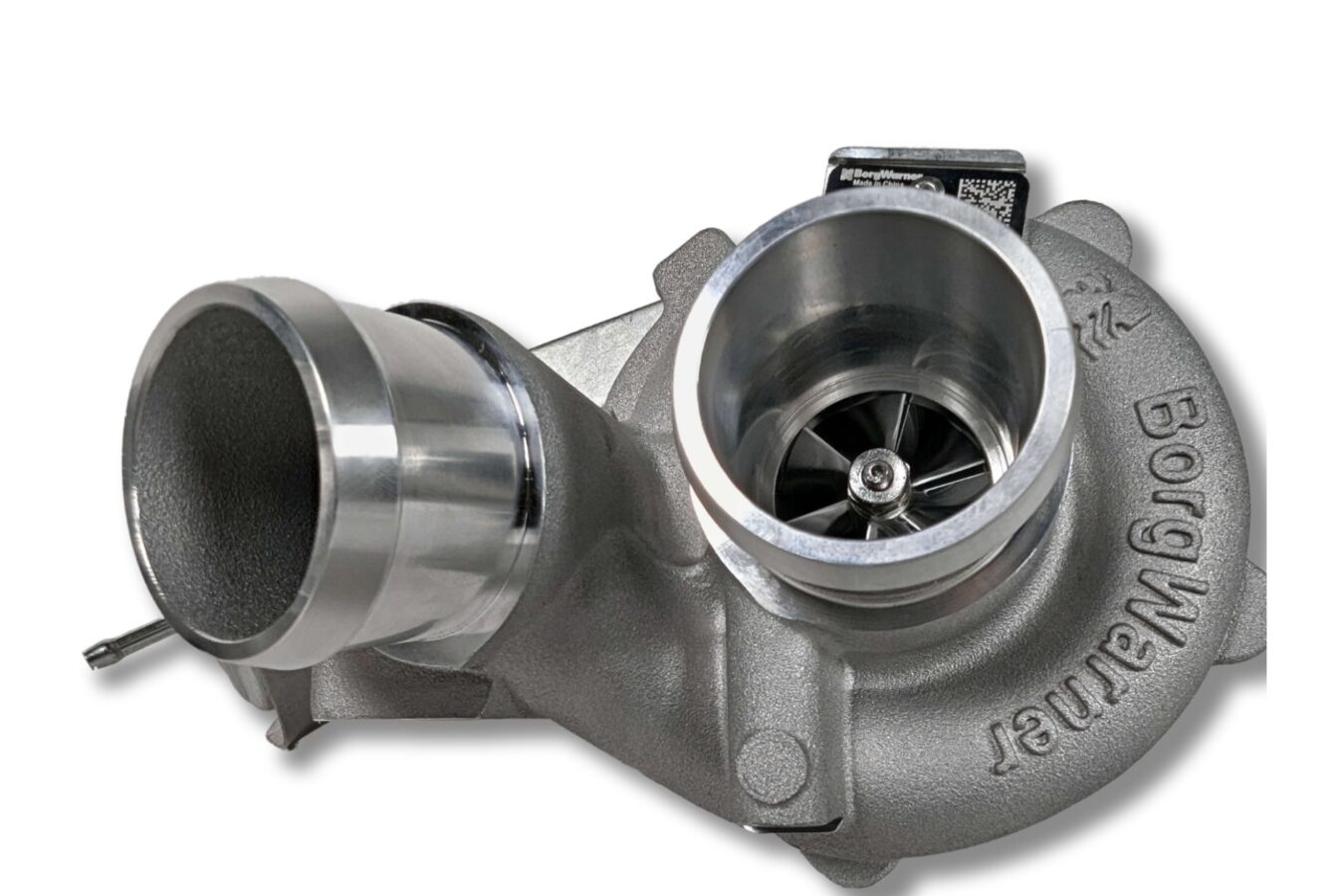

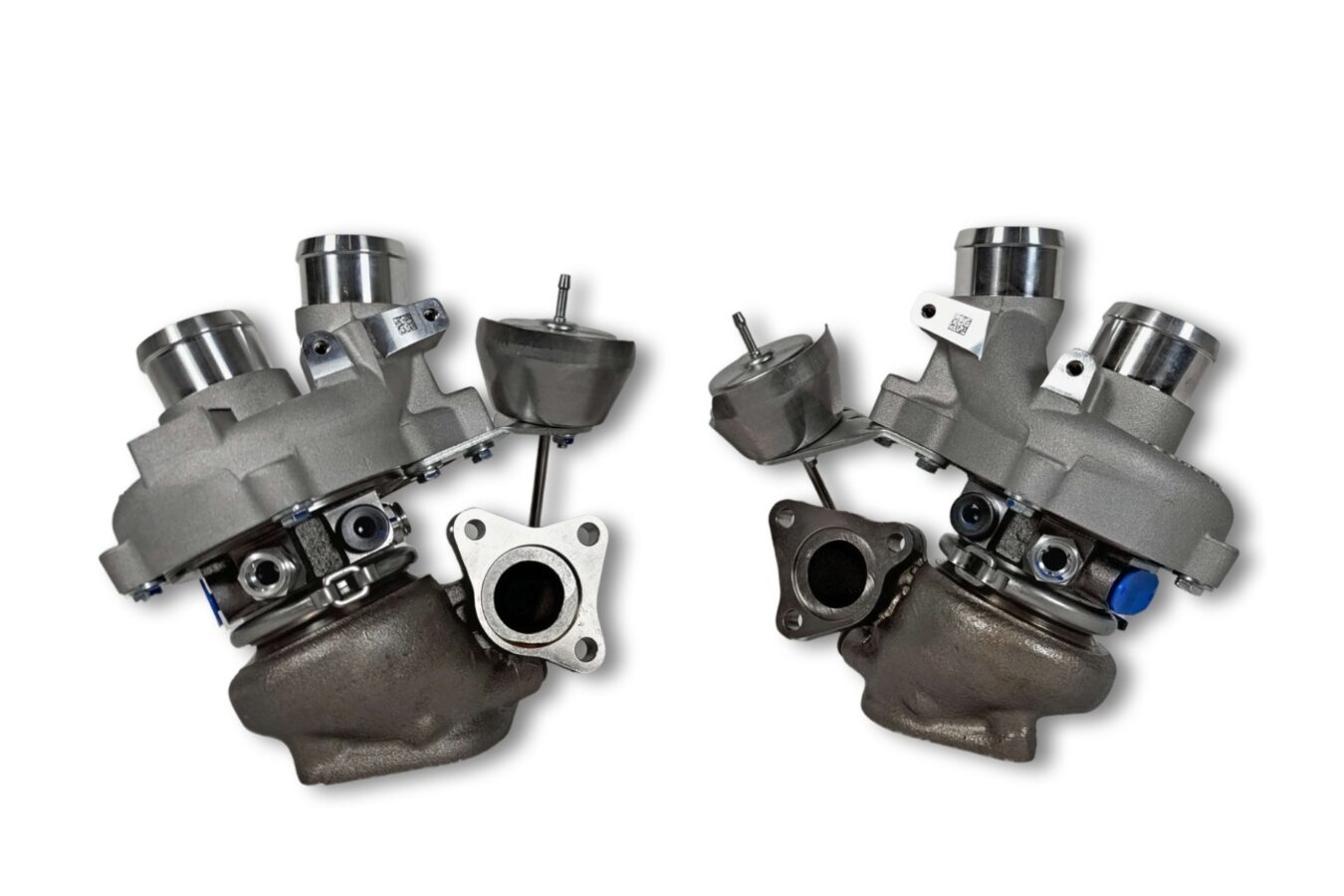

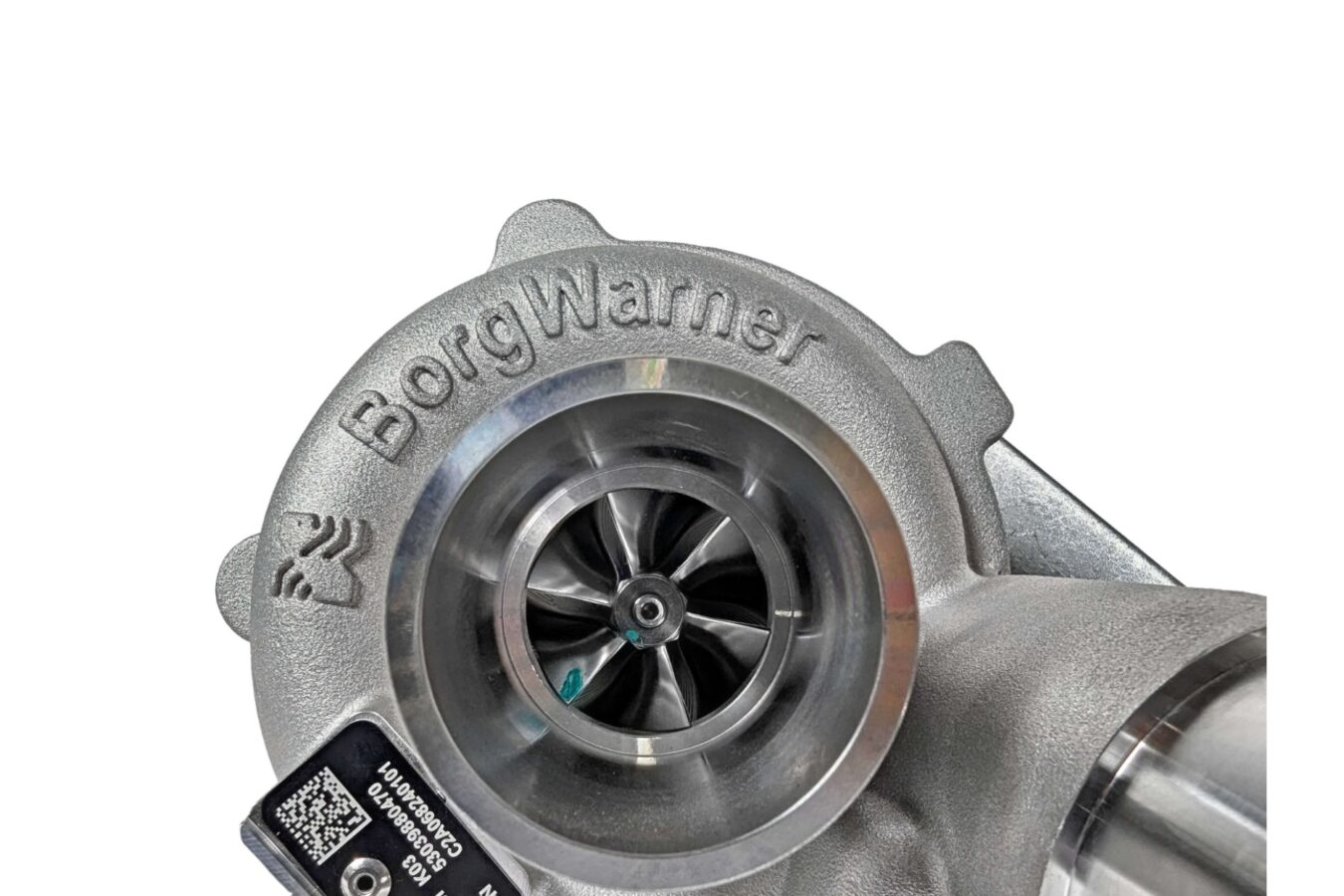

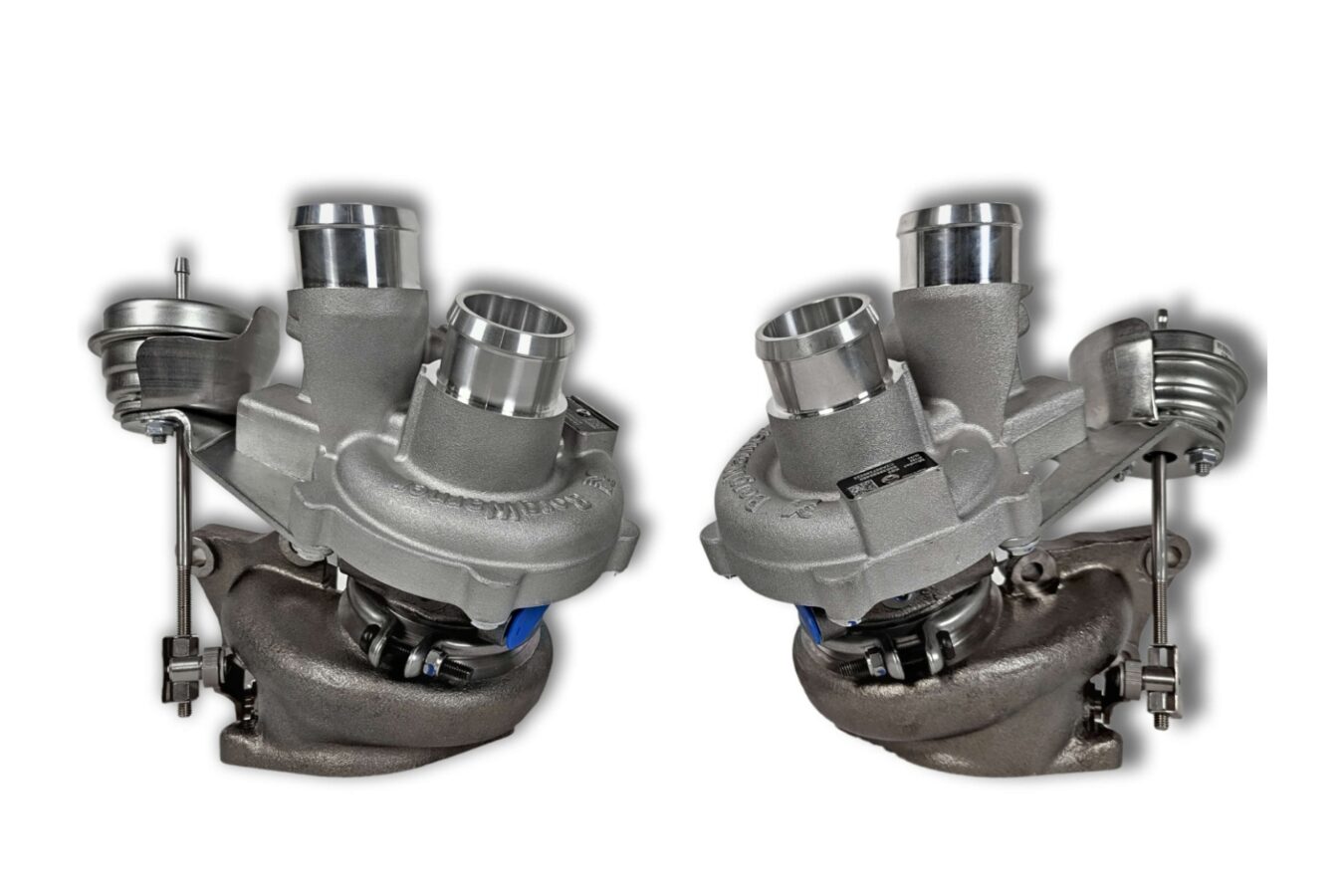

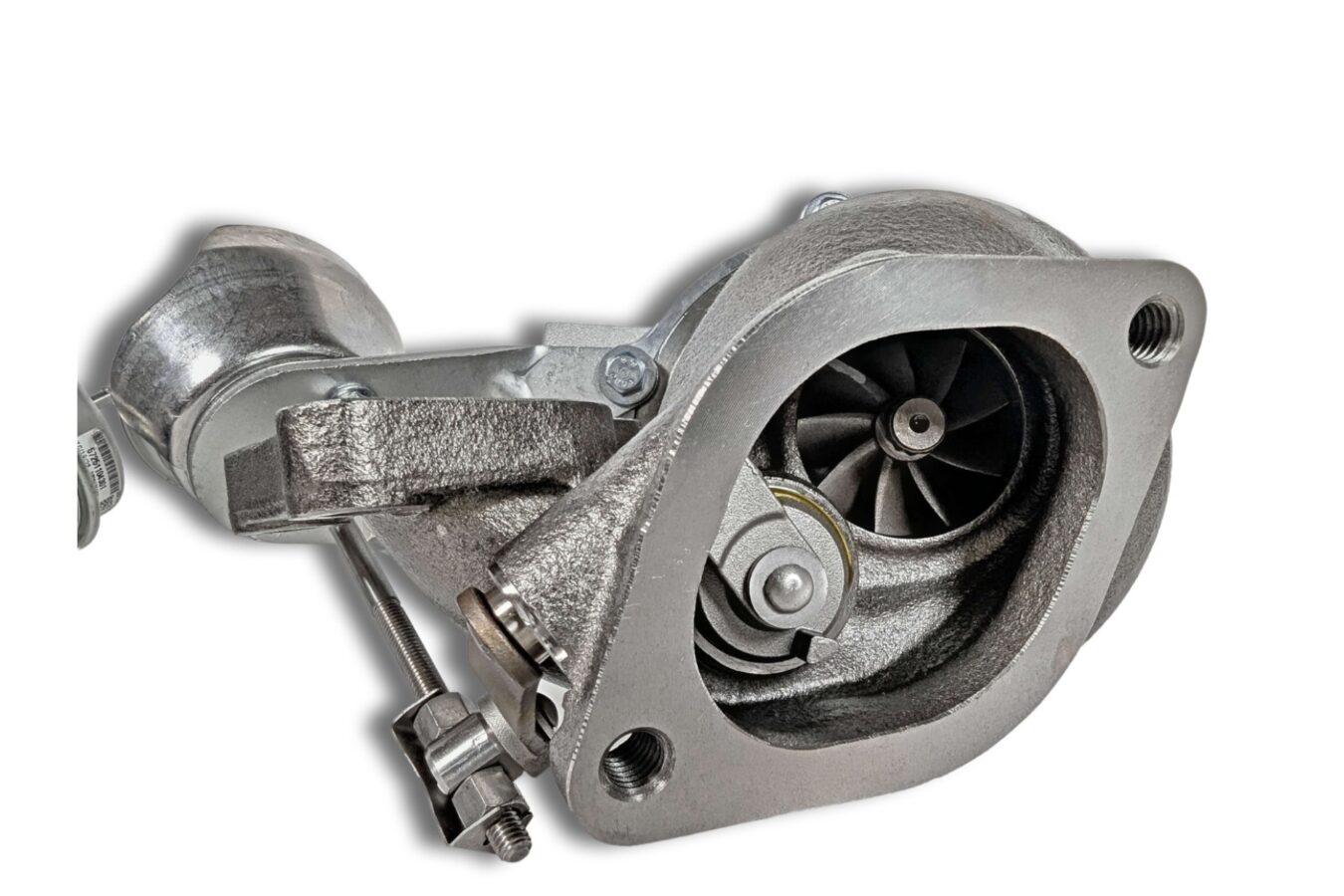

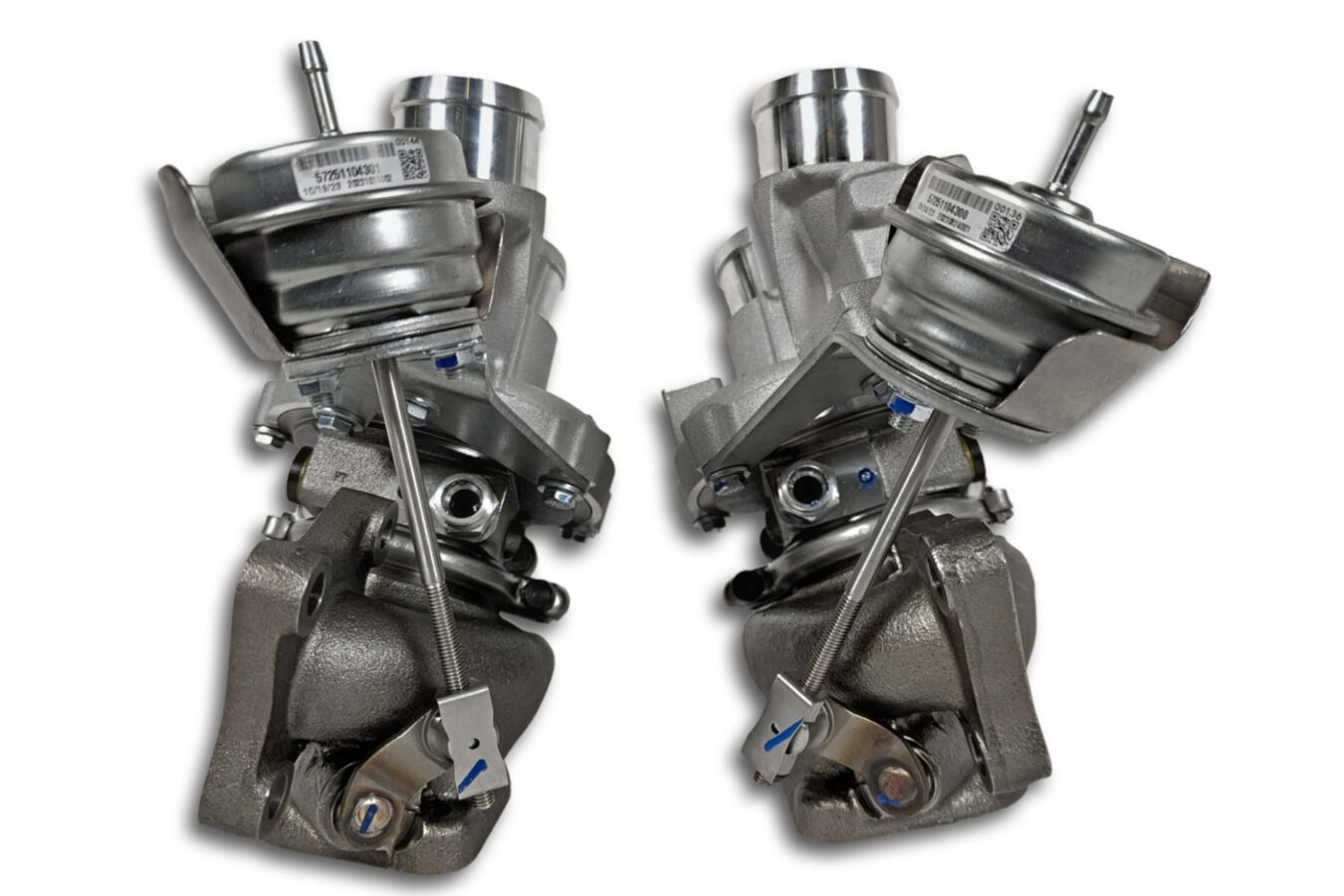

BorgWarner OEM Replacement Turbocharger Set
2011-2016 Ford F-150 3.5L EcoBoost. 100% brand-new BorgWarner OEM components — never re-manufactured, no core charges, pre-adjusted wastegate. Bolt straight on with the original Ford connections and drive away.
Direct OE Replacement · No Tuning Required · Pre-Adjusted Wastegate
2013-2016 model year turbos are currently backordered. Per Full-Race, shipping resumes late June. Order today to lock in your spot in the queue. 2011-2012 stock is unaffected and ships normally.
Factory-fresh, on your driveway.
Every 2011-2016 Ford F-150 3.5L EcoBoost owner eventually meets the same problem: a tired turbo, a wastegate that’s lost its calibration, or a remanufactured replacement that’s already on borrowed time. Full-Race solved it the only way that actually works — by sourcing the same BorgWarner cartridges Ford spec’d from the factory, then shipping them in a kit that bolts on without tuning, without fabrication, and without paying a core charge to wait for someone else’s worn-out hardware.
These are not refurbished. Not rebuilt. Not Chinese knock-offs in a BorgWarner sticker. Each turbocharger leaves the BorgWarner line as 100% brand-new OEM equipment — the same compressor wheel geometry, the same housing castings, the same wastegate actuator pre-set to the factory boost target. Drop them in, run your stock tune, and the truck behaves exactly like it did rolling off the line in Dearborn.
What This Set Fits
Same 3.5L EcoBoost cartridge across multiple Ford and Lincoln applications. If your truck or van uses the F-150’s twin-turbo V6, this kit is engineered for it.
Direct OEM Cross-Reference
Each turbocharger in this set carries the BorgWarner OE part number Ford ships under warranty. If you’ve sourced a Ford or Lincoln part number from the dealer, match it here.
| OE Part Number | Side | Application |
|---|---|---|
| 53039881004 | Left (Driver) | 2011-2012 Ford F-150 3.5L EcoBoost · Lincoln Mark LT |
| 53039881005 | Right (Passenger) | 2011-2012 Ford F-150 3.5L EcoBoost · Lincoln Mark LT |
| 53039880469 | Left (Driver) | 2013-2016 Ford F-150 3.5L · 2015-2017 Expedition / Navigator |
| 53039880470 | Right (Passenger) | 2013-2016 Ford F-150 3.5L · 2015-2017 Expedition / Navigator |
OEM Hardware & Gaskets For Install
Full-Race recommends sourcing fresh OEM hardware — specifically these Ford part numbers (year-dependent) — to avoid leaks and reuse-fatigue on factory crush washers and one-time-use bolts. The Full-Race Install Kit add-on (above the price) bundles all of this in one box, year-correct.
OEM Hardware Checklist
- BL3Z-9450-A — Downpipe flange to turbo gasket
- BL3Z-9N496-A — Downpipe flange
- W716667-S900 — Downpipe studs
- W520514-S440 — Downpipe to turbo nuts
- W715673-S900 — Turbo to exhaust manifold bolt (3 each turbo)
- CL3Z-9450-A — Exhaust manifold gasket, right side
- CL3Z-9450-B — Exhaust manifold gasket, left side
- BL3Z-6N652-B — Oil flange gasket (each turbo)
- W715539-S900 — Oil flange bolts (2 each turbo)
Why BorgWarner OEM Beats the Aftermarket Reman
Proven OE Reliability
Same compressor wheel geometry, housing castings, and wastegate calibration that Ford specifies for warranty replacement. Identical fit. Identical longevity.
100% New OEM Components
Built from brand-new BorgWarner parts on the same assembly line as Ford’s factory turbos. Never remanufactured, never rebuilt, never refurbished.
Effortless Bolt-On Install
Uses every factory connection — exhaust V-band, oil feed, oil drain, coolant lines, wastegate solenoid plug. No fabrication, no plumbing modifications, no surprises.
Pre-Adjusted Wastegate
Wastegate actuator is calibrated to the factory boost target before it leaves the box. Run your stock tune, run your custom tune — the duty cycle is right either way.
Zero Core Charge
No core deposit. No need to box up your tired turbos and ship them back. Pay once and keep your old units for parts, spares, or trade.
Single or Complete Set
Order just the side that failed (left/driver or right/passenger), or replace both at once with the Complete Set. Year-specific to ensure correct casting and turbine geometry.
Inside The Kit
Do It Once. Do It Right.
Two optional upgrades from Full-Race that turn a turbo swap into a permanent fix: a complete install kit so you don’t have to source a single gasket or hardware piece, and Formline manifolds to eliminate the OEM exhaust-leak failure point altogether.
Full-Race Install Kit
Every gasket, every line, every piece of hardware you need to install these turbos correctly the first time. Year-specific kits for 2011-2014 and 2015-2016 trucks. No more parts-counter scavenger hunts.
Add-On Price+ $659.99
Full-Race Formline® Manifolds
Replace the failure-prone OEM exhaust manifolds with Full-Race’s proven Formline cast manifolds. Eliminates the exhaust-leak headache for good and adds a measurable spool advantage on the dyno.
Add-On Price+ $1,039.99
Factory Install Guides — PDF Downloads
Full-Race publishes per-side installation documentation. Download both before you start — they reference different OE harness routings on left vs. right.
Before You Start
Direct from Full-Race’s install team — the small things that save the most time on a 3.5L EcoBoost turbo swap.
Prior to removal, spray penetrating oil on the turbo hardware and let it soak overnight. The factory bolts can be stubborn.
The special spring-clip tool is not mandatory. A small pick will pop the spring clips off easily — just don’t lose them.
Apply anti-seize coating to all threaded surfaces prior to install. Future-you will thank you.
Ensure the oil feed, oil drain, and coolant lines are free of any obstructions. Do not use RTV on these connections.
After installation, crank the engine with the throttle held down 100%. This builds oil pressure in the turbos before the engine actually starts.
Upon first start-up, idle the truck and check carefully for leaks at every connection — downpipe, exhaust manifold, oil feed, oil drain, coolant lines.
Technical Specs
| Specification | |
|---|---|
| Manufacturer | BorgWarner (OEM supplier to Ford) |
| SKU (Set) | BW-11-16-OEM-35 |
| Component Status | 100% Brand-New OEM — never remanufactured |
| Wastegate | Pre-adjusted to factory boost spec, OEM solenoid compatible |
| Year-Specific Variants | 2011-2012 | 2013-2016 |
| Configurations | Complete Set (Left + Right) | Left (Driver) Only | Right (Passenger) Only |
| Approximate Weight | 30 lbs / unit (set ships in two boxes) |
| Core Charge | None |
| Tuning Required | No — runs on factory or existing custom tune |
| Fitment | 2011-16 F-150 3.5L EcoBoost | 2016-17 Expedition | 2015-17 Navigator | 2015-19 Transit |
FAQ
Is this an OEM Ford turbo or aftermarket?
OEM. BorgWarner is the original equipment supplier to Ford for the 3.5L EcoBoost twin-turbo program. These are the same units Ford ships under warranty — not a Chinese reman with a sticker.
Do I have to send my old turbos back?
No. There is no core charge and no core return. Keep your old units for parts, spares, or trade.
Will I need a tune?
No. The wastegate actuator is pre-adjusted to factory boost spec. Run the stock tune, run a custom tune — either way, the duty cycle and target boost match what the ECU is asking for.
Single side or complete set?
If only one side has failed, ordering a single replacement is fine. If both are tired, replace both. Year-specific in either case.
Why is the 2011-2012 set priced higher?
Different turbine and compressor geometry vs. the 2013-2016 cartridge — and lower production volume. Both years use BorgWarner’s OEM cartridge for that vehicle range, just sourced from different production runs.
Do I need the Full-Race install kit?
Strongly recommended. Several factory hardware pieces are one-time use (V-band clamps, exhaust gaskets, oil-feed crush washers). The kit gives you everything year-correct in one box.
Free Ground Shipping. Direct From Full-Race.
Function Factory ships every BorgWarner OEM Replacement Turbocharger Set free, ground, anywhere in the contiguous US. Orders go direct from the Full-Race warehouse with full tracking and our 30-day fitment-and-quality guarantee. Have a question on which year set fits your truck or whether to add the install kit? Our F-150 specialists are on the line — call, text, or chat from any FFP product page.
