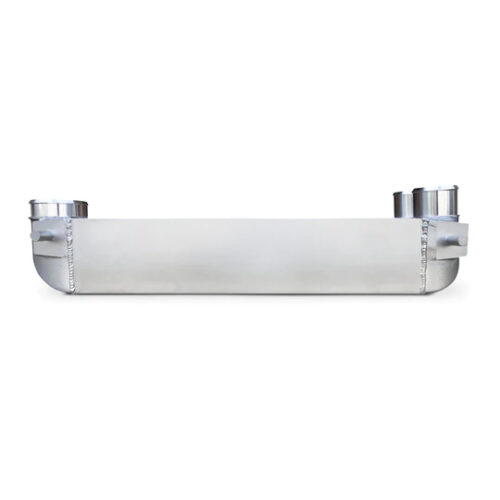

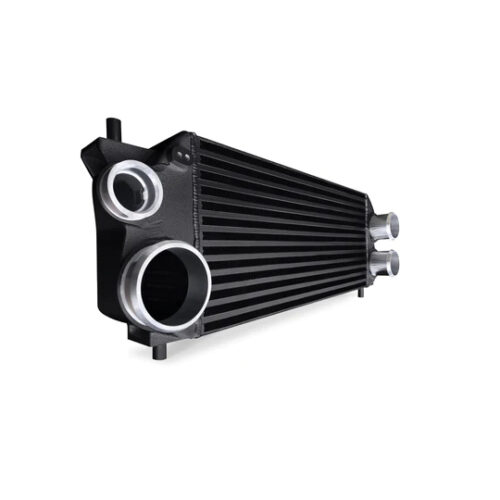

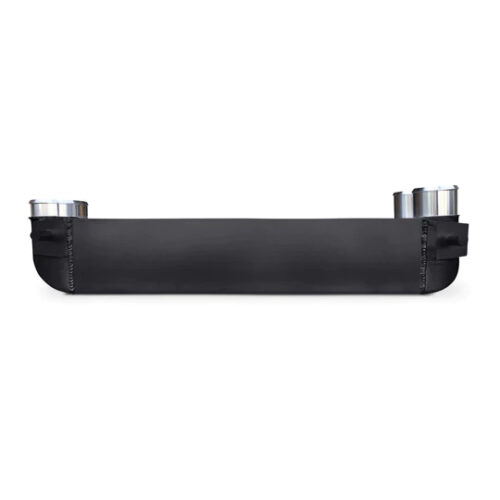

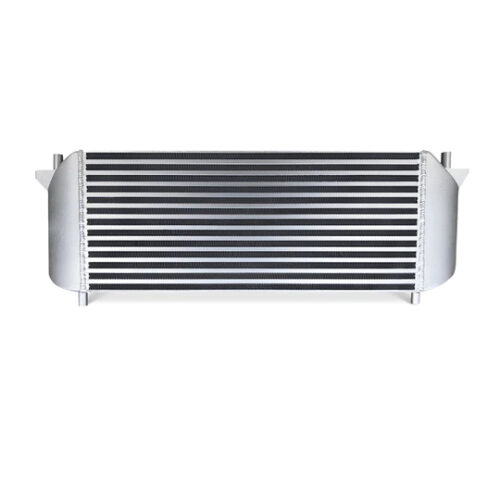

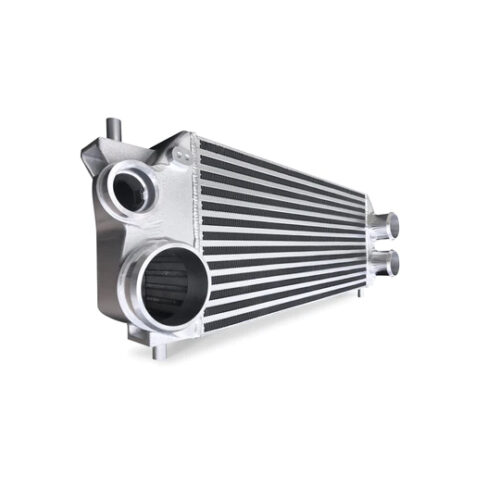

CVF 2015-2020 F-150 2.7L/3.5L/Raptor EcoBoost Titan Intercooler

CV Fabrication 2015-2020 F-150 2.7L/3.5L/Raptor EcoBoost Titan Intercooler

• Direct bolt-on replacement – no vehicle modification required
• 40+ degree reduction in Charge Air Temperature (CAC) observed in real-world conditions

• Over 50% greater core volume than OEM intercooler (20.5″ x 9″ x 4.5″)
• High-flow cast end tanks ensure considerably better airflow efficiency than welded aluminum
• TIG-welded bar-and-plate construction
• CVF Lifetime Warranty

LESS HEAT, MORE POWER

Improve the performance of your EcoBoost F-150 by replacing the small, inefficient stock intercooler to reduce heat and produce more power. This intercooler is a direct fit replacement that features a core over 50% larger than the stock unit.

As the charts show in the images above, the CVF Titan Intercooler saw Charge Air Temperature (CAC) rise only +2 degrees over ambient temperature compared to the OEM intercooler’s +42 CAC rise during a 2-5 gear pull under similar conditions (the OEM test was even conducted at cooler temperatures to start!).

The Titan realized a whopping 40 degree improvement over the OEM intercooler in real-world street testing by an unbiased, third-party tester where it matters: on the street, and not at the dyno (note: runs were made 1.5 hours apart on the same day).

EXCEPTIONAL CONSTRUCTION FOR MAXIMUM EFFICIENCY

Manufactured from top-grade aluminum, the CVF Titan Intercooler features a TIG-welded bar-and-plate design for maximum durability and fully cast end tanks to ensure maximum flow of air into the unit and out to your turbo – equaling more HP.

APPLICATION AND INSTALLATION

This intercooler is specifically designed to fit both the 2015-2020 EcoBoost F-150 2.7L, 3.5L, and Raptor models. There is no modification required to install the intercooler.
