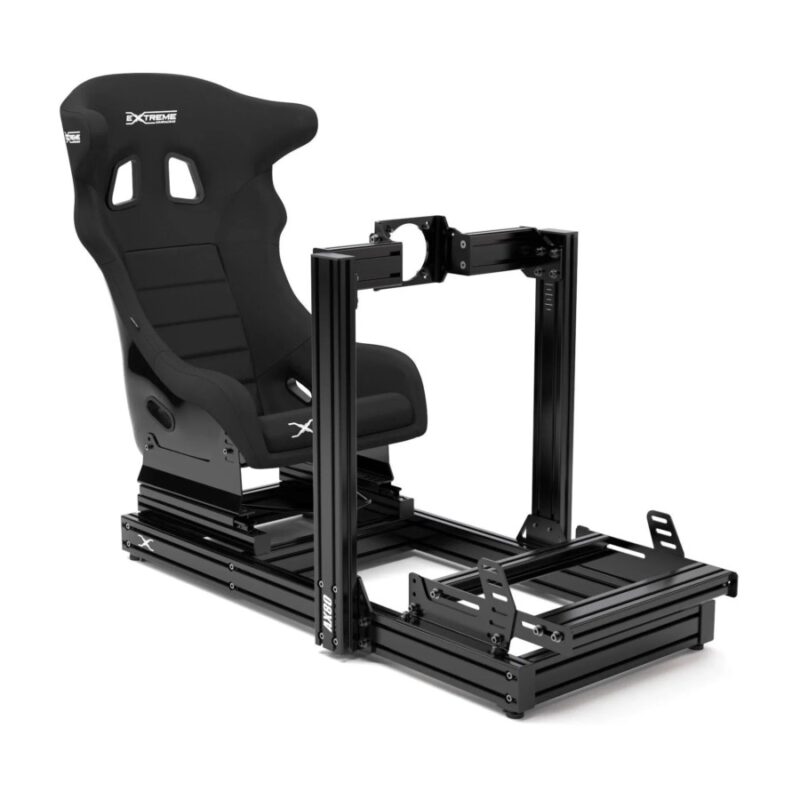

ESR AX80 Aluminum Profile Sim Racing Rig
or as low as $49.92/mo with Affirm
Available on backorder
AX80 — 80mm Profile, Zero Torsion, Infinite Scale
The AX80 is where ESR’s aluminum profile ecosystem begins. 80×40mm extruded profile, anodized finish, laser-inscribed adjustment rulers on every axis. Rated for full-force direct-drive feedback and approved by professional drivers — this is the rig you buy when you’re done upgrading chassis.
Ultra-Low Torsion Aluminum
80×40mm aluminum profile with T-slot bolted construction — no welds, no flex, no compromise. The chassis stays planted under 20+ Nm of direct-drive feedback, transmitting every wheel input cleanly through to your seat and pedal plate.
- 80×40mm aluminum extrusion — anodized fingerprint-resistant finish
- T-slot bolted hardware — zero welds, zero flex points
- Rated for SIMAGIC, Fanatec, Moza, Simucube direct-drive bases
Full Accessory Ecosystem

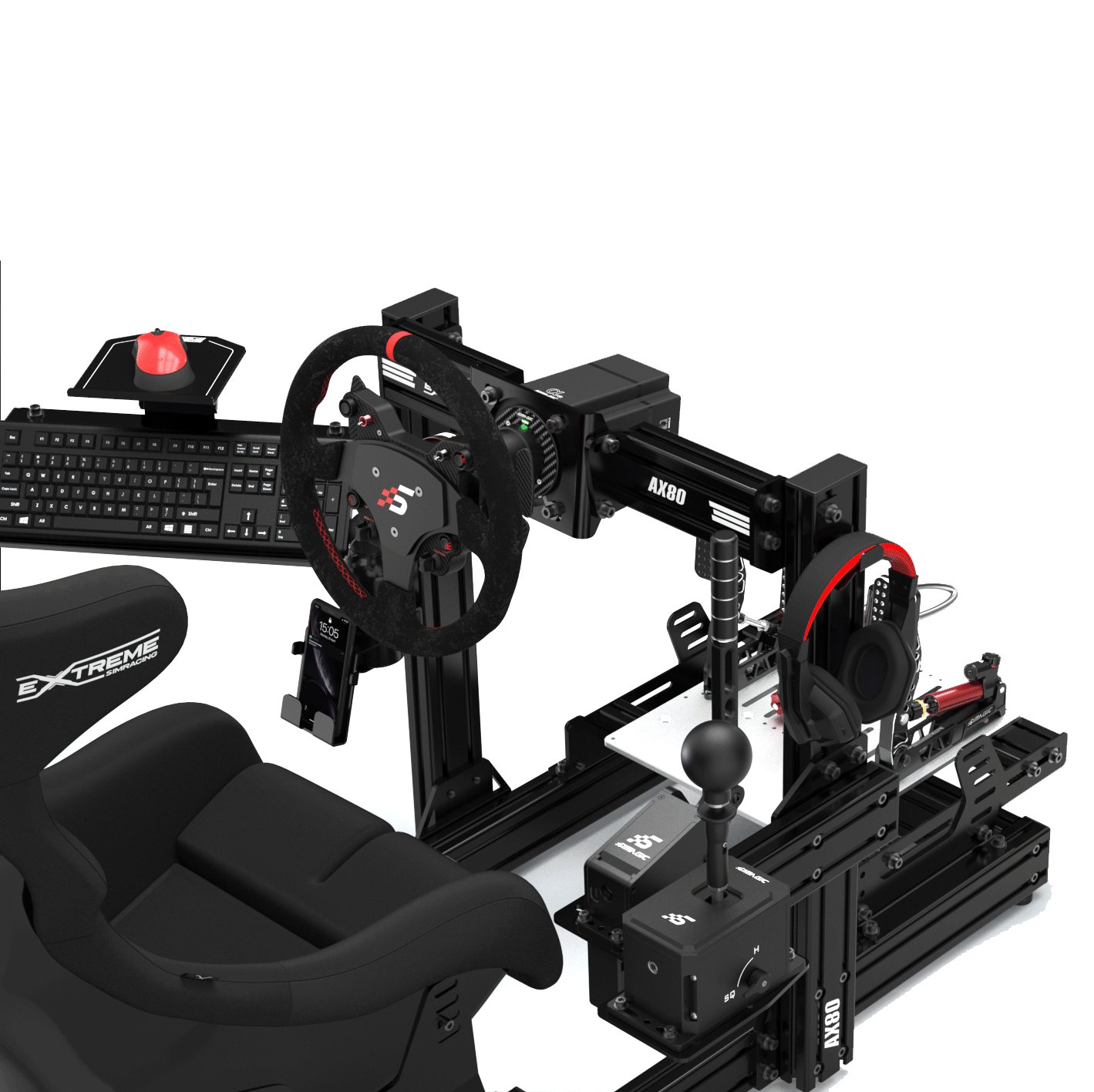

The AX80 isn’t a standalone product — it’s the backbone of ESR’s 80×40 aluminum ecosystem. Keyboard mounts, handbrake add-ons, gear shifter mounts, triple-screen TV stands, and PC trays all bolt directly into the profile. Scale your rig without buying a new chassis.
- Keyboard and mouse mount (80×40 profile)
- Handbrake add-on for gear shifter mount
- Triple-screen TV stand, PC tray, cup holder, phone holder

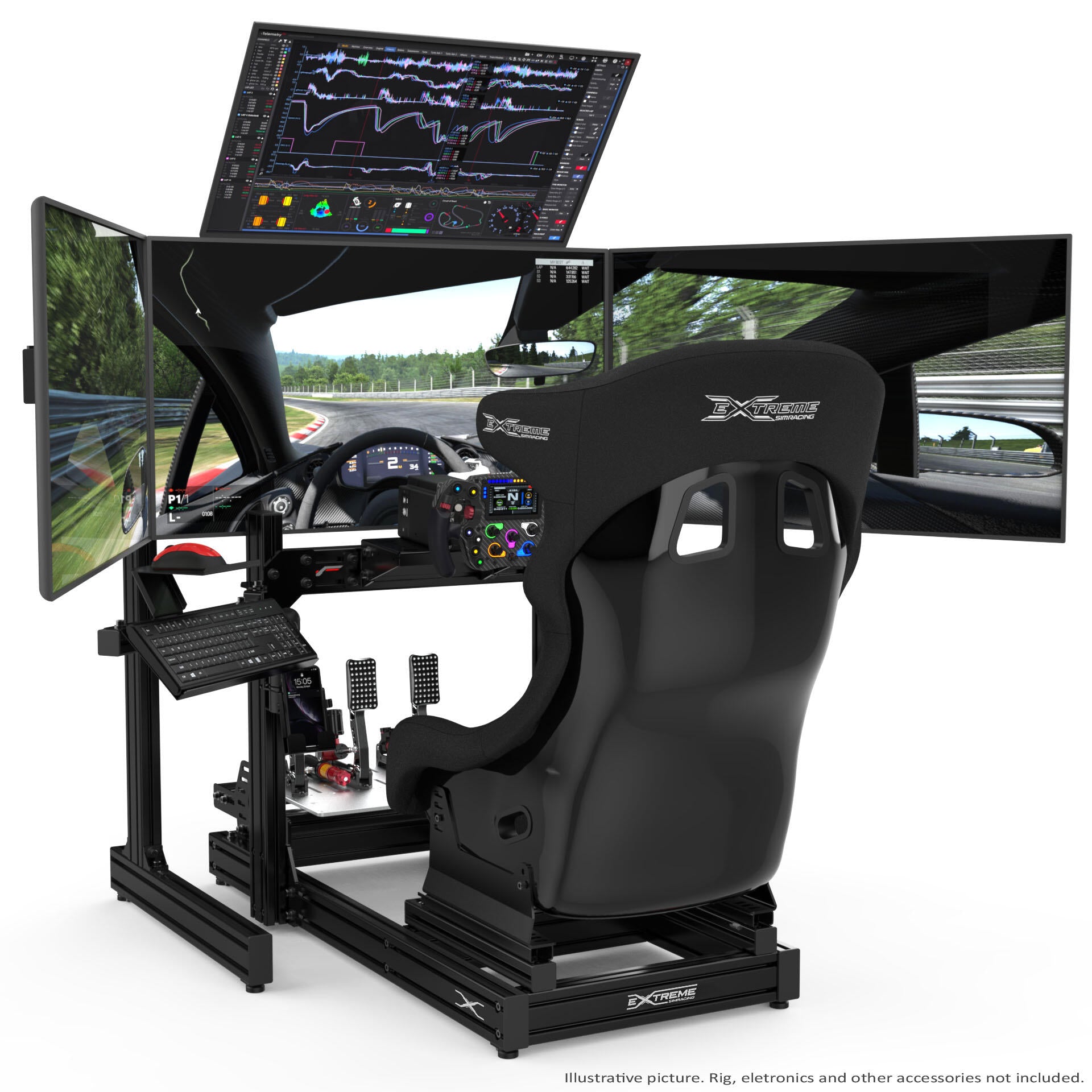

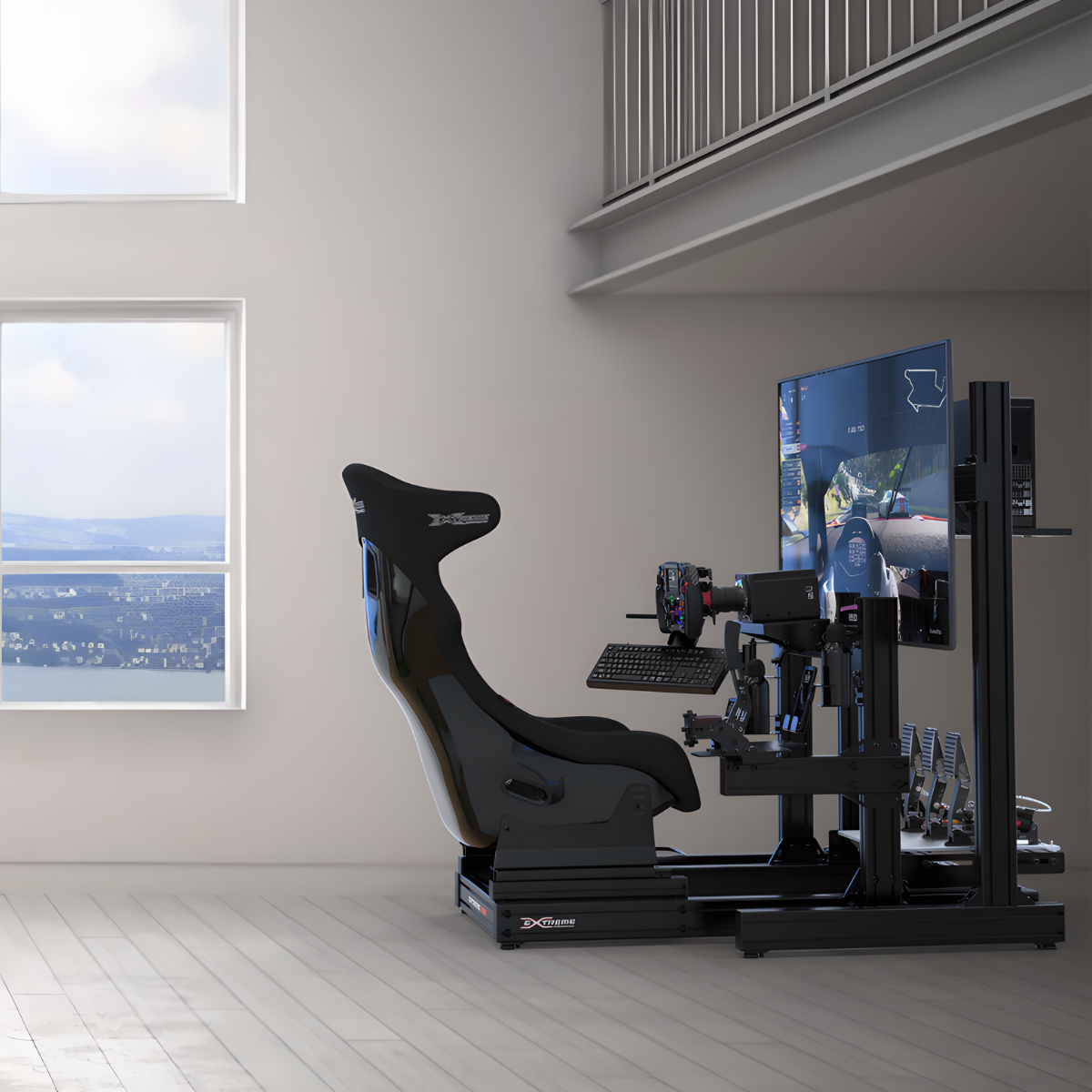

Up To 4 Screens
Triple 27″ wraparound, quad-screen endurance driver setup, or a single large TV for movie-mode immersion. Laser-inscribed rulers on the profile make it easy to reset your geometry between sessions — no guessing at monitor bracket height after a friend borrows the rig.
- Triple 27–34″ monitors — cockpit eye-level
- Quad-screen endurance config — dashboard + trios
- Single TV up to 65″ — single-screen immersion mode
Overview
The AX80 Aluminum Profile Sim Racing Rig is Extreme Simracing’s entry into the aluminum profile chassis segment — 80×40mm extruded profile, bolted T-slot construction, and a full accessory ecosystem. Where the Chassis 3.0 is welded steel and the AX160 is 160mm aluminum flagship, the AX80 sits in the sweet spot: pro-level rigidity at an accessible price, with room to scale as your gear grows.
Designed for formula drift setup replicas, approved by professional drivers, and backed by a 5-year warranty. If you race competitively on mid-to-high-tier direct-drive gear but aren’t ready to commit to the AX160, this is your rig.
Fitment & Compatibility
| Category | Supported |
|---|---|

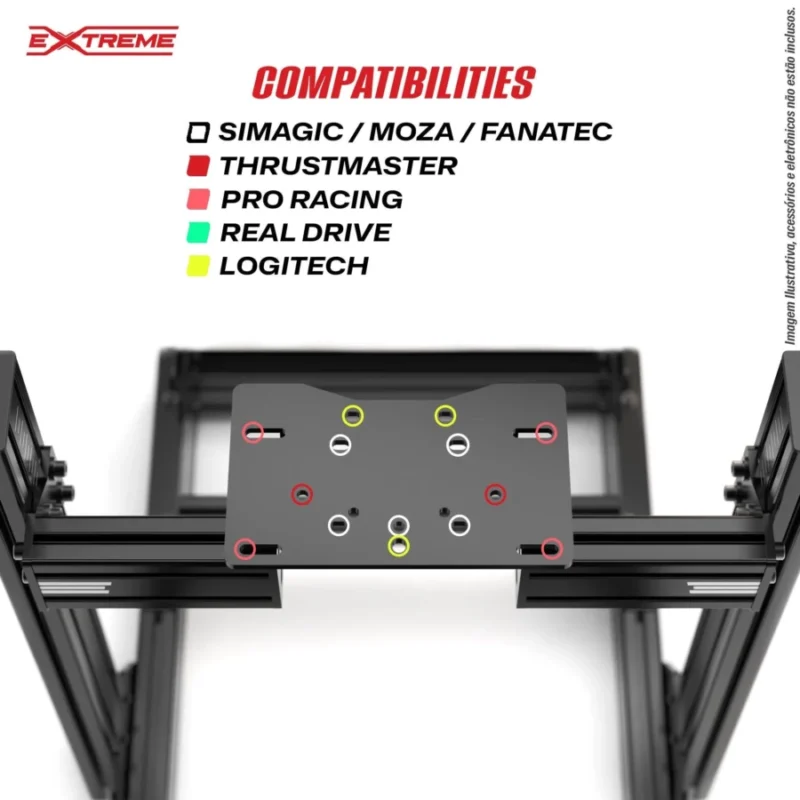

| Direct-drive bases | SIMAGIC Alpha Mini / Alpha, Fanatec CSL DD / ClubSport DD / DD+, Simucube 2 Pro, VRS DirectForce Pro, Moza R9/R12/R16, Logitech Pro |
| Pedal sets | Heusinkveld Sprint/Ultimate/+, Simagic P2000/P1000, Fanatec ClubSport V3/Inverted, Logitech Pro, Asetek Forte |
| Display | Triple 27–34″ monitors, quad-screen config, or single TV up to 65″ |
| Shifter / Handbrake | Side mounts — SIMAGIC DS-8X, Fanatec ClubSport Shifter, Heusinkveld Handbrake, Sim Shifter Sequential |
| Seat | 11+ seat options available — bucket, GT, formula; sold separately or via configurator |
Build & Construction
| Property | Spec |
|---|---|
| Profile | 80×40mm aluminum extrusion, anodized finish |

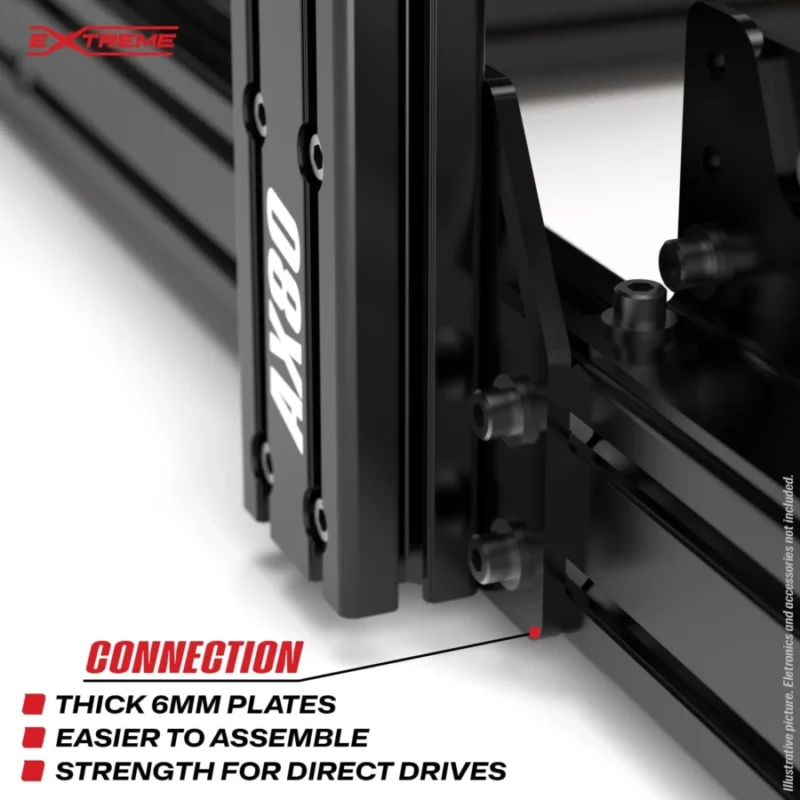

| Construction | Bolted T-slot hardware — no welds |
| Rigidity | Ultra-low torsion; stable under direct-drive feedback |

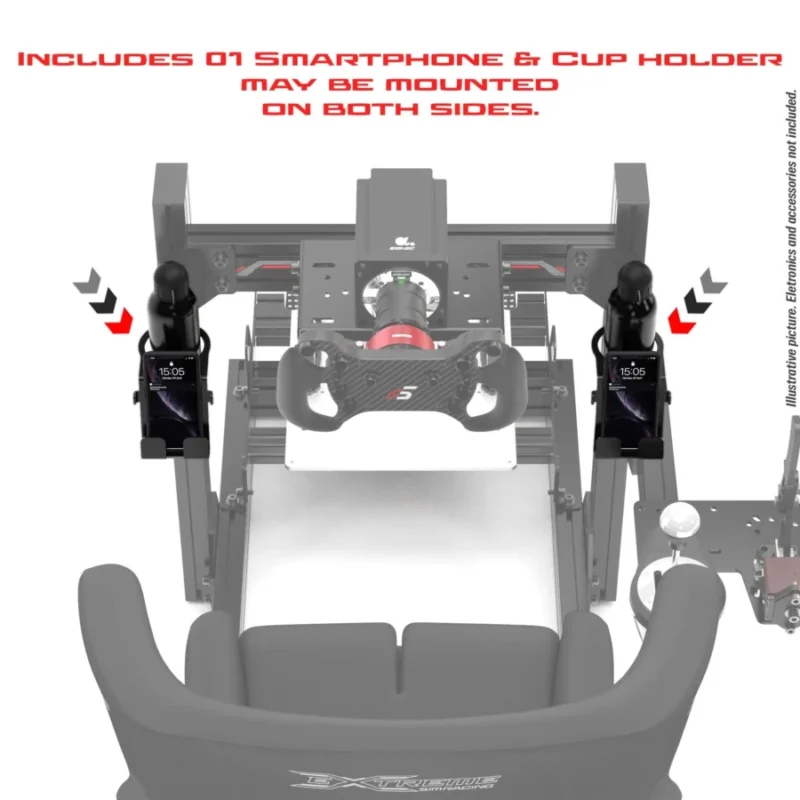

| Included organizers | Cup holder, cell phone holder, headset/wheel holder, rear PC/console tray |

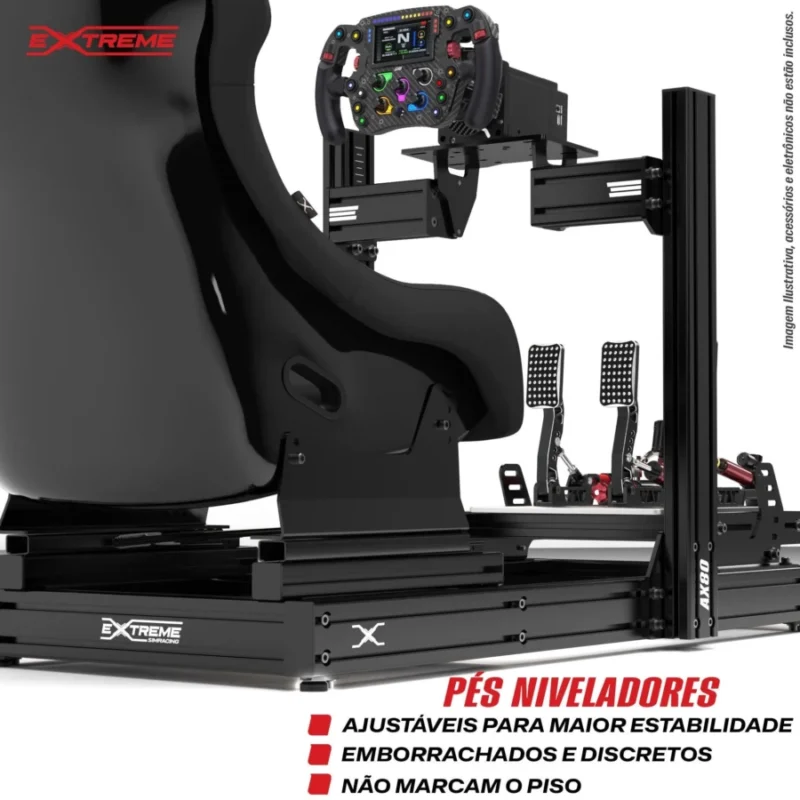

| Mobility | Rubberized leveling feet + caster wheels |

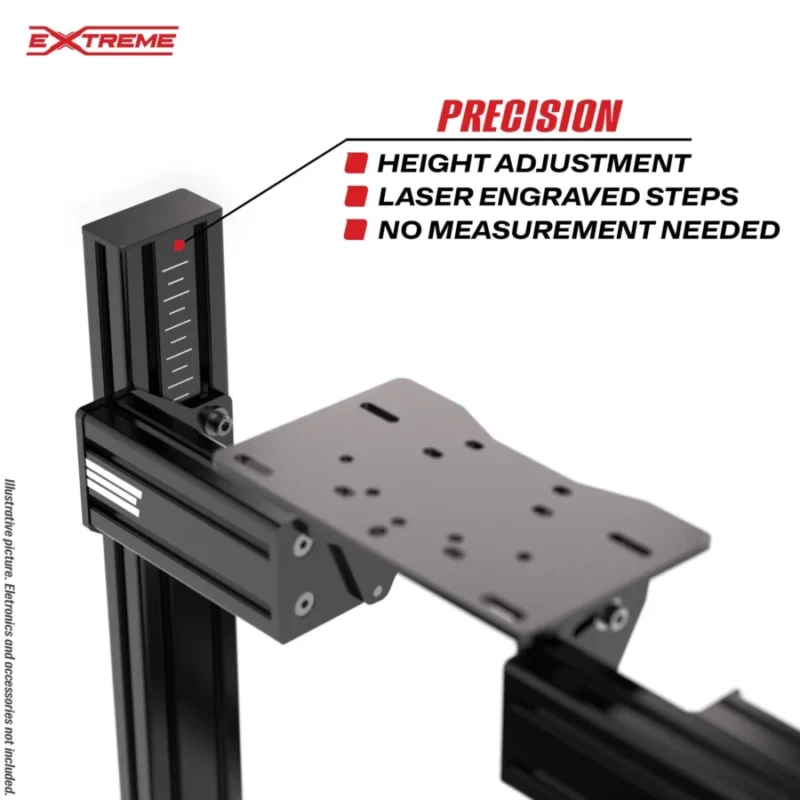

| Precision | Laser-inscribed adjustment rulers on every axis |
| Warranty | 5-year chassis warranty direct from ESR |
Installation Notes
- Footprint — full rig: 5′ × 4′ floor space + clearance. Caster wheels allow repositioning between sessions.
- Build order — frame first, seat second, wheelbase third, pedals last. Pedal torque anchors the frame.
- Solo-build time — 90–120 minutes with metric hex set (3/4/6mm) and 13mm socket.
- Wheelbase mount — frontal direct-drive by default; side horizontal mount optional for lean-forward geometry.
- Monitor tip — eye line at upper third of screen; drop the bracket if shorter than 5’10”.
- Accessory ecosystem — all 80×40-profile accessories bolt directly to the frame; no drilling required.
White Glove Service
Optional at checkout — two tiers when available:
- Local delivery & consultation ($3,000) — we deliver to your Southern California location, assemble on-site, calibrate your wheel base + pedals to your height and brake pressure, and run a tuning session with you on iRacing / ACC / Assetto Corsa. You leave with a working baseline setup.
- Out-of-state delivery + Discord consultation ($4,500) — ships crated and palletized. We join you live on Discord for up to 3 hours covering assembly, calibration, software (SimHub, CrewChief, Moza Pit House, SIMAGIC Orbit), and first-session coaching.
What’s Included
- Complete AX80 80×40mm aluminum chassis — pre-cut, pre-drilled
- All mounting hardware, T-slot nuts, corner brackets
- Organizers — cup holder, phone holder, headset/wheel holder, rear PC/console tray
- Rubberized leveling feet + caster wheels
- Laser-inscribed adjustment rulers
- Printed + digital assembly manual
- 5-year chassis warranty direct from ESR
Installation & Support
Based in Thousand Oaks, CA. Shop rate $250/hr if you want us to assemble on-site or dial in the rig after delivery. Call 805-267-9762 or tap “Talk to Expert” to coordinate. We also run an active sim-racing Discord for setup sheets, telemetry reviews, and league scheduling — ask at checkout for an invite.
