ESR Chassis 3.0 Extreme Sim Racing Configurator
or as low as $46.58/mo with Affirm
Available
Chassis 3.0 — 13 Years Of Refinement, One Flagship Platform
Over 25,000 drivers have raced on the Chassis 3.0 since 2012. It’s the original ESR platform — low-torsion, fully modular, and compatible with every major wheel base on the market. Watch it in action before you configure yours.
Low-Torsion Steel Frame
Reinforced steel construction built for full-force wheel inputs. Every bracket, every weld, every mounting point engineered to transmit input straight through to the pedal plate — not into frame chatter. Rated for servo-motor and mid-tier direct-drive wheel bases.
- High-grade steel chassis with reinforced pedal deck
- Rated for SIMAGIC, Fanatec, Logitech, Thrustmaster bases
- 5-year chassis warranty direct from ESR
Up To 49″ Ultra-Wide Or Triple Screens
The integrated TV stand carries a single 49″ ultra-wide, triple 27–34″ monitors, or a large TV for immersive single-screen play. Bracket heights drop to match a real-car driving position — no more staring up at your display.
- Single ultra-wide monitor support up to 49″
- Triple 27–34″ monitor compatibility
- Articulated keyboard workstation for LAN/endurance sessions

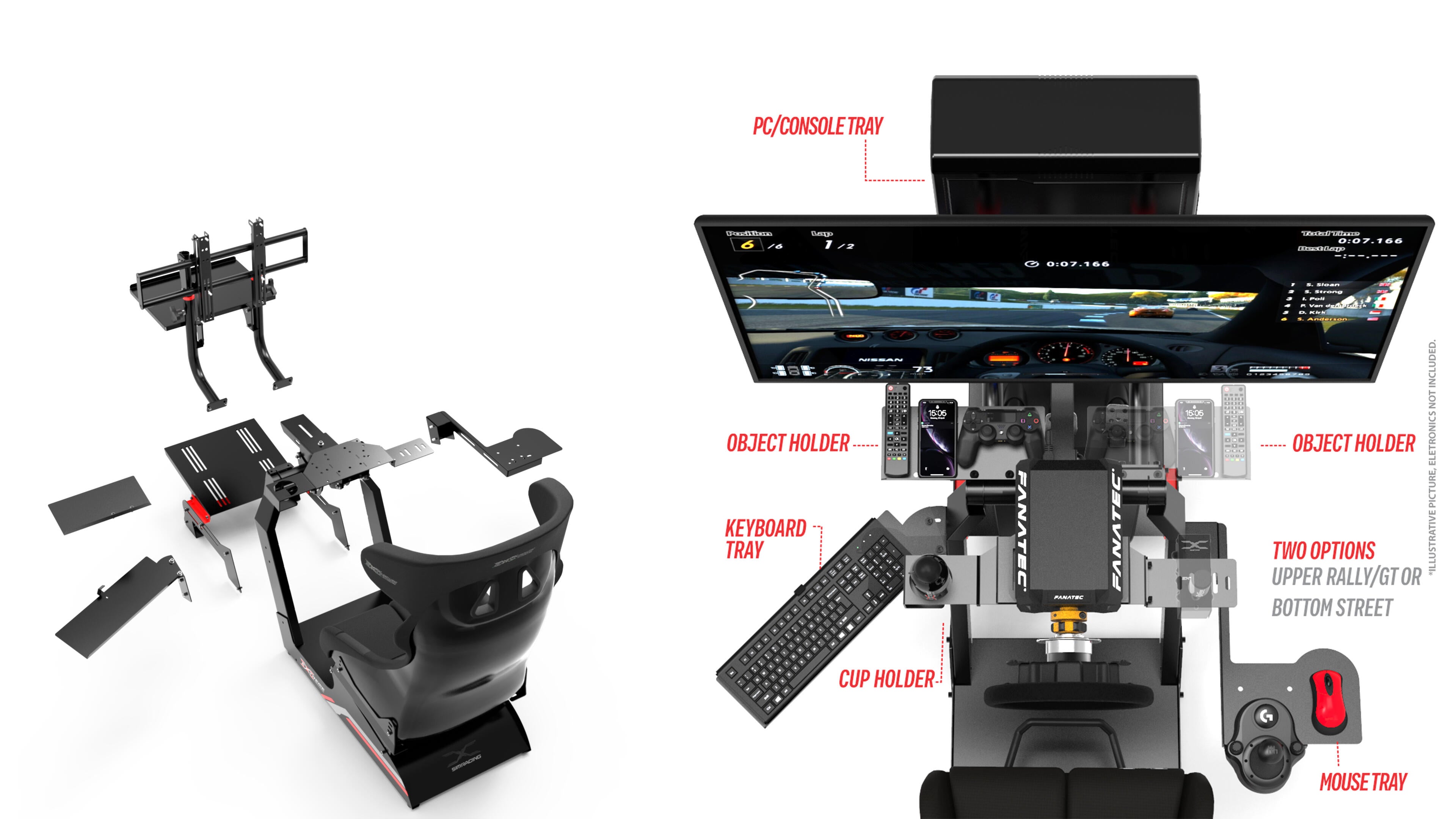

Build It The Way You Race
Pick your seat (11+ models, multiple colors), gear shifter mount, handbrake mount, TV stand, keyboard tray, and storage organizer from the options above. The chassis is the foundation — everything else bolts onto it so your rig evolves with your gear.
- 11+ seat options — bucket, reclining, GT, formula positions
- Shifter + handbrake side mounts — ambidextrous
- Cup holder, phone holder, rear PC/console tray included
Overview
The Chassis 3.0 Sim Racing Configurator is Extreme Simracing’s longest-running platform — over a decade of continuous refinement, trusted by more than 25,000 drivers worldwide. This is the rig that earned ESR its reputation before the aluminum profile ecosystem existed: low-torsion steel, modular mounting, and a complete accessory ecosystem that lets you start simple and scale as your gear grows.
Where entry-tier chassis flex under hard braking and roll under wheel load, the Chassis 3.0 stays planted. Servo-motor bases lock in, mid-tier direct-drives transmit clean feedback, and the integrated TV mount keeps your eye line where it belongs — at the top third of the screen, not centered like an office monitor.
Fitment & Compatibility
| Category | Supported |
|---|---|
| Wheel bases | SIMAGIC Alpha Mini, Fanatec CSL DD / GT DD Pro / ClubSport DD, Logitech G923/G29/G920/Pro, Thrustmaster T-GT II / TS-XW / TS-PC, Moza R5/R9 |
| Pedal sets | Heusinkveld Sprint, Simagic P2000/P1000, Fanatec ClubSport V3/Inverted, Logitech Pro, Thrustmaster T-LCM, load-cell and hydraulic sets |
| Display | Single ultra-wide up to 49″, triple 27–34″ monitors, single TV up to 55″ with integrated mount |
| Shifter / Handbrake | Side mounts for SIMAGIC, Fanatec ClubSport Shifter/Handbrake, Heusinkveld Handbrake, Sim Shifter Sequential |
| Seat | 11+ seat options from the configurator — bucket, reclining (up to 170°), GT, formula positions; multiple color combos |
Build & Construction
| Property | Spec |
|---|---|
| Frame | Reinforced steel, low-torsion welded construction |
| Finish | Black or white powder-coat — fingerprint-resistant |
| Adjustability | Full pedal-plate, seat, wheel-mount, and monitor-height adjustment |
| Included organizers | Cup holder, cell phone holder, rear tray for PC/console |

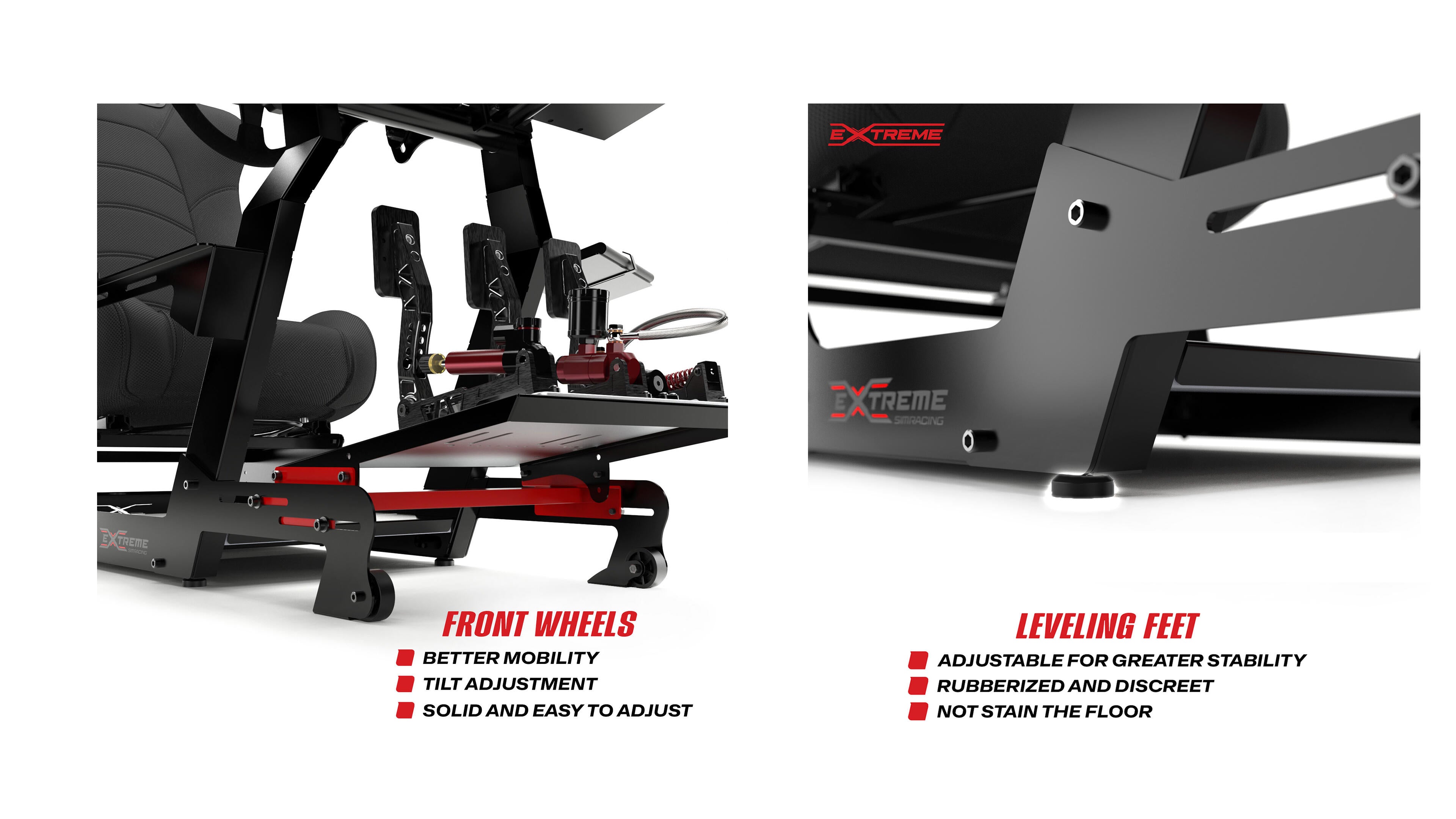

| Mobility | Rubberized leveling feet + caster wheels for repositioning |
| Warranty | 5-year chassis warranty direct from ESR |
Installation Notes
- Footprint — full rig needs roughly 5′ × 4′ floor space + pedal-kick and seat-travel clearance. Rolls on casters between sessions.
- Build order — frame first, seat second, wheelbase third, pedals last. Torque pedal-plate bolts only after the frame is seated.
- Solo-build time — 60–90 minutes with standard metric tools. First-time builders should plan 2 hours.
- Wheelbase mount — side-clamp default; front-mount bracket optional for direct-drive bases.
- Monitor tip — eye line at upper third of screen, not centered. Drop the bracket if you’re under 5’10” on a fixed-height chair.
- Electronics not included — wheel, pedals, and shifter are your choice; seat is included via the configurator.
White Glove Service
Optional at checkout — two tiers when available:
- Local delivery & consultation ($3,000) — we deliver to your Southern California location, assemble on-site, calibrate your wheel base + pedals to your height and brake pressure, and run a tuning session with you on iRacing / ACC / Assetto Corsa. You leave with a working baseline setup.
- Out-of-state delivery + Discord consultation ($4,500) — ships crated and palletized. We join you live on Discord for up to 3 hours covering assembly, calibration, software (SimHub, CrewChief, Moza Pit House, SIMAGIC Orbit), and first-session coaching.
What’s Included
- Complete Chassis 3.0 steel frame — all welded sections pre-drilled and ready to assemble
- All mounting hardware, brackets, bolts, and cable routing channels
- Integrated TV mount with articulated keyboard workstation
- Organizers — cup holder, cell phone holder, rear PC/console tray
- Rubberized leveling feet + caster wheels for mobility
- Seat and accessories per your configurator selections above
- 5-year chassis warranty direct from ESR
Installation & Support
Based in Thousand Oaks, CA. Shop rate $250/hr if you want us to assemble on-site or dial in the rig after delivery. Call 805-267-9762 or tap “Talk to Expert” to coordinate. We also run an active sim-racing Discord for setup sheets, telemetry reviews, and league scheduling — ask at checkout for an invite.
