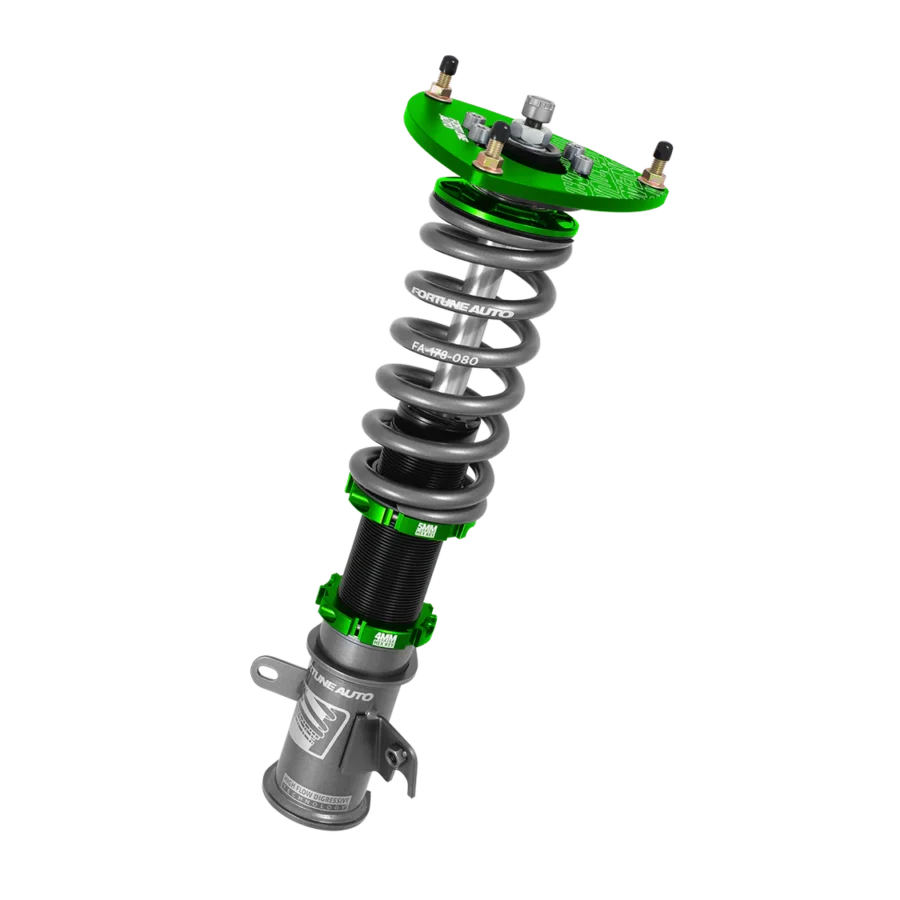

Fortune Auto 2015-2023 Ford Mustang (S550) 500 Series Coilovers
510 Series Coilovers are custom, hand-built to order. Most applications have a 4-7 week lead time. Lead times for certain applications and peak season orders may vary.
Key Features
-
Fully adjustable coilover system for S550 Mustang (2015–2023)
-
Digressive piston technology for responsive handling and improved ride quality
-

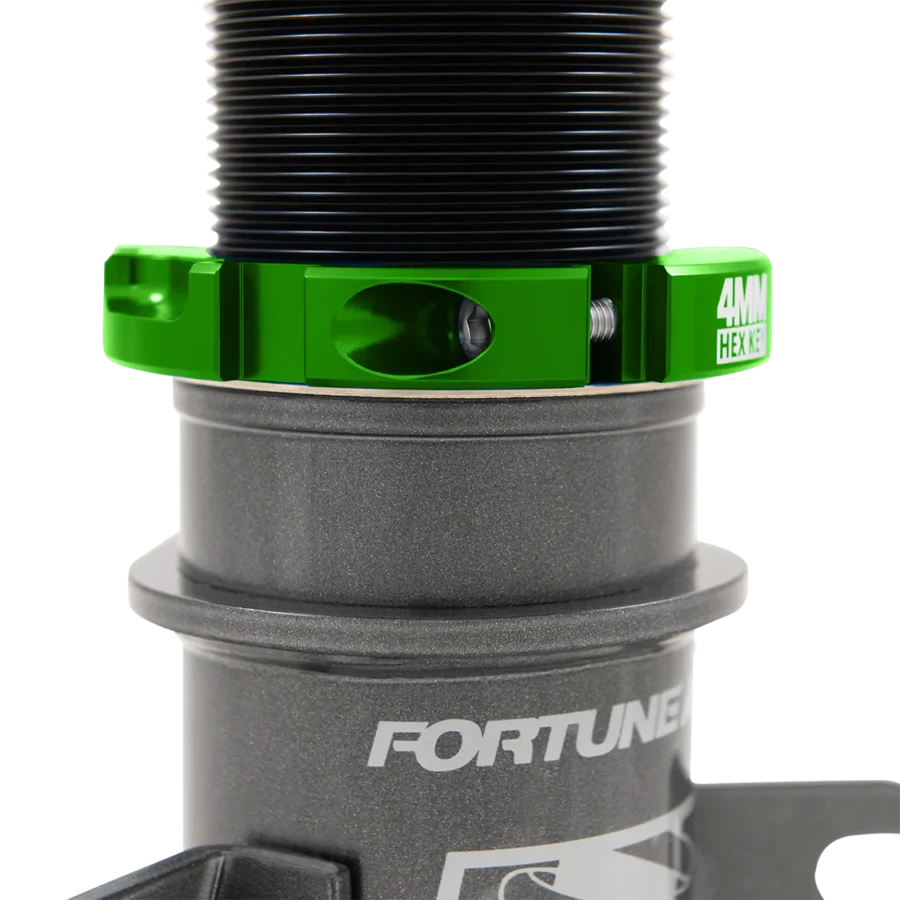

Height adjustable without affecting preload
-
Premium, hand-assembled construction—rebuildable and upgradeable
-
Ideal for street, track, and show applications
or as low as $164.83/mo with Affirm
★ Factory-ProvenWE DON'T JUST SELL IT. WE RUN IT.
This exact Fortune Auto 500 Series setup is what our 650 HP professional drift-car EcoBoost Mustang rides on right now — freshly installed by the FFP crew and already getting abused on track. We only sell the parts that survive our own car.
See the Full Build →Fortune Auto 500 Series Coilovers
Single-adjustable monotube for the 2015-2023 Mustang S550 — the entry into the Fortune Auto-verse, built around the High Flow Digressive™ piston. Custom. Modular. Rebuildable.
Buy once. Never buy coilovers again.
Fortune Auto engineers are consistently chasing improvement, and the Generation 8 500 Series is the proof. Every set is hand-assembled to your order, dyno-tested with a printed curve, and built on a platform you can rebuild, revalve and upgrade instead of replace — all at their facility in Richmond, Virginia.
The S550 application ships at 7K front / 16K rear (Swift rear spring standard) and includes front endlinks. Want different rates for your build? Call 805-267-9762 — it’s built to order anyway.
Street vs. Track — why digressive wins
Race-track R&D tuned for the street: optimized for comfort, reliability and longevity. Rides like a quality OEM sport setup — until you ask for more.
Stiff low-speed compression and rebound control roll, dive and squat — while fast shaft speeds stay supple over curbs and bumps for maximum grip.
What every 500 Series ships with
- High Flow Digressive™ piston technology
- FA synthetic shock oil
- Custom-built & shock-dyno tested in the USA

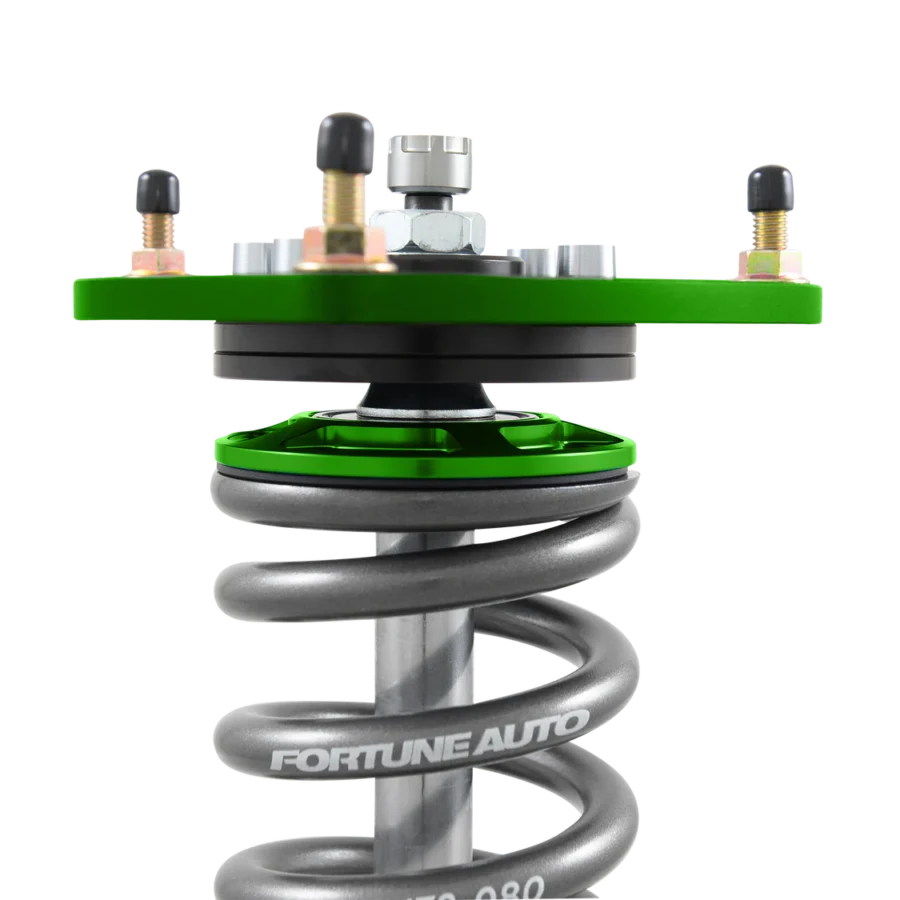

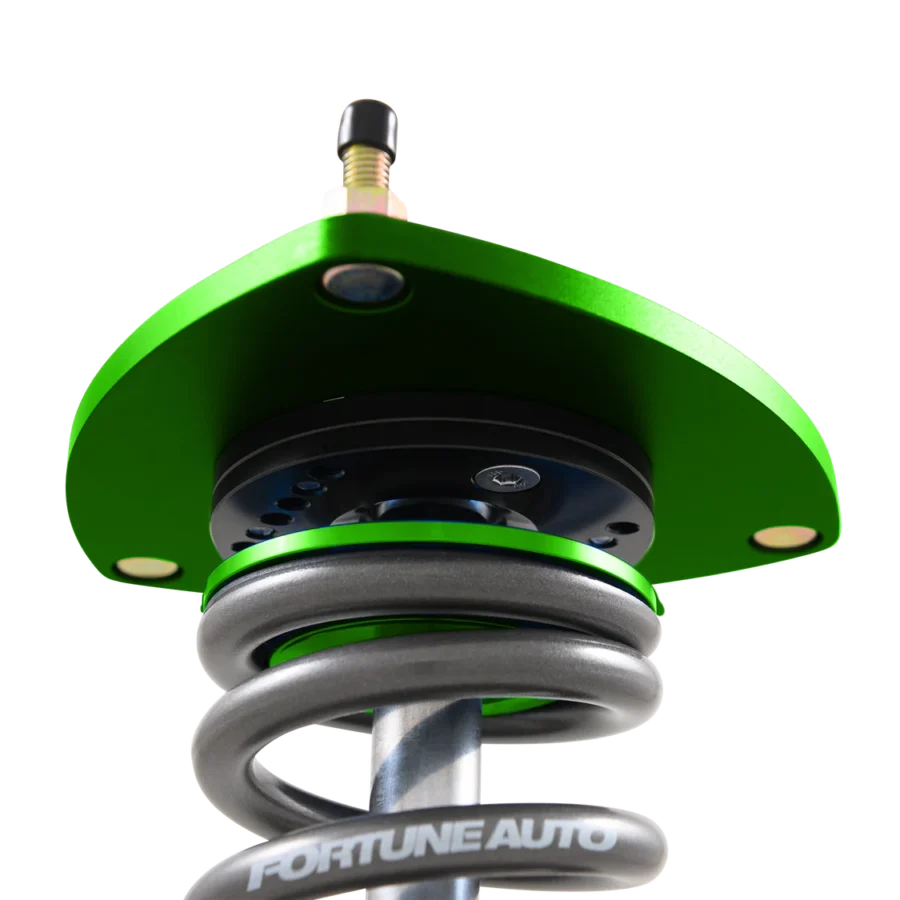

- T6-6061 aluminum mounts & front camber plates
- Koyo Japan radial bearing mounts

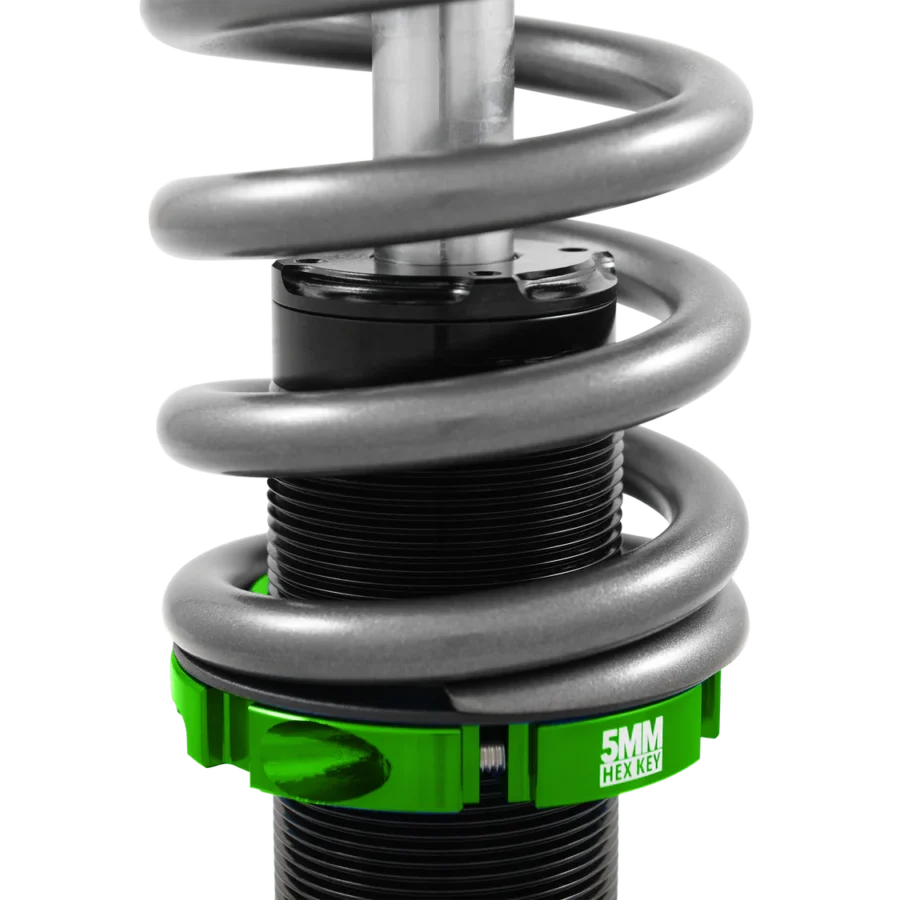

- Premium chrome silicon springs w/ locking perches
- Fully rebuildable & revalveable (Richmond, VA)
- Modular — upgradeable to 2-way / 3-way canister
High Flow Digressive™ piston
The force/velocity curve says it all: strong low-speed force for body control, then the curve flattens so fast hits stay supple. That’s the digressive advantage.
Anatomy of the 500
In the box & on the bench
Specifications
- Damper
- Monotube, high-pressure nitrogen
- Adjustment
- 24-step (single-adjustable)
- Piston
- High Flow Digressive™
- Oil
- FA synthetic shock oil
- Mounts
- T6-6061 + front camber plates
- Bearings
- Koyo Japan radial
- S550 Rates
- 7K front · 16K rear (Swift)
- Includes
- Front endlinks
- Build
- Custom order · dyno-tested · Richmond VA
- Service
- Rebuildable & revalveable USA
- Modularity
- 2-way / 3-way canister upgrade path
- Warranty
- 5-year limited
Spring upgrades: pick Default, Swift (+$200) or Hyperco (+$200) fronts in the dropdown above. Custom rates for your build — call 805-267-9762 before ordering.
