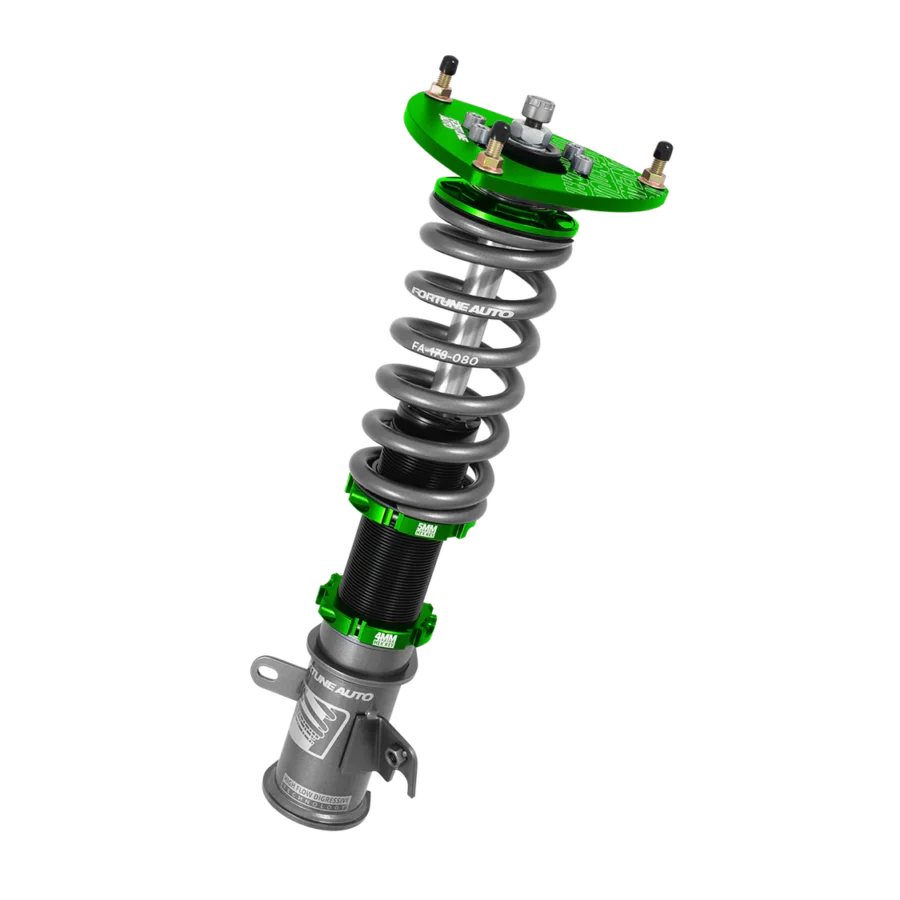

Fortune Auto 2016-2018 Ford Focus RS - 500 Series Coilovers
510 Series Coilovers are custom, hand-built to order. Most applications have a 4-7 week lead time. Lead times for certain applications and peak season orders may vary.
Key Features
-
Engineered for the 2016–2018 Ford Focus RS, offering precise handling and improved ride quality
-
500 Series digressive coilover system delivers sharp response, stability, and control for both street and track
-
24-step dampening adjustment allows fine-tuning to match your driving style and road conditions
-
Monotube damper design provides consistent performance under aggressive driving and high heat
-
Lightweight, high-strength materials ensure durability and long service life
-
Rebuildable and revalveable for long-term support and customization
or as low as $164.83/mo with Affirm
Fortune Auto 500 Series — Focus RS
Single-adjustable monotube for the 2016-2018 Focus RS — 7K/5K Swift-rear spec with front endlinks included. Custom. Modular. Rebuildable.
Buy once. Never buy coilovers again.
Fortune Auto engineers are consistently chasing improvement, and the Generation 8 500 Series is the proof. Every set is hand-assembled to your order, dyno-tested with a printed curve, and built on a platform you can rebuild, revalve and upgrade instead of replace.
The Focus RS application ships at 7K front / 5K rear (Swift rear spring standard), includes front endlinks, and runs camber plates up front. Want different rates? Call 805-267-9762.
Street vs. Track — why digressive wins
Race-track R&D tuned for the street: optimized for comfort, reliability and longevity. Rides like a quality OEM sport setup — until you ask for more.
Stiff low-speed compression and rebound control roll, dive and squat — while fast shaft speeds stay supple over curbs and bumps for maximum grip.
What every 500 Series ships with
- High Flow Digressive™ piston technology
- FA synthetic shock oil
- Custom-built & shock-dyno tested in the USA

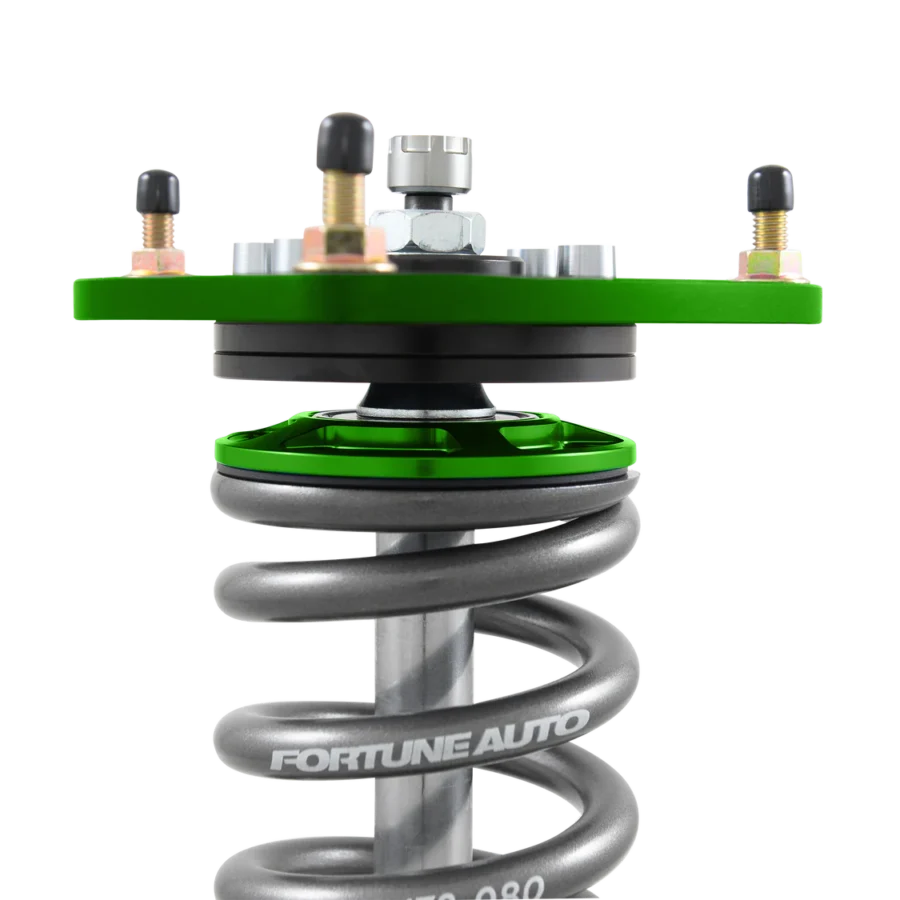

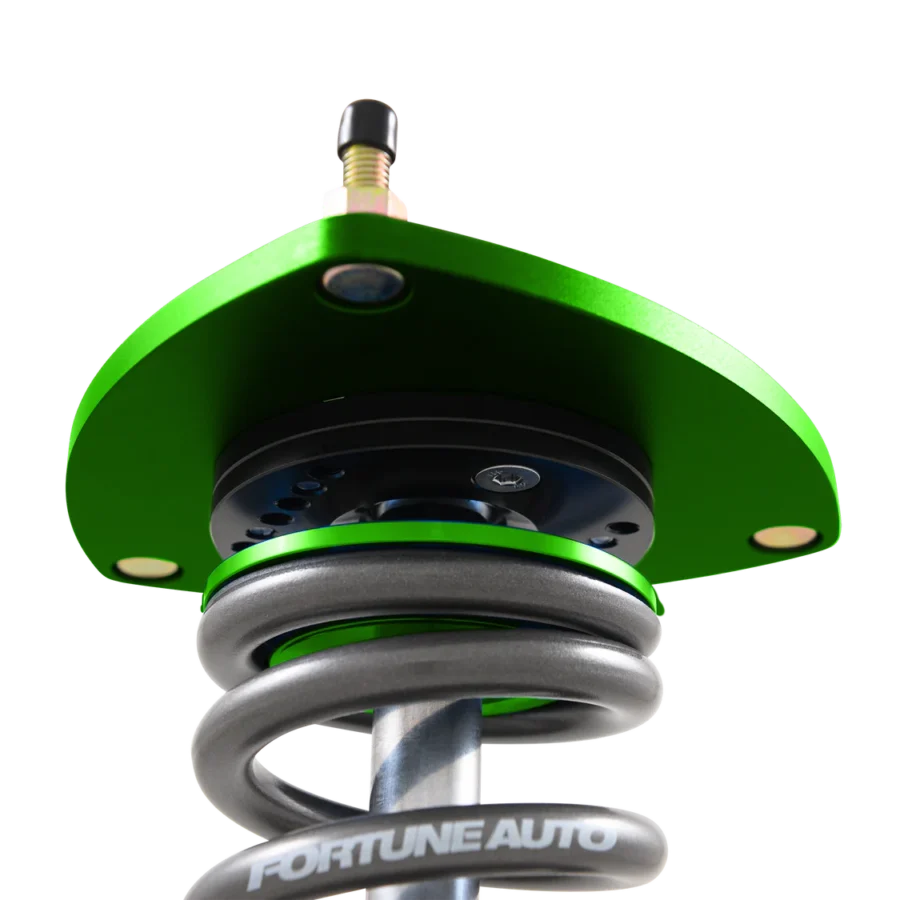

- T6-6061 aluminum mounts & camber plates
- Koyo Japan radial bearing mounts

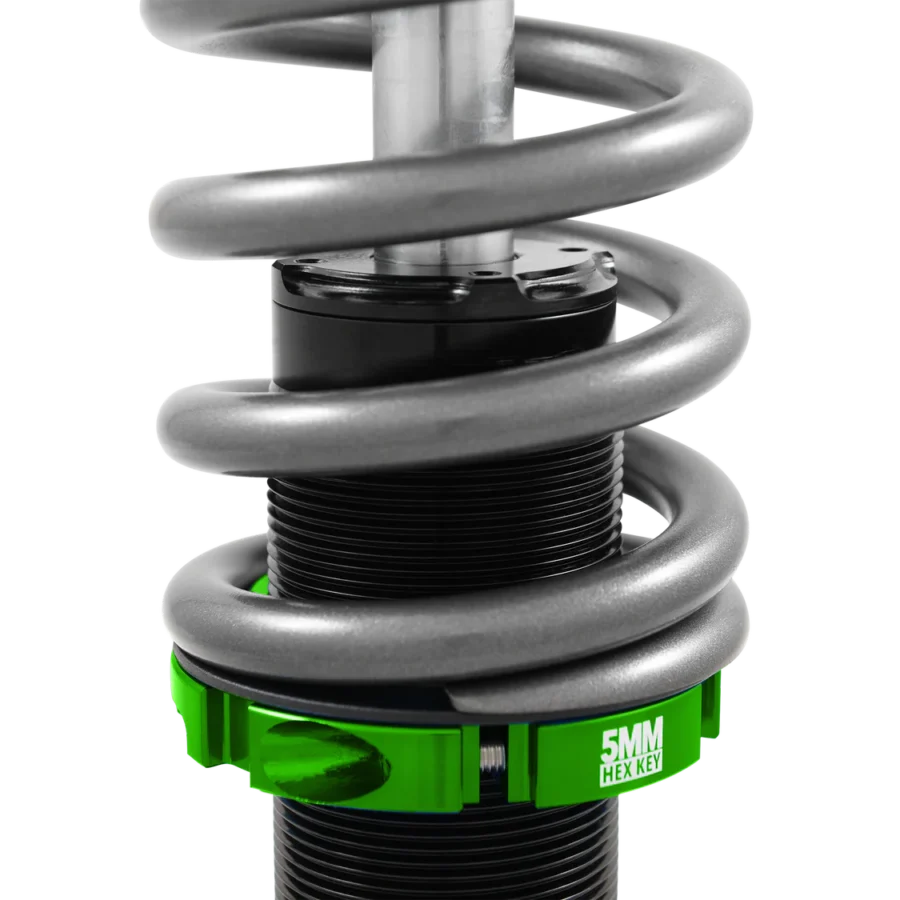

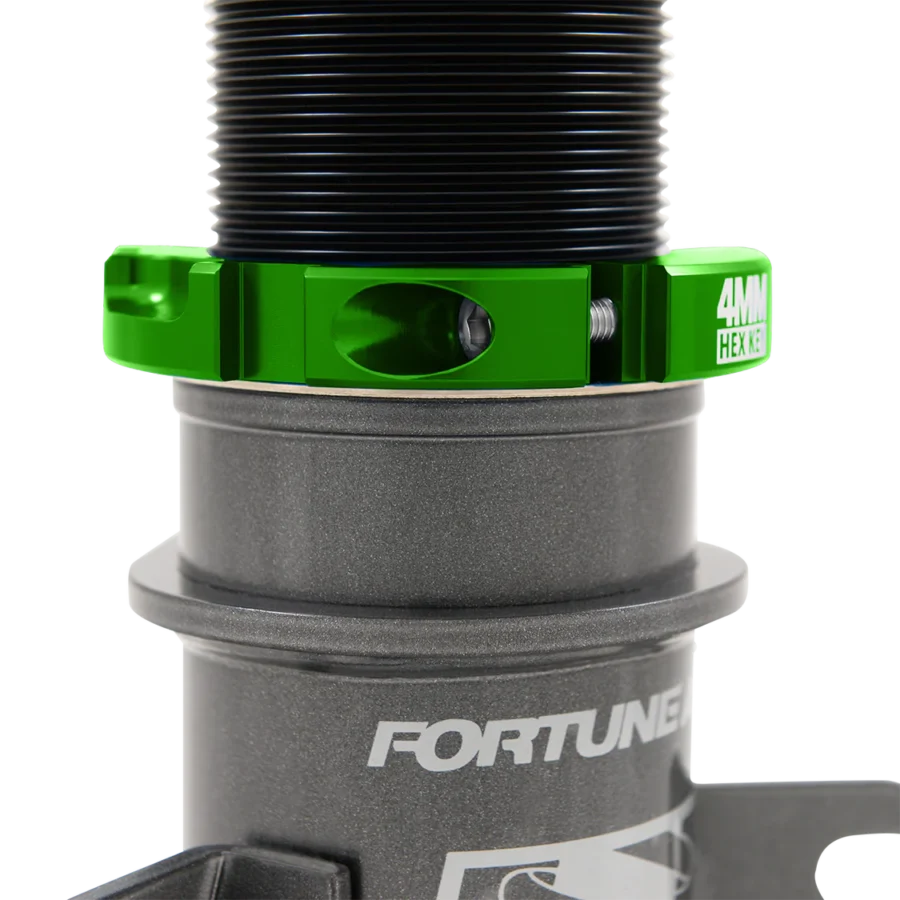

- Premium chrome silicon springs w/ locking perches
- Fully rebuildable & revalveable (Richmond, VA)
- Modular — upgradeable to 2-way / 3-way canister
High Flow Digressive™ piston
The force/velocity curve says it all: strong low-speed force for body control, then the curve flattens so fast hits stay supple. That’s the digressive advantage.
Anatomy of the 500
In the box & on the bench
Specifications
- Damper
- Monotube, high-pressure nitrogen
- Adjustment
- 24-step (single-adjustable)
- Piston
- High Flow Digressive™
- Oil
- FA synthetic shock oil
- Mounts
- T6-6061 + camber plates
- Rates
- 7K front · 5K rear (Swift)
- Includes
- Front endlinks · front camber plates
- Build
- Custom order · dyno-tested · Richmond VA
- Service
- Rebuildable & revalveable USA
- Modularity
- 2-way / 3-way canister upgrade path
- Warranty
- 5-year limited
Spring upgrades: pick Default, Swift (+$200) or Hyperco (+$200) fronts in the dropdown above. Custom rates for your build — call 805-267-9762 before ordering.
