Fortune Auto 2016-2018 Ford Focus RS - 510 Series Coilovers
510 Series Coilovers are custom, hand-built to order. Most applications have a 4-7 week lead time. Lead times for certain applications and peak season orders may vary.
Key Features
-
Advanced 510 Series single-adjustable coilover system for Focus RS (2016-2018)
-
CFD (Concave Flow Digressive) piston design delivers sharp control and great ride feel
-
24-step simultaneous rebound and compression tuning for versatile handling
-
Built with high-pressure nitrogen monotube construction and durable mounts
-

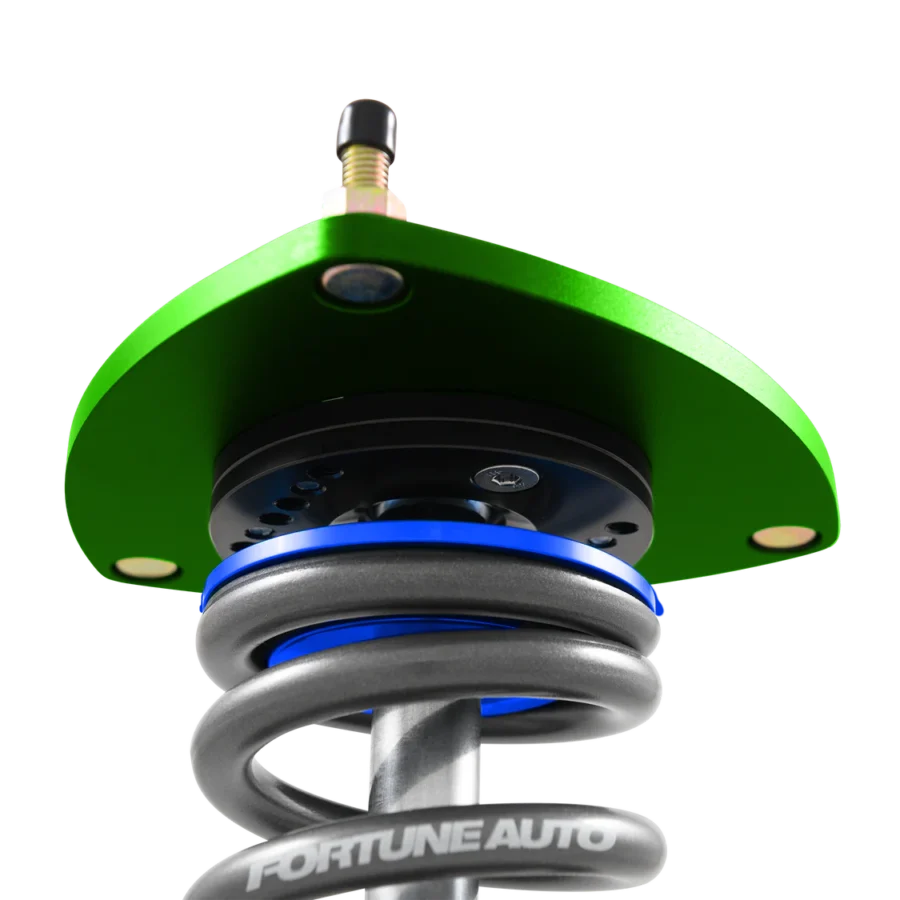

Includes T6 6061 aluminum top mounts / camber plates for reliable strength
or as low as $218.33/mo with Affirm

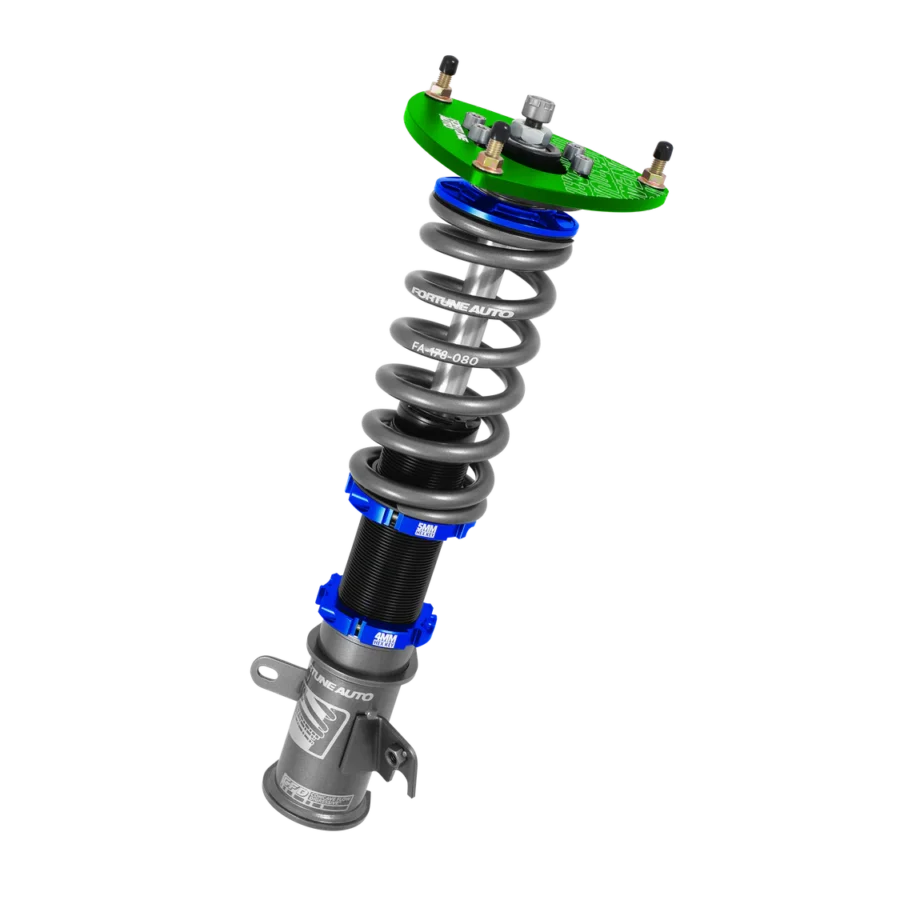

Fortune Auto 510 Series — Focus RS
The step up: 24-step SIMULTANEOUS rebound + compression adjustment with the Concave Flow Digressive™ piston, for the 2016-2018 Focus RS. Front endlinks included.
Buy once. Never buy coilovers again.
The 510 Series takes the Gen 8 platform up a level: one 24-step adjuster moves rebound AND compression together, built around the Concave Flow Digressive™ piston for an even wider tuning window. Every set ships with an assembly certificate and the dyno graph for all four shocks.
Same Fortune Auto DNA: hand-built to order in Richmond VA, fully rebuildable and revalveable, modular to a 2-way canister later. Front endlinks included on the Focus RS application. Custom rates? Call 805-267-9762.
Street vs. Track — why digressive wins
Race-track R&D tuned for the street: optimized for comfort, reliability and longevity. Rides like a quality OEM sport setup — until you ask for more.
Stiff low-speed compression and rebound control roll, dive and squat — while fast shaft speeds stay supple over curbs and bumps for maximum grip.
What every 510 Series ships with
- Concave Flow Digressive™ piston technology
- 24-step simultaneous rebound + compression adjusters
- Assembly certificate + dyno graph with all 4 shocks

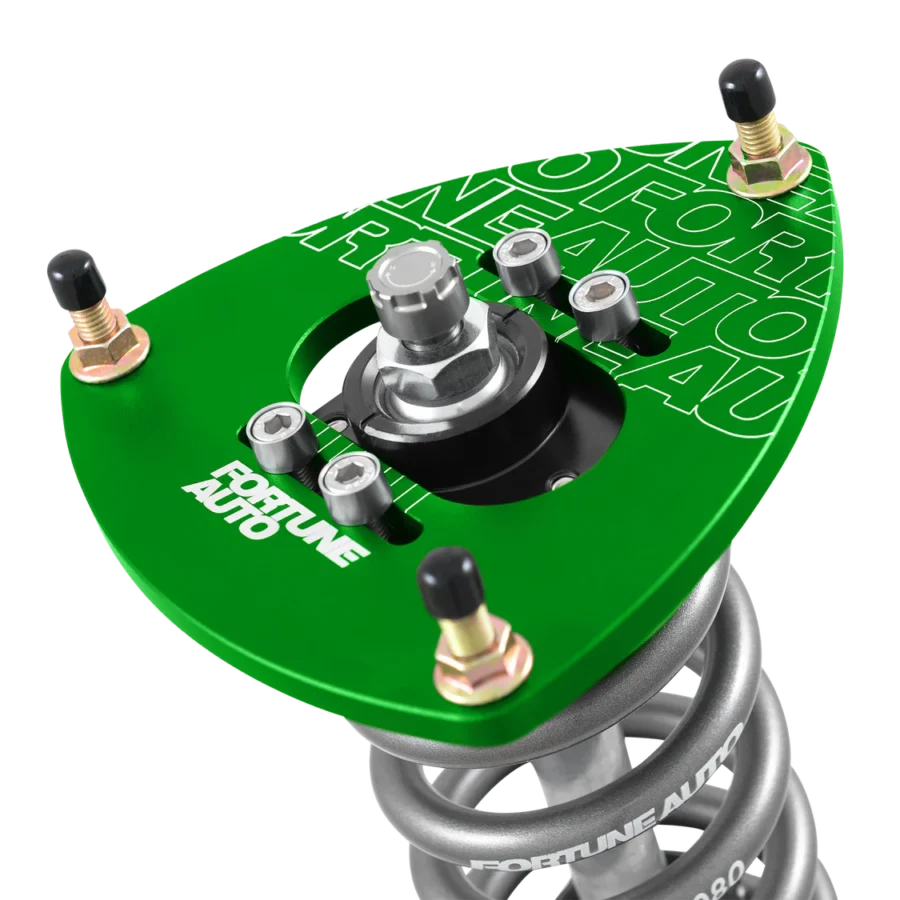

- T6-6061 aluminum mounts & camber plates
- Monotube damper, high-pressure nitrogen
- FA synthetic shock oil
- Fully rebuildable & revalveable (Richmond, VA)
- Modular — upgradeable to 2-way canister
Concave Flow Digressive™ piston
The force/velocity curve says it all: strong low-speed force for body control, then the curve flattens so fast hits stay supple. That’s the digressive advantage — with the 510’s simultaneous rebound + compression adjustment, one knob moves the whole curve to your taste.
In the box & on the bench
Specifications
- Damper
- Monotube, high-pressure nitrogen
- Adjustment
- 24-step simultaneous rebound + compression
- Piston
- Concave Flow Digressive™
- Oil
- FA synthetic shock oil
- Mounts
- T6-6061 + camber plates
- Rates
- Application-spec (custom rates by phone)
- Includes
- Front endlinks · assembly cert + dyno graphs
- Build
- Custom order · dyno-tested · Richmond VA
- Service
- Rebuildable & revalveable USA
- Modularity
- 2-way canister upgrade path
- Warranty
- 5-year limited
Spring upgrades: pick Default, Swift (+$200) or Hyperco (+$200) fronts in the dropdown above. Custom rates for your build — call 805-267-9762 before ordering.
