Full-Race Motorsports 2017-2020 Ford Raptor/F-150 3.5L Ecoboost Formline Turbo Kit

TAKE YOUR TRUCK TO THE NEXT LEVEL

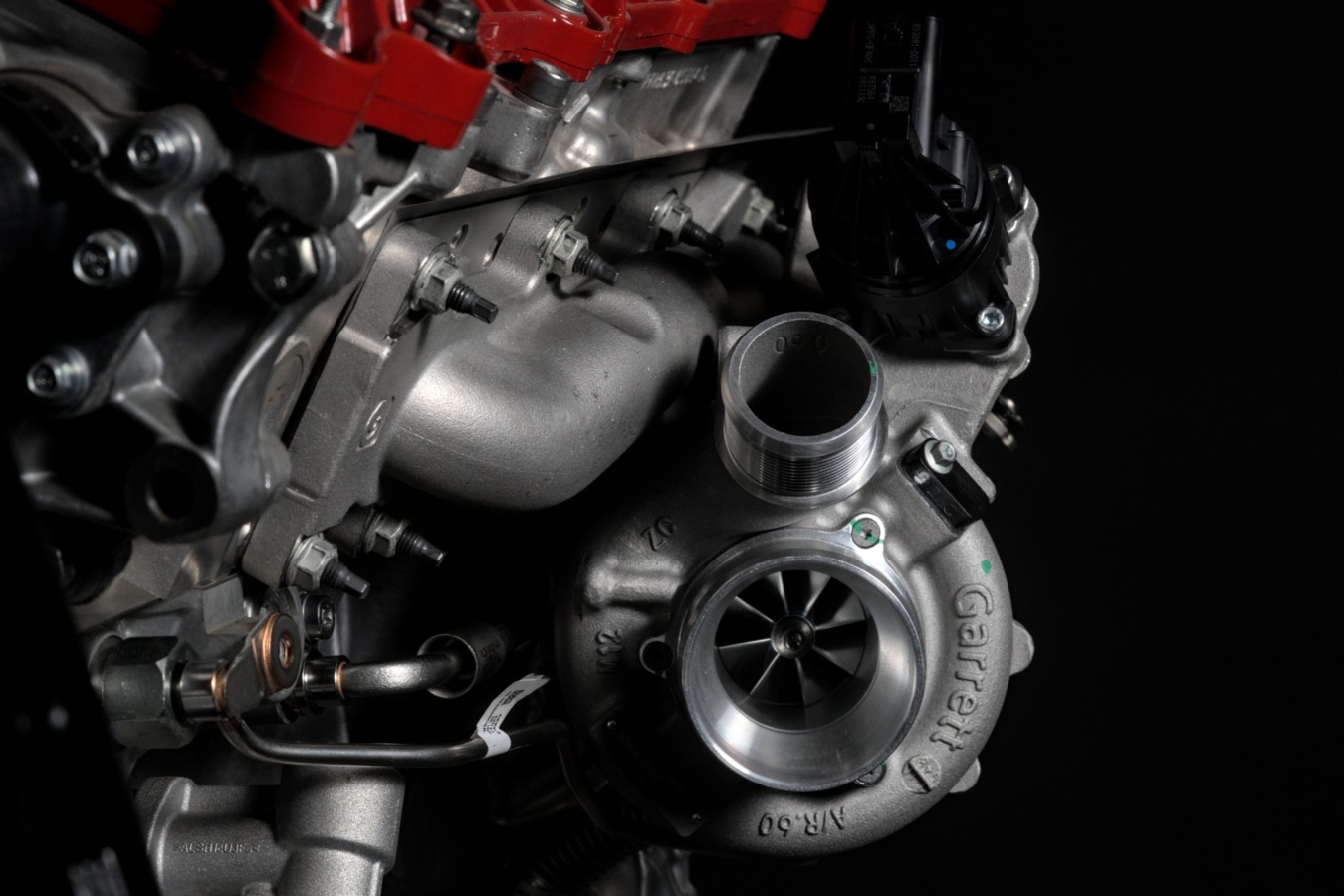

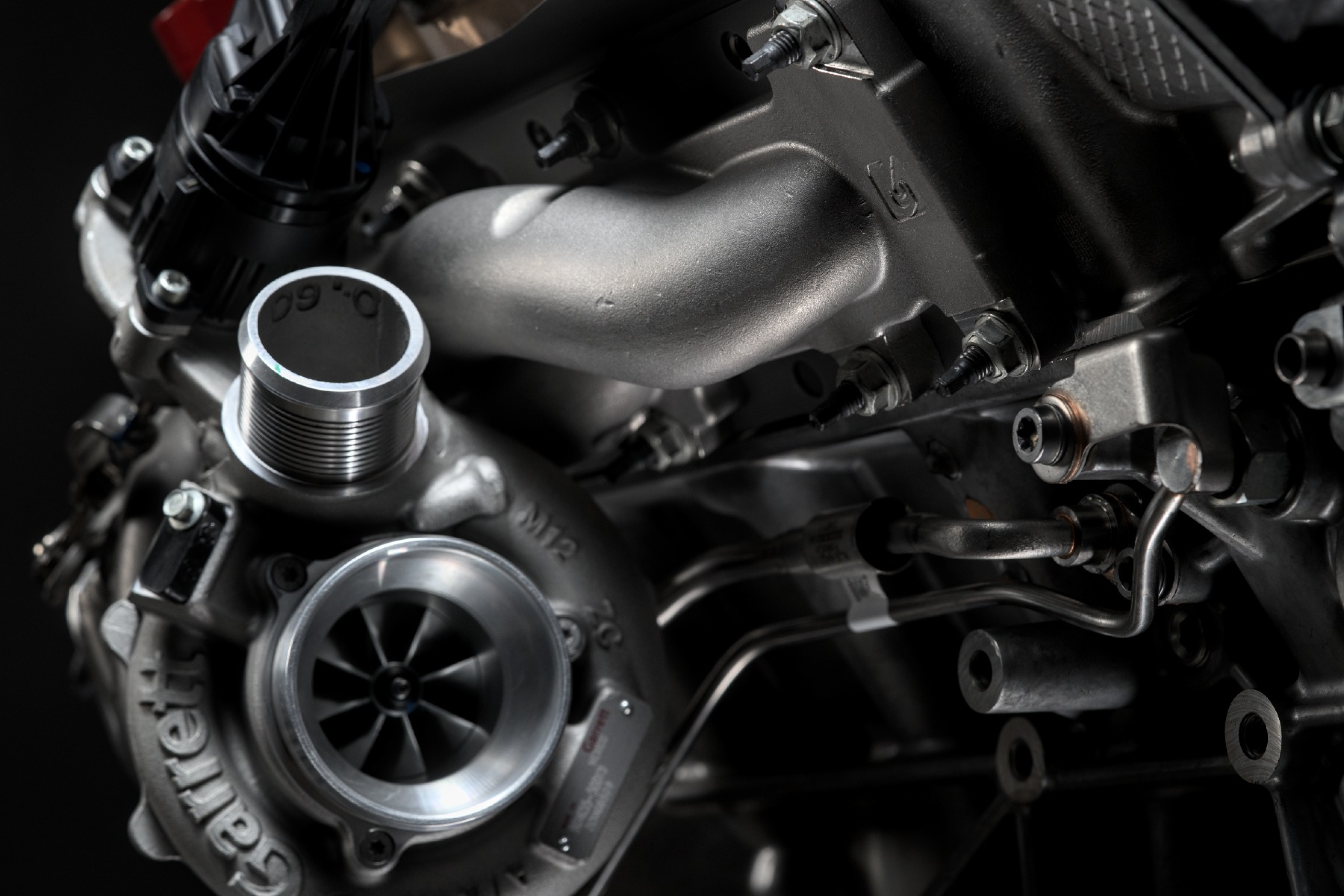

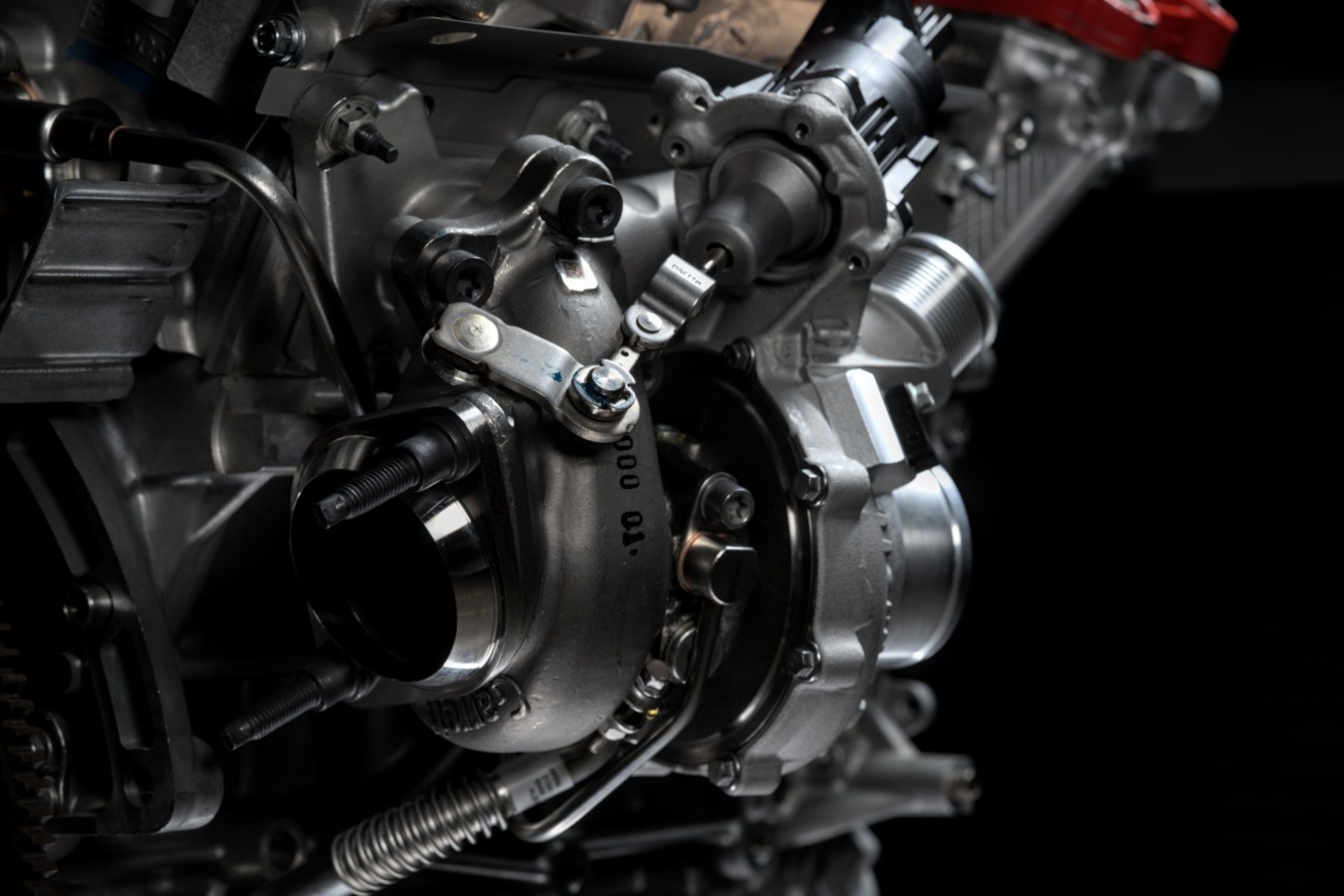

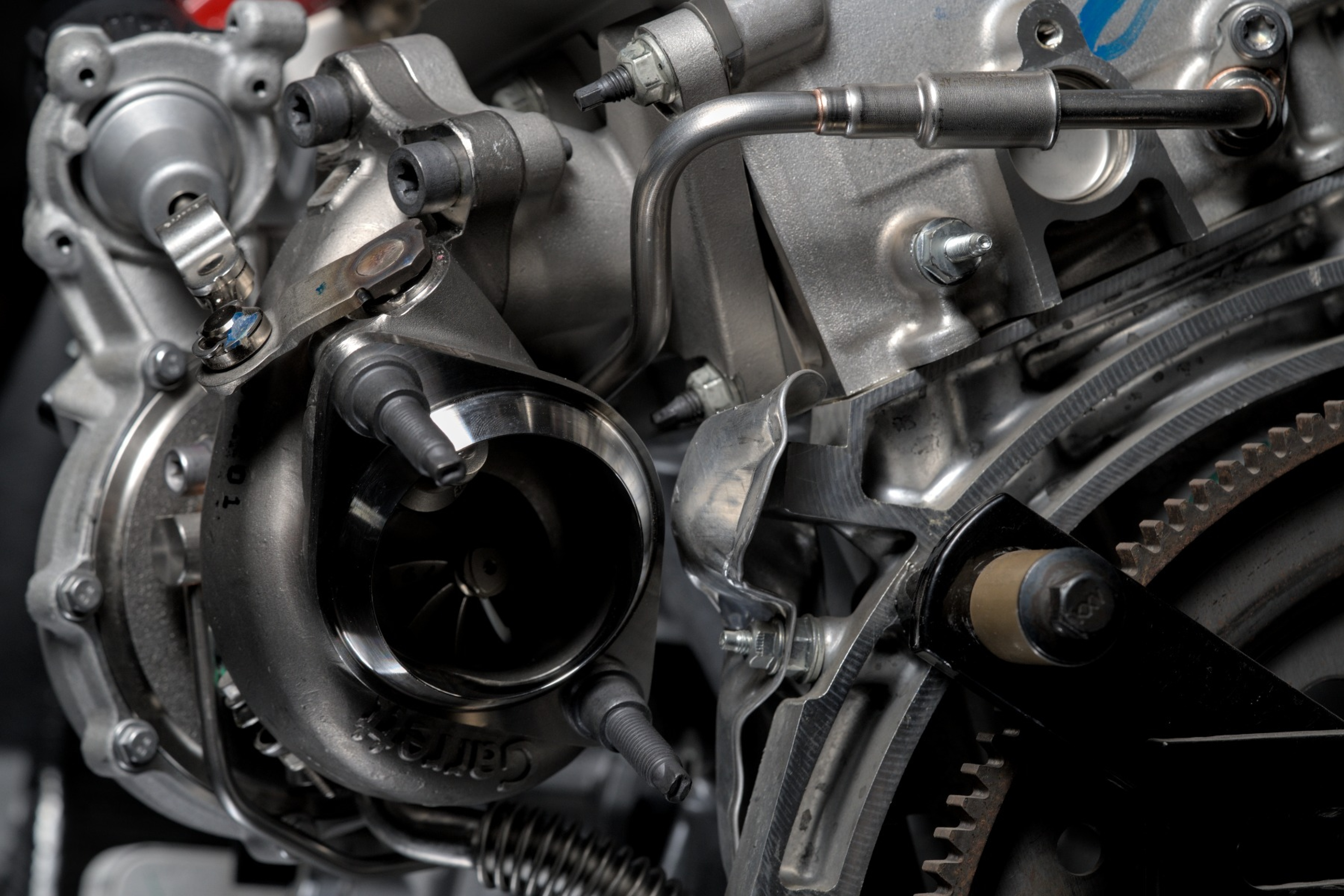

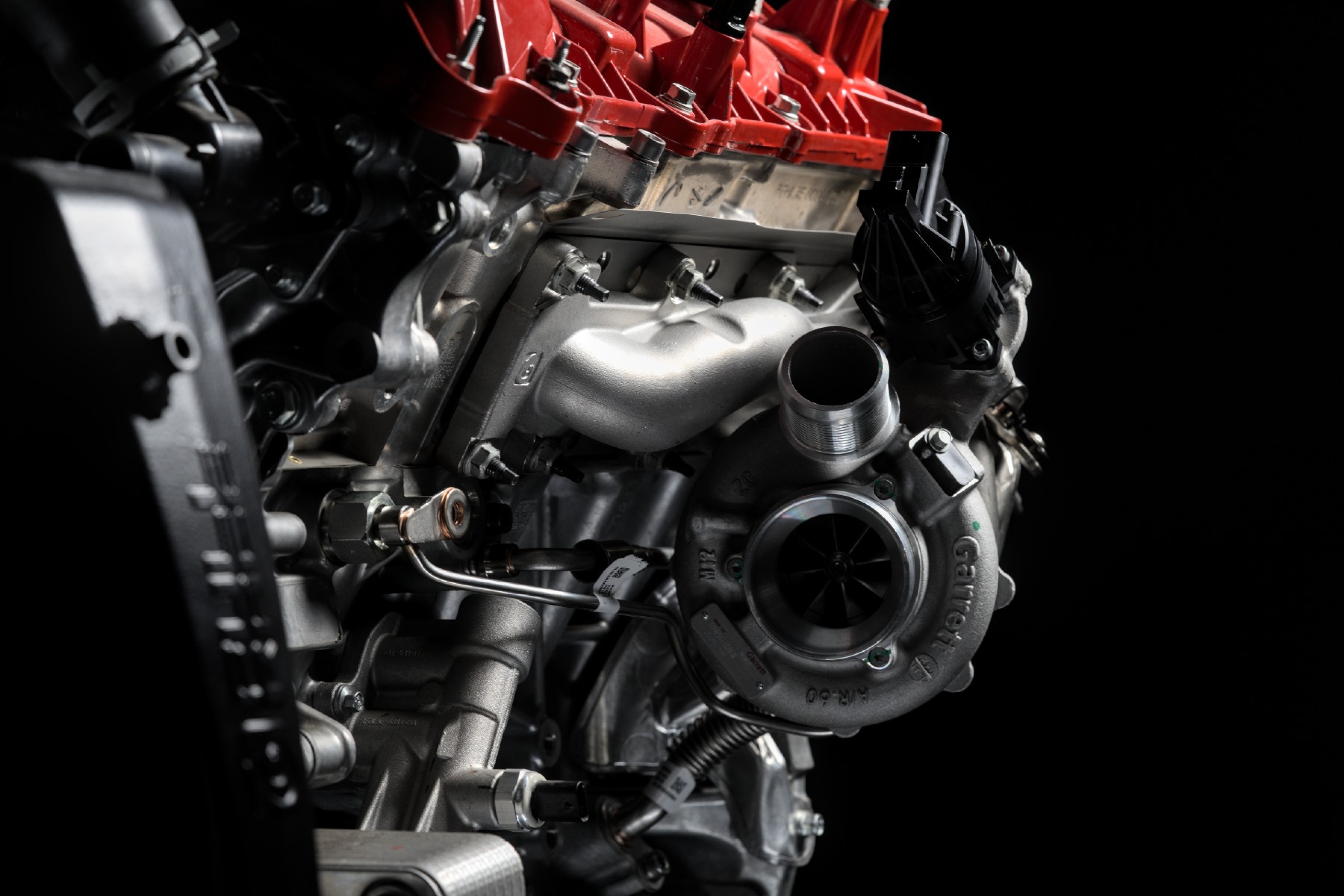

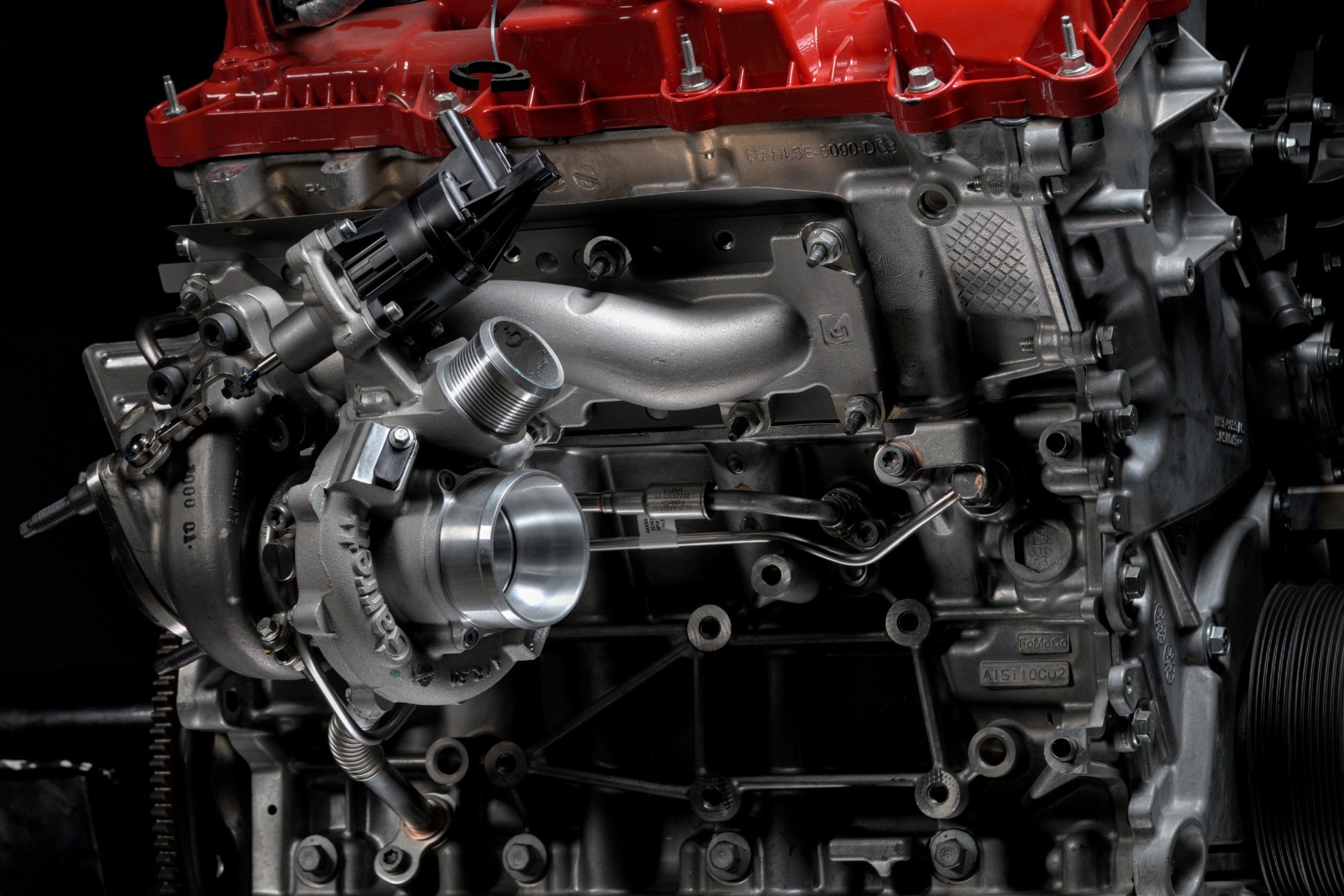

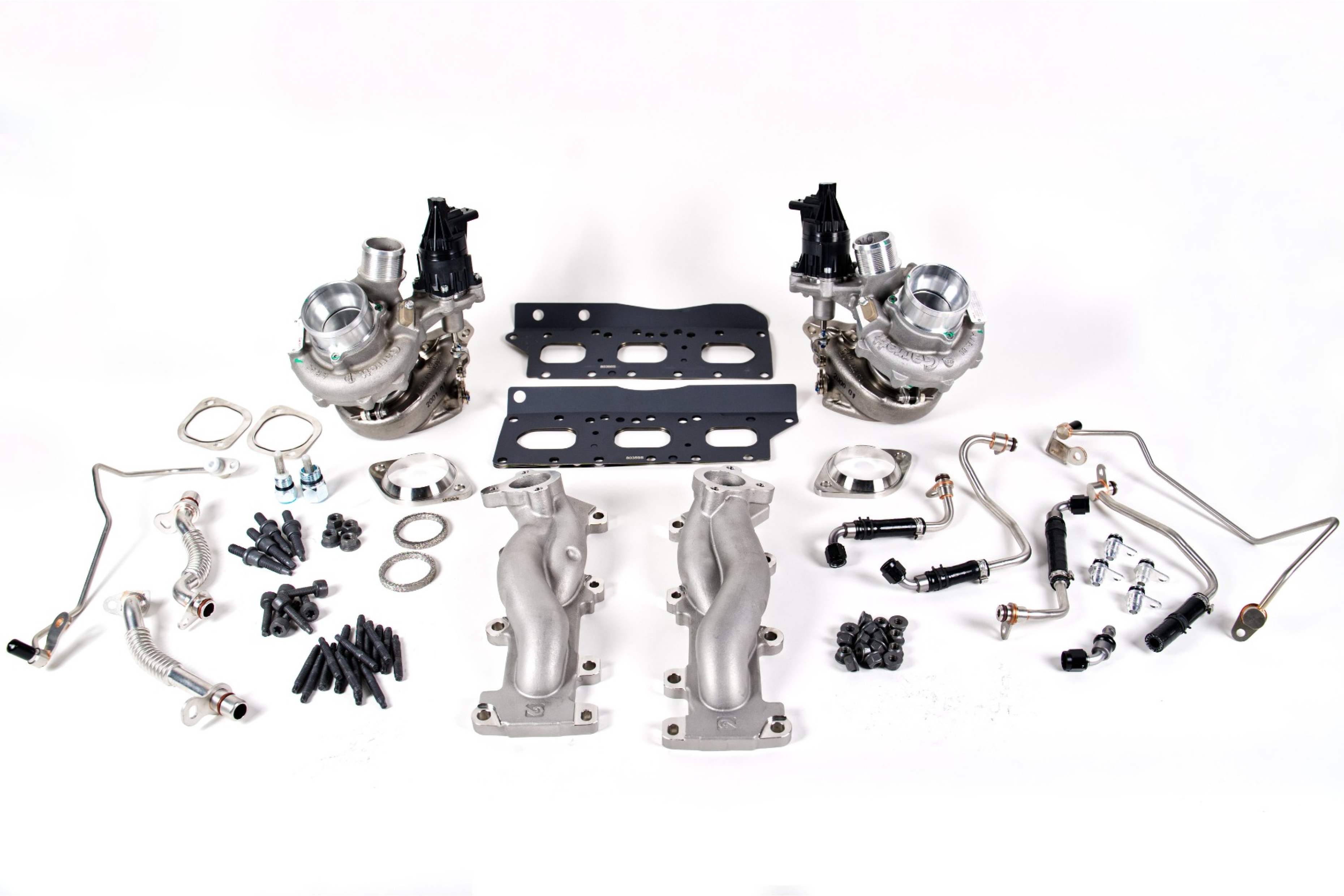

This kit provides everything you need to successfully install these popular 700+ HP Garrett turbos the first time. Additional upgrades are recommended for maximum performance, but this kit provides all the basics to get the turbos bolted up to your engine, including our all-new Formline cast stainless exhaust manifolds.

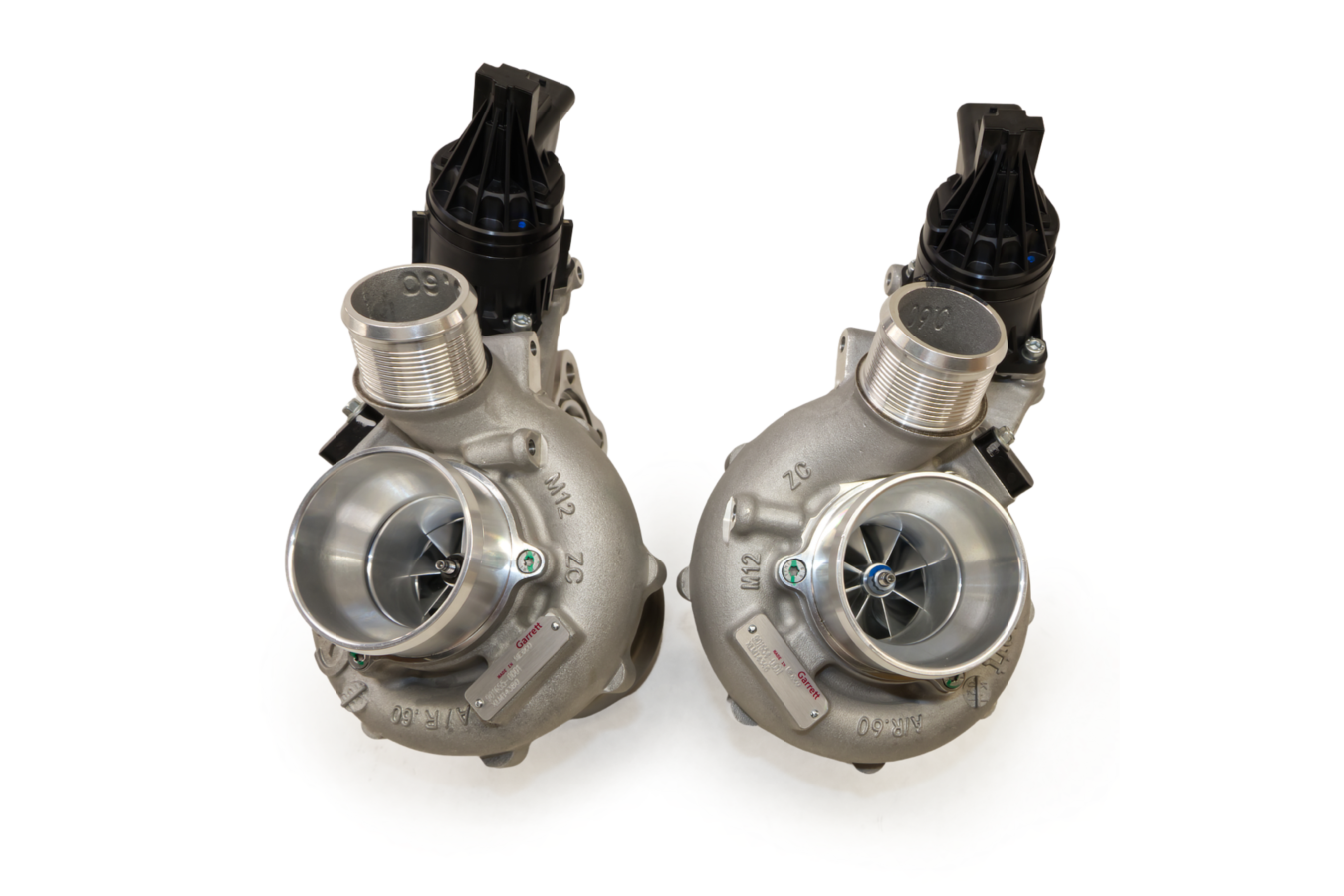

Garrett’s PowerMax 3.5L EcoBoost bolt-on turbo upgrade is engineered for 2017-2020 3.5L Ford F150 and 2017-2020 Raptor enthusiasts seeking impressive power gains while maintaining OEM reliability and direct fitment. The Garrett PowerMax Turbos are purpose-built, stock-appearing, and stock-location upgrade turbos designed for long-term OE durability and simple installation. Garrett’s PowerMAX turbo units come fully assembled for easy installation and are accompanied by fully calibrated wastegate actuators for zero-risk installation in your 2017-2020 F150 Ecoboost or Raptor.

Featuring 54% more flow than the OEM 2017+ F-150 and F-150 Raptor’s 3.5L EcoBoost stock ​turbochargers, anywhere from 400 to 700+ whp is easily achievable with these bolt-on G22 snails and supporting modifications.

GARRETT POWERMAX STAGE 2 BOLT-ON TWIN TURBO UPGRADE FEATURES

• Direct-fit Stage 2 upgrade (LH & RH Turbos)
• Compressor housing inlet (2.75”) is larger than stock to allow for increased flow and optimized surge port
• Adapter for stock inlet tube included with turbo kit
• Turbo model: GT2260S
• 700+ BHP capability *
• Complete assembly with calibrated electric actuator
• Billet compressor wheel with 54% increased flow
• Inconel turbine wheel with 52% increased flow
• Modern compressor and turbine wheel aero
• Tuned ported shroud for optimal compressor surge and choke performance
• Speed sensor port: use PN 781328-0003 (street kit) or 781328-0004 (pro kit)
• Journal-bearing rotating group
• Compatible with 2017-2020 Ford F-150 EcoBoost / Raptor

100% BOLT ON 700+ HP TURBO UPGRADE

Compatible with stock or custom tuning, these turbos can be utilized with all stock components in an OE replacement setup. For maximum results, a custom tune and supporting modifications are recommended. Wastegate actuators are pre-calibrated for easy installation. We recommend custom tuning.

GOOSETUNED TESTIMONY

Fuel: 91oct + E70

Mods:

• COBB Accessport (our custom tuning)
• COBB Stock location Intercooler
• AMS Catted Downpipes
• AMS Inlet (boost) tubes
• AMS inlet couplers
• Full-Race Formline Manifolds
• Full-Race Billet turbo adapters
• Garrett PowerMax Turbos
• Injector Dynamics 1050cc injectors

91oct – 508whp 537wtq

E70 – 669whp 619wtq

APPLICATIONS

These turbos are the correct OEM replacement option for Ford F-150s. They will work with all 2017-2020 F-150 and Raptor 3.5L EcoBoost engines. Below you will find a list of OEM Ford turbo part numbers that are interchangeable with these F-150 upgrade turbos.

OEM Ford Part Numbers for LH and RH Turbochargers

• JL3Z-6K682-D / JL3Z-6K682-C
• JL7Z-6K682-A / JL7Z-6K682-B
• DL3Z-6K682-F & DL3Z-6K682-E

INSTALLATION NOTES

For easier removal of old turbos, spray penetrating oil on the turbo hardware, and let it soak overnight before you pull the turbos. Full-Race recommends applying high-temp anti-seize to all threaded surfaces upon installation. After installation, crank the engine with the throttle held down 100%. This will build oil pressure in the turbos, without starting your engine.

SKU: A0124A
