ISR Performance Ball Bearing RSX3576 Turbocharger
or as low as $75.00/mo with Affirm
Available on backorder

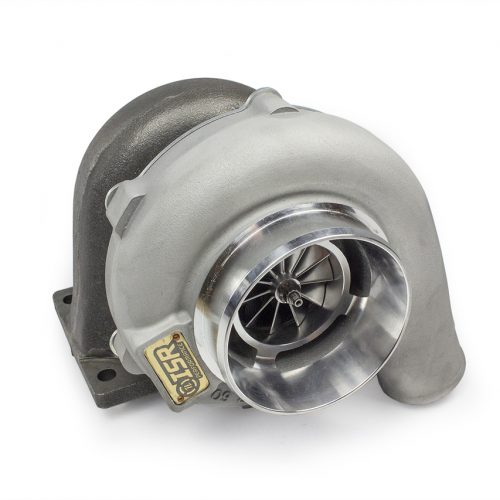

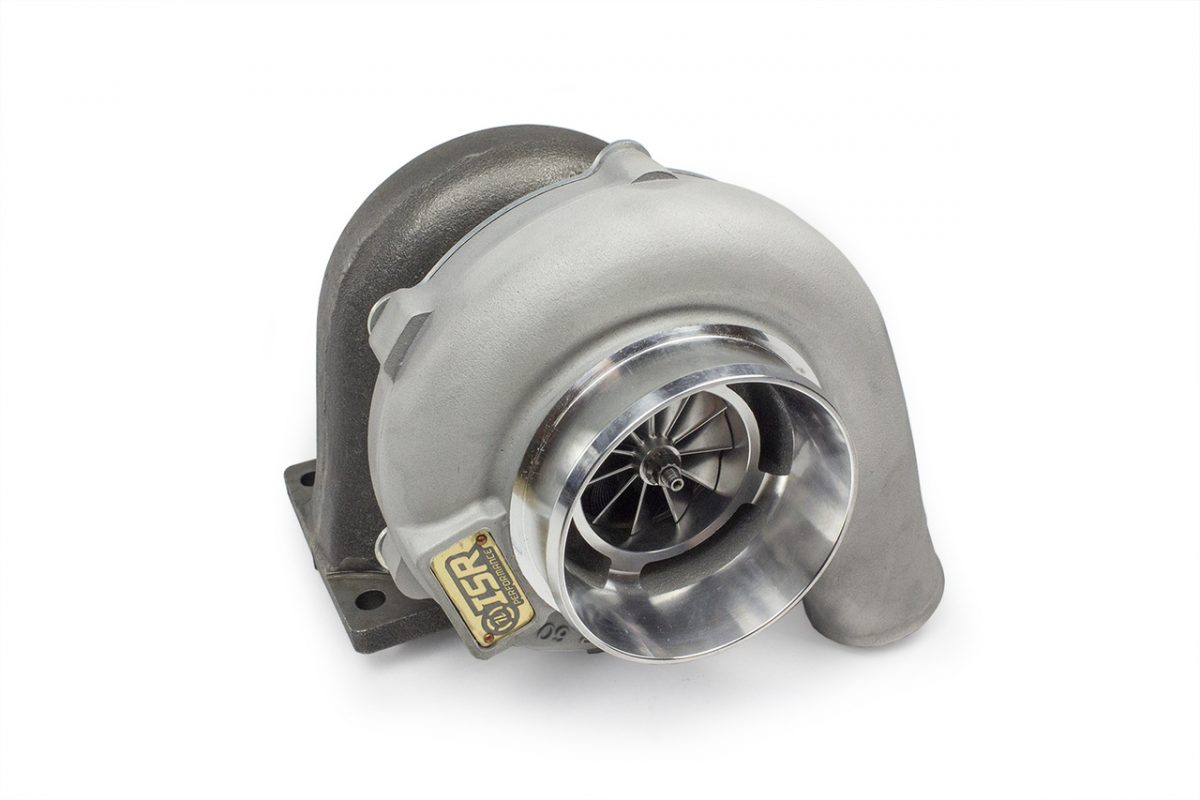

ISR Performance RSX3576 Dual Ball Bearing Turbocharger – T3 – .64ar .82ar
ISR Performance has released their new larger frame turbocharger upgrade options for those looking for top-mounted turbochargers on their SR/KA/RB/JZ engines
The RSX3576 turbocharger features a dual ball bearing, billet compressor wheel, and ported shroud compressor housings. All ISR turbochargers feature dual step gap rings and are balanced to within OEM specifications. Get big power and reliability at a fraction of the cost.
Turbocharger Specs –
Dual Ball Bearing
REQUIRES OIL RESTRICTOR .036”-.040” (part # IS-OR-3036)
Oil Feed Thread: 7/16-24
Oil Drain Size: GT style (part # IS-GTDRN)
Wheel Specs:
Comp: IND 58mm, EXD 76mm
Turbine: IND 68mm, EXD 62mm
Compressor Housing: .60AR
Inlet: 4.0″
Outlet: 2.0″
Turbine Housing: T3 choice of .64 or .82
Turbine Discharge Flange: 90mm Vband
Flange part # (IS-FLA-090MM)
Clamp part # (IS-CL-090MM)
