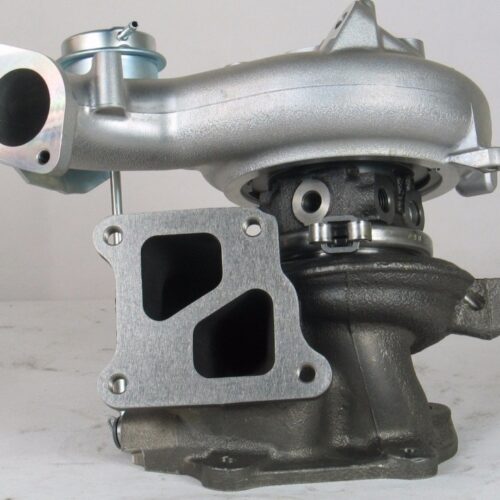

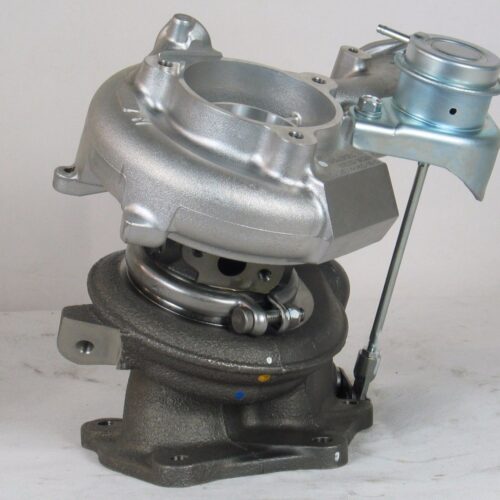

MHI Turbos 2008-2015 Mitsubishi Evo X 4B11T TF06 18K Turbocharger

Mitsubishi’s OE high-performance bolt-on turbo upgrade for the Evolution X 4B11T. Manufactured to OEM standards by the OEM, TF06 18K is designed for an ideal blend of response and top-end power in the stock frame. A perfect compliment to our pro stock exhaust manifold. The billet 18KX3RC compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades for a max flow rate of 54lb/min. The wastegate actuator is MHI’s high-pressure 18PSI actuator. Now in its third year and achieving cult status – this simple and stock-appearing turbo consistently outperforms many high dollar setups.

COMPRESSOR SPECIFICATIONS

• Compressor Type: Forged-Milled Wheel (FMW) Billet
• Compressor Wheel OD (exducer):75mm
• Compressor Wheel Inducer: 55.1mm
• Max Flow Rate: 54 lb/min
• Compressor Housing: 3″ hose coupler inlet, 2 bolt evoX outlet

TURBINE SPECIFICATIONS

• Turbine type:9 blade TF06 Inconel 713C Turbine Wheel
• Turbine Wheel Inducer: 61.5mm
• Turbine Wheel Exducer: 54mm
