Mishimoto Essentials Bundle, for BMW E36 323/325/328/M3 1992-1999
Mishimoto Essentials Bundle for 1992-1999 BMW E36 (323 / 325 / 328 / M3) 6-cylinder. Five cooling upgrades in one kit: Performance Aluminum Radiator (MMRAD-E36-92), 4-ply Silicone Hose Kit (MMHOSE-E36-92), Aluminum Fan Shroud Kit with Controller (MMFS-E36-92), 154.4 F Racing Thermostat (MMTS-E36-92L), and Aluminum Coolant Expansion Tank (MMRT-E36-92E). Pick hose kit color and expansion tank finish above. Covered by the Mishimoto Lifetime Warranty.
or as low as $91.00/mo with Affirm
Available
Overview
Rehab the weak points in your E36 cooling system in one box. Mishimoto bundles five of the most failure-prone components on the 1992-1999 BMW E36 6-cylinder chassis: an all-aluminum performance radiator, a 4-ply silicone hose kit, an electric fan shroud with controller, a lower-temp racing thermostat, and an aluminum coolant expansion tank. Pull the plastic tank, the mechanical fan, the rubber hoses, and the 190 F OE thermostat in a single afternoon and walk away with a cooling setup that handles traffic, track days, and forced induction without cooking the head gasket. Backed by the Mishimoto Lifetime Warranty.
What’s Included
- Full aluminum construction with TIG-welded end tanks
- Two-row, 1.57 in thick brazed aluminum core
- Compatible with stock mechanical fan and shrouding
- Threaded port for stock temperature sensor
- Magnetic drain plug captures metallic debris
- Fits stock, modified, forced-induction, or swapped engines
- 4-ply silicone with heat-resistant embedded fibers
- Max temperature 330 F
- Superior heat and pressure tolerance over OE rubber
- OEM replacement fit and length
- Pick color via the Silicone Hose Kit Color dropdown above

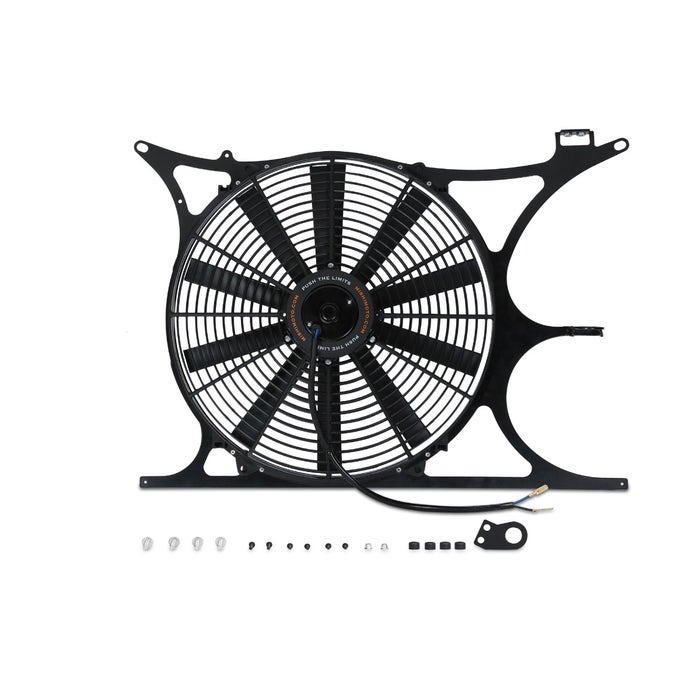

- Replaces failure-prone factory mechanical fan
- 16-inch Mishimoto slim electric fan producing 1,850 CFM
- Mishimoto fan controller with probe sensor included
- Steel fan shroud finished in stealth-black powder coat
- Full coolant temperature control at idle and low speed
- All mounting hardware included
- Activates at 154.4 F vs. OE 190 F
- Coolant flows through the engine earlier in the warm-up cycle
- Lowers peak operating temperatures on hot days or at the track
- Direct fit for the factory housing

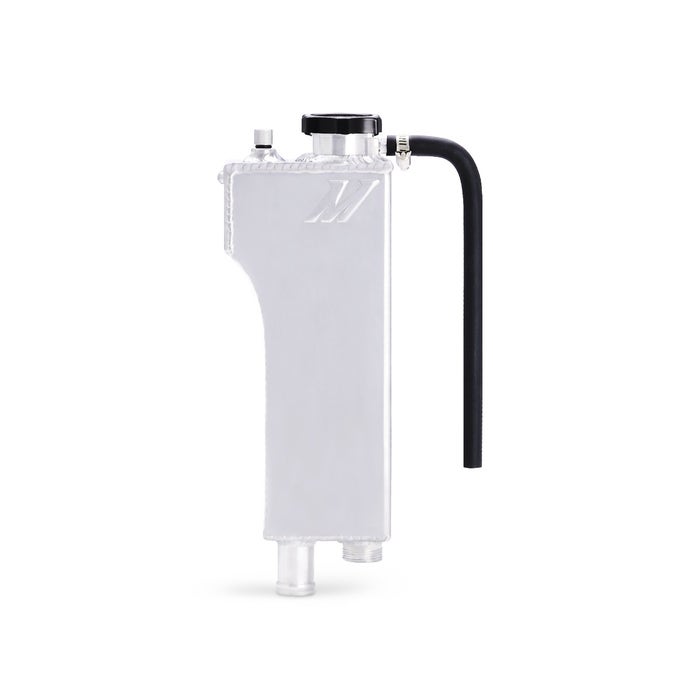

- All-aluminum, fully-welded construction
- Integrated CNC-machined dipstick for coolant level monitoring
- High-pressure 1.3-bar radiator cap included
- Overflow hose and worm-gear clamp included
- Direct replacement for the OE plastic tank
- Pick finish via the Expansion Tank Finish dropdown above
Fitment
| Years | 1992-1999 |
| Chassis | BMW E36 |
| Models | 323i / 323is / 323ic / 325i / 325is / 325ic / 328i / 328is / 328ic / M3 |
| Engines | M50, M52, S50, S52 inline-six (2.5L / 2.8L / 3.0L / 3.2L) |
| Spec Note | US-spec E36 or passenger-side mounted expansion tank only |
Tech Specs (Radiator)
| Overall Length | 26.3 in |
| Overall Height | 18.3 in |
| Overall Width | 2.07 in |
| Core Thickness | 1.57 in (two-row) |
| Coolant Capacity | 3.13 gal |
| Inlet / Outlet | 1.5 in / 1.57 in |
| Drain Plug Thread | M12 x 1.5 (magnetic) |
Tech Specs (Fan Shroud)
| Airflow (per fan) | 1,850 CFM |
| Shroud Height | 17.7 in |
| Shroud Length | 24.8 in |
| Shroud Width | 3.0 in |
| Kit Weight | 7 lb |
Installation
Plan on 4-6 hours end-to-end for the full bundle. The radiator and hose kit are a straight swap; drain the system, pull the old radiator, drop the new one in, and clamp up the silicone hoses. The fan shroud kit requires removing the factory mechanical fan and the belt-driven pulley, then mounting the electric fan and running the controller probe into a coolant passage (the upper radiator hose is the common spot). Expansion tank mounts in the factory location with included hardware. Thermostat swap is the quickest job of the five.
Warranty
Every component in this bundle is covered by the Mishimoto Lifetime Warranty. Warranty applies to the original purchaser only, is non-transferable, and requires the original sales receipt for claims. Mishimoto products purchased from authorized dealers (including Function Factory Performance) qualify.
Compliance
Mishimoto cooling products are considered replacement components and do not affect emissions compliance. Prop 65 warning applies (per California law on brass / copper alloys used in some fittings).
