Roush Performance 2015-2017 Ford Mustang 5.0L Phase 2 Supercharger Kit

Transform your 2015-2017 5.0L Mustang into a forced induction pavement shredding monster with the new Phase 2 Supercharger Kit from Roush! This supercharger system provides 727 horsepower courtesy of their R2300 2.3L TVS supercharger and upgraded components that make an additional 57 horsepower and 65 lb-ft of torque over the Phase 1 system.

The Phase 2 Supercharger Kit from Roush (P/N: 422001) is designed specifically for your 2015-2017 5.0L Mustang with either an Automatic or Manual Transmission. The whole kit is designed and engineered to make it easy for you to install your supercharger yourself. You’ll notice the major boost in horsepower immediately after getting back behind the driver’s seat of your S550 GT. The Phase 2 Kit has a SAE J1349 power certification of 727 hp @ 6,850rpm and 610 lb-ft @ 5,100rpm.

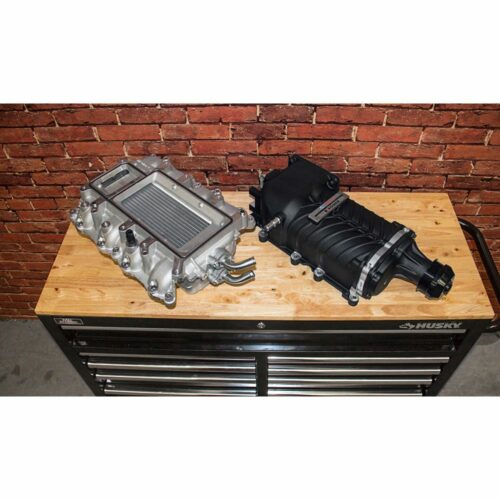

The Roush Phase 2 Supercharger Kit includes a wide array of bolt-on parts that fit right on your stock engine without the need for any serious modifications. This includes the R2300 2.3L TVS supercharger head unit, which is black in color to match the rest of the components and your engine. Some of the other key items are the lower intake manifold and intercooler assembly, heat exchanger, high-pressure fuel rail, high-flow injectors, bigger throttle bodies, 80mm Pulley, Fuel Pump Control Module, and Upgraded Spark Plugs that are all configured to work perfectly with your new supercharger.

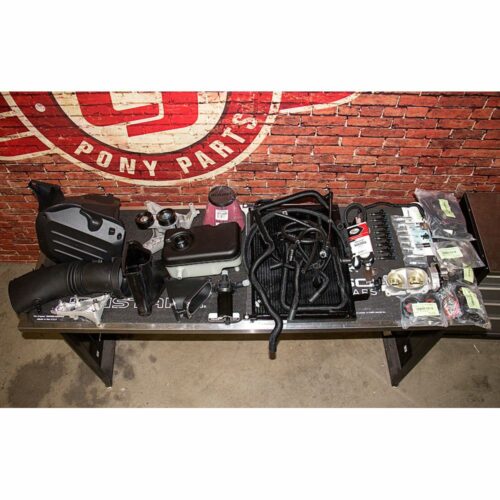

Phase 2 Kit Includes:
– Roush/Ford Racing R2300 2.3L TVS Supercharger
– Black 80mm Supercharger Pulley
– Plug and Play Fuel Pump Control Module for Increased Fuel Flow
– Motorcraft Hi-Performance Spark Plugs (Specific for Phase 2)
– Large Air-to-Water Intercooler System
– Oversized, Full-Face Low-Temperature Heat Exchanger
– Custom Aluminum Fuel Rail with High-Flow Rate Fuel Injectors
– Formed Molded Hoses and Secondary Degas Bottle
– Twin 60mm Throttle Body with Matching Spacer
– Custom Cold Air Induction System
– Washable, High-Flow Dry Air Filter
– Heavy-Duty, First Sheave FEAD System
– Roush/Ford Racing Calibrated Powertrain Control Module
– All Necessary Mounting Hardware and Detailed Installation Instructions
– Works with Manual and Automatic 2015-2017 GT Mustangs.

Tech Tip: Not recommended for use with vehicles equipped with the adaptive cruise control option.

Please Note: This kit will physically fit any 2015-2017 5.0L Mustang, but RHD (Right-Hand Drive) vehicles will require the use of P/N: 422011 to properly complete installation. The included Roush Calibration will NOT work on any 2015-2017 5.0L Mustang outside of the US and Canada, so those vehicles will require custom tuning which is NOT Included). Custom tuning can be purchased through our program with Lund Racing and the nGauge Tuner, see P/N: NG4-V.

*50-State emissions-legal (CARB E.O. #D-418-29).

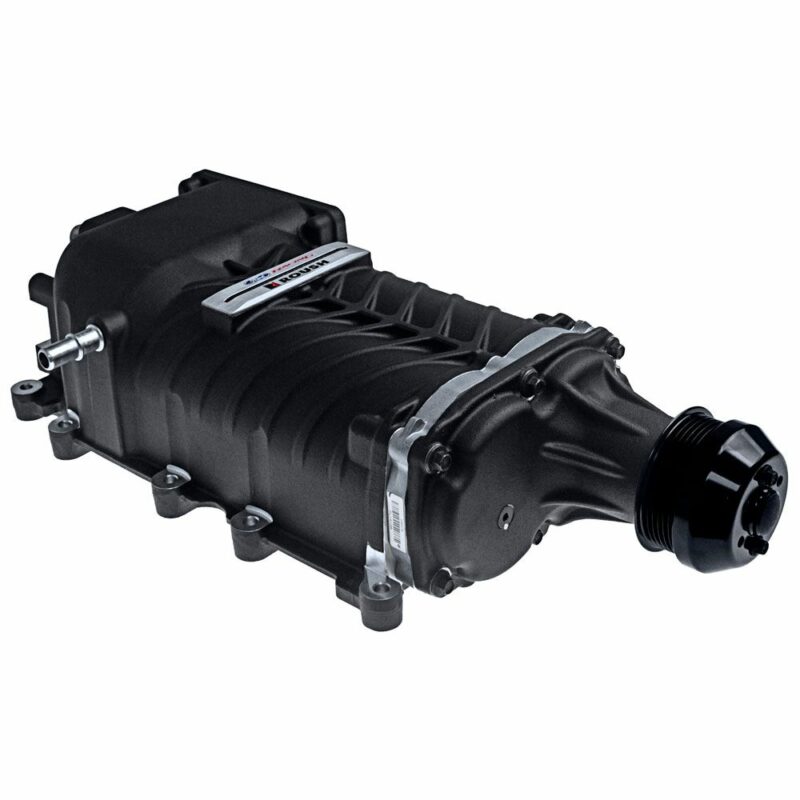

The Roush R2300 TVS supercharger is a roots-type positive displacement supercharger that features twin four-lobe rotors twisted 160-degrees vs older three lobe, 60 degree twist technology. The fourth lobe and the added twist, when combined with newly-redesigned air inlet and outlet ports, offers greatly enhanced thermal efficiency, higher volumetric capacity, higher operating speeds, a smoother, more efficient flow of air into the engine, and improved noise and vibration characteristics. Unlike turbocharging, the Roush R2300 TVS supercharger provides instant throttle response and can generate increased power through the engine’s entire powerband.

ATTENTION: Updated Operating System Requirements for the Roush Diagnostic Tool (RDT). The Technical Service Bulletin TSB 21-0802-AA has been issued by Roush. As of September 10, 2021, Windows 10 will be the ONLY operating system that will be supported by Roush Performance for the Roush Diagnostic Tool (RDT). Older operating systems, such as Windows 7 or earlier Windows operating systems (XP, Vista, etc.), will not be supported. All instances of RDT will need to be updated to the most current release. All previous versions of RDT will NOT be able to program or configure modules due to a software license time-out.

The updated minimum recommended PC Hardware Configuration will be:
– Processor minimum: 2.4 gigahertz (GHz) or greater Intel I5/I7 Dual Core
– Memory Minimum: 4 gigabytes (GB) RAM or greater
– Windows 10
– Microsoft .NET Framework 4.0 or later
