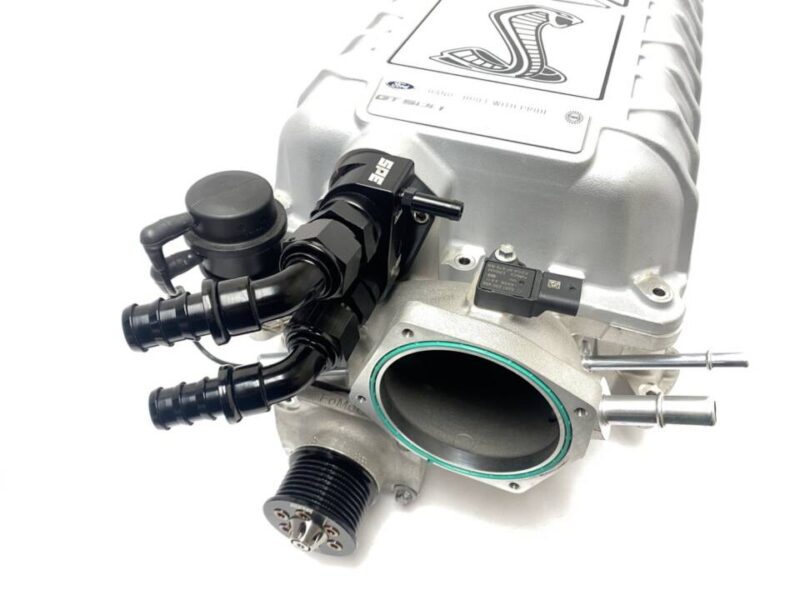

SPE Motorsport 2020-2022 Ford Mustang GT500 Intercooler Manifold

SPE MOTORSPORT 2020-2022 GT500 INTERCOOLER MANIFOLD

SPE is happy to introduce their new 2020+ Shelby GT500 mustang intercooler manifold. The blower water manifold connects to the intercooler under the supercharger lid to supply it with water/coolant.  The factory piece leaves much to be desired in the flow department. Being it is a cast part flow was not the main concern ease of production and installation were.  SPE has developed the solution around optimum performance for your intercooler’s cooling needs. If you track the car, weekend cruise, or daily drive it this can be a beneficial upgrade.

DESCRIPTION

The SPE blower water manifold for your 2020+ Shelby GT500 includes the fittings and hose end needed to install it. The fittings and tubes can be configured based on the type of intercooler you are running. We support the Whipple and stock intercooler core. Their stock intercooler connection tubes are .060 larger internally than the factory ones. You also have the option to run the factory size 3/4 (-12 hose) or upgrade to -16 fittings for an ice tank setup. One of the downfalls of the 2020+ GT500 when modifying them for more power is the lack of a manifold pressure reference port. There isn’t a place on the engine to reference boost/ vacuum which can make things difficult when installing fuel pumps that require a pressure switch, or a boost gauge, etc. This means there is no need to drill and tap the blower lid when using the SPE blower water manifold. SPE’s design seals the water manifold to the blower lid with the factory gasket rather than a hard-to-find custom o-ring. This makes it much easier to replace if needed.

BENEFITS & FEATURES:

• Increased flow
• Hard-Anodized Black
• Made from 6061 billet aluminum
• Works with factory or Whipple intercooler core
• Pressure port for vacuum and boost
• Retains properly sized coolant vent hose
• Stainless steel Intercooler connection tubes (same material as factory)
• Large Internal diameter intercooler tubes
• Uses factory gasket for ease of installation and replacement
• Includes all necessary fittings and hardware to install
• One of the cleanest and best flowing kits on the market

INCLUDES:

• Blower water manifold
• All required fittings, O rings, and plugs
• 2 Intercooler connection tubes
• 2 Hose ends
• 2 ORB AN adapters
• All required hardware
