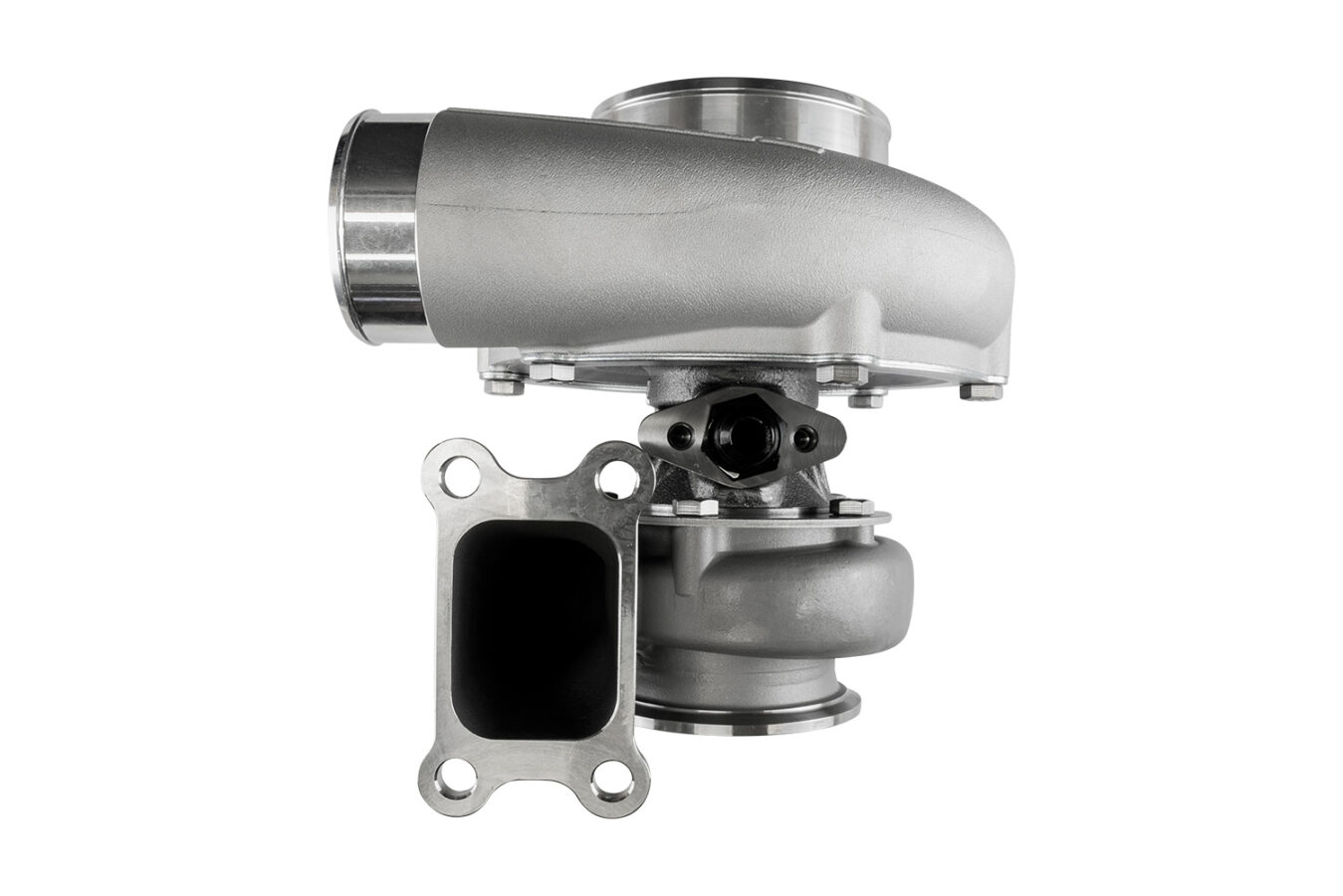

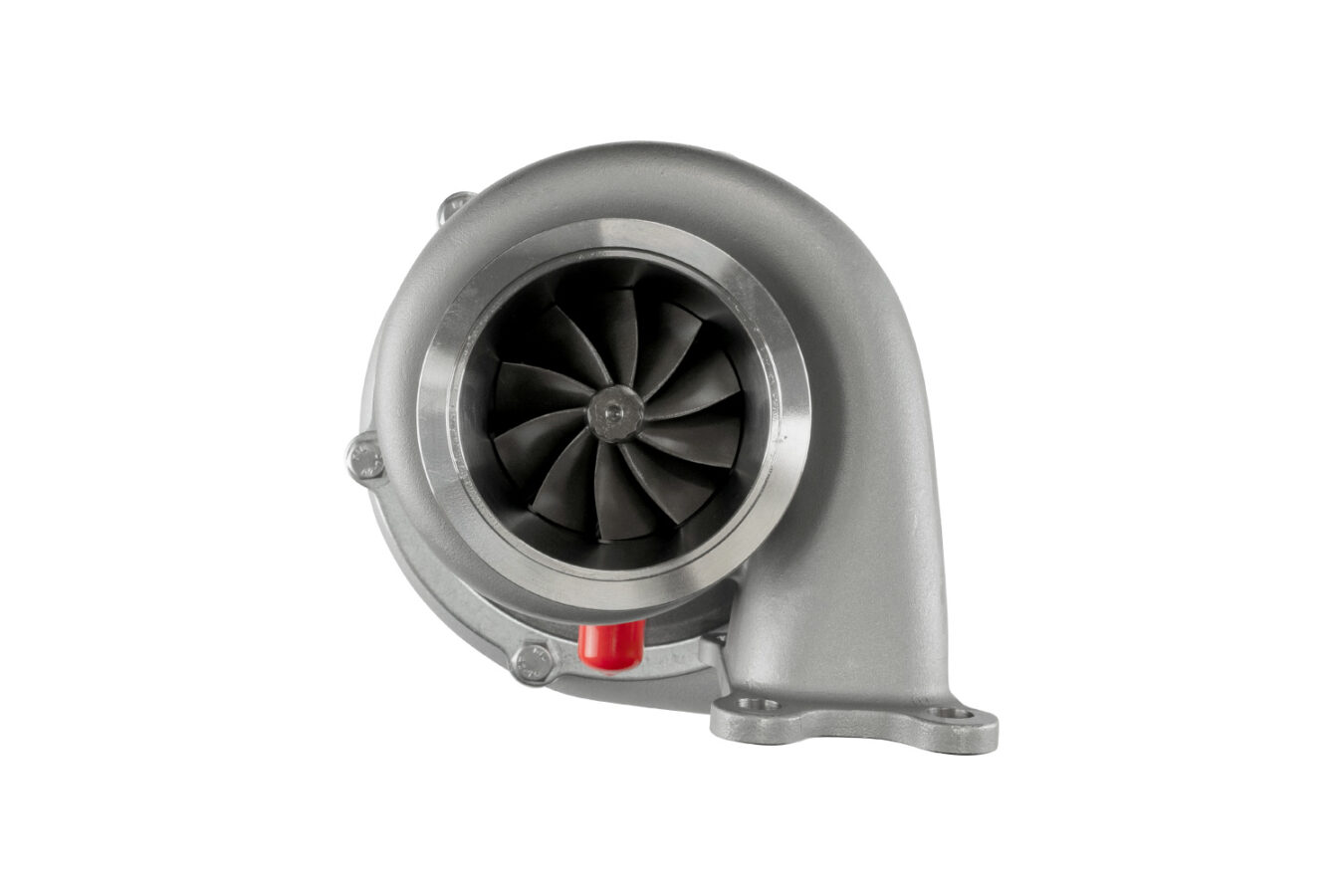

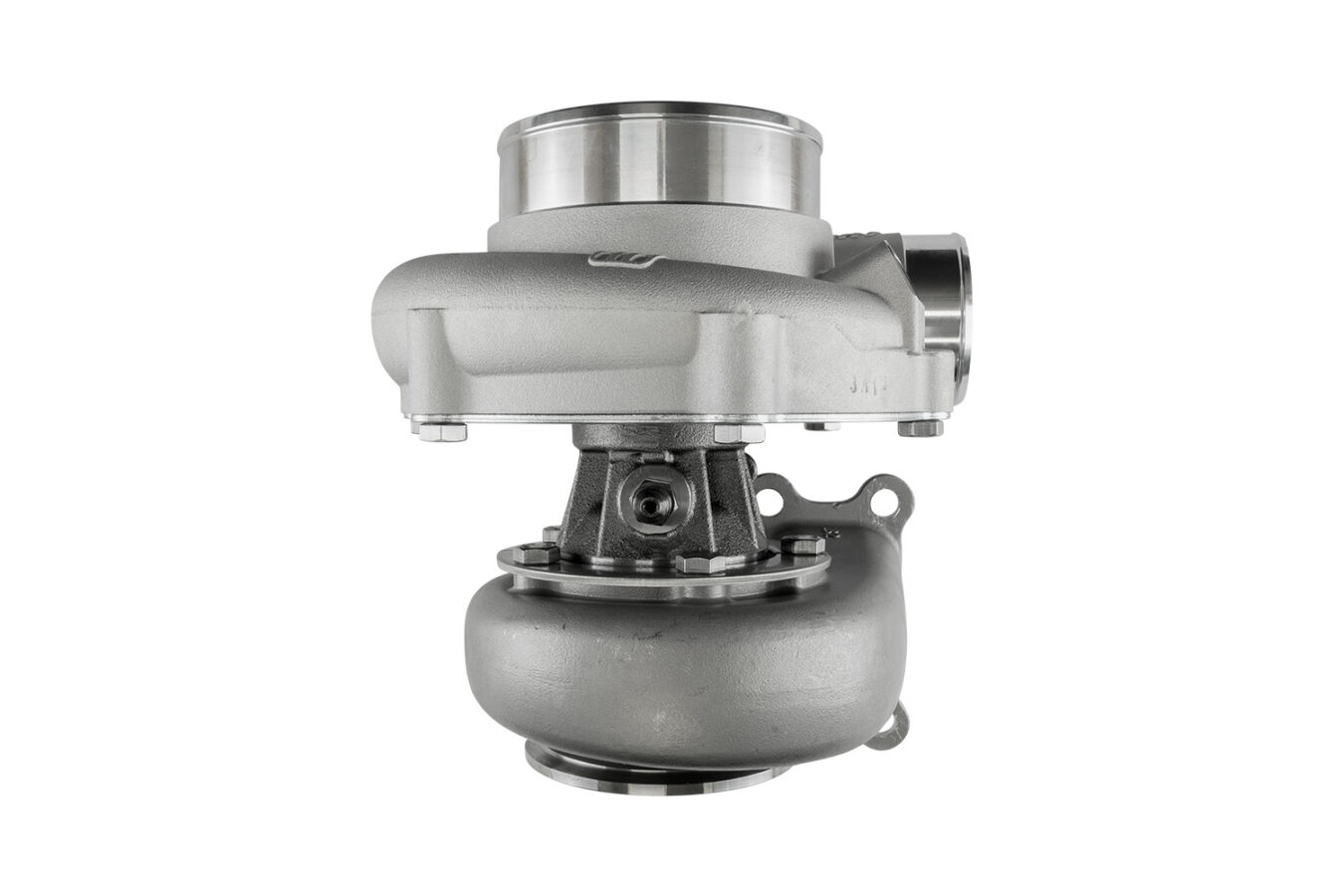

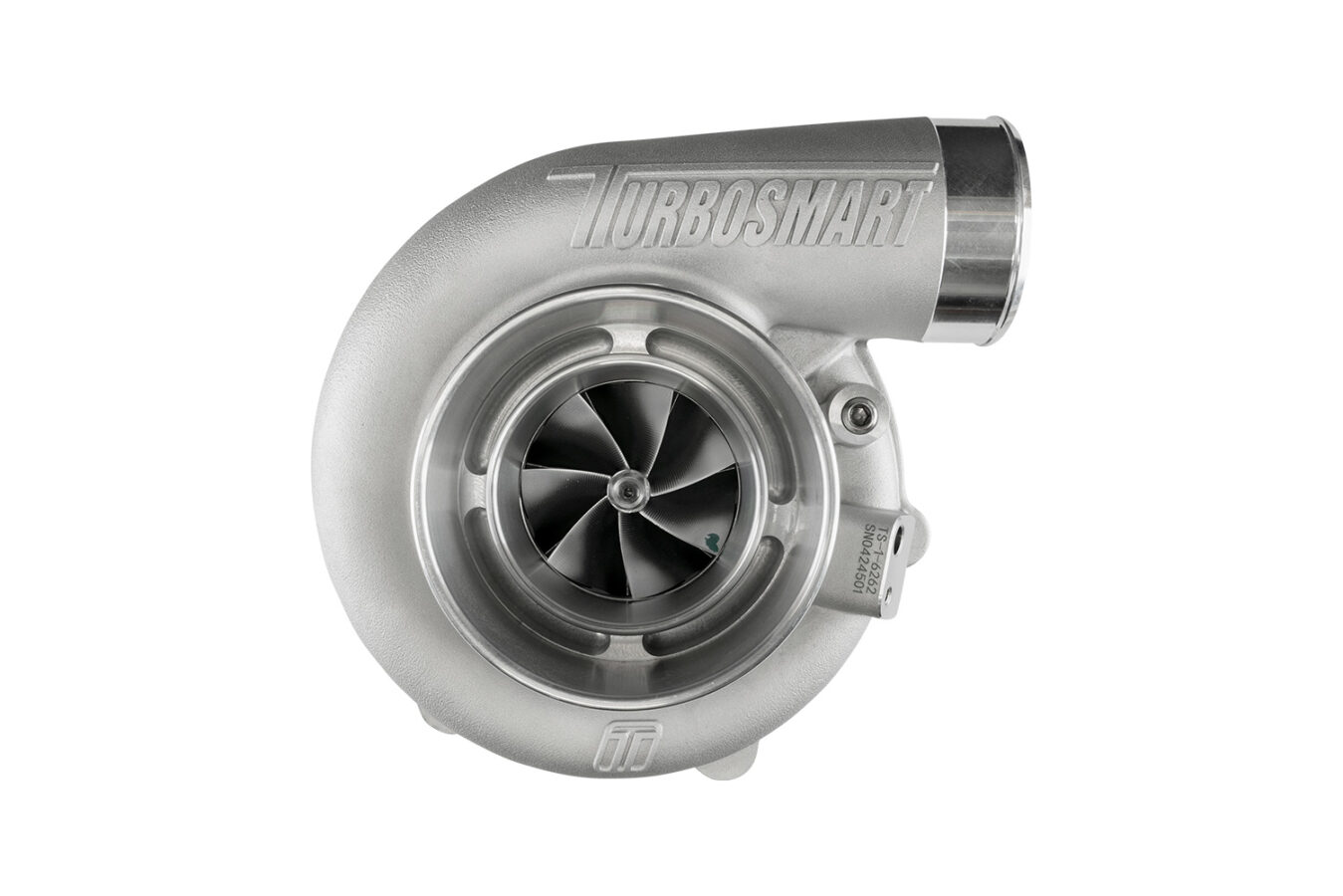

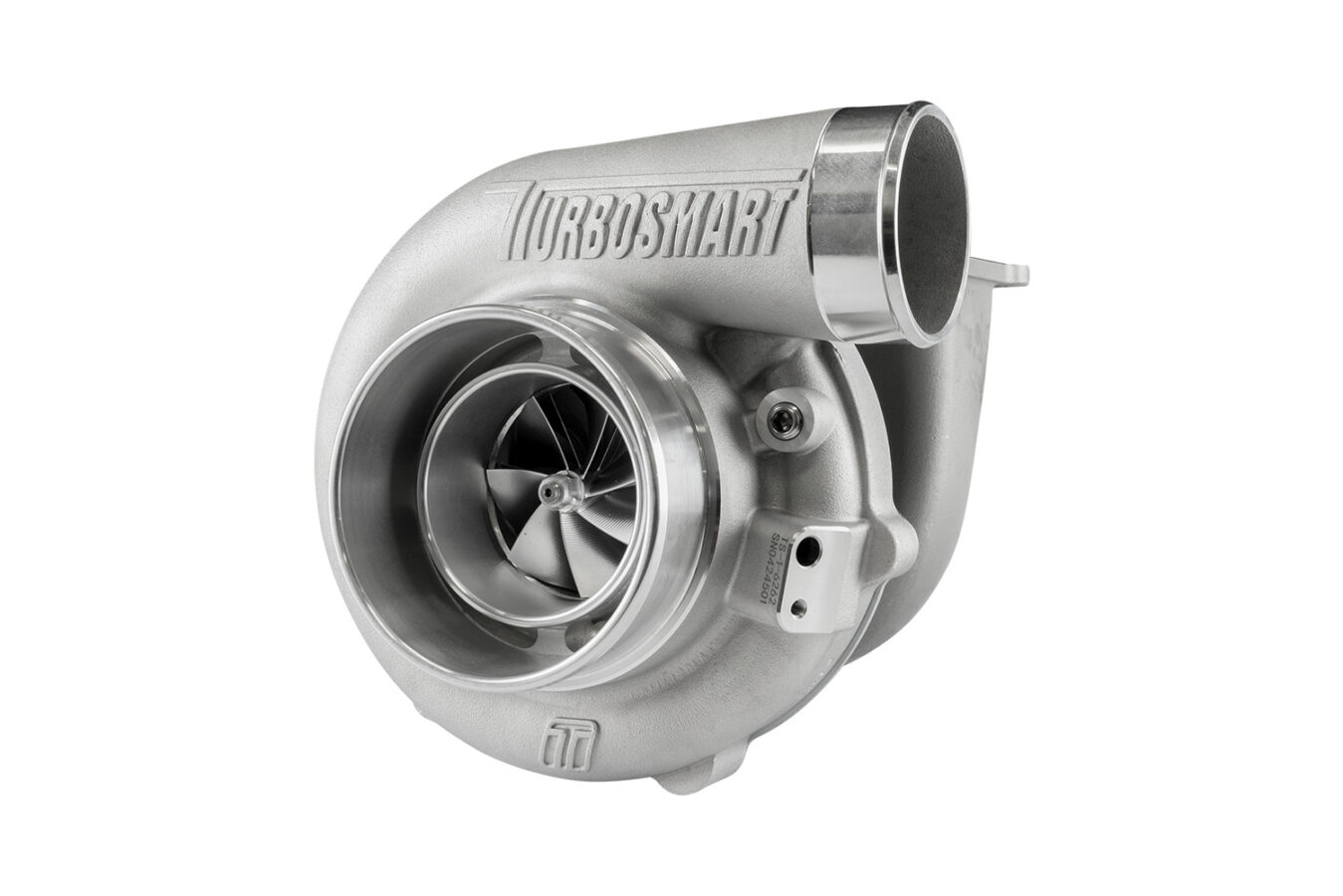

Turbosmart TS-1 Performance Turbocharger 6466 T3 0.82AR Externally Wastegated

Smaller, Lighter, and Faster

Turbosmart’s turbocharger series is engineered using modern materials, advanced design, and cutting-edge manufacturing techniques to deliver exceptional performance for both motorsport and enthusiast applications.

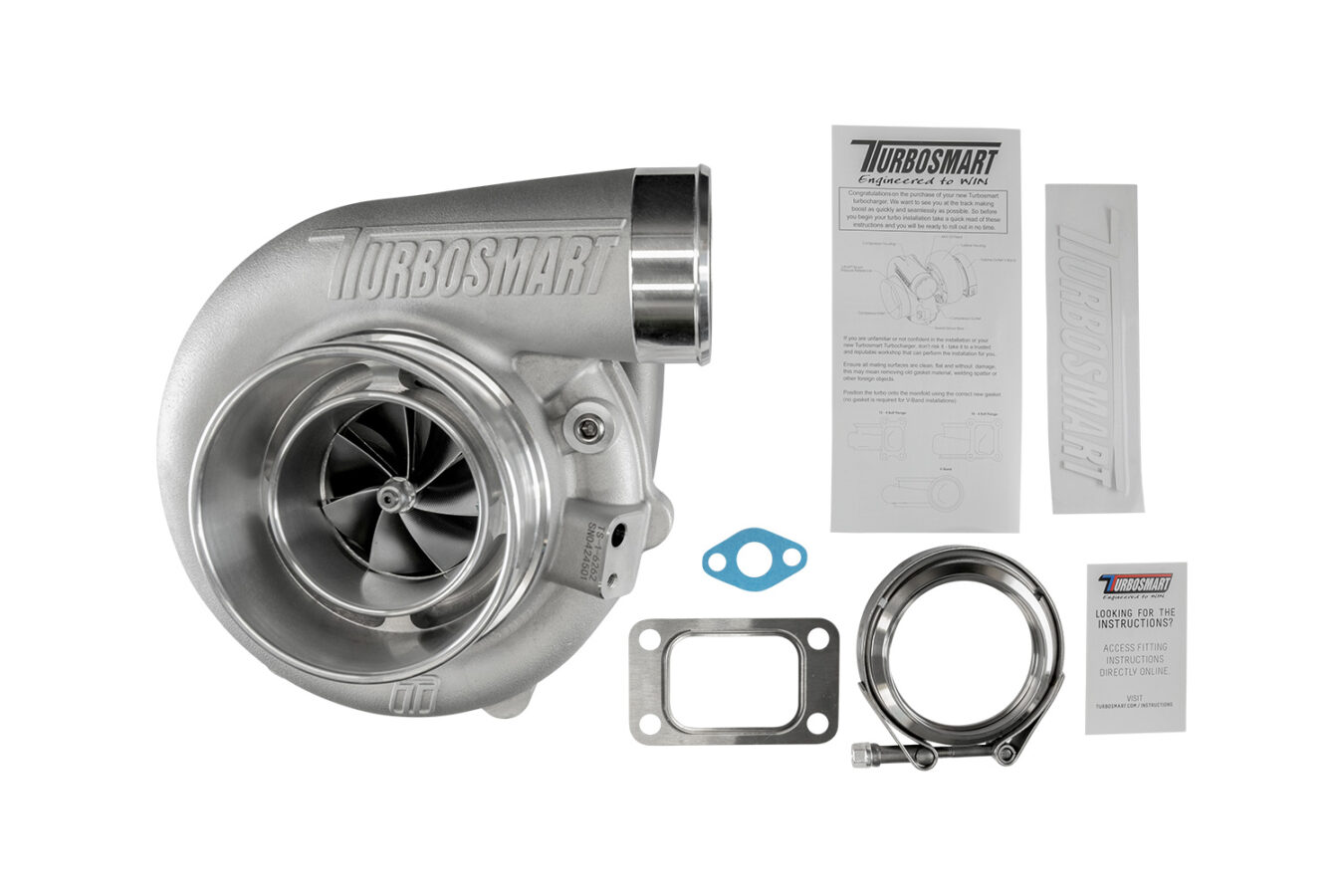

Every Turbosmart turbocharger includes everything needed for installation — weld flanges, V-band clamps, gaskets, oil feed and drain fittings.

The TS-1 Series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft combination. This setup provides unparalleled transient response, performance, reliability, and the high-quality engineering Turbosmart is known for.

The ultra-low rotating mass of the unique bearing and shaft assembly is matched with aggressive compressor aerodynamics, ensuring high performance even at lower shaft speeds. A specially designed turbine wheel maintains power under heavy loads and high flow demands.

Turbosmart turbos are designed with a full engine system approach, maximizing power through reduced back pressure and high-performance turbines — all while remaining smaller, lighter, and faster responding than other options on the market.

Available In

• TS-1 (oil-cooled) turbochargers

• TS-2 (oil & water-cooled) turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal and external wastegated configurations

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for peak flow and A/R balance

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 64mm

• Turbine Inlet: T3 Flange

• Turbine Exducer: 66mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06kg / 13.3lbs

• Horsepower Rating: 825–955 HP
