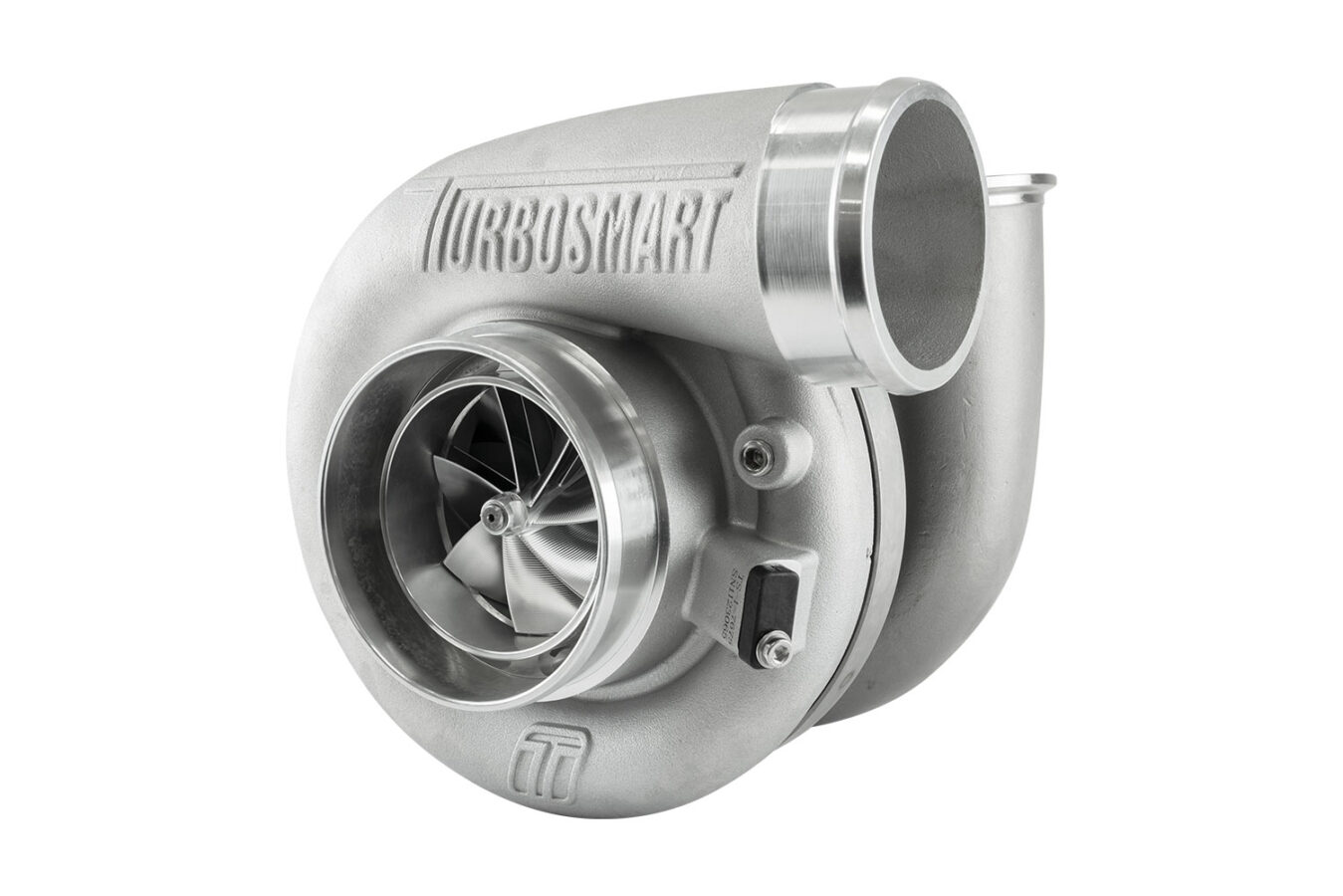

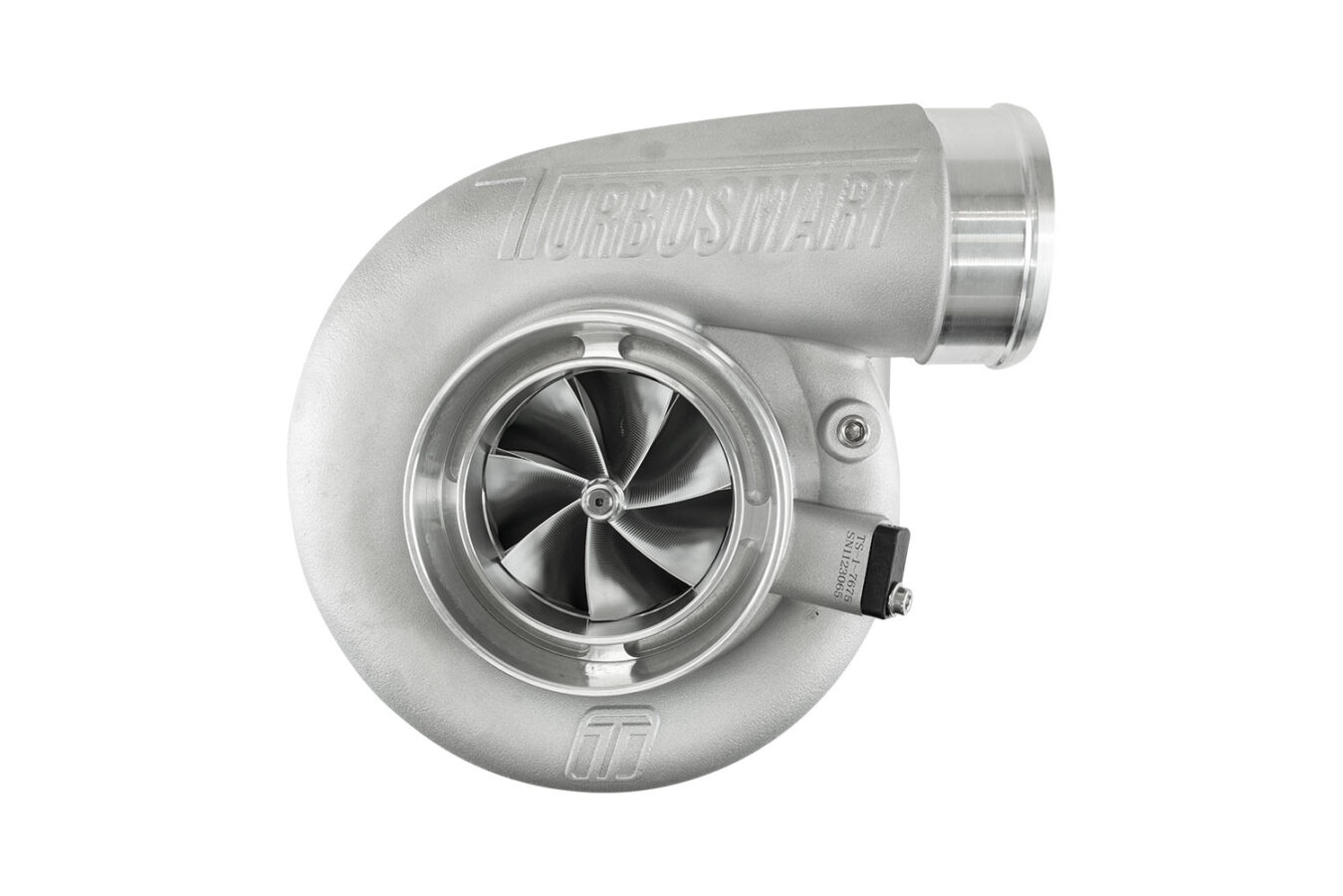

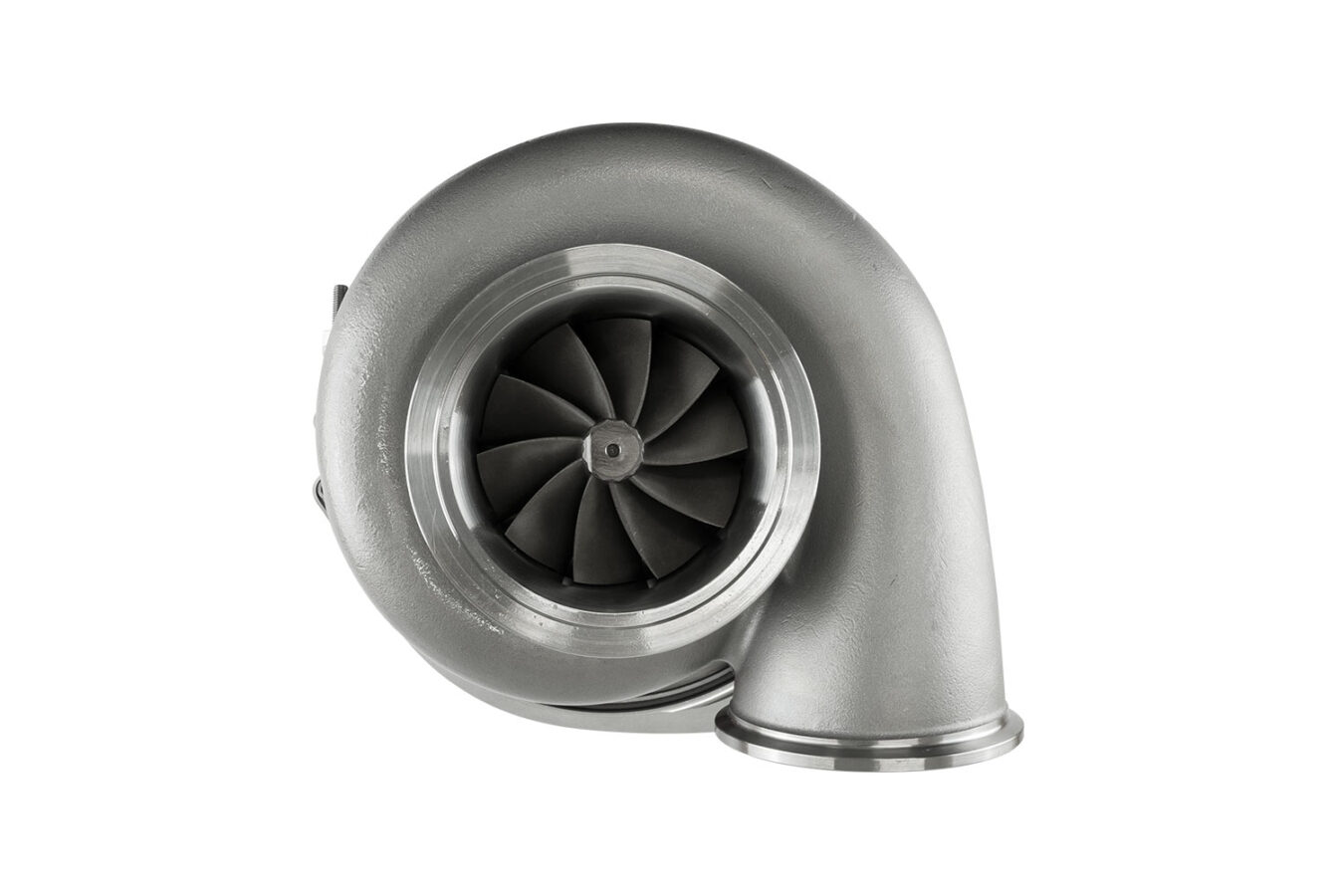

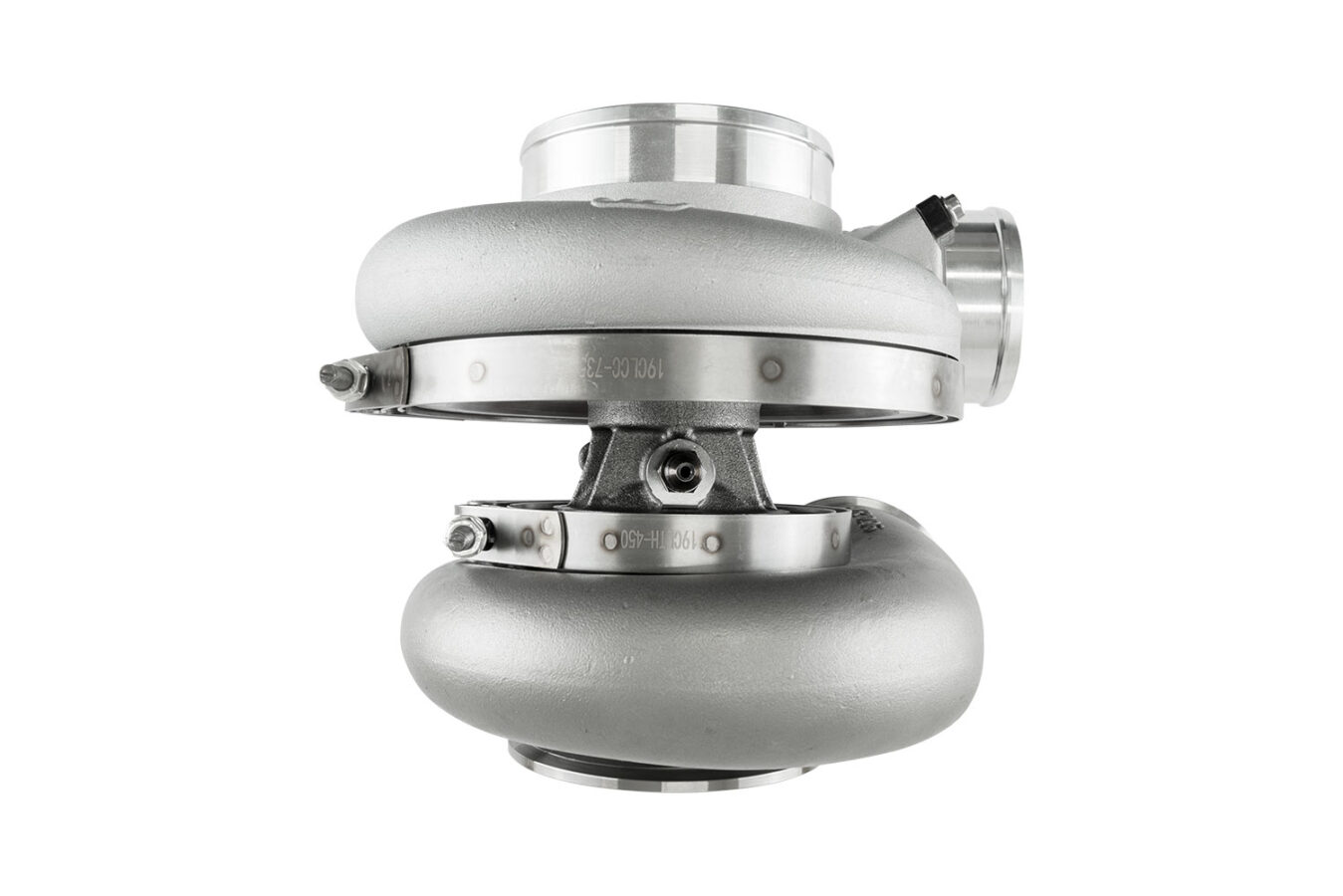

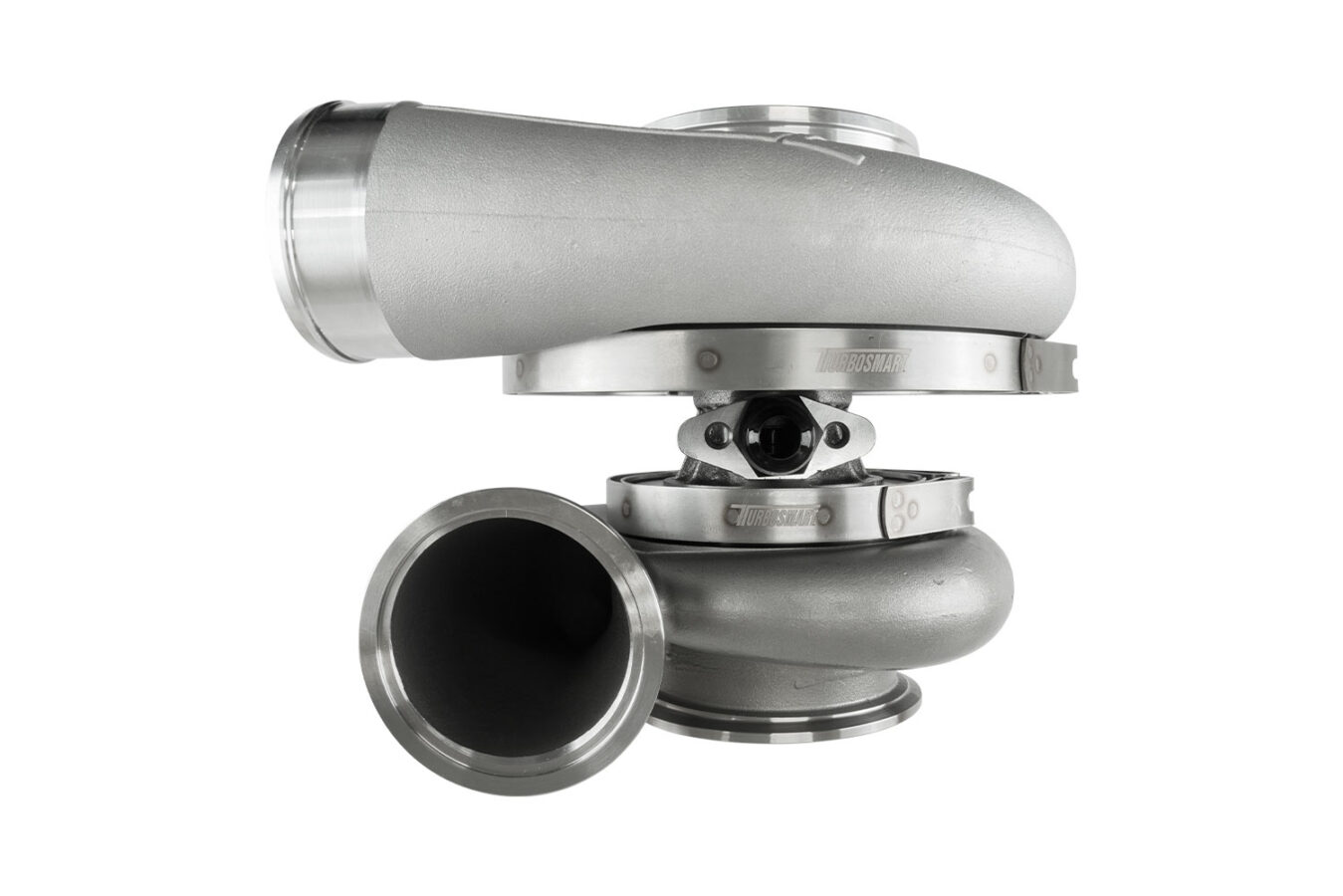

Turbosmart TS-1 Performance Turbocharger 7675 V-Band 0.96AR Externally Wastegated

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger lineup is engineered using modern materials, cutting-edge design, and advanced manufacturing techniques—built to meet the demands of motorsport and performance enthusiasts alike.

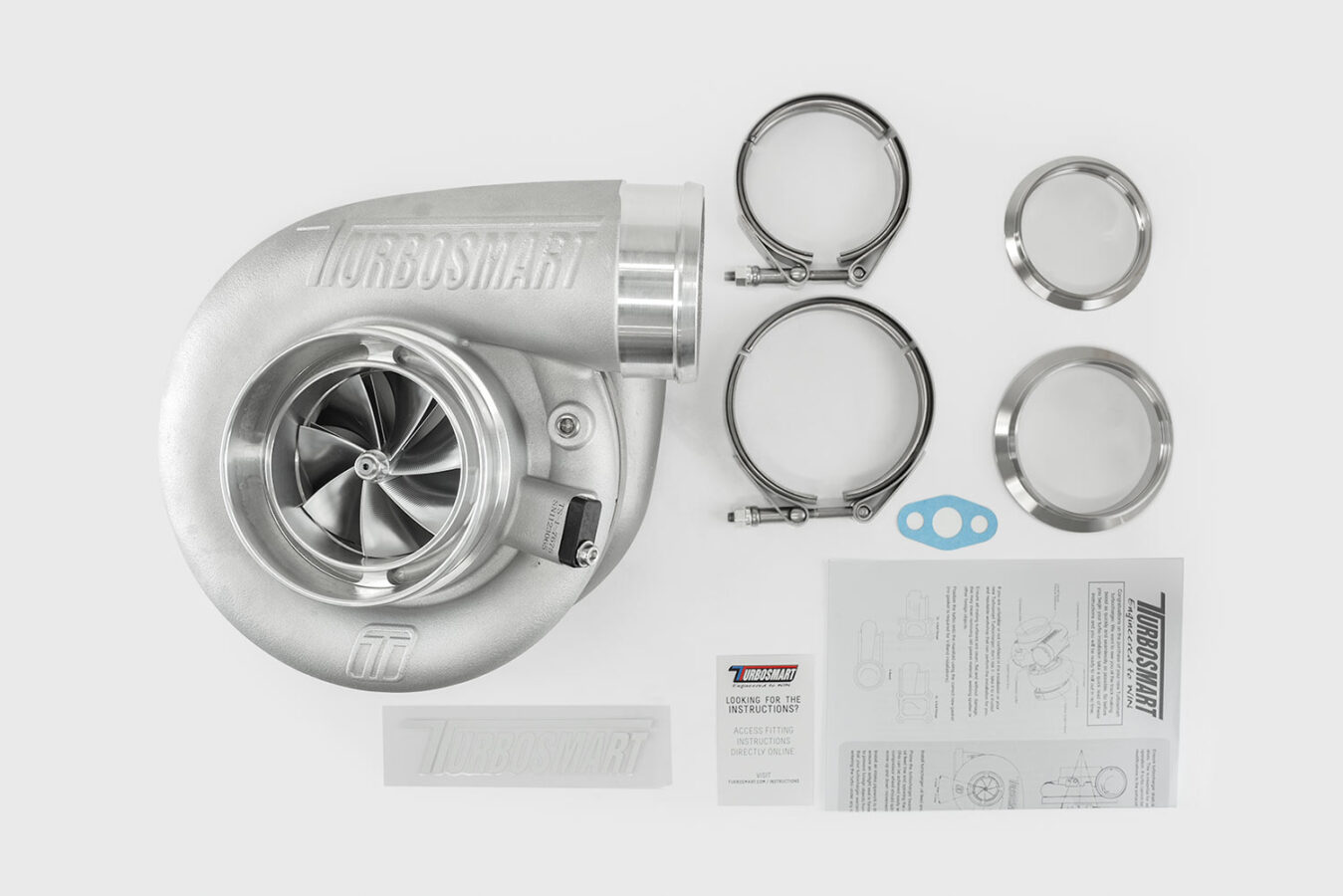

Each turbo comes complete with all necessary components for installation, including weld flanges, V-band clamps, gaskets, and oil feed and drain fittings.

The TS-1 Series features oil-cooled turbochargers with lightweight investment-cast turbine housings, along with a proprietary bearing and main shaft design. This setup delivers incredible transient response while maintaining the performance, reliability, and quality Turbosmart is known for.

Thanks to an ultra-low rotating mass and aggressive compressor aerodynamics, these turbos perform exceptionally well at lower shaft speeds while sustaining power under high loads. All Turbosmart turbos are designed with a holistic engine-first approach—delivering maximum power, reduced back pressure, and a smaller, lighter, and faster-responding turbocharger.

Available Options

• TS-1 (Oil-cooled)

• TS-2 (Oil & water-cooled)

• V-Band, T3, and T4 flange configurations

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal or external wastegated variants

Key Features

• Unparalleled transient response

• 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-designed housings for optimal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 76mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 75mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63 kg / 20.23 lbs

• Horsepower Rating: 1,100–1,290 HP
