Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered to harness the latest in materials, design, and manufacturing—built for the demands of both motorsport and high-performance enthusiasts.

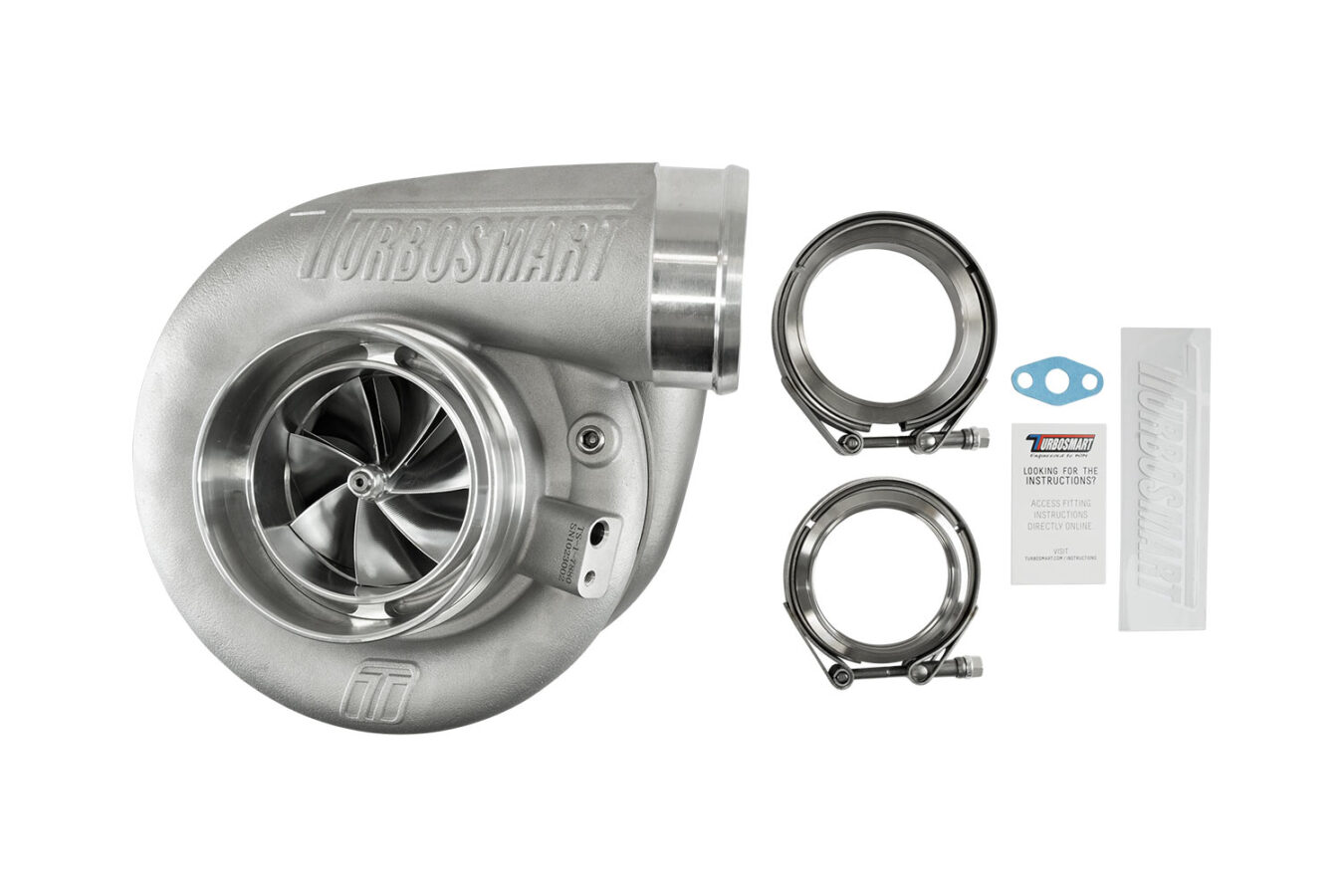

Each turbocharger includes everything needed for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings.

The TS-1 Series features oil-cooled turbochargers with lightweight investment-cast turbine housings, and a proprietary bearing and main shaft system that delivers exceptional transient response. Ultra-low rotating mass is paired with aggressive compressor aerodynamics and a uniquely matched turbine wheel, ensuring high performance even at lower shaft speeds.

Designed with an end-to-end engine approach, all Turbosmart turbos are made to reduce back pressure and maximize flow—delivering power through high-efficiency turbines that respond faster, while being smaller and lighter than other options on the market.

Available In:

• TS-1 oil-cooled turbochargers

• TS-2 oil & water-cooled turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal or external wastegate options

Key Features:

• Unmatched transient response

• 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel turbine housings

• Aluminum compressor covers

• CFD-designed housings for optimal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications:

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 78mm

• Turbine Inlet: T4

• Turbine Exducer: 80mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63 kg / 21.23 lbs

• Horsepower Rating: 1,140–1,350 HP
