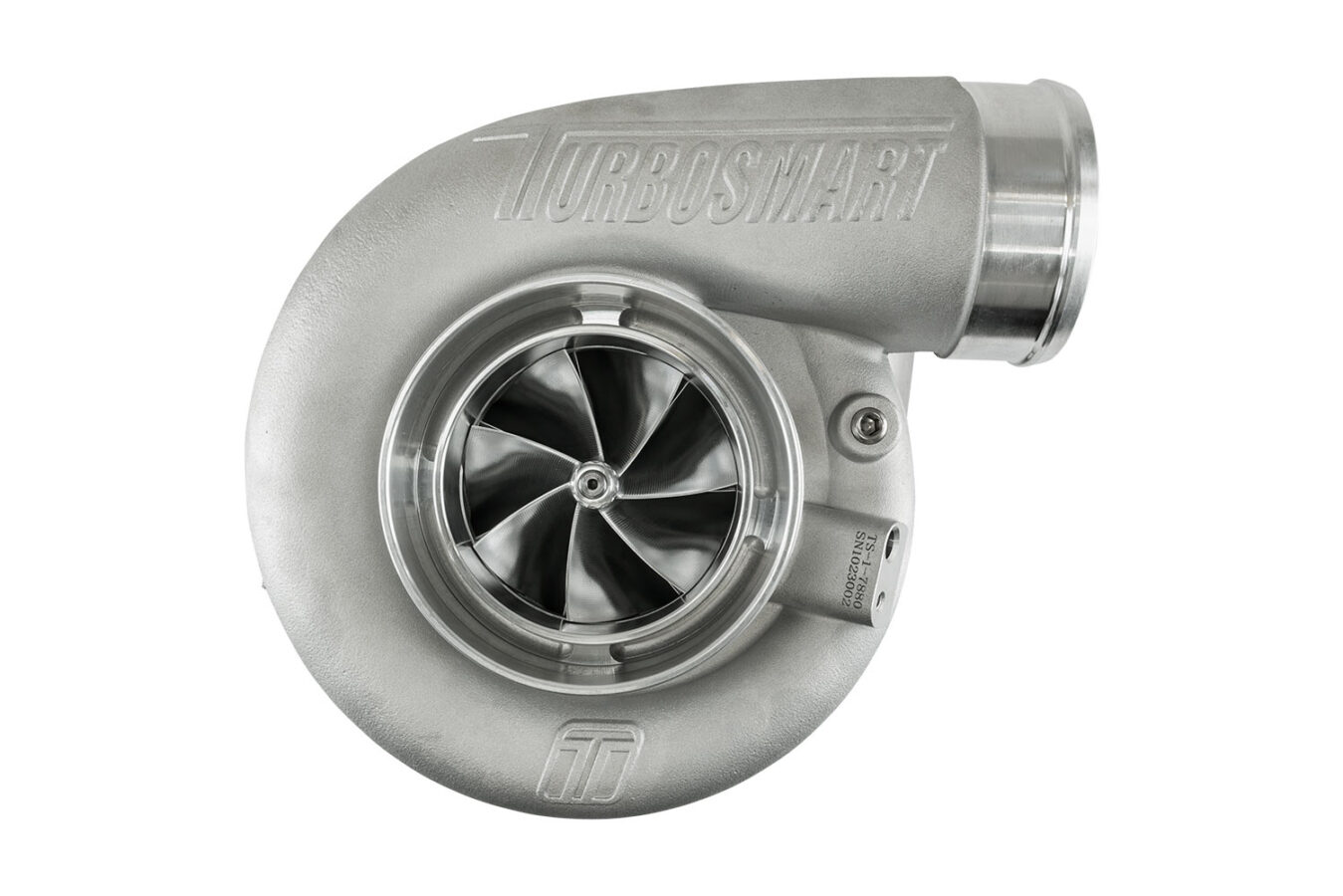

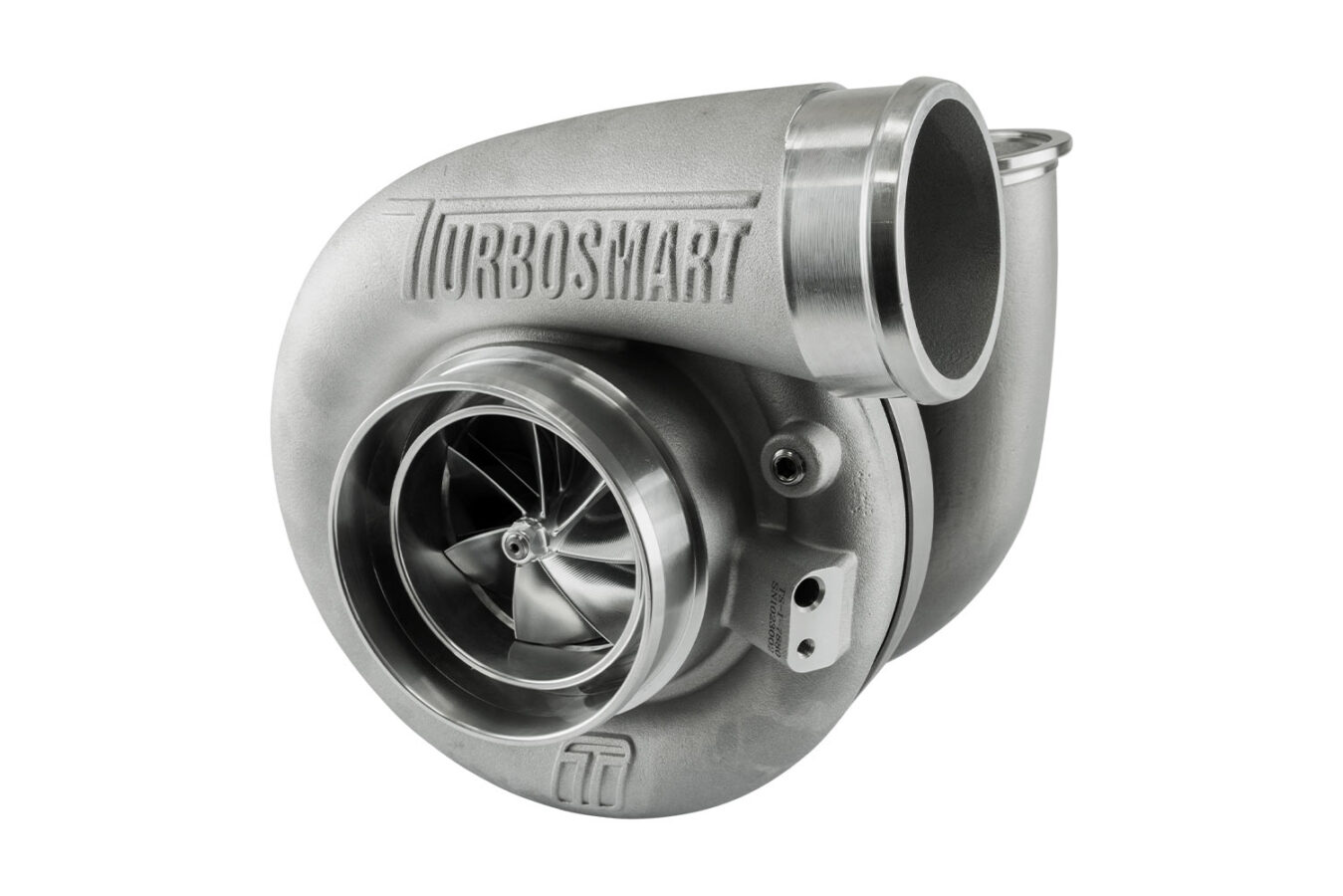

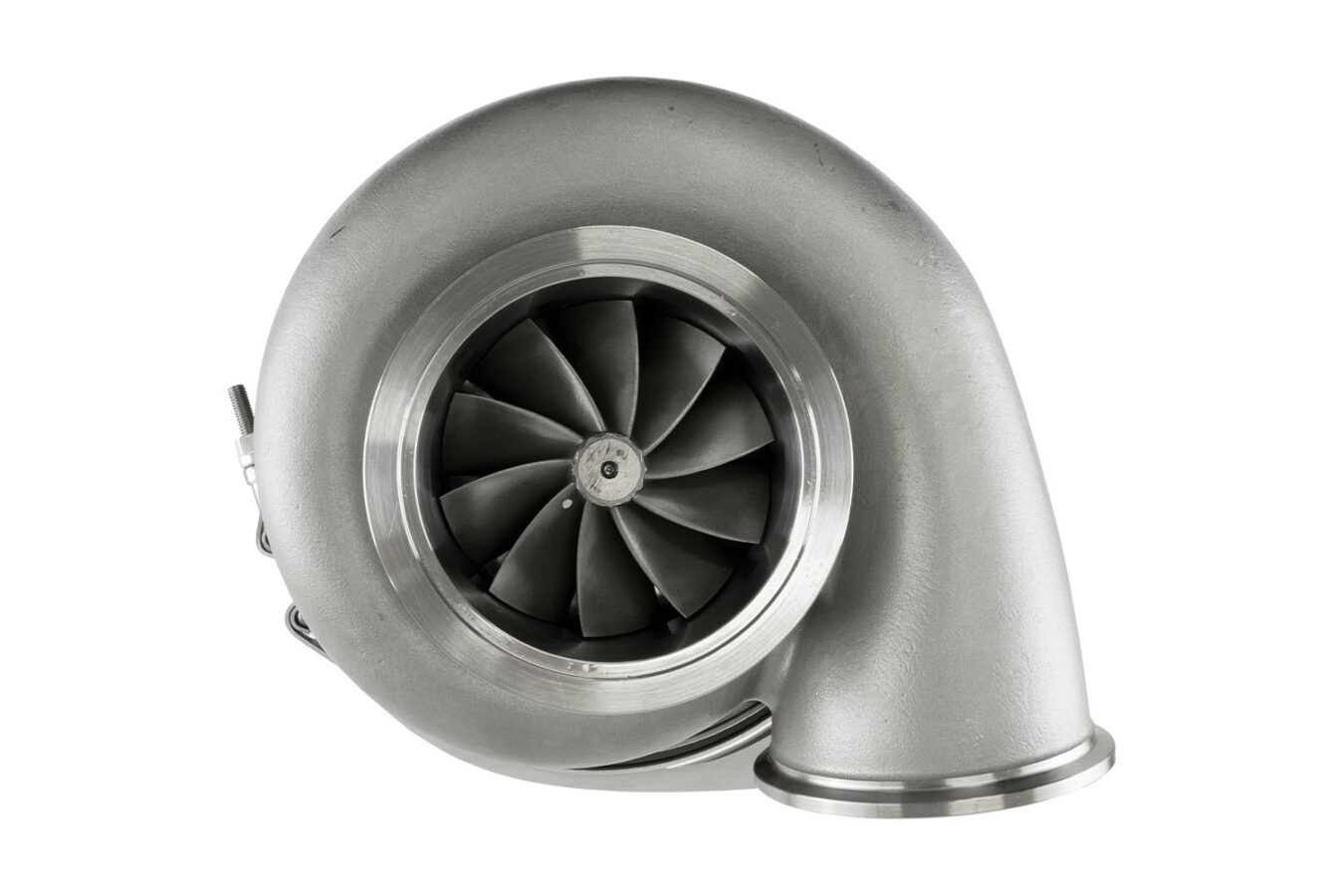

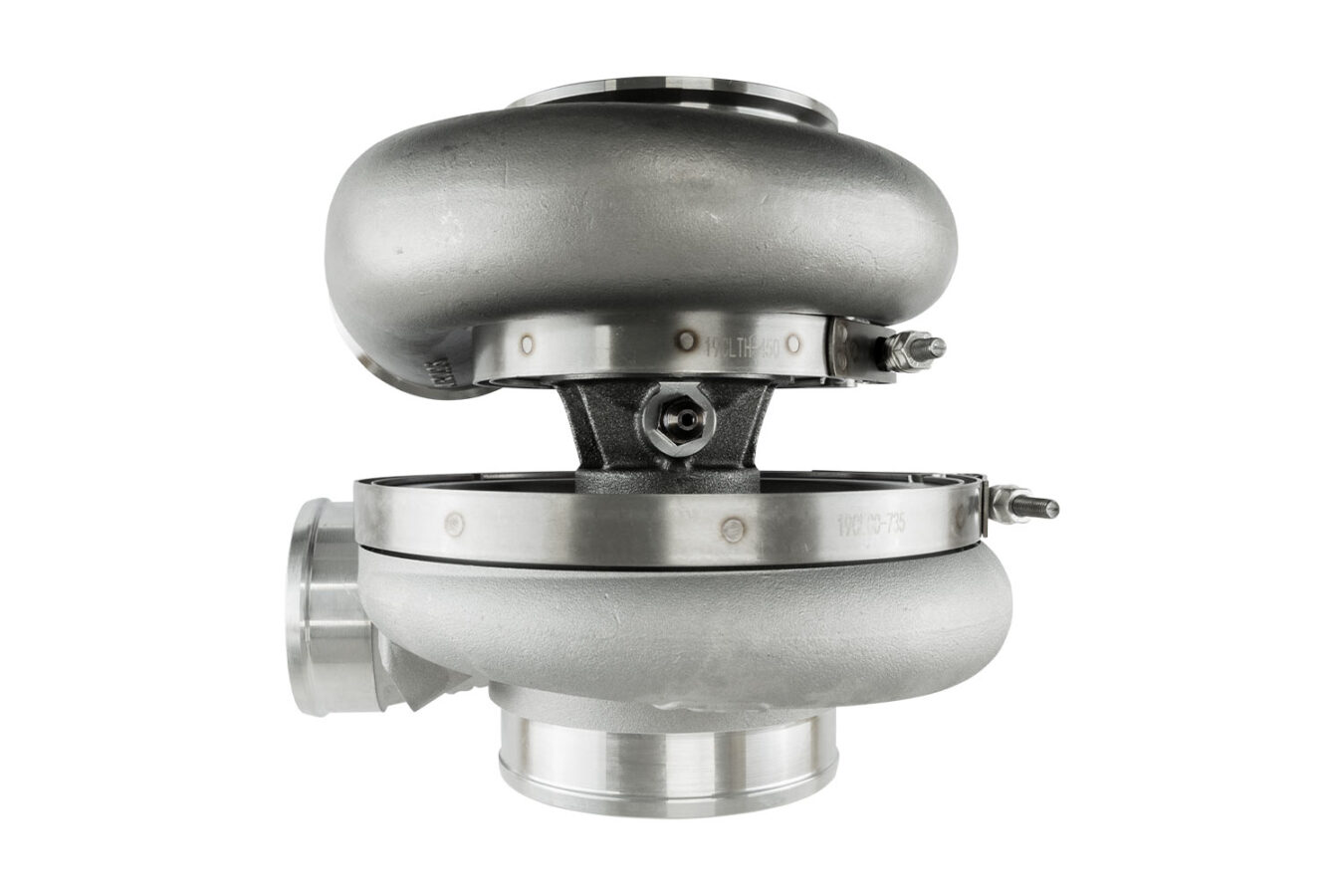

Turbosmart TS-1 Performance Turbocharger 7880 T4 1.24AR Externally Wastegated

Turbosmart TS-1 Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger range is built using advanced materials, design, and manufacturing methods to meet the performance demands of both motorsport and enthusiast applications.

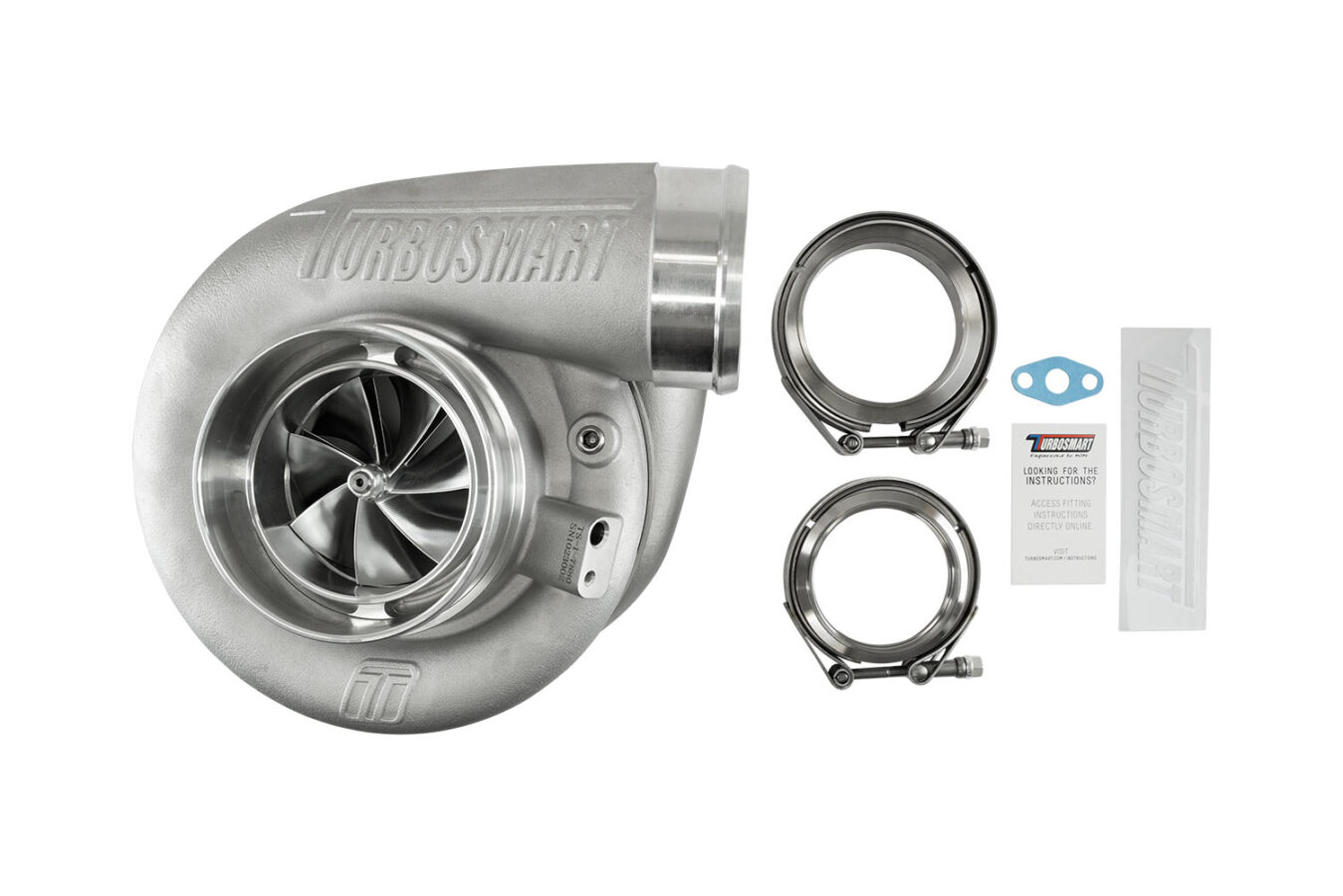

Each turbo comes complete with all installation components: weld flanges, V-band clamps, gaskets, and oil feed/drain fittings.

The TS-1 Series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and shaft system, delivering exceptional transient response, durability, and performance.

With ultra-low rotating mass and advanced compressor aerodynamics, TS-1 turbos produce impressive power even at low shaft speeds and maintain strong flow under heavy load. Turbosmart’s engine-wide design approach ensures reduced back pressure, fast spool, and compact packaging—outperforming bulkier alternatives.

Available Options

• TS-1 (Oil-cooled)

• TS-2 (Oil + Water-cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal and external wastegate compatibility

Key Features

• Ultra-fast transient response

• 7+7 2618 aluminum splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT resistance

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 78 mm

• Turbine Inlet: T4

• Turbine Exducer: 80 mm

• Turbine A/R: 1.24

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63 kg / 21.23 lbs

• Horsepower Rating: 1140–1350 HP
