THE GARRETT G SERIES G25-550 TURBO BRINGS BIG POWER IN A SMALL FRAME TURBO

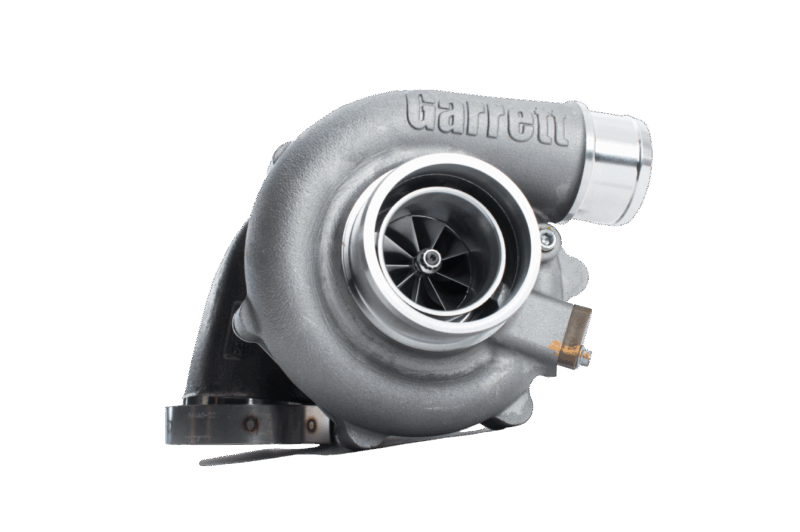

Garrett’s G25-550 is the smallest turbo in the G-Series turbocharger lineup, but don’t let that dissuade you. For its size, it makes plenty of power and spools fast. A clean-slate ball bearing turbo with state-of-the-art aerodynamics, this turbo is more compact yet outflows all comparable products on the market.
New compressor and turbine aero combined with exotic high-temperature alloys allowed engineers to push the limits of performance. Carrying nothing over from the old gen GT/GTX, the G-series 60mm exducer billet compressor wheel redefines what we thought was possible for a given airflow range—flowing +10 lbs/min (+22% gain) compared to the outgoing GTX2860R Gen II turbo it supersedes.
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Inducer: 48mm
- Compressor Wheel Trim: 65
- Compressor Wheel Material: Forged Billet Aluminum Alloy
- Compressor Wheel A/R: 0.70 A/R
- Max Flow Rate: 50 lb/min
- Max Recommended Turbo Shaft Speed: 185000 RPM
- Compressor Housing Connections:
- Inlet: 3.0″ Hose Coupler
- Outlet: 2.0″ Hose Coupler
G25-550 60MM COMPRESSOR MAP
- Turbine Wheel Exducer: 49mm
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Trim: 84
- Turbine Wheel Material: Mar-M
- Turbine Wheel Max Temp: 1050C / 1922F
G25-550 60MM TURBINE FLOW
EXTERNAL WASTEGATE (EWG) AND INTERNAL WASTEGATE (IWG) CONFIGURATIONS AVAILABLE IN BOTH STANDARD AND REVERSE ROTATION
Available in standard rotation and reverse rotation options for applications with installation restrictions. The max turbo speed is 185krpm and the max temp is 1050C/1922F. The G25 compressor housings use a traditional 3″ inlet and 2″ hose outlet with a fully machined speed sensor port. The Improved ported shroud inlet design offers maximum surge resistance with huge flow rates in a compact outline. It’s sold as a complete assembly with supercore and turbine housing.
HOUSING SIZE AND A/R RATIO
G-Series G25-550 is now available in 10 different turbine housing configurations:
|871389-5004S||Turbo Assembly Kit O/V V-Band / V-Band 0.72 A/R Ext WG||G25-550||$2053.03|
|871389-5005S||Turbo Assembly Kit O/V V-Band / V-Band 0.92 A/R Ext WG||G25-550||$2053.03|
|871390-5004S||Turbo Assembly Kit O/V V-Band / V-Band 0.72 A/R Ext WG||G25-550||$2135.15|
|871390-5005S||Turbo Assembly Kit O/V V-Band / V-Band 0.92 A/R Ext WG||G25-550||$2135.15|
|877895-5001S||Turbocharger O/V T25 / V-Band 0.49 A/R Int WG||G25-550||$2346.33|
|877895-5003S||Turbocharger O/V V-Band / V-Band 0.72 A/R Int WG||G25-550||$2391.45|
|877895-5004S||Turbocharger O/V V-Band / V-Band 0.92 A/R Int WG||G25-550||$2391.45|
|877895-5007S||Turbocharger O/V V-Band / V-Band 0.72 A/R Int WG||G25-550||$2487.11|
|877895-5008S||Turbocharger O/V V-Band / V-Band 0.92 A/R Int WG||G25-550||$2487.11|
|877895-5011S||Turbocharger Div T4 / V-Band 0.92 A/R Int WG||G25-550||$2,526.82|
|877895-5013S||Turbocharger Div T4 / V-Band 0.92 A/R Int WG||G25-550||$2,627.90|
UNDERSTANDING THE NAME
A new name designates a new generation of industry-leading technology and innovation. In G25-550 “G” designates 81 years of Garrett® Turbo heritage. “25″ classifies the frame size. The remaining 3 digits identify the “max horsepower” rating at the flywheel of the turbocharger (ie 550).
DUAL BALL BEARING CHRA – STANDARD AND REVERSE ROTATION
Available in standard rotation and reverse rotation options for enthusiasts that want the perfect twin turbo installation or a single reverse rotation turbo for applications with installation restrictions. The computational fluid dynamics (CFD) engineered compressor wheel increases airflow up to 15% for 60mm with 79-80% efficiency (compared to GTX Gen II).
All G-series turbos utilize a V-band turbine housing to CHRA connection. This improves the ease of installation, clocking, and servicing of the turbo. Each turbocharger includes 1 -4AN oil restrictor fitting with a 1mm restriction orifice to provide the turbo with the recommended 40psi of oil pressure. 4 large water jacket ports increase cooling capacity and allow enthusiasts to customize water line routing to help improve the installation process. The turbocharger comes with 2 -6AN water fittings and two plugs. *Recommended to install waterlines on opposite sides of the housing.*

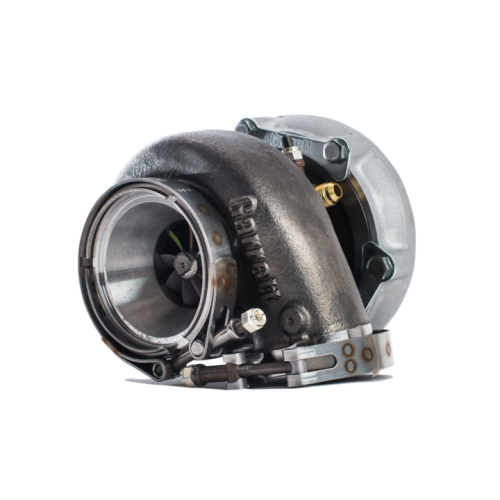

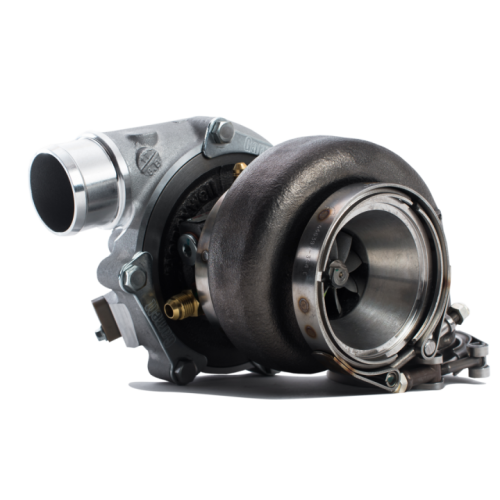

G-SERIES TURBINE WHEEL AND HOUSING
The G-series turbine wheels feature unique aerodynamics to improve flow and boost response. The industry-leading design is made of Mar-M super alloy and is capable of handling exhaust gas temperatures up to 1050 degrees C. The new G25 turbine wheel flows 15-20% more than GTX and has a peak efficiency of 74%.
TURBO SPEED SENSOR
- Speed Sensor Kit
ABOUT GARRETT G-SERIES SERIES TURBOCHARGERS
Garrett G-Series turbochargers are designed specifically for hard-core enthusiasts who want optimal performance. The forged fully-machined billet aluminum compressor wheels feature next-generation aerodynamics that provides a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Mar-M, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
