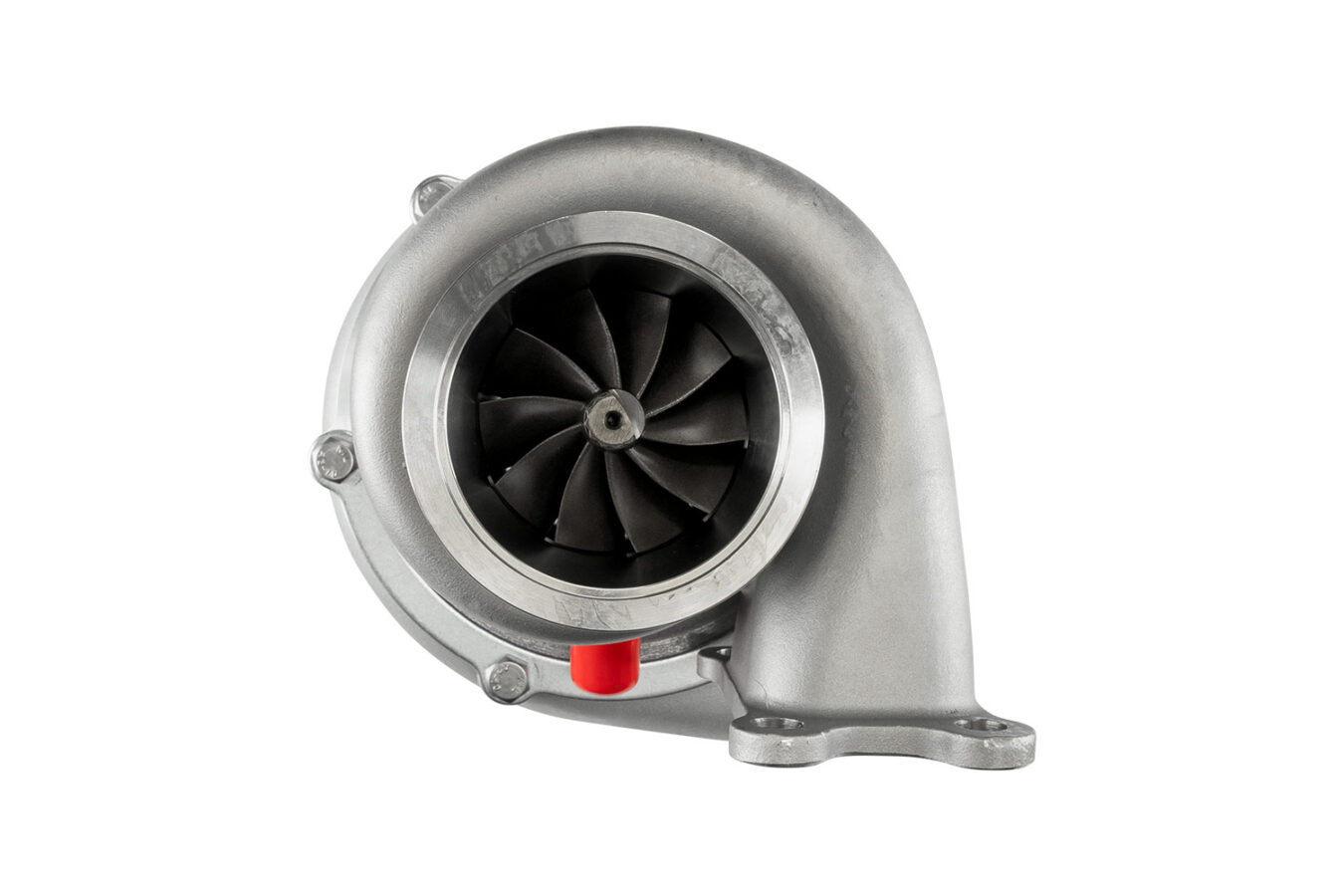

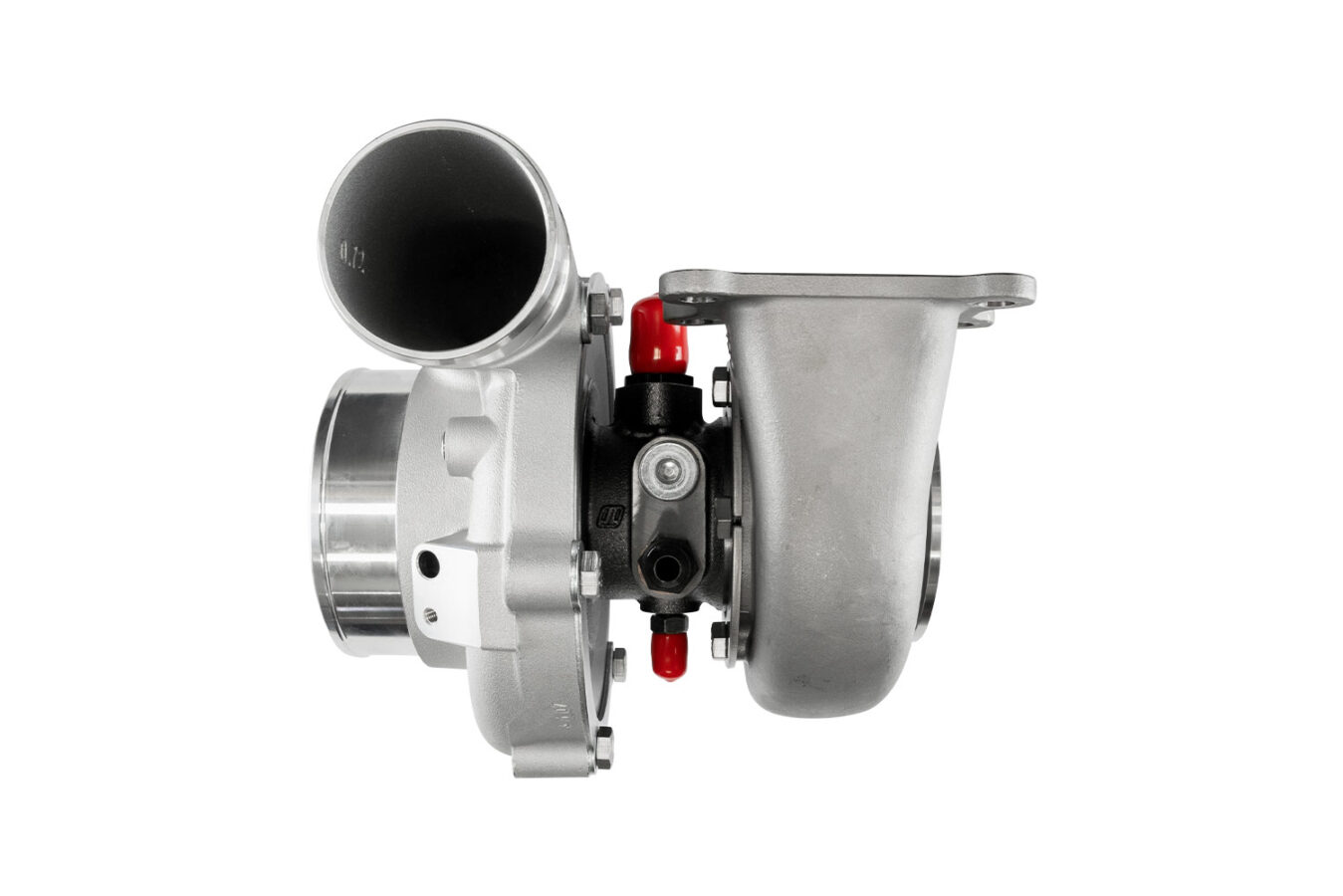

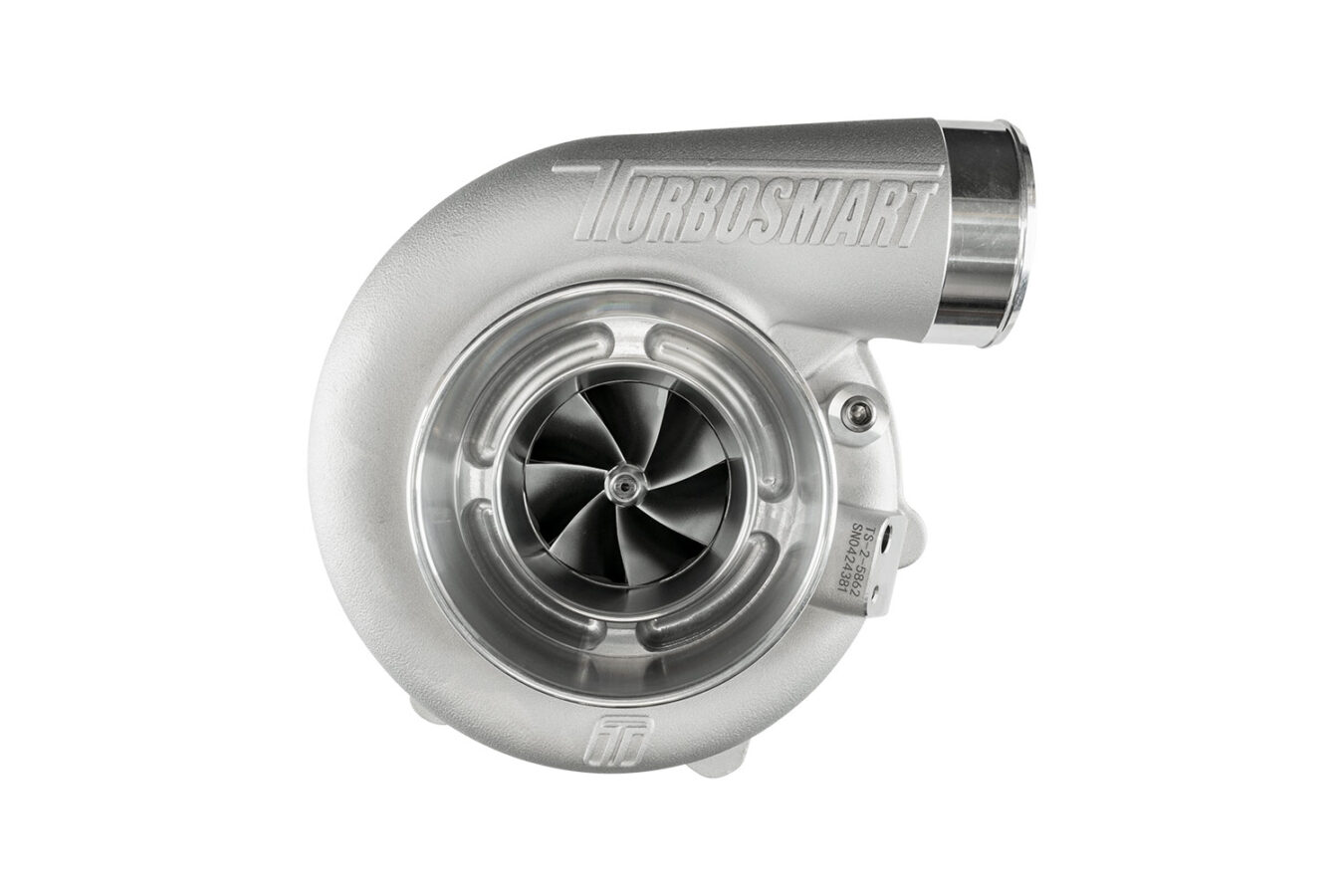

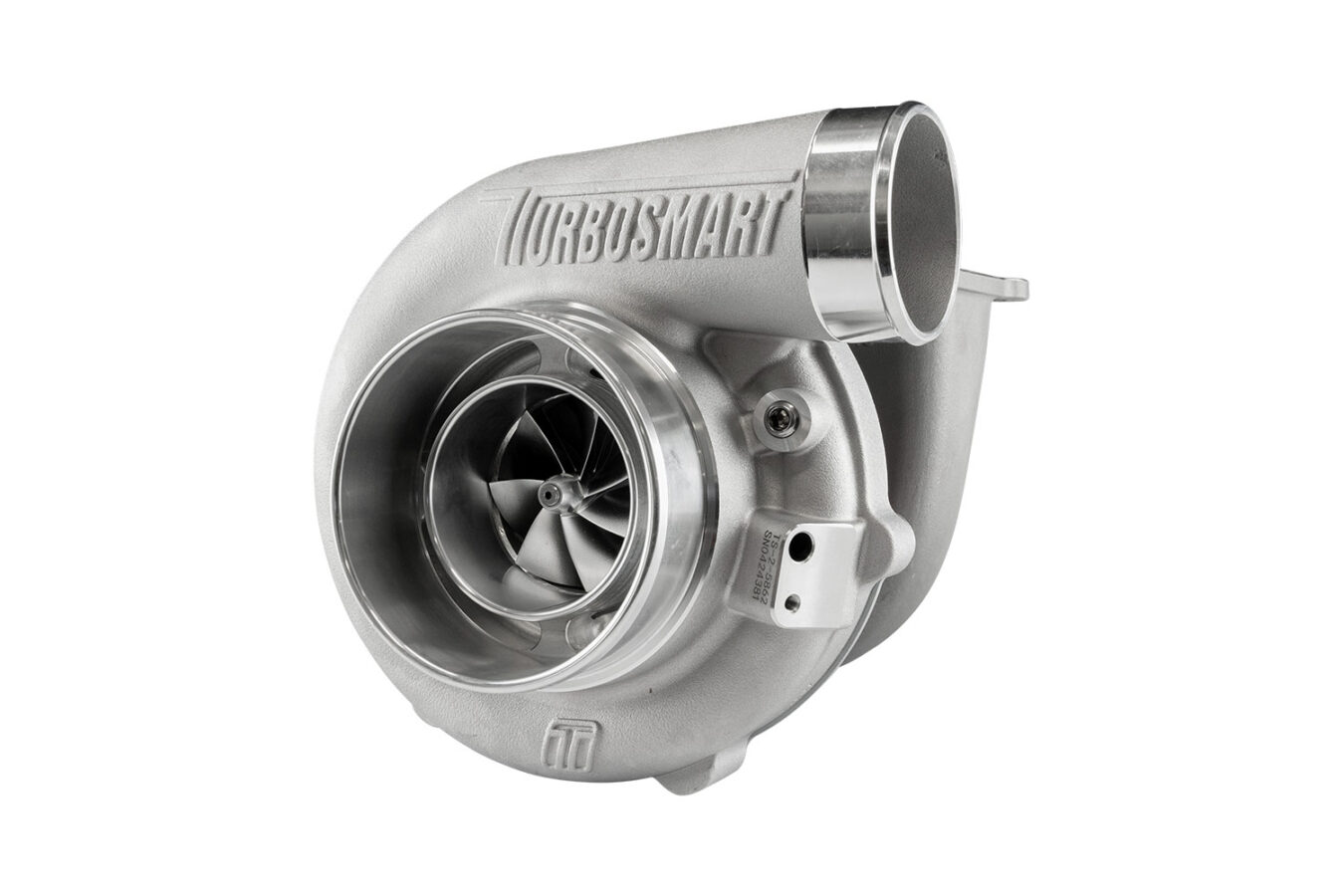

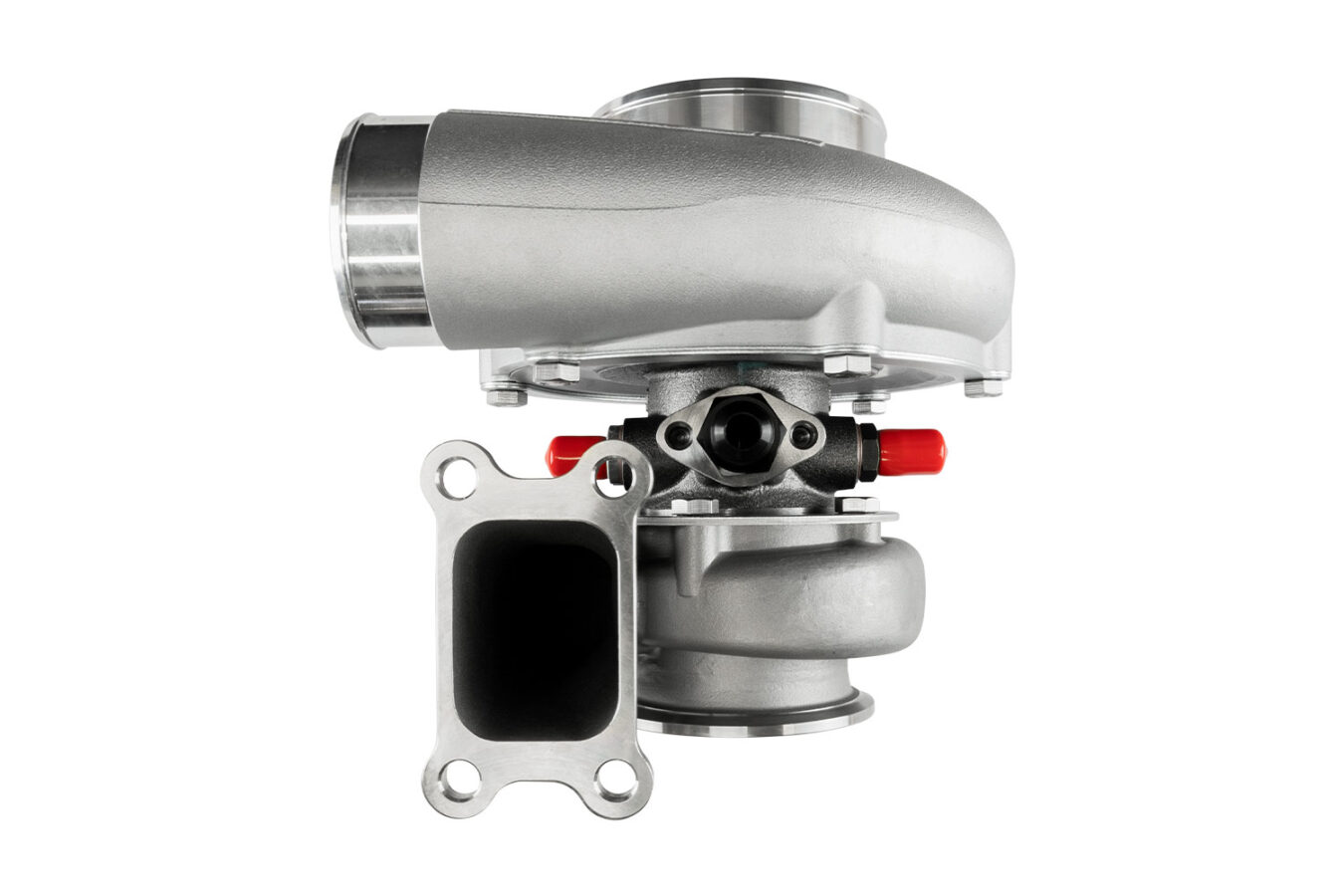

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 5862 T3 0.82AR Externally Wastegated

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered using modern materials, innovative design, and advanced manufacturing to meet the needs of motorsport and performance enthusiasts alike.

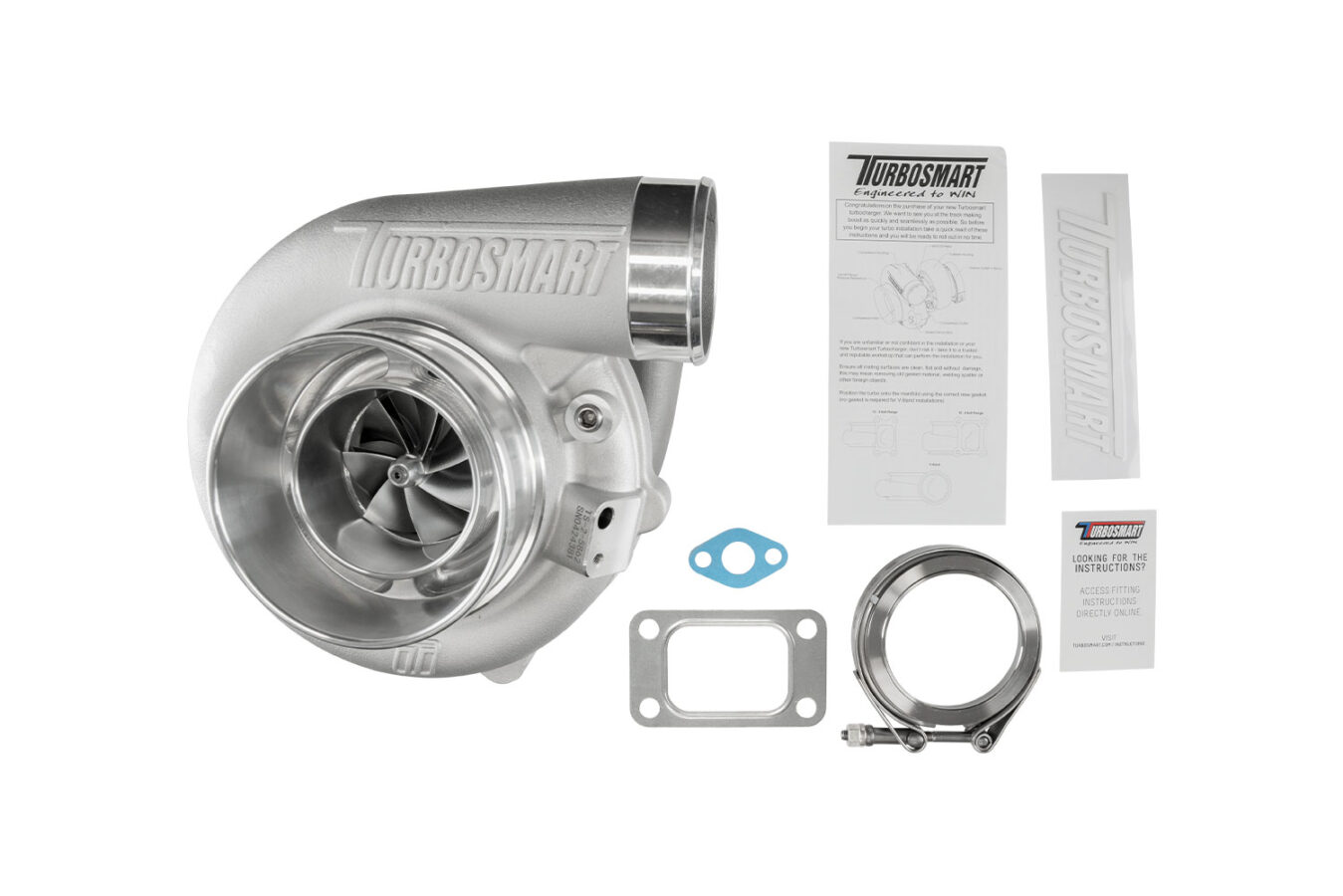

Each turbo comes complete with everything needed for installation — including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed/return fittings.

The TS-2 Series features oil and water-cooled turbochargers with lightweight investment-cast turbine housings. Its proprietary bearing and main shaft design delivers incredible transient response, reliability, and the high performance Turbosmart is known for.

With ultra-low rotating mass and aggressive compressor aerodynamics, the TS-2 delivers peak efficiency at lower shaft speeds while maintaining power and flow under high loads. Designed with an engine-first approach, this series reduces back pressure, increases turbine efficiency, and enhances throttle response — all in a smaller, lighter, and faster package.

Available Variants

• TS-1: Oil-cooled

• TS-2: Oil + water-cooled

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R ratios

• Internal & external wastegate configurations

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter wheels for high-efficiency aerodynamics

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal flow and A/R

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 58 mm

• Turbine Inlet: T3 Flange

• Turbine Exducer: 62 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 725–835 HP
