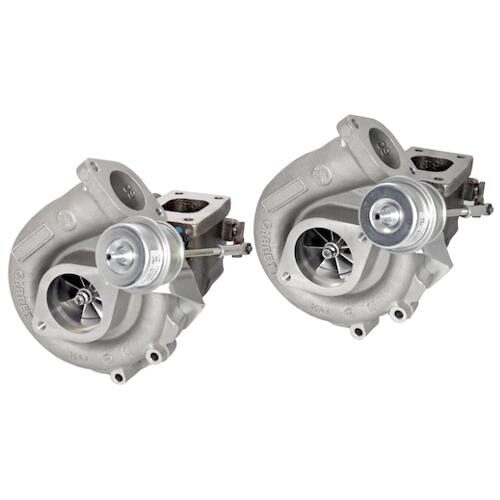

GARRETT GEN2 GTX2860R DUAL BALL BEARING TWIN TURBOCHARGERS FOR THE NISSAN SKYLINE GT-R RB26DETT

These stock location, O.E. fitment Garrett GTX Gen2 / ATP Turbos will produce up to 900hp, and bolt-on in an afternoon without modification.  Includes Two (2) turbochargers as a bolt-on twin-turbo solution for stock flange exhaust manifolds and O2 housings/dump pipes

Product Specifications:

• Compressor Wheel Inducer: 46mm
• Compressor Wheel Exducer: 60mm
• Compressor Wheel Trim: 58
• Compressor Housing: 0.60 A/R, RB26DETT Style 2 bolt inlet flange and 2 bolt outlet flange
• Turbine Wheel Inducer: 54mm
• Turbine Wheel Exducer: 47mm
• Turbine Wheel Trim: 76
• Turbine Housing: 0.64 A/R, T25 Inlet, Internal Wastegate Design, and RB26DETT Specific 5 Bolt Outlet
• Internal Wastegate Actuator: 14PSI

Product Features:

• Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
• Forged billet aluminum compressor wheel
• Dual ball bearing CHRA rotating assembly
• Bolt-on for Nissan RB26DETT motor

Applicable Garrett Part Numbers:

• 849894-5001S

Note: tuning is required.
