Garrett Motion G-Series G30-770 Reverse Rotation Turbocharger

THE MOST POWERFUL SMALL-FRAME TURBO ON THE MARKET

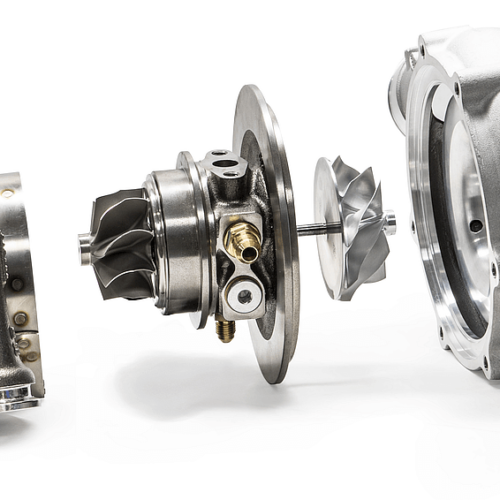

Garrett’s Reverse Rotation G30-770 is a mirror image of the all-new G30.  A clean-slate ball bearing turbo with state-of-the-art G series aerodynamics, this turbo is compact yet outflows all comparable products on the market.  Carrying nothing over from the old gen GT/GTX – the G-series 71mm exducer billet compressor wheel redefines what we thought was possible for a given airflow range – flowing +10 lbs/min (+22% gain) compared to the outgoing GTX3071R Gen II turbo it supersedes.  G30-770 Max turbo speed is 150krpm and the max temp is 1050C/1922F.  G30-770 Compressor housings use a traditional 3″ inlet and 2″ hose outlet with a fully machined Speed Sensor Port.  The Improved ported shroud inlet design offers maximum surge resistance with huge flow rates in a compact outline.  Available in standard rotation and reverse rotation options for enthusiasts that want the perfect twin turbo installation or a single reverse rotation turbo for applications with installation restrictions.  Sold as Complete Assembly with Supercore and Turbine Housing

COMPRESSOR SPECIFICATIONS

• Compressor Wheel Inducer: 58mm
• Compressor Wheel Exducer: 71mm
• Compressor Wheel Trim: 65
• Compressor Wheel Material: Forged Billet Aluminum Alloy
• Compressor Wheel A/R: 0.72 A/R
• Max Flow Rate: 73 lb/min
• Max Recommended Turbo Shaft Speed: 150000 RPM
• Compressor Housing Connections:
  • Inlet: 3.0″ Hose Coupler
  • Outlet: 2.0″ Hose Coupler

TURBINE SPECIFICATIONS

• Turbine Wheel Inducer: 58mm
• Turbine Wheel Exducer: 71mm
• Turbine Wheel Trim: 84
• Turbine Wheel Material: Mar-M
• Turbine Wheel Max Temp: 1050C / 1922F
