INSTRUCTIONS

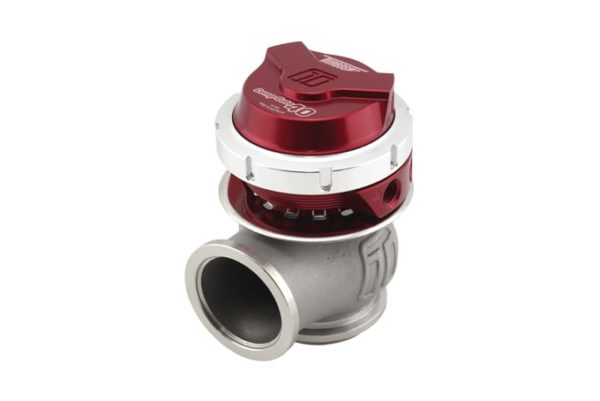

The GenV WG40 CompGate40 External Wastegate is a Motorsport proved, cost-effective external wastegate – The largest in the Turbosmart GenV range and the Highest Flowing Wastegate in the World.

The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance, and best in class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options, and performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature their unique collar-locking system, variable actuator cap, and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Comes with:

• GenV Wastegate unit
• All Springs Included in Box
• Wastegate Pre-fitted as Per Description
• GenV SS316 Valve seat
• GenV V-Band Clamps
• GenV Inlet & Outlet Weld Flanges
• Mounting Bolts and Nuts
• Collar tool (master/slave)
• 3, 5, 7, 14 psi spring kit (1x spring installed)
• 4 x 1/8” NPT plugs (1x installed)
• 2 x 1/8” NPT nipples
