Smaller, Lighter, and Faster

Turbosmart’s turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport and performance enthusiasts alike.

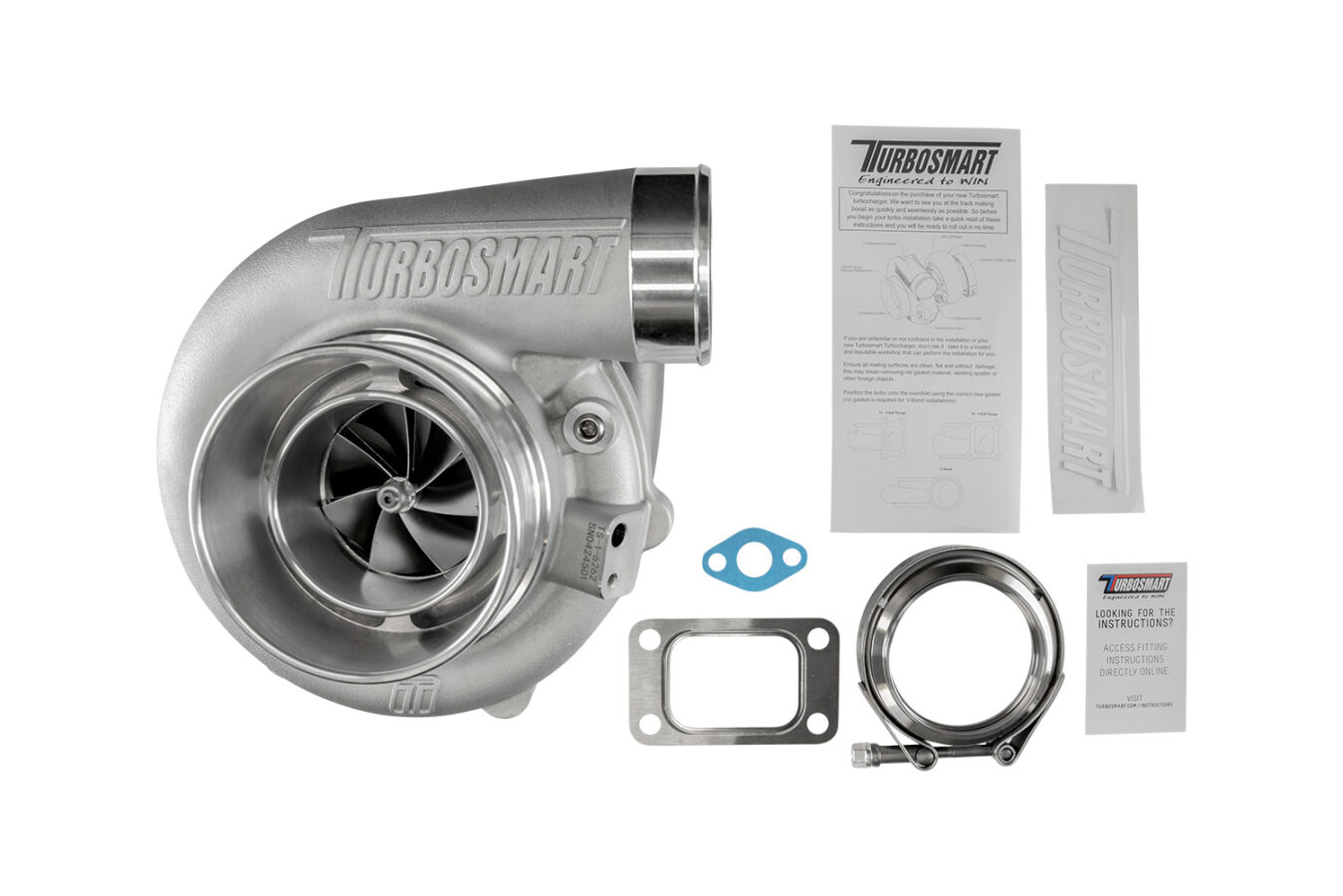

Every Turbosmart turbocharger comes standard with everything you need for installation — weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.

The TS-1 series are oil-cooled turbochargers featuring lightweight investment-cast turbine housings, and a proprietary bearing and main shaft combination which provides transient response you never knew possible, along with the performance, quality, reliability, and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds. This is paired with a unique turbine wheel designed to maintain power at high loads and sustained flow.

All Turbosmart turbochargers have been designed with an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines — while being smaller, lighter, and faster in response than other solutions on the market.

Available In

• TS-1 oil-cooled turbochargers

• TS-2 oil and water-cooled turbochargers

• V-Band, various T3 flange, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegated options available

Features

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 2618 aluminium splitter wheels

• Lightweight 310S stainless steel investment cast turbine housings

• Lightweight aluminium compressor covers

• CFD-driven designed housings for optimal A/Rs and flow

• 713C Inconel turbine wheel for extreme exhaust gas temperatures (EGTs)

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 62 mm

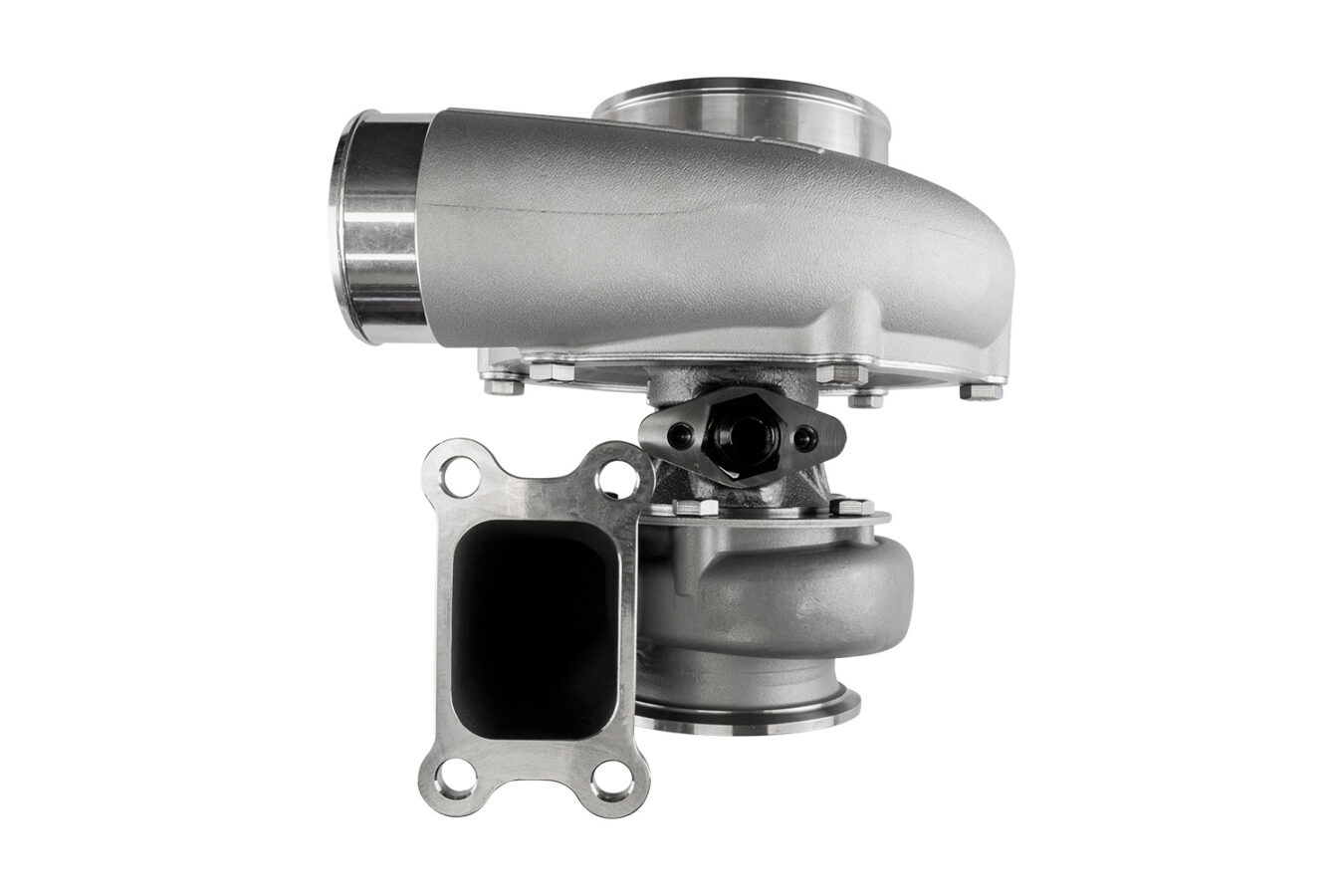

• Turbine Inlet: T3 Flange

• Turbine Exducer: 62 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 760–880 HP
