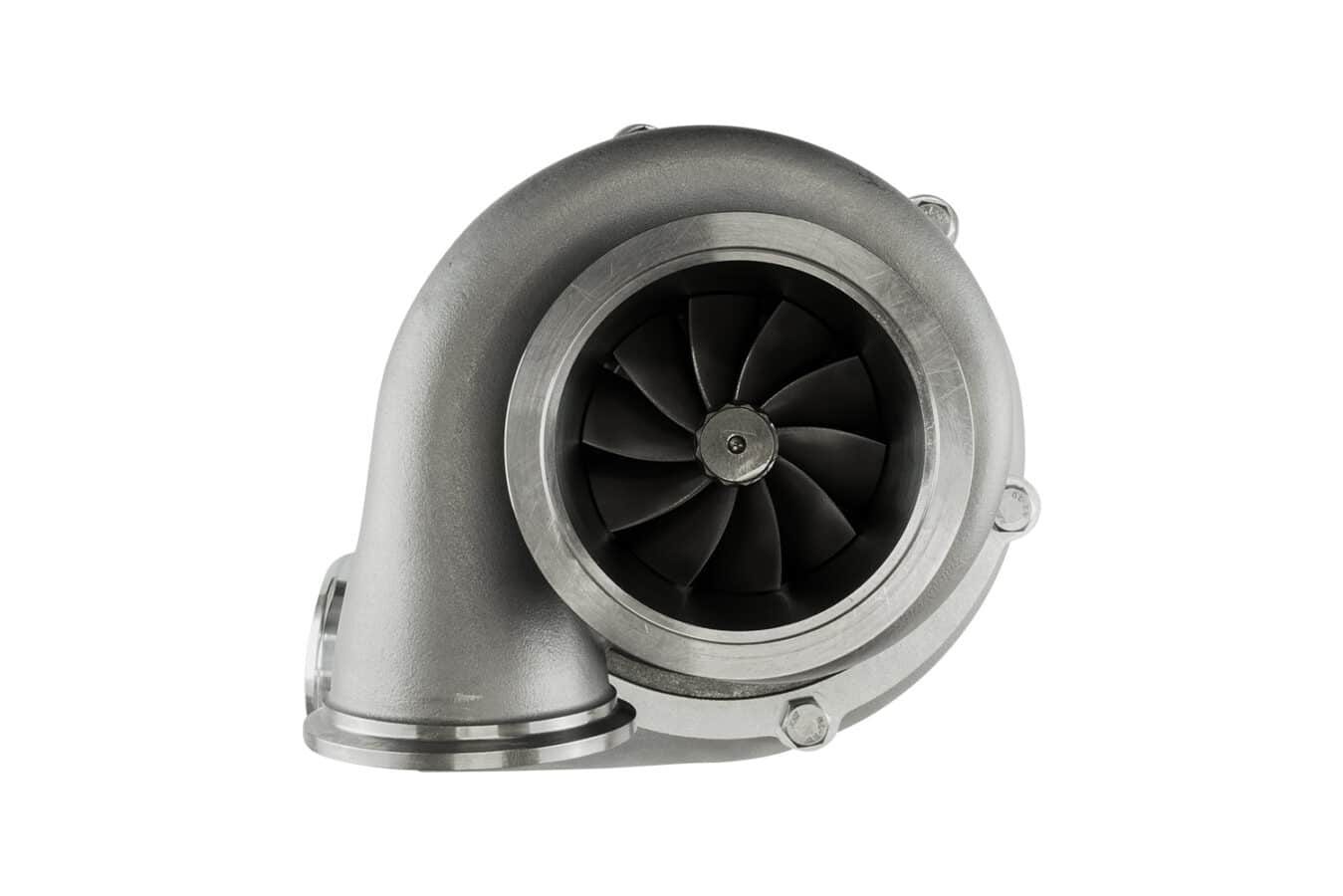

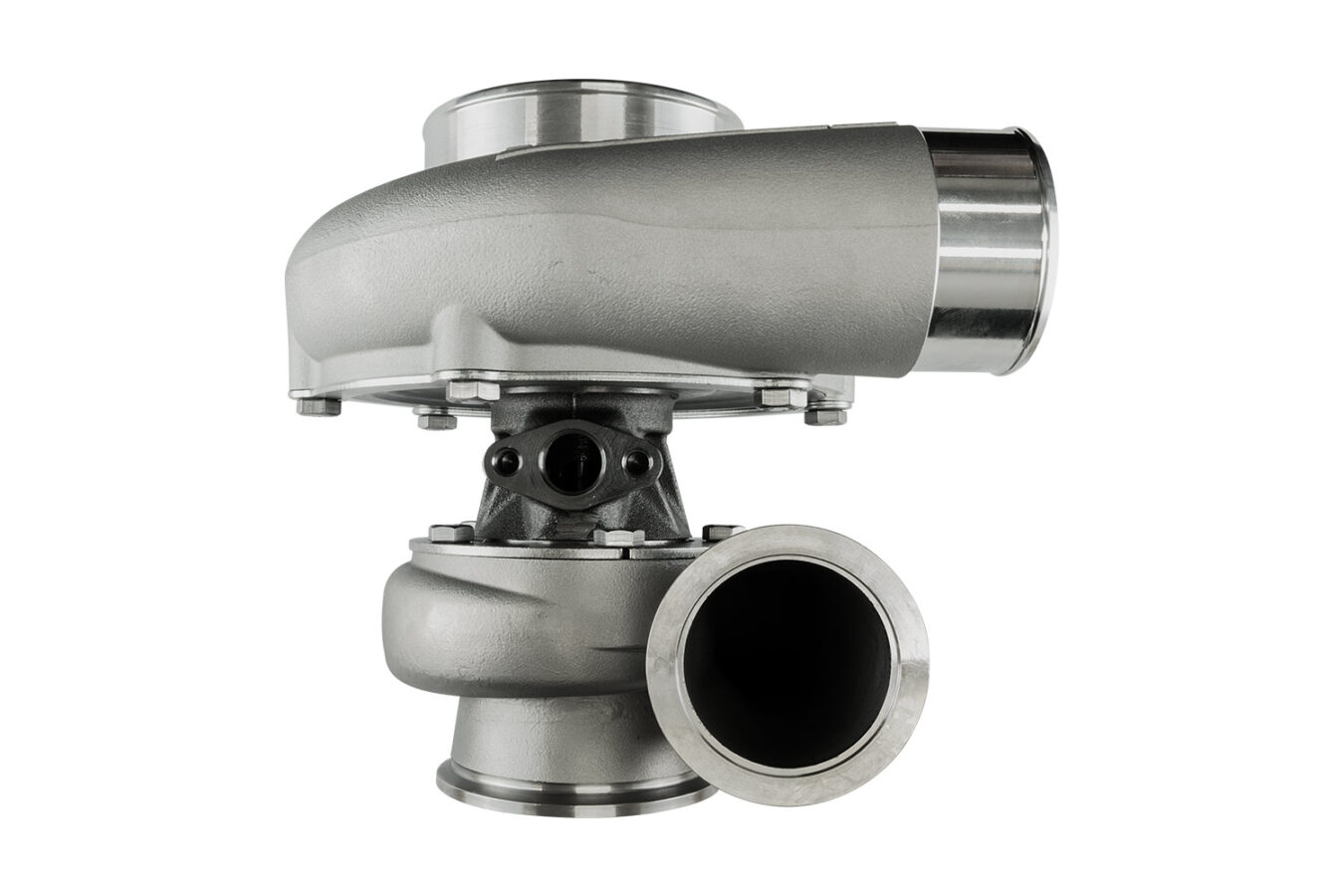

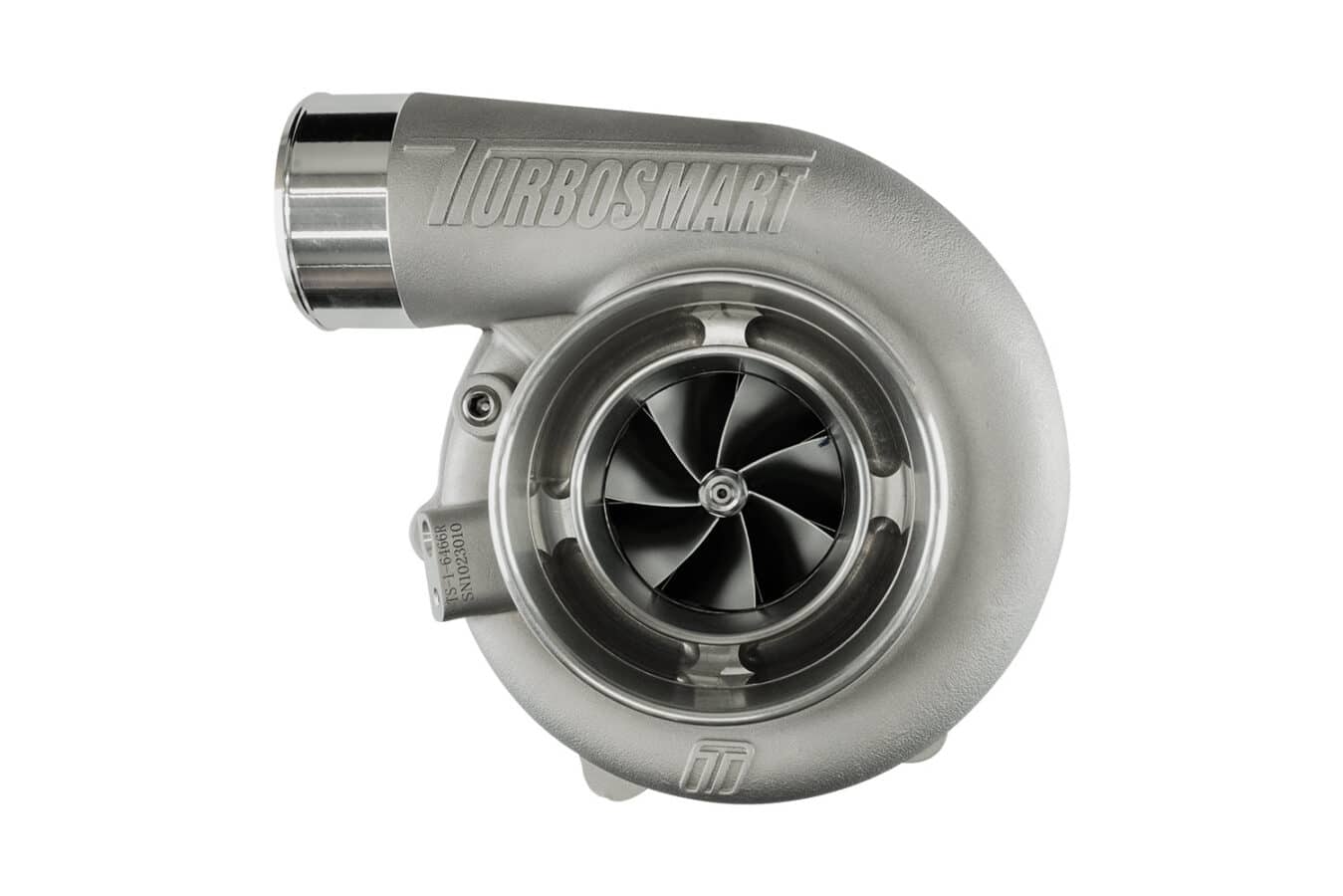

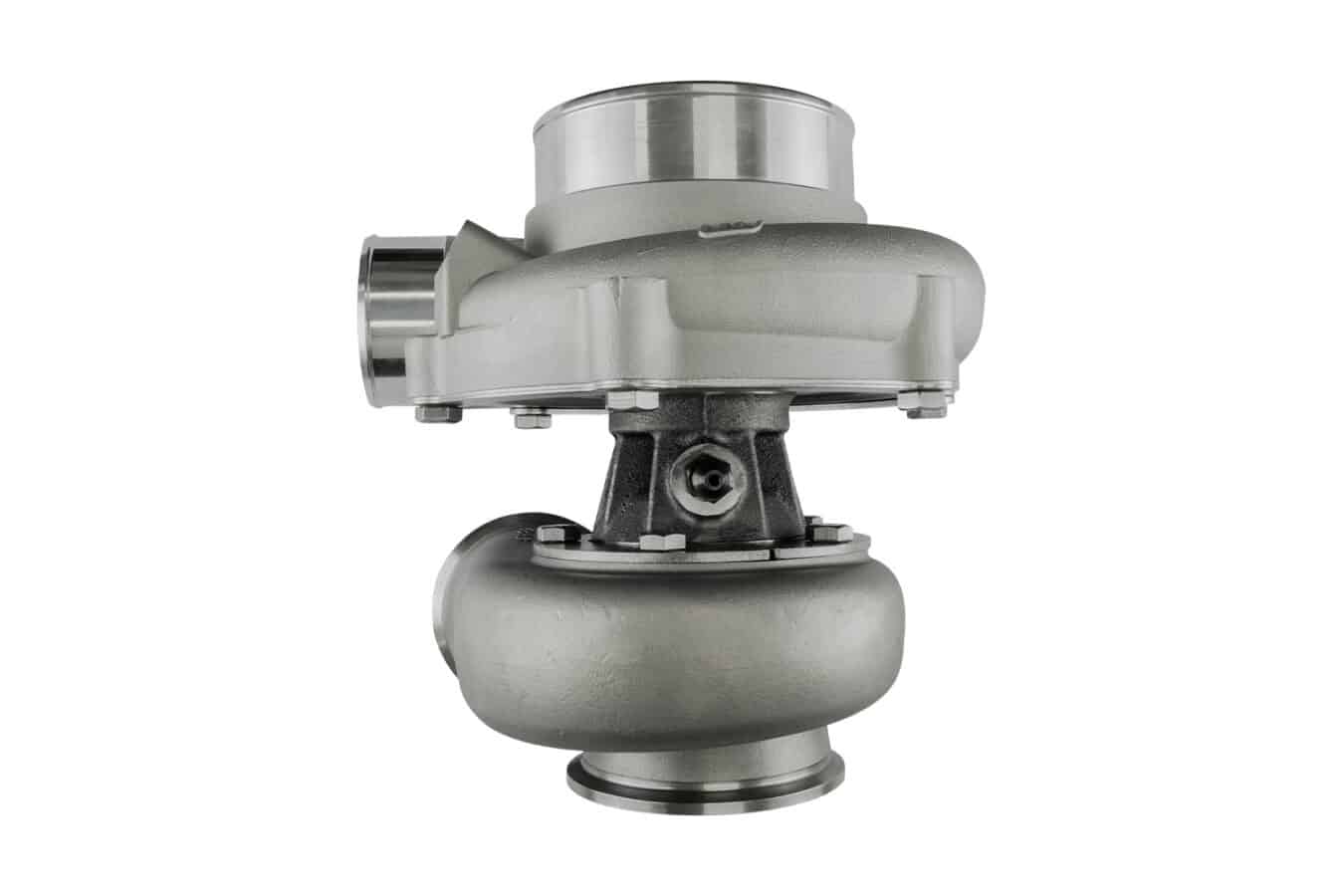

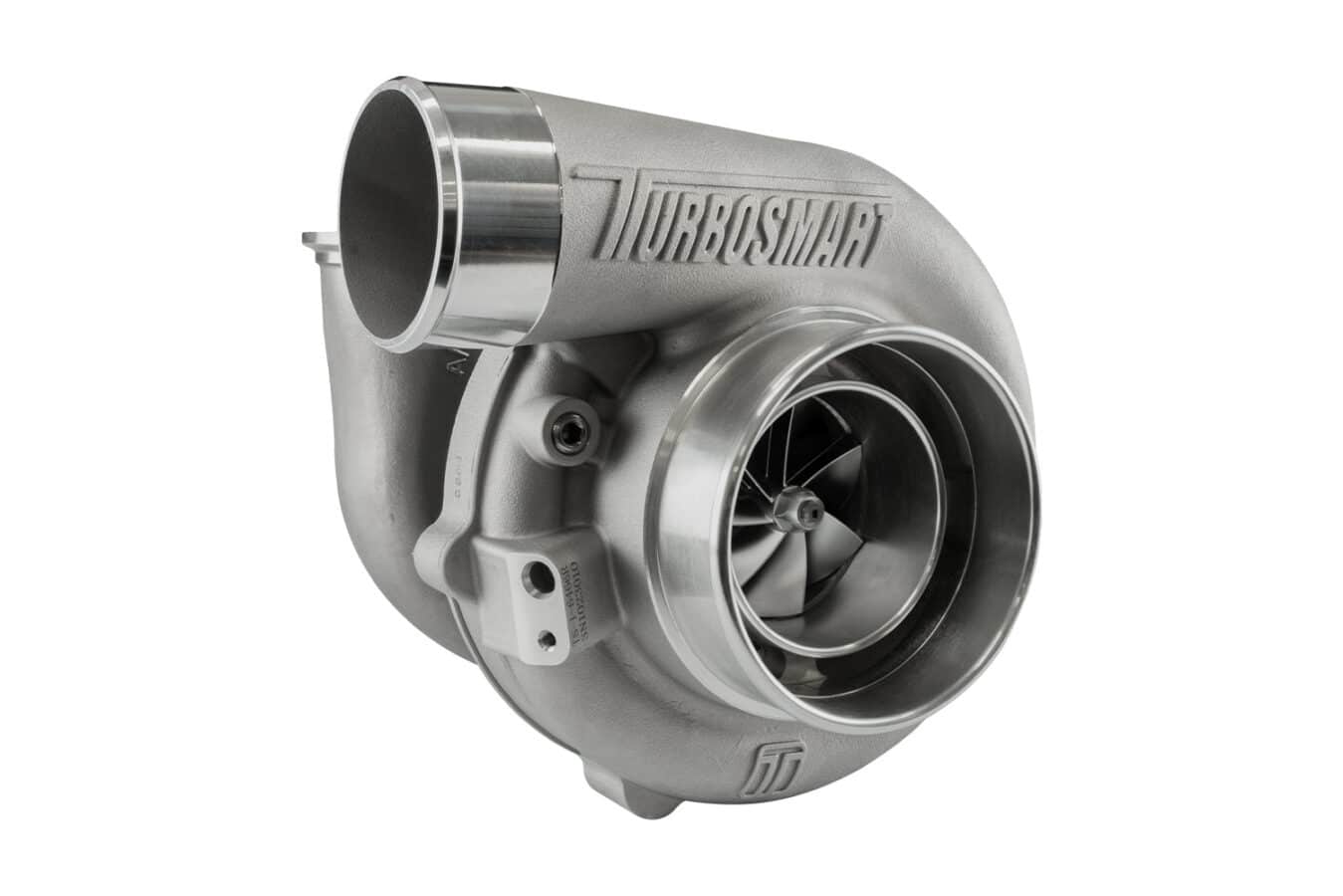

Turbosmart TS-1 Performance Turbocharger 6466 V-Band 0.82AR Externally Wastegated (Reversed Rotation)

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger lineup is engineered using cutting-edge materials, modern design, and advanced manufacturing techniques to meet the high demands of motorsport and performance enthusiasts.

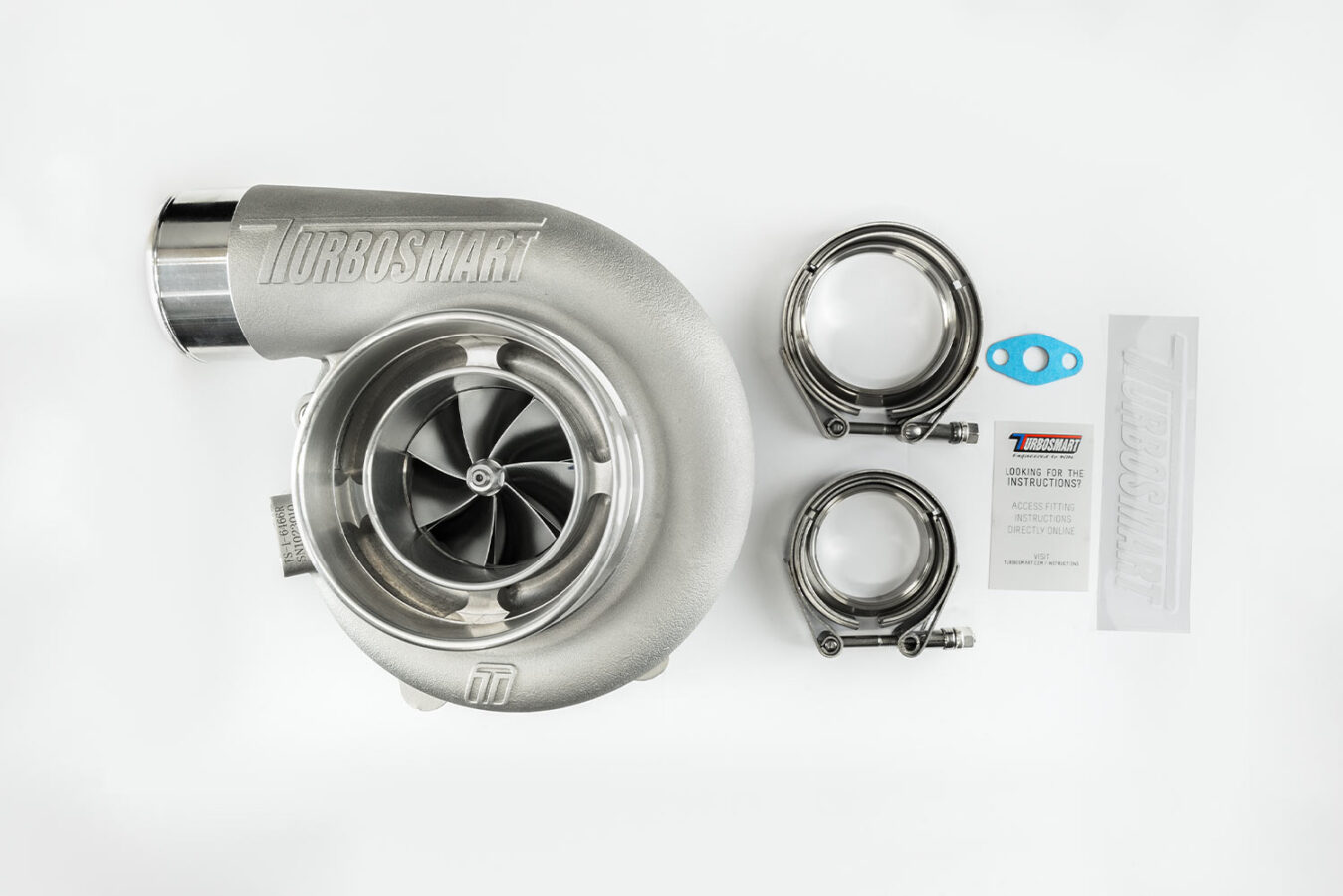

Each turbocharger comes complete with everything needed for installation—weld flanges, V-band clamps, gaskets, oil feed, and drain fittings are all included.

The TS-1 Series is oil-cooled, featuring lightweight investment-cast turbine housings and a proprietary bearing and main shaft combo that delivers lightning-fast transient response. Backed by the quality, performance, and reliability you expect from Turbosmart.

Thanks to an ultra-low rotating mass and aggressive compressor aerodynamics, the TS-1 delivers high performance at lower shaft speeds. Paired with a custom turbine wheel, it ensures power delivery and consistent flow even under high load.

All Turbosmart turbochargers are built with a full-engine approach—delivering power through reduced backpressure and high-efficiency turbines, all in a compact, responsive, and lightweight package.

Available Options

• TS-1 Oil-Cooled Turbochargers

• TS-2 Oil & Water-Cooled Turbochargers

• V-Band, T3, and T4 Flange Options

• Reverse Rotation (Selected Sizes)

• Various A/R Configurations

• Internal & External Wastegate Options

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-designed housings for optimal flow and A/R

• 713C Inconel turbine wheel for extreme EGT tolerance

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 64 mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 66 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 825–955 HP
