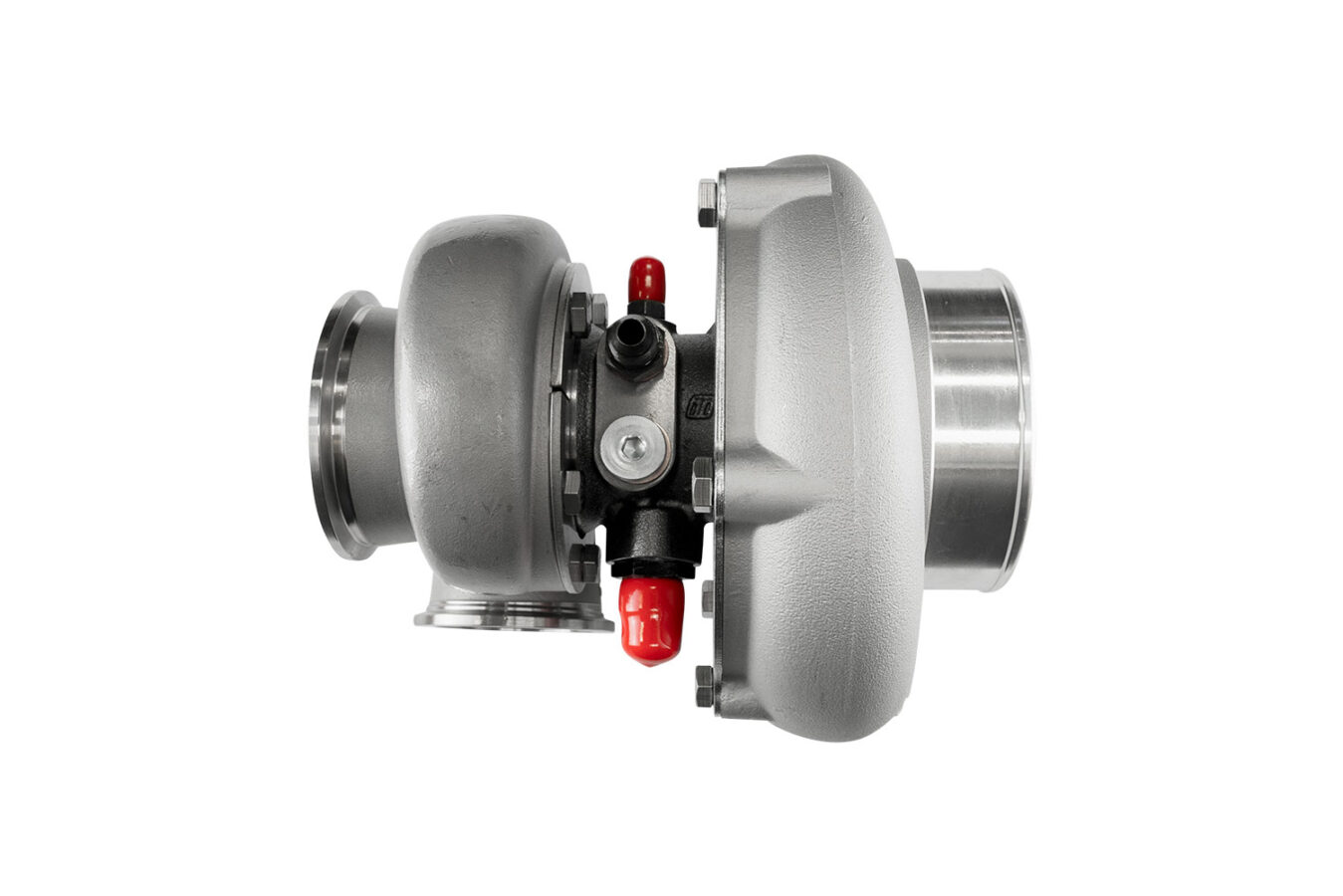

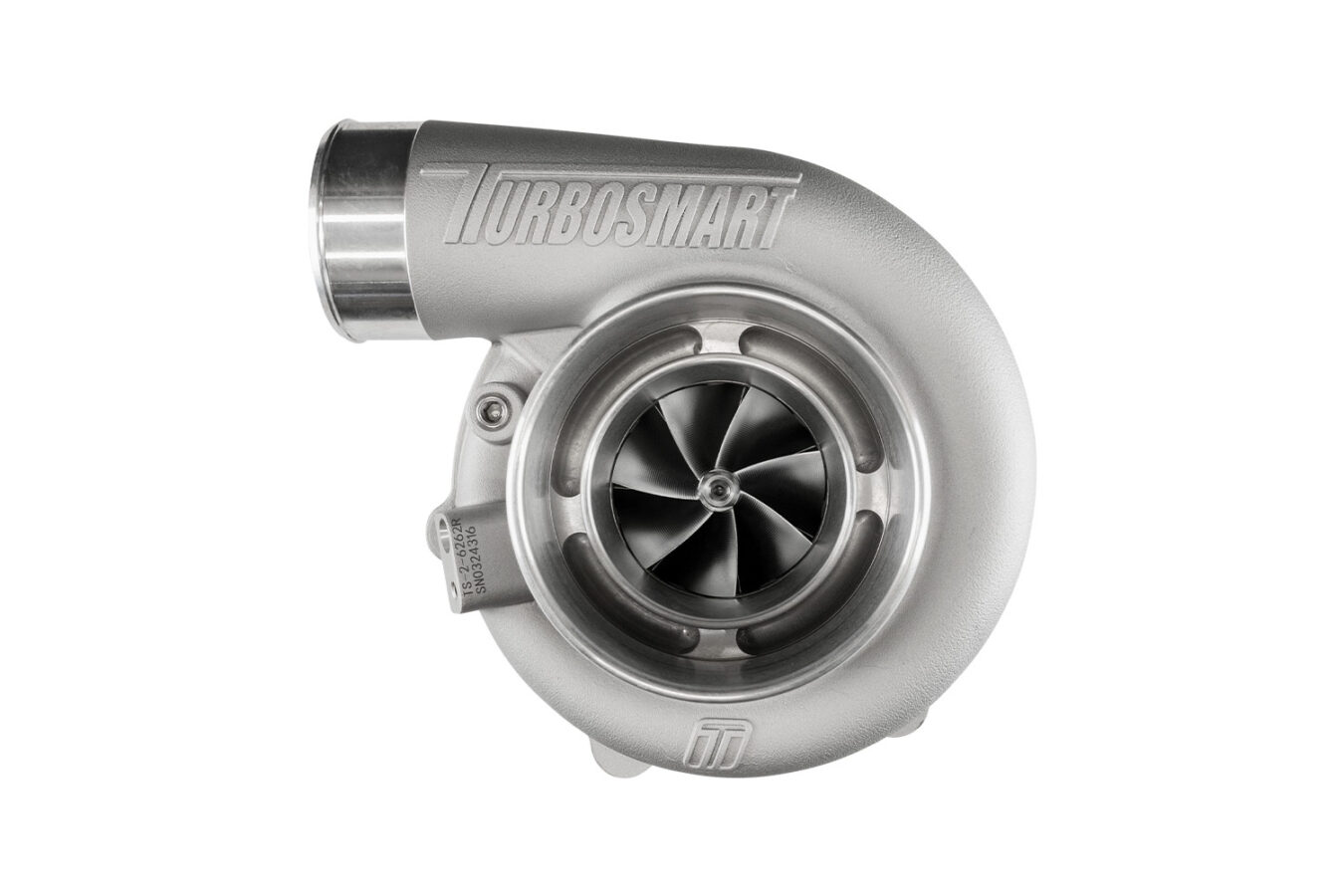

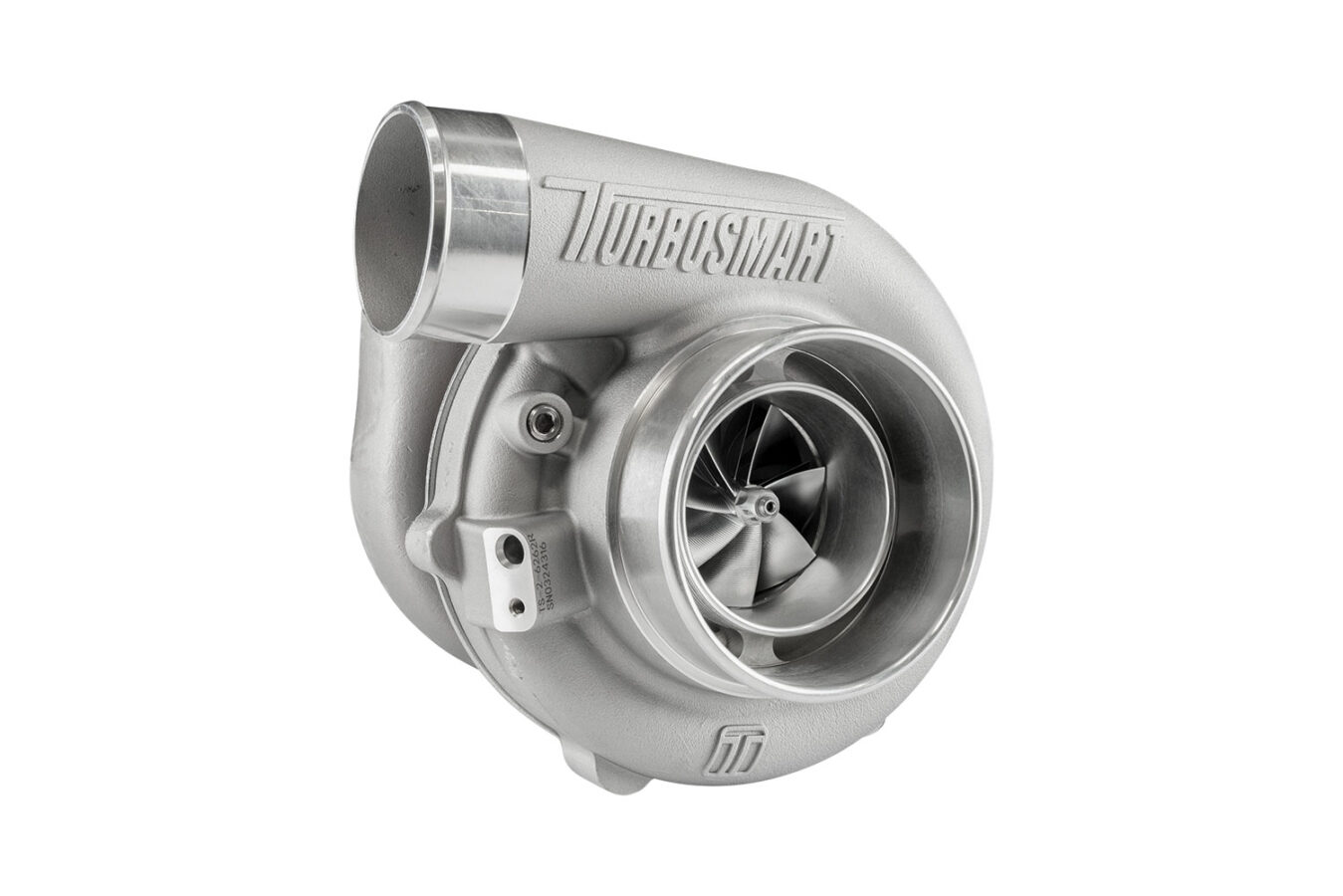

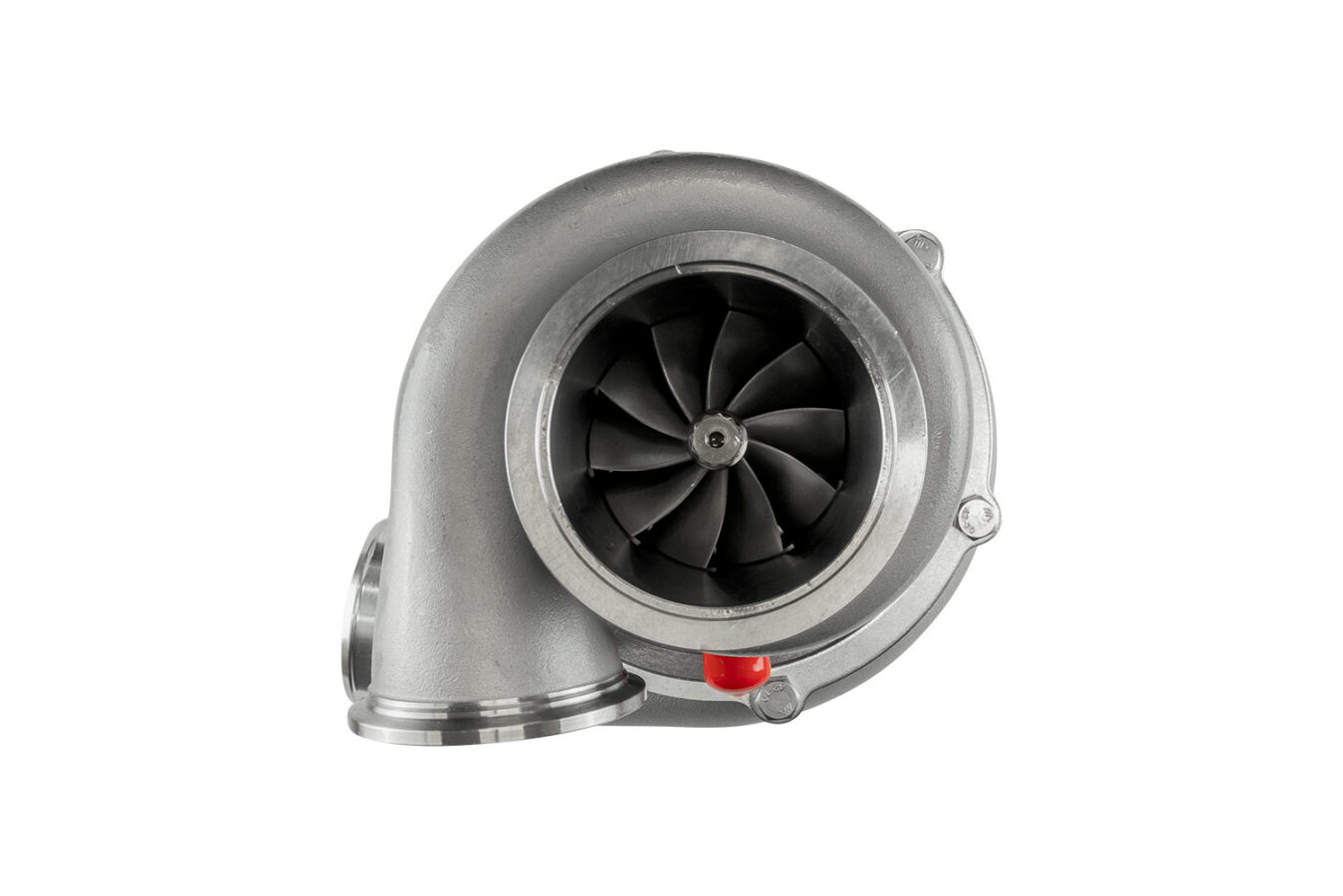

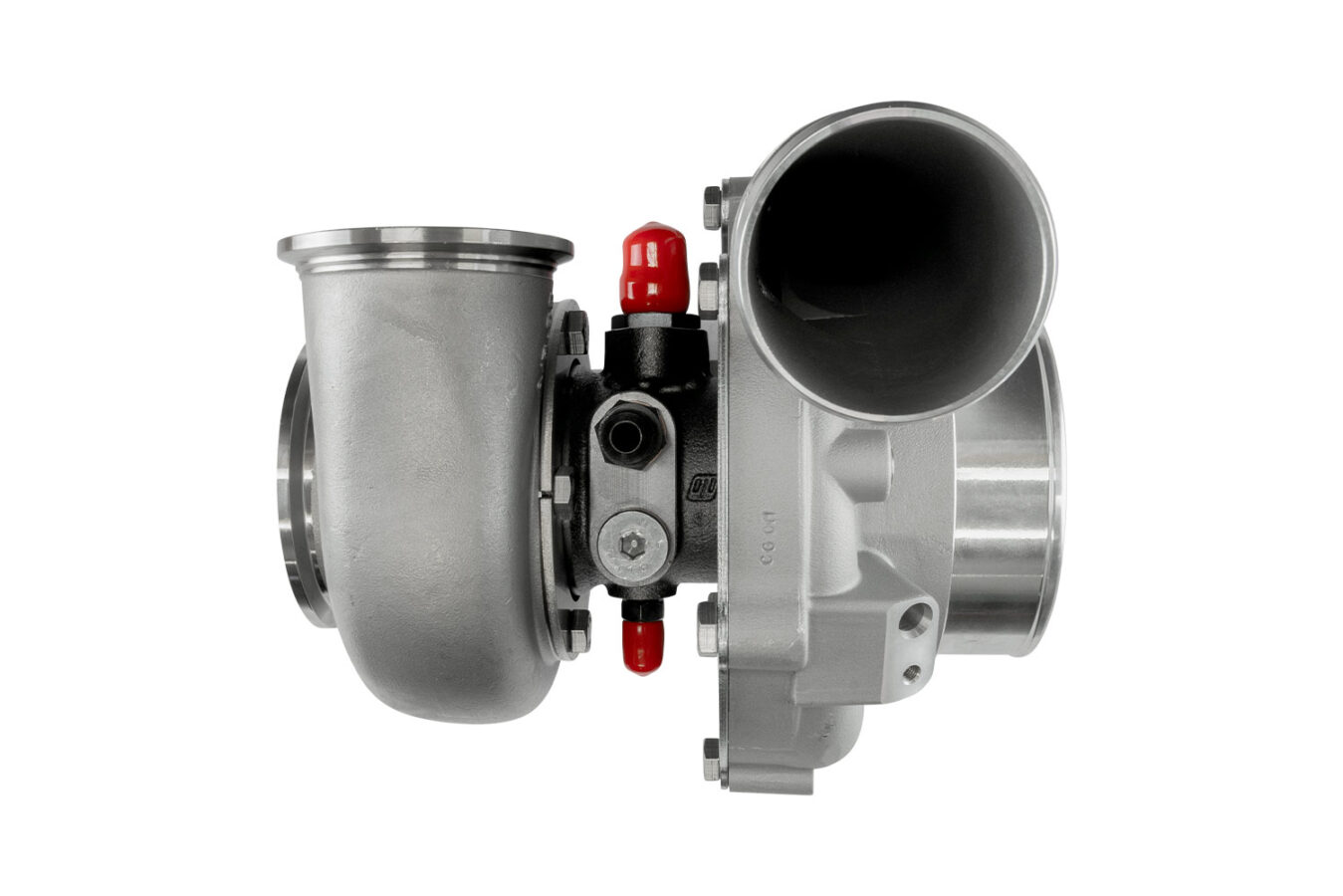

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 5862 V-Band Reverse Rotation 0.82AR Externally Wastegated

Turbosmart TS-2 Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered with cutting-edge materials, design, and manufacturing techniques to meet the high-performance demands of motorsport and performance enthusiasts alike.

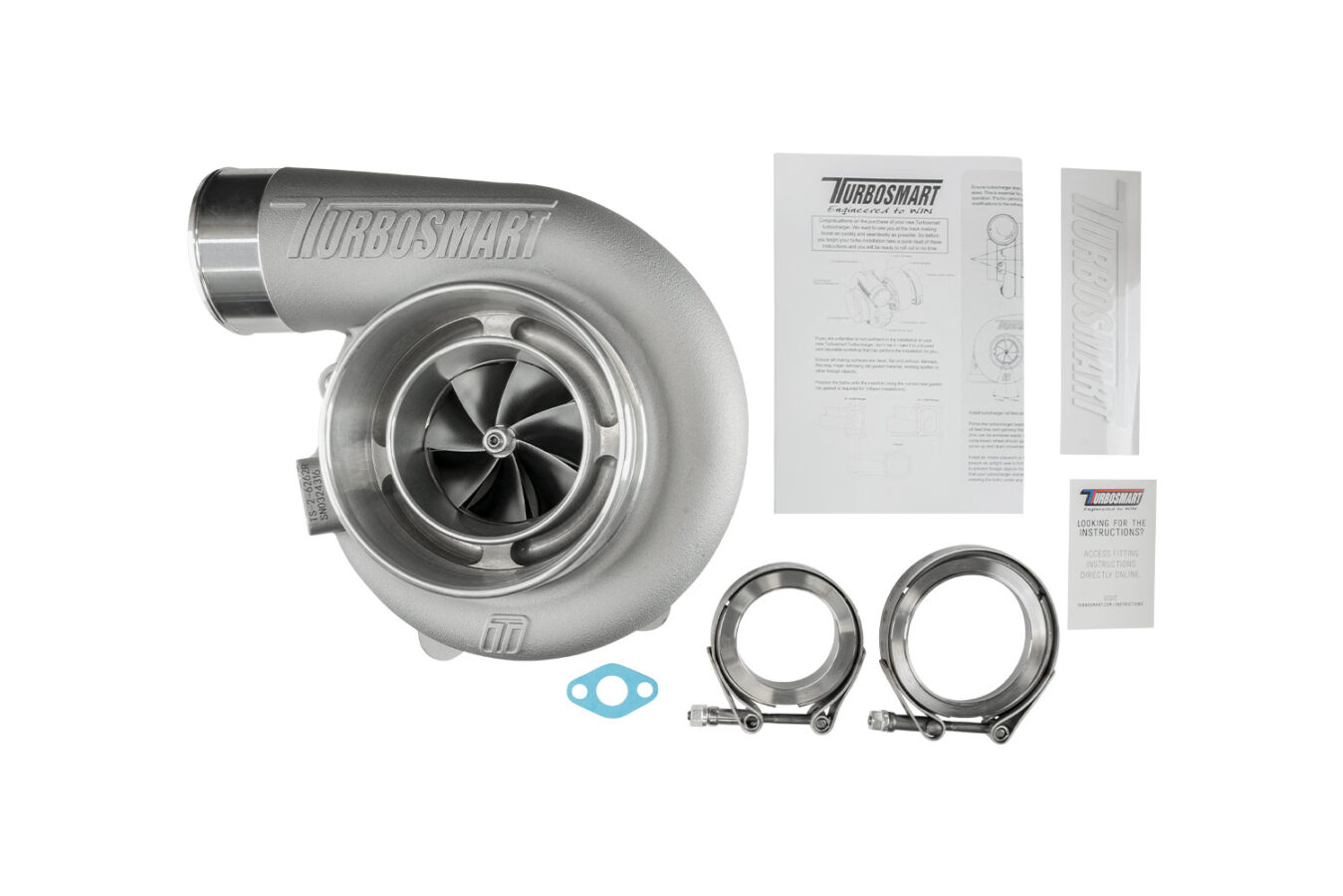

Each turbocharger includes everything needed for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings, as well as water feed and return fittings.

The TS-2 Series features both oil and water cooling, lightweight investment-cast turbine housings, and a proprietary bearing and main shaft assembly. This results in exceptional transient response, along with the quality, reliability, and support Turbosmart is known for.

A low rotating mass, matched with aggressive compressor aerodynamics and a specialized turbine wheel, ensures high performance at lower shaft speeds and sustained power under high loads.

The TS-2 takes a complete engine system approach—reducing backpressure while remaining smaller, lighter, and faster responding than other options on the market.

Available Options

• TS-1: Oil-cooled turbochargers

• TS-2: Oil & water-cooled turbochargers

• Flanges: V-Band, T3, and T4 options

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal & external wastegated models

Features

• Exceptional transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for high EGT durability

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on the center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 58 mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 62 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 725–835 HP
