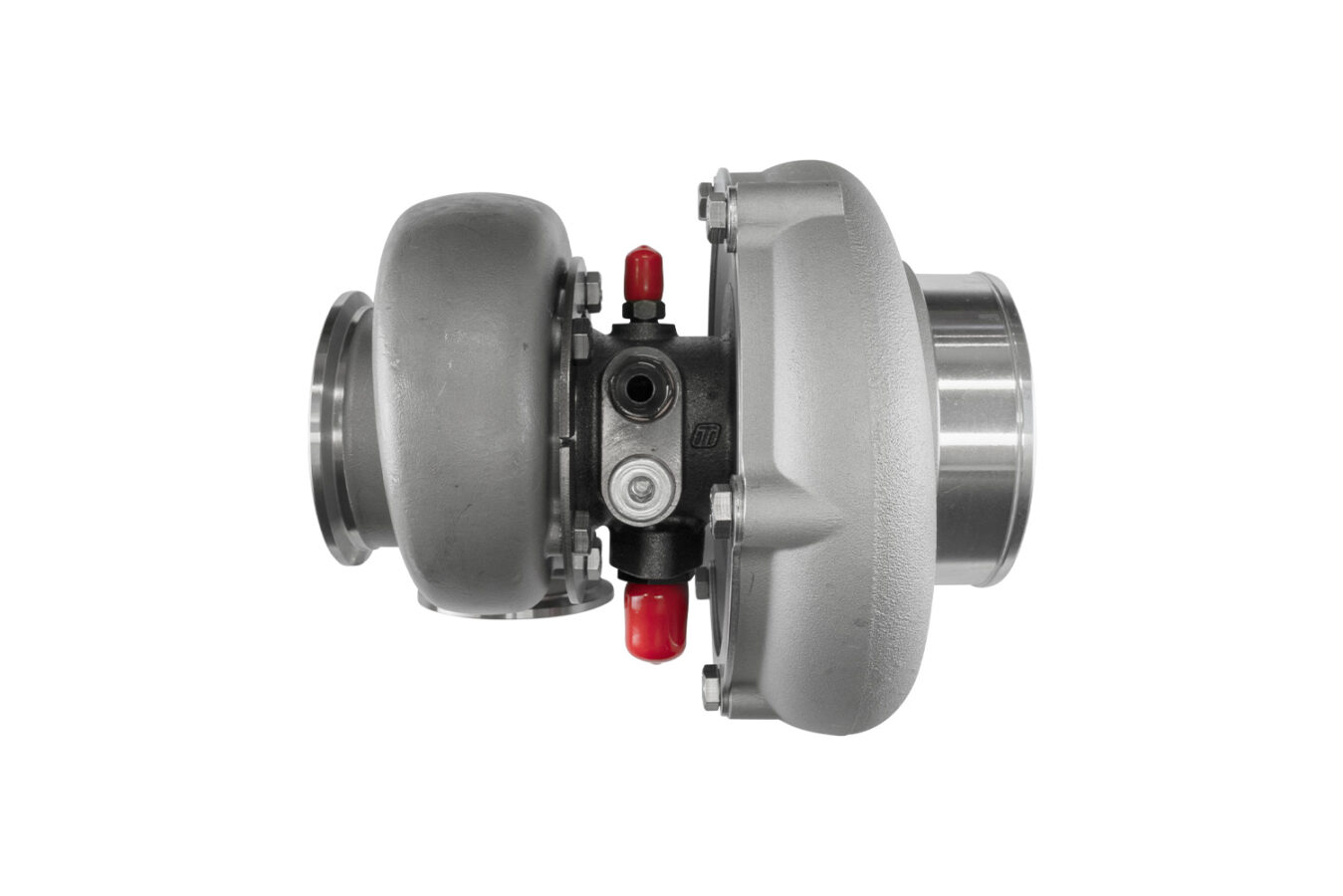

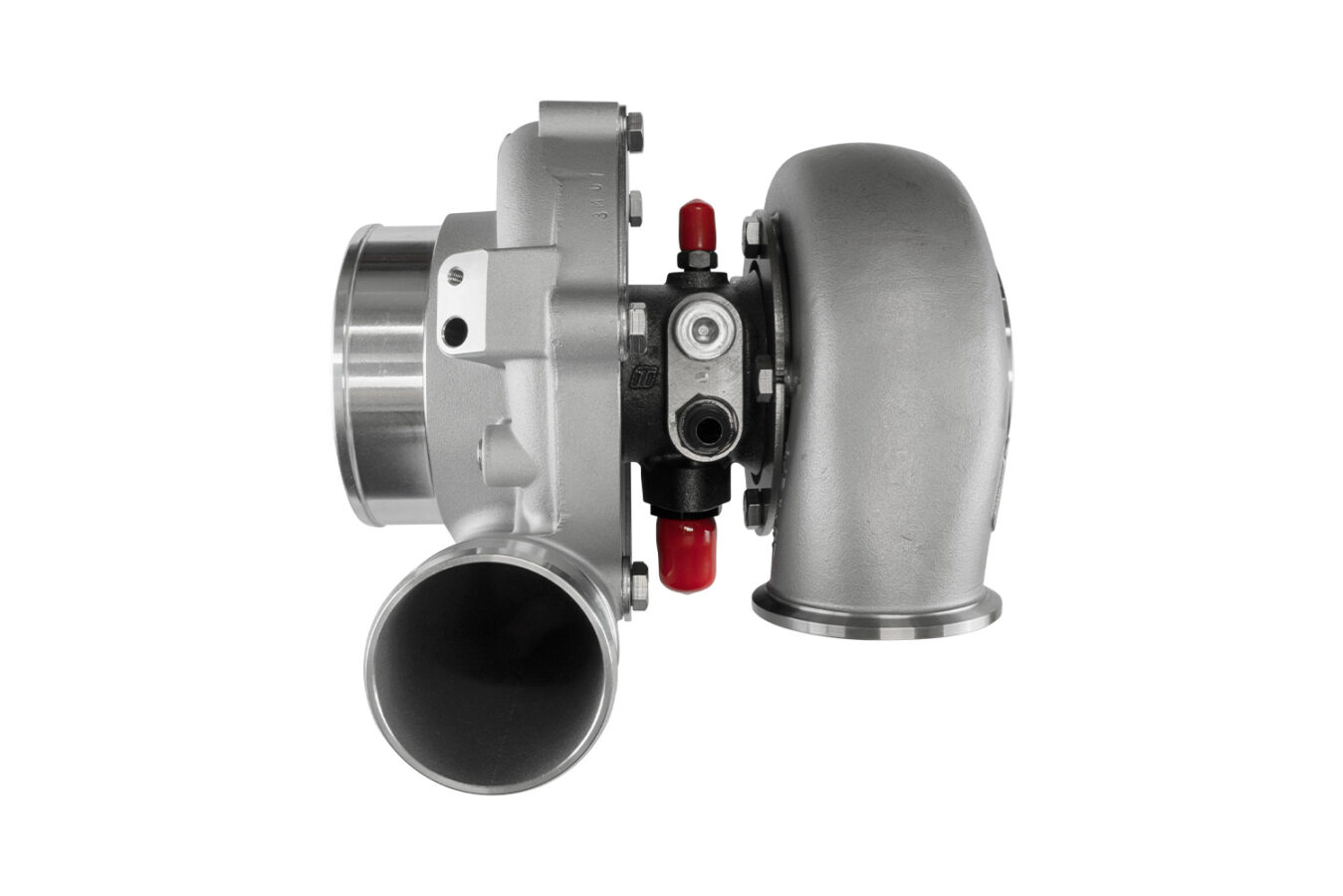

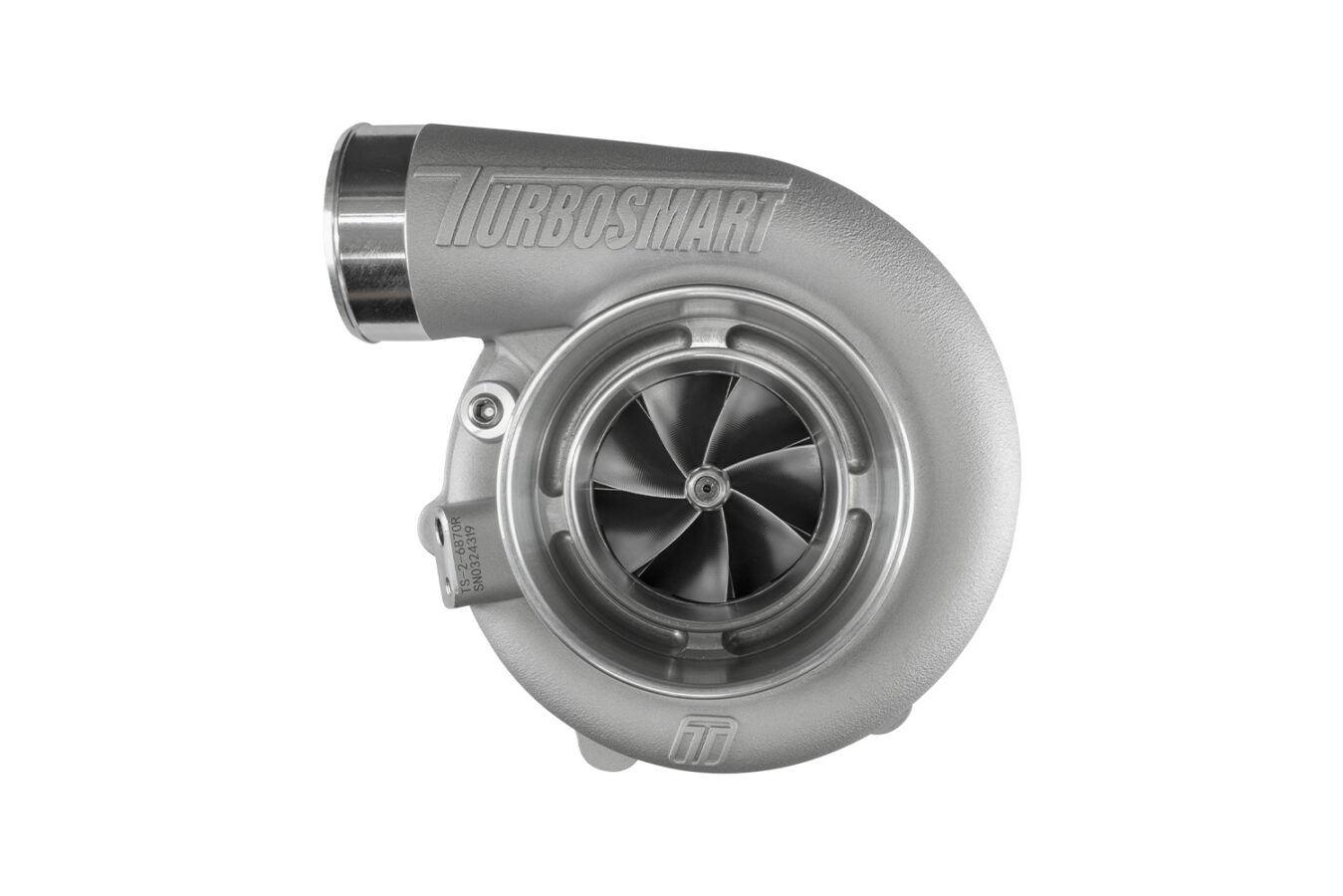

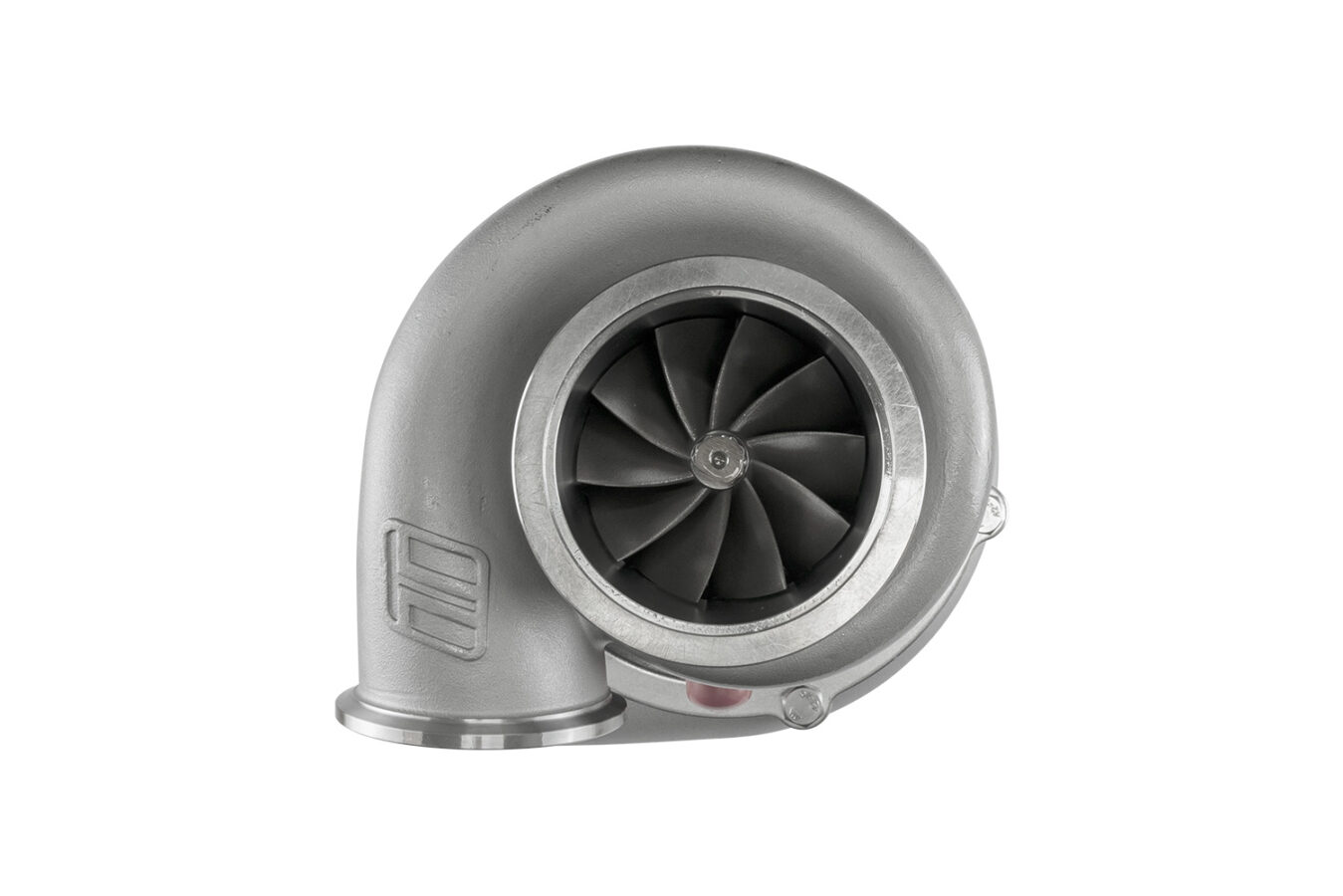

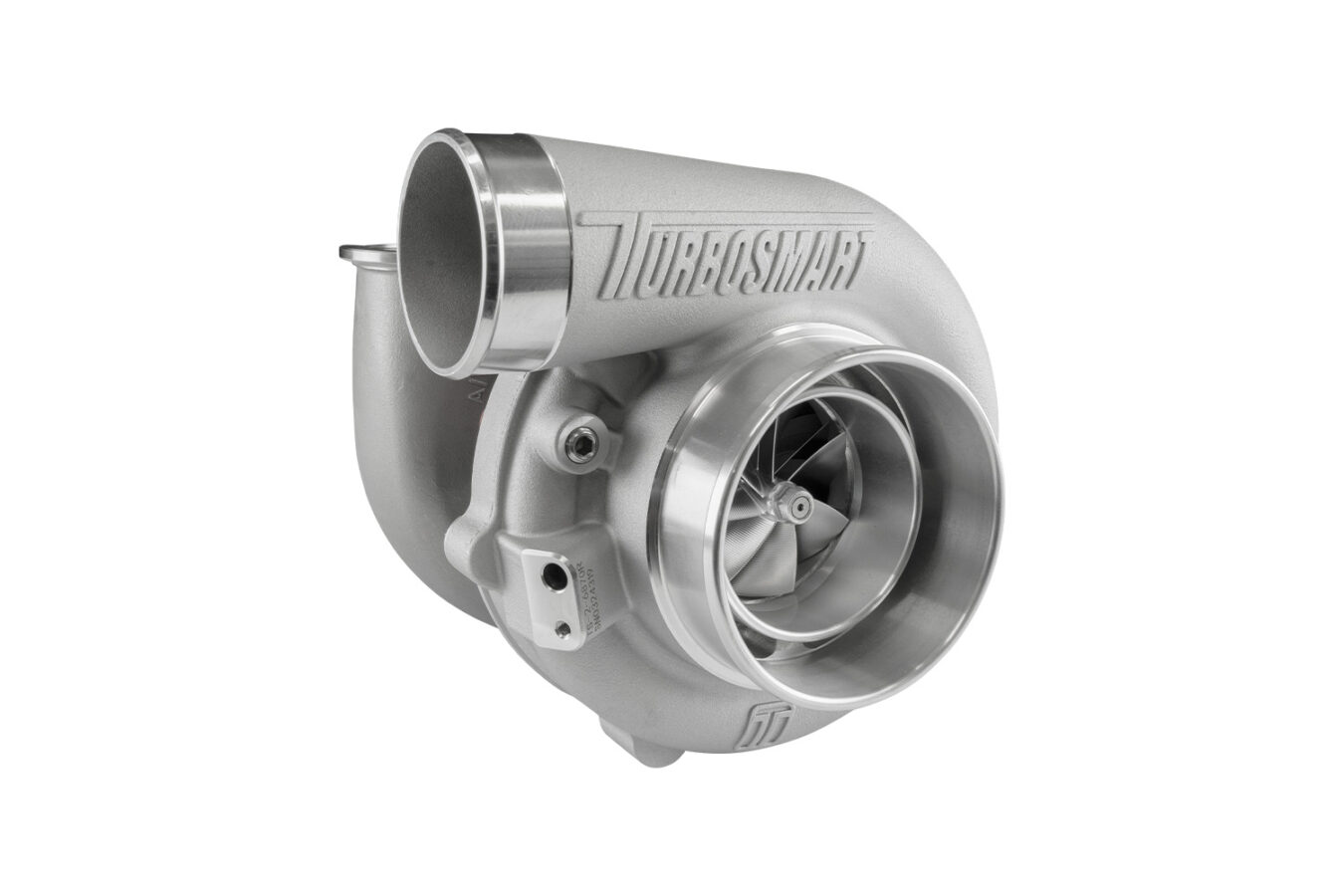

Turbosmart TS-2 Turbocharger (Water Cooled) 6870 (Kompact) V-Band Reverse Rotation 1.07AR Externally Wastegated
Compact, responsive, and powerful—Turbosmart’s TS-2 turbocharger delivers top-tier performance with water and oil cooling for motorsport and high-performance builds.
Turbosmart’s turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport and performance enthusiasts alike.

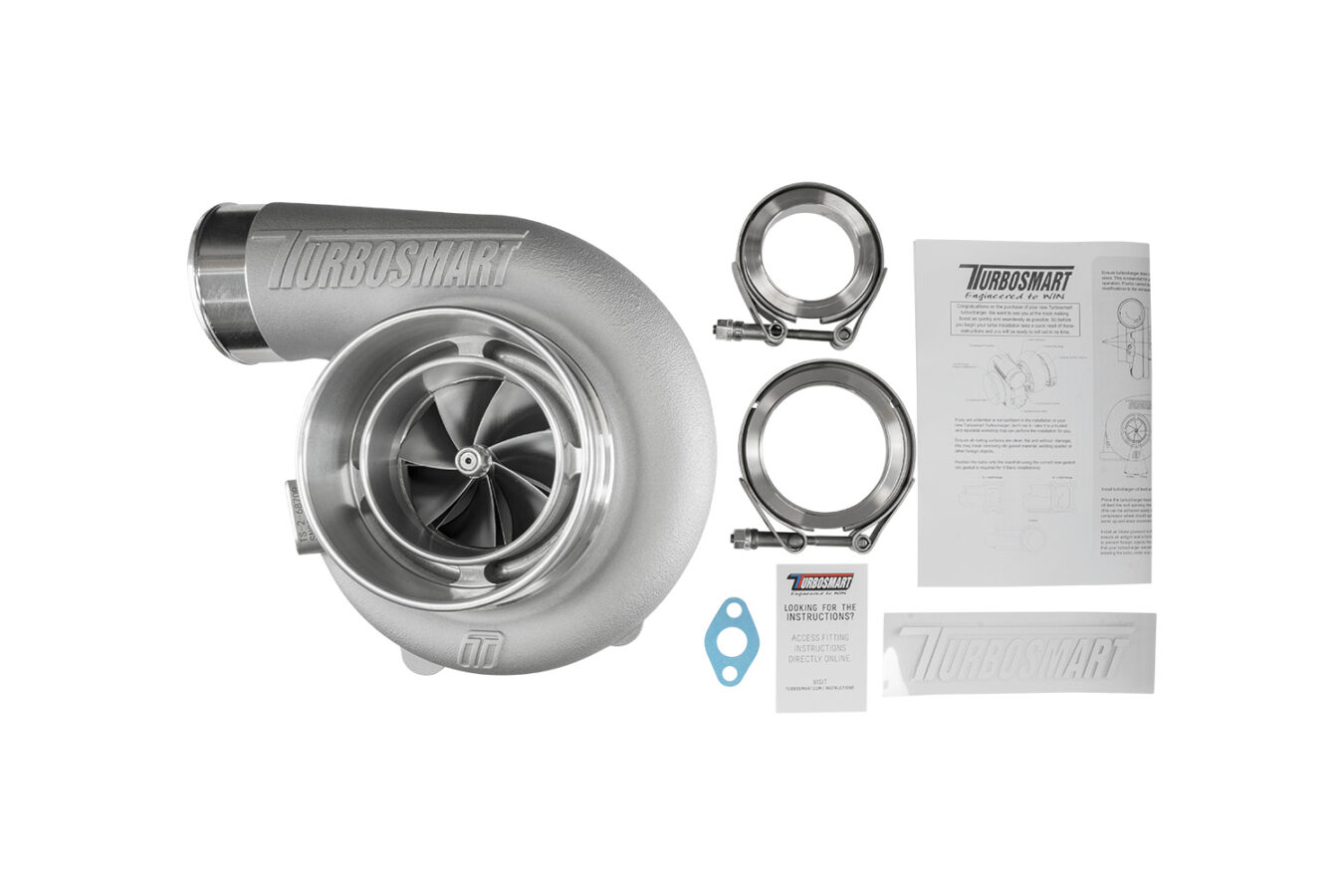

Every Turbosmart turbocharger comes standard with everything you need for installation — weld flanges, V-band clamps, gaskets, oil feed and drain fittings, as well as water feed and return fittings.
The TS-2 series are water and oil-cooled turbochargers featuring lightweight investment cast turbine housings and a proprietary bearing and main shaft combination, providing transient response you never knew possible along with the performance, quality, reliability, and support you’ve come to expect from Turbosmart.
The ultra-low rotating mass of our unique bearing and shaft assembly is paired with aggressive compressor aerodynamics to ensure high performance at lower shaft speeds. This is mated with a unique turbine wheel designed to maintain power at high loads while optimizing flow.
The TS-2 turbocharger series adopts an engine end-to-end approach, aiming to achieve power through reduced back pressure and high-performance turbines — all while being smaller, lighter, and faster in response than other solutions on the market.
Available In
-
TS-1 oil-cooled turbochargers
-
TS-2 oil and water-cooled turbochargers
-
V-Band, various T3 flange, and T4 flange options
-
Reverse rotation (selected sizes)
-
Various A/R options
-
Internal and external wastegate options available
Features
-
Unparalleled transient response
-
Aggressive aerodynamics with 7+7 2618 aluminium splitter wheels
-
Lightweight 310S stainless steel investment cast turbine housings
-
Lightweight aluminium compressor covers
-
CFD-driven designed housings for optimal A/Rs and flow
-
713C Inconel turbine wheel for extreme EGTs
-
VSR speed balanced
-
Proprietary dual ceramic bearing system
-
Integrated iron backplate on center housing
Specifications
-
Compressor Inlet: 4″ / 101.6 mm
-
Compressor Inducer: 64 mm
-
Turbine Inlet: T4 flange
-
Turbine Exducer: 66 mm
-
Turbine A/R: 0.96
-
Turbine Outlet: V-Band (3.00″)
-
Weight: 6.06 kg / 13.3 lbs
-
Horsepower Rating: 825–955 HP
