Verus Engineering 2020-2024 Chevrolet Corvette C8 Front Splitter Kit, WF Spec

Overview

The 8th generation (C8) of the Chevrolet Corvette is a highly competent street-to-track sports car right out of the box. However, many Corvette Owners believe that the engineers left some room for aerodynamic enhancement. The addition of well-sorted aerodynamics can help the Corvette achieve new highs in overall performance! A front splitter can help balance out larger rear aerodynamic systems and take your performance to the next level! Front splitters are very effective at producing front-end downforce with minimal increase in drag. They do this by creating a large pressure delta between the top and bottom surfaces. Utilizing scan data directly from the car and CFD, we were able to produce a splitter that pairs well with all three of our wings, whether that is the Bottom Mount UCW Rear Wing, Swan Neck UCW Rear Wing , or the Swan Neck V1X Rear Wing . The splitter easily handles the downforce seen by the addition of a rear wing. The splitter mounts to multiple chassis locations for a strong and durable mounting style. All hardware locations are recessed for improved aerodynamic performance, giving the kit a factory-like fit and finish. The splitter is produced from carbon polyweave, which is the same material used in high forms of Motorsports. The material is not brittle, so no more issues with cracking like carbon fiber and ABS. It will not grab and bend under the car like aluminum units either. The material is also lightweight and stiff; which makes it a great splitter material. The air dam is used to bring the splitter flat with the vehicle's underbody and improve performance further. The air dam is produced from sheet aluminum and then powder coated black for durability. Alternatively, we have a Carbon Air Dam available that adds visual balance to cars equipped with our other Carbon Fiber offerings, such as our Carbon Rear Diffuser , bringing our whole kit together in one cohesive performance package! To extract more performance for the given build volume, we offer Front Splitter Endplates for this kit. These end plates flawlessly integrate with the rest of our aerodynamics kit and add subtle styling that enhances the overall aesthetic AND performance of the vehicle.

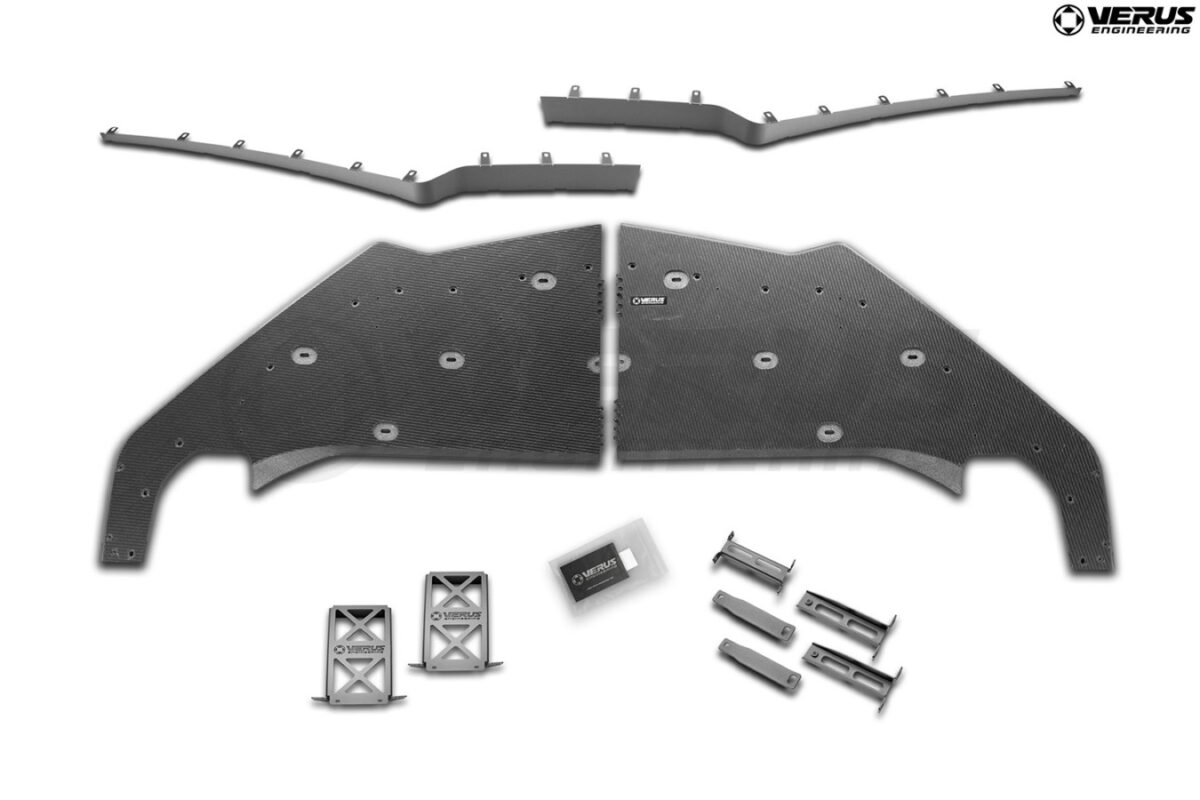

What’s Included

• (1) Carbon Polyweave Splitter Blade, Right-Hand Side
• (1) Carbon Polyweave Splitter Blade, Left-Hand Side
• (1) Sheet Aluminum Air Dam (2 Pieces) OR (1) Carbon Fiber Air Dam (3 Pieces)
• (1) Short Steel Structural Support Tube
• (1) Long Steel Structural Support Tube
• (7) Aluminum and Steel Splitter Mounting Bracket
• (1) Hardware Kit Including All Necessary Hardware for a Seamless Install

Part Number & Docs

Part Number: A0698A

PDFInformative PacketPDFInstall Guide

| Features

• Greatly Increases Front End Downforce, Providing Balance for Large Rear Wings – Capable of Handling 300+ Lbs – Constructed From Carbon Polyweave, Which Offers Strength, Low Weight, Durability, and a Great Appearance – Splitter Support is Chassis Mounted Throughout for a Kit That Looks and Feels the Part – Integrated Air Dam that Contours the Front Bumper Lines, Available in Either Aluminum or Carbon Fiber

| Specifications

• Carbon Polyweave Front Splitter: Carbon Thermoplastic Composition (Carbon Polyweave), Durable Material Used in Various Forms of Racing, Including Indy Car, NASCAR, and F1 – ​ Splitter Air Dam​: Available in Your Choice of Aluminum or Carbon Fiber – Support Tube and Brackets: Steel and Aluminum Mounting System That Securely Holds the Splitter on the Car, Even at High Speed ​ – Stainless Hardware Used Throughout and All Necessary Templates for a Seamless Installation
