It has been almost two years for The Function Factory, Function Factory Performance, Full-Race Motorsports, and Turbonetics / PTE. Through the dark and mist, we have been quietly testing the Turbonetics NX2 drop-in turbocharger unit on our 2016 Ford Mustang Ecoboost and have installed over seven units locally in Arizona.

CSM6500 Edit Edit 1
CSM6518 Edit
CSM6475 Edit

STEP BY STEP

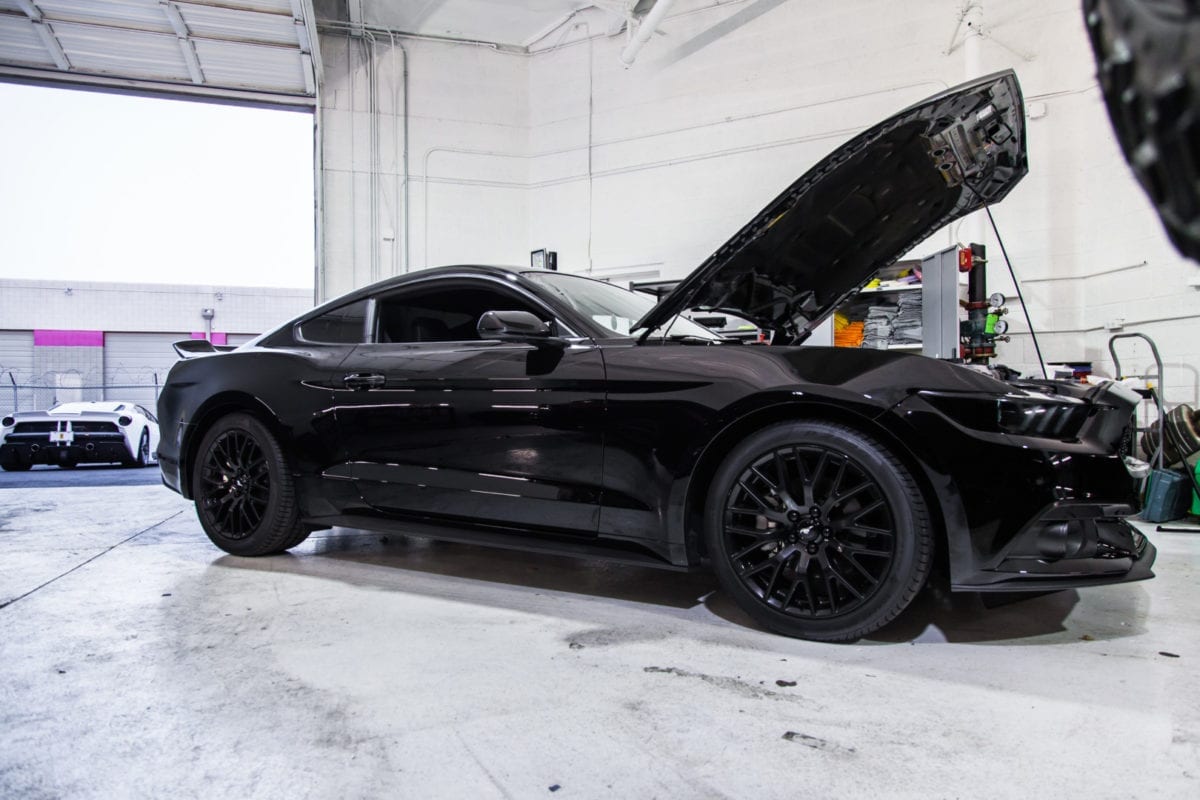

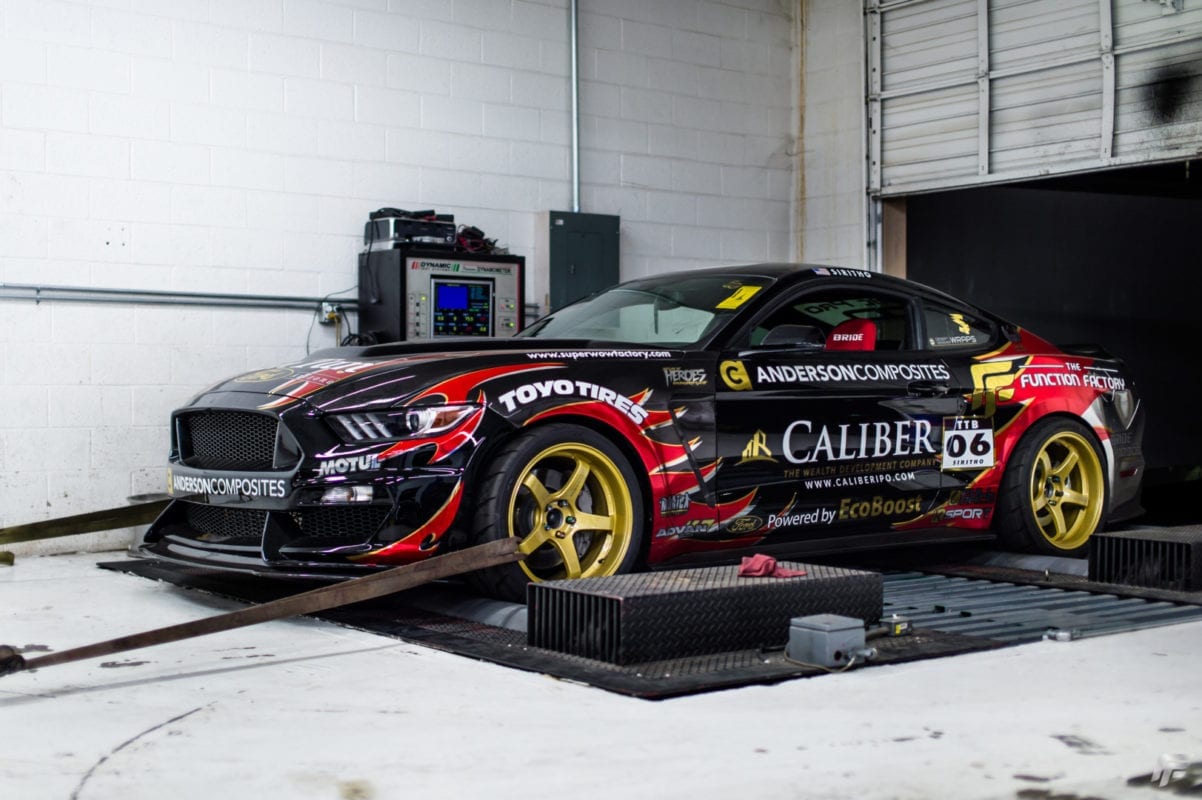

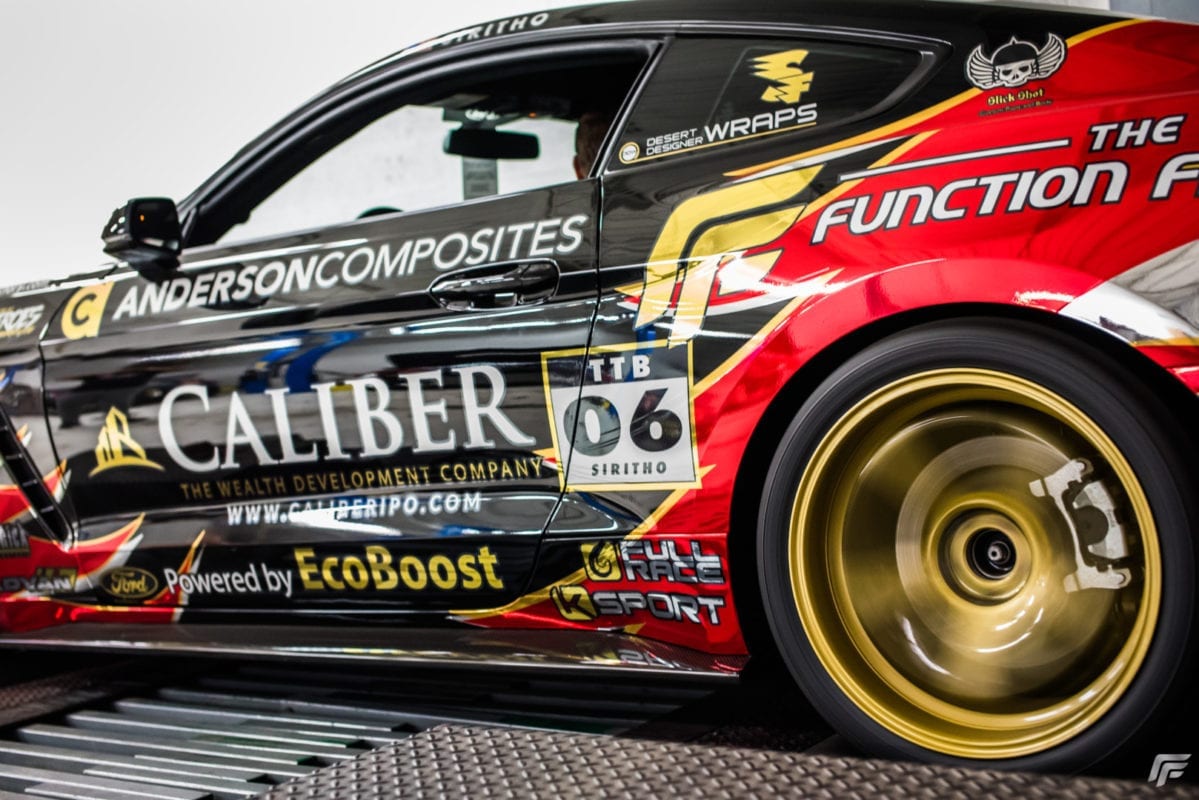

Before installing the turbo, we got a baseline on our Mustang. Stock turbo, 91 Octane, full bolt-ons, and no tune, we made 310WHP with 312WTQ. Freak of nature? Who knows, but this car did rip on the stock turbo.

factory Numbers

IMG 0240
IMG 0239

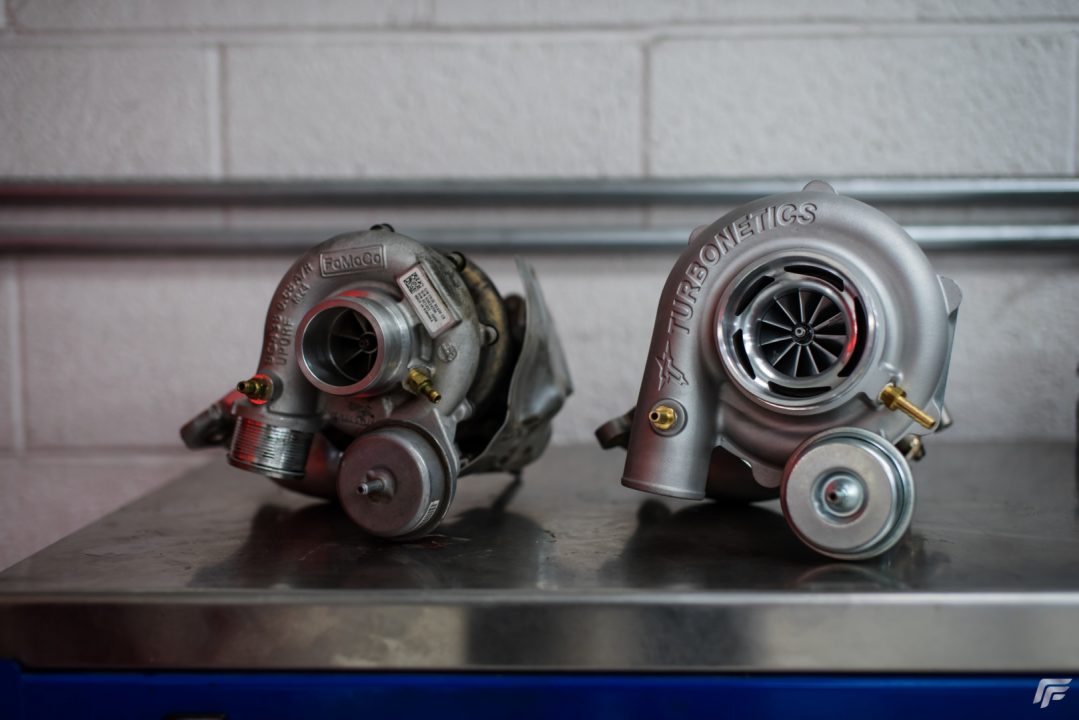

Here is Chris’ actual Turbonetics NX2 Drop In Turbocharger for his 2017 Ford Mustang Ecoboost.

$44.00

Call A FFP Crew Member For ETA

First, ensure the car is completely cooled off; if not… You’re more than welcome to find out and comment on this post. Allen begins by removing the stock intake and hot side charge pipe.

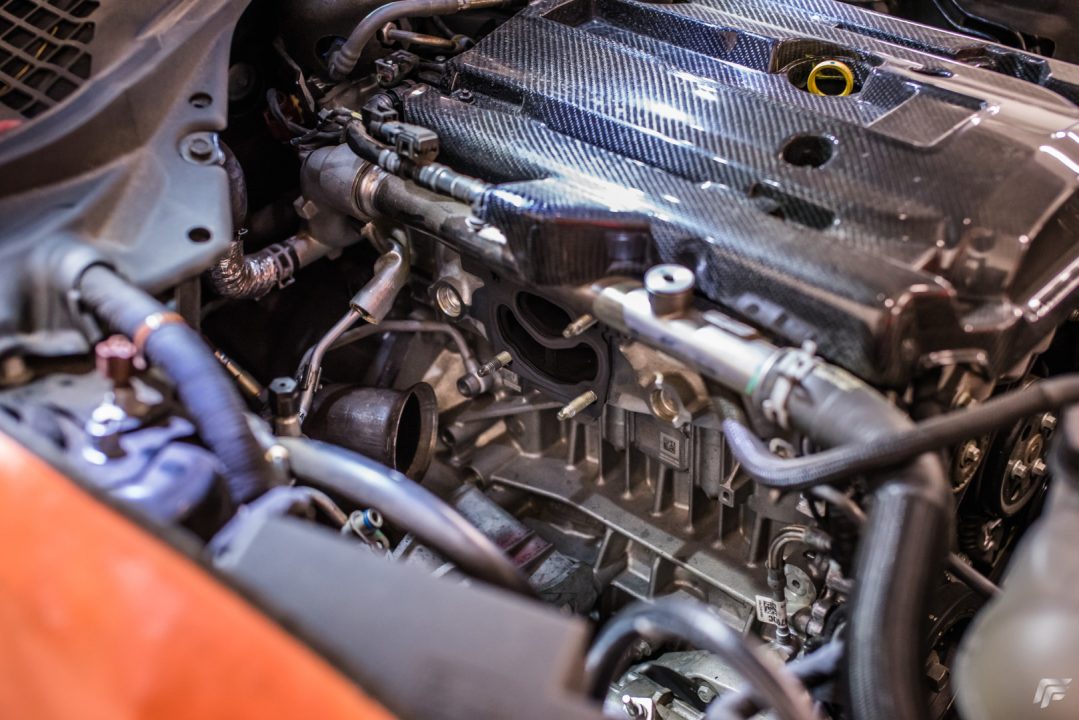

Carefully remove the coolant and oil lines from the OEM turbocharger. Do not remove the oil drain from the block; disconnect it from the CHRA / turbocharger. Again, we warn you to ensure the car is cooled; if not, please comment on this post to tell us what happened. Disconnect your O2 Sensor from the back of the head. Using needle-nose pliers, remove all vacuum lines connected to the turbo. There are two bolts on the back of the turbo; you must loosen these to remove either your aftermarket or stock downpipe. 4 bolts hold the turbocharger to the head, two on top and two on the bottom. If you haven’t had 3rd-degree burns, remove the four nuts and others holding the heat shield. Keep the heat shield as you will reuse it. The turbo should be utterly loose; pull it straight out and run to the nearest stereo to blast your favorite song as we are ready to start reassembly with your new turbo.

IMG 0252
IMG 0260 1
IMG 0263

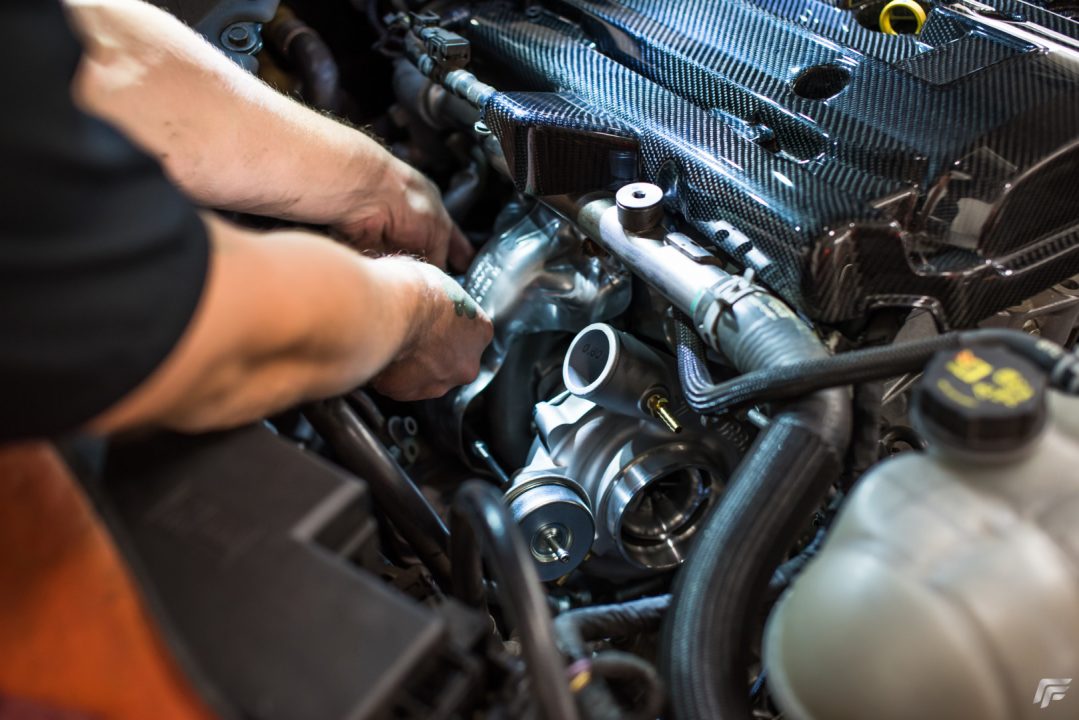

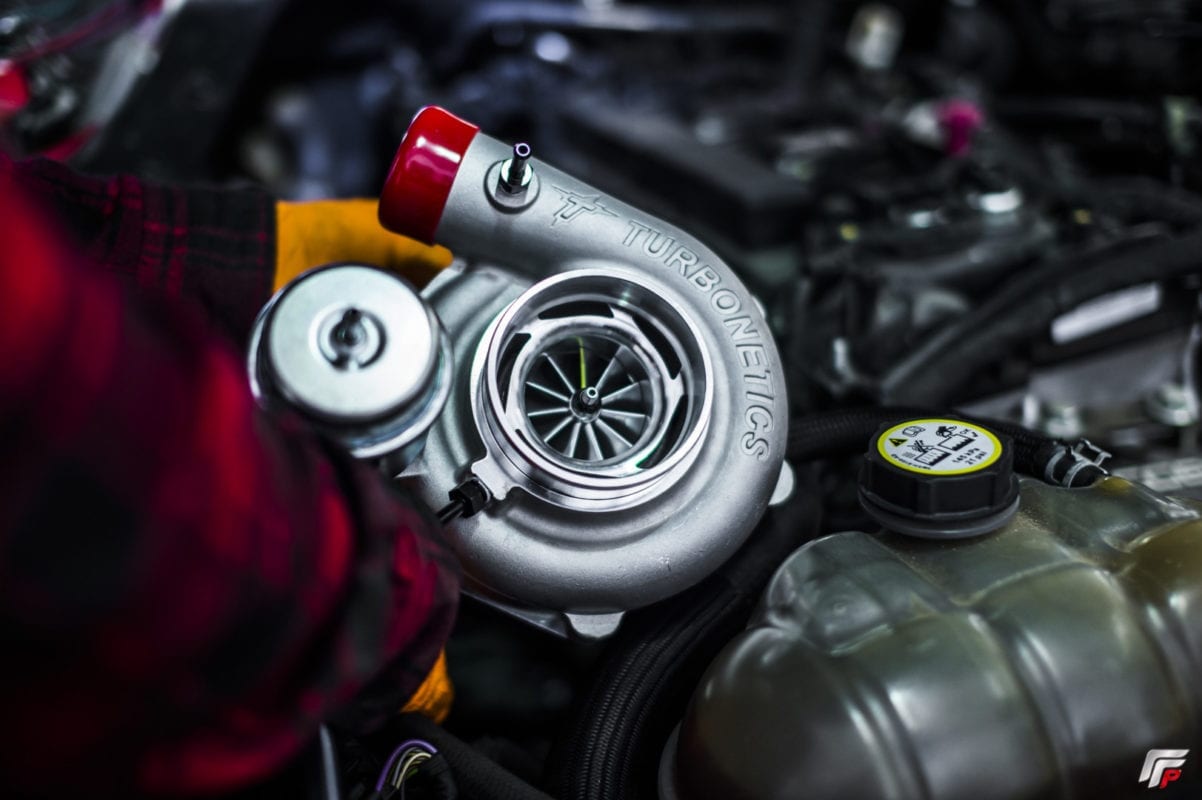

Let’s start by prepping the turbo. Install the two provided studs into the turbine housing; these will hold your OEM or aftermarket downpipe in place. Remove the OEM turbo gasket on the head. Install the supplied Ford OEM gasket, and make sure that the 90-degree lip of the gasket is facing outward.  Remove and install the provided OEM Ford O-Rings onto your oil and coolant lines. You are now ready to get this bad boy into your Ecoboost. Install is straightforward; how you removed the OEM turbo is how you installed the new unit. Ensure it is flat against the head, install the heat shield over the turbine side, and use the new OEM hardware provided. Reconnect the downpipe using the provided Ford OEM downpipe flange; the lip side faces the turbine, and the convex side faces the downpipe.

IMG 0264
IMG 0267
IMG 0271
IMG 0270
IMG 0269

Connect your O2 sensor and get ready for the final pieces. Install the provided intake adapter, followed by your modified or stock intake tube. Attach your OEM or modified charge piping to the turbo and intercooler. From there, you are ready to attach all your vacuum lines. Stand back, breathe heavily, and prepare for some serious power out of your Ecoboost.

IMG 0288
IMG 0273

But before we start your car and you did opt for an oil change, take this time to dive under the car and remove your old oil filter and drain plug. After a few minutes of draining your oil, install your brand new OEM oil filter, and make sure to put a thin layer of oil on the filter to make removal easy. Tighten your drain plug and pour 6 quarts of Motul Oil into the fill cap. Open your coolant reservoir and dump an entire can of Motul Mocool; later, you will warm the car up to see how much-distilled water you need to add. (BUT NOT YET) Step back and marvel at your success. Or if we did your install, smile big cause you’re on camera. Take a Snapchat or do it for the gram at this point.

Before we fire this party up, let’s review a quick checklist of parts.

  • Check oil level
  • The drain plug is tight
  • O2 is reconnected
  • All Vacuum lines are secured
  • Hose clamps are tight
  • Turbine-to-head nuts are tightened
  • Downpipe nuts are tighten

If all of that checks out, we assume that you have a tuner at this point. If you still need to, you can purchase a custom tune from us below. If you already have a tuner, communicate with them to get a baseline map that uses wastegate pressure, 18PSI. Upload your new tune into your programmer, reset your oil life, and now you are ready for your first start-up.

YOUR MUSTANG WILL SMOKE. That does not mean the world is ending. You will see visible smoke from the turbine and out of the exhaust. Do not be alarmed; this is only oil-coated residue to prevent rust. Yes, it will smell, stay calm and let it burn off. With a flashlight, check your turbocharger for ANY leaks. Check for engine codes; if all is good, let’s go for a test drive.

Overall, this install will take an experienced tech, which will take 1 hour and a half, and an amateur enthusiast, around four and a half hours, depending on your lift. The difficulty of the job? Around 5/10, with removing the actual turbo being the most challenging part.

We highly recommend purchasing a tune from us after installing your new turbocharger. You are safe to drive on a baseline tune, but you will not have optimum performance. If you decide to run this turbo un-tuned, we cannot guarantee ANY WARRANTY, PROTECTION, OR SAFEGUARD of your Mustang’s existence.

To make more than 420WHP, you will need a more significant high-pressure fuel pump and injectors. If you do not want to do that, you can still run E30 or MS109 fuel. We have a vendor that we can recommend that provides a Ready To Run kit. If you want to make more than 550WHP, please contact us for other turbo kit options.

*Install, dyno, and performance video coming soon.
