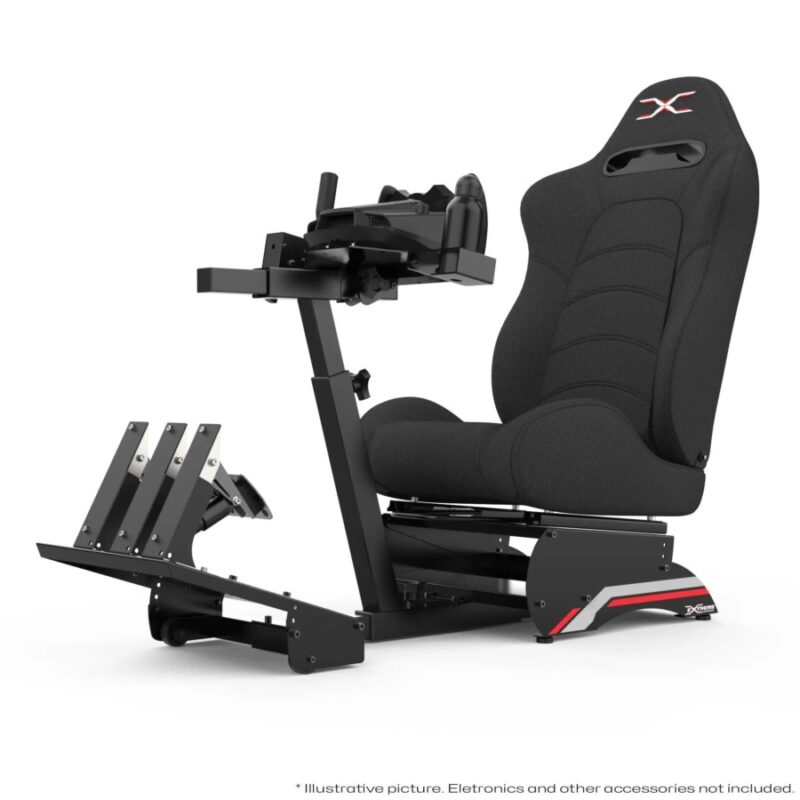

ESR Sim Racing Cockpit Compact 2.0
or as low as $29.08/mo with Affirm
Available
Cockpit Compact 2.0 — Start Real, Grow Fast
Compact footprint, serious build. The 2.0 is engineered for servo-motor wheel bases under 5Nm, supports up to 100 kg of pedal force, fits drivers from 4’2″ to 6’6″, and holds 340 lbs. When your next upgrade is the wheel base — not the frame — you know you started with the right rig.
Fits Everyone Who Wants To Race
Double-rail seat adjustment, reclining back up to 170°, adjustable pedal plate — the rig shapes to you, not the other way around. A 4’2″ teenager learning to heel-toe, through a 6’6″ endurance driver, on the same chassis.
- Height range — 4’2″ to 6’6″ driver fitment
- Weight capacity — 340 lbs maximum
- Reclining seat up to 170° — from GT to formula positions
Every Mainstream Wheel Base Fits
Pre-drilled for Logitech (G29/G920/G923/Pro), Thrustmaster (T300/T500 RS/TS-PC/T-GT), and Fanatec (CSL, CSL Elite, ClubSport V1/V2/V2.5). Integrated wheel deck with built-in shifter mount — no bolting accessories to the frame. They’re part of the deck from day one.
- Logitech — G29, G920, G923, Pro, G25, G27
- Thrustmaster — T300, T500 RS, TS-PC Racer, TX, T-GT
- Fanatec — CSL, CSL Elite, ClubSport V1/V2/V2.5 (servo-motor under 5Nm)
Overview
The Cockpit Compact 2.0 is ESR’s compact entry rig — smaller footprint than the Chassis 3.0 or AX160, same professional build standard. Package dimensions of W 22″ × L 37″ × H 23″ mean it ships in one manageable carton, assembles in under an hour, and fits in a bedroom, office, or garage corner without eating the room.
Pick this rig if you’re new to sim racing, buying for a teenager, building a second rig for a family member, or need something portable for tournaments. It’s not the flagship — but build quality is the same ESR standard, and the 1-year warranty with USA-based tech support backs it.
Fitment & Compatibility
| Category | Supported |
|---|---|
| Wheel bases | Servo-motor or direct-drive under 5Nm — Logitech G25/G27/G29/G920/G923/Pro, Thrustmaster T300/T500 RS/TS-PC/T-GT, Fanatec CSL/CSL Elite/ClubSport V1/V2/V2.5 |
| Pedal sets | Up to 100 kg force — Logitech TP3A Pro, Thrustmaster T-LCM, Fanatec ClubSport V1/V2/V3, plus most entry to mid-tier load-cell sets |
| Display | Single monitor or TV — external floor stand recommended for triple setups or screens larger than 32″ |
| Shifter | Integrated wheel-deck mount — Logitech Shifter, Thrustmaster TH8A/TH8 Shifter, Fanatec ClubSport Shifter |
| Driver fitment | 4’2″ to 6’6″ height, up to 340 lbs |
Build & Construction
| Property | Spec |
|---|---|
| Chassis material | High-resistance carbon steel — reinforced welds, differentiated design, anti-flex hardpoints |
| Seat material | Iron frame, foam and high-resistance fabric — wipe-clean finish |
| Seat adjustment | Double-rail leg adjustment, 170° reclining back, angle adjustment |
| Wheel deck | Multi-hole pattern for steering wheel mount, integrated shifter mount, angle + depth + height adjustments |
| Pedal plate | Reinforced heavy-duty, angle and distance adjustable, multi-hole for major pedal brands |
| Mobility | Rubberized leveling feet + front caster wheels — protects floor, moves easily between sessions |
| Extras | Integrated cup holder, plastic friction reducers (extends equipment life) |
| Packaged product weight | 66 lbs — W 22″ × L 37″ × H 23″ single carton |
| Assembly | Assembled in USA — free continental US shipping |
| Warranty | 1-year comprehensive setup warranty with USA-based tech support (live during ET business hours) |
Installation Notes
- Footprint — compact: roughly 4′ × 3′ when deployed. Fits a bedroom, office, or shared living space.
- Assembly time — 45 to 60 minutes with basic metric hex tools. First-timer plan: budget 90 minutes.
- Driver setup — adjust seat rails for reach first, then recline the back, then set pedal plate angle. Heel-toe practice starts after all three are dialed in.
- Wheelbase mount — deck-mount only. Direct-drive bases over 5Nm are not recommended — upgrade to Chassis 3.0, AX160, or AX80 for DD1/DD2/Simucube class torque.
- Monitor — use an external floor stand for triple screens or TVs larger than 32″. The deck mount is sized for a single primary display.
- Break-in — retighten all frame bolts after the first 10 hours of use. Carbon steel frames settle slightly under first-session load; a torque check locks them in.
White Glove Service
Optional at checkout — two tiers for hands-off delivery and setup:
- Local delivery & consultation — we deliver to your Southern California location, assemble on-site, calibrate your wheel base + pedals to your height and brake pressure, and run a tuning session with you on iRacing, ACC, or Assetto Corsa. You leave with a working baseline setup.
- Out-of-state delivery + Discord consultation — ships crated and palletized. We join you live on Discord for a guided assembly, calibration, and first-session coaching window — SimHub, CrewChief, and your sim of choice.
What’s Included
- Complete Cockpit Compact 2.0 carbon steel chassis — all parts pre-drilled
- Reclining seat (up to 170°) with double-rail mount
- Integrated wheel deck with steering wheel drilling for major brands + built-in shifter mount
- Heavy-duty reinforced pedal plate with multi-hole pattern
- Integrated cup holder
- Rubberized leveling feet + front caster wheels
- All mounting hardware and printed assembly manual
- 1-year warranty with USA-based tech support during ET business hours
Installation & Support
Based in Thousand Oaks, CA. Shop rate $250/hr if you want us to assemble on-site or dial in the rig after delivery. Call 805-267-9762 or tap “Talk to Expert” to coordinate. We also run an active sim-racing Discord for setup sheets, telemetry reviews, and league scheduling — ask at checkout for an invite.
