Frankenstein Engine Dynamics Freakshow LS / LT Billet Intake Manifold
NHRA Pro Stock-inspired LS / LT intake with 2,000 HP-capable plenum volume. 100% billet aluminum, configurable for naturally aspirated, nitrous, or remote inter-cooled boost. Precision engineering plus raw power — that’s a Freakshow.
or as low as $432.08/mo with Affirm
Available

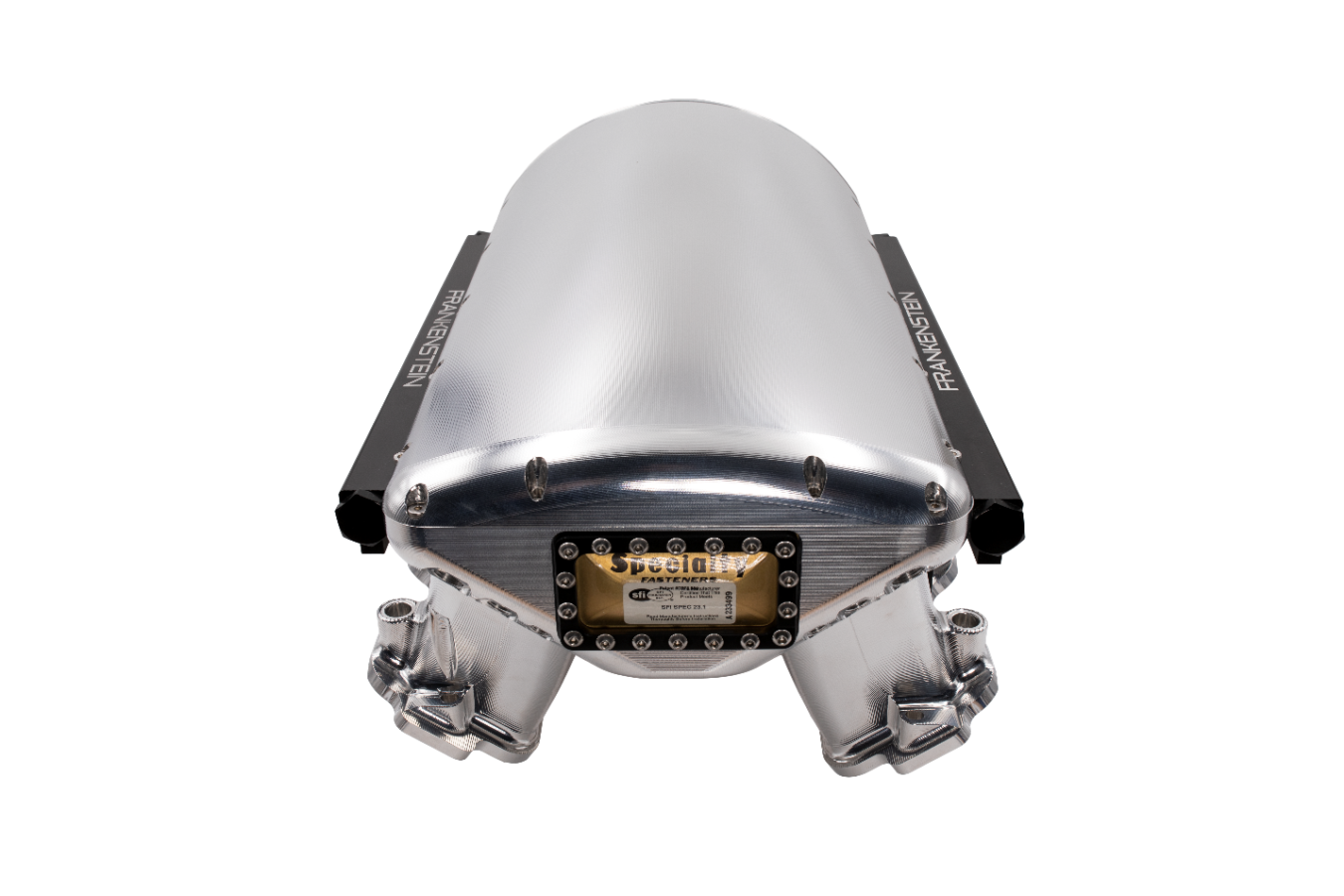

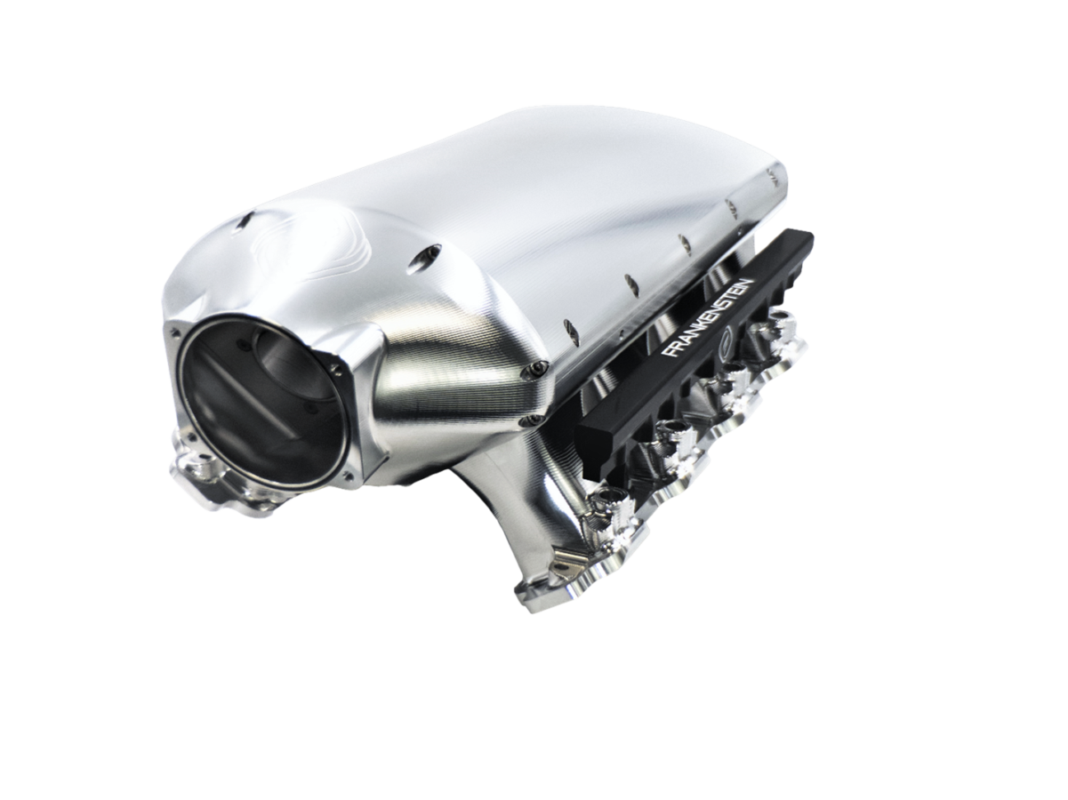

Freakshow Billet Intake Manifold
NHRA Pro Stock-inspired LS / LT intake with 2,000 HP-capable plenum volume. 100% billet aluminum, configurable for naturally aspirated, nitrous, or remote inter-cooled boost. Precision engineering plus raw power — that’s a Freakshow.
Precision Engineering Plus Raw Power
Freakshow is FED’s answer to the hottest NHRA Pro Stock designs — a meticulous, sick design that delivers a raging plenum volume capable of supporting 2,000 HP. The 100% billet aluminum build is configured with so many options and so much versatility that it can serve naturally aspirated, nitrous, or remote inter-cooled boost applications without compromise.
Choose your snout: LS 102mm, Wilson 105mm, or FED’s Dual 90mm twin-throttle setup. Single or dual -10AN fuel rails with mounting brackets. Available in LS1, LS3, LS7, and LT port configurations — all with FED’s tuned runner taper. Plumbed for 1/8″, 1/4″, and 3/8″ NPT fittings. Anodized finish options available.
Built In Billet
Build Details
- 100% billet aluminum construction (CNC)
- 2,000 HP-capable plenum volume
- Snout options: LS 102mm, Wilson 105mm, or FED Dual 90mm
- Single or dual -10AN fuel rails with mounting brackets
- LS1, LS3, LS7, LT port configurations available
- Tuned runner taper (NHRA Pro Stock-inspired)
- Plumbed for 1/8″, 1/4″, and 3/8″ NPT fittings
- Anodized finish options at checkout
Built For Every Power Path
Specifications
- Construction
- 100% Billet Aluminum (CNC)
- HP Capable
- Up to 2,000 HP
- Snout Options
- LS 102mm / Wilson 105mm / Dual 90mm
- Fuel Rails
- Single or Dual -10AN
- Port Patterns
- LS1 / LS3 / LS7 / LT
- Runner Profile
- Tuned Taper (Pro Stock DNA)
- NPT Plumbing
- 1/8″, 1/4″, 3/8″
- Made In
- Weatherford, Texas · USA
BUILT TO ORDER · 8–10 week lead time direct from FED. Each Freakshow is CNC-machined to spec after order placement. By placing this order you accept FED’s no-return / no-cancellation policy on built-to-order billet manifolds.
Designed, Machined, & Finished In Texas
Frankenstein Engine Dynamics builds every billet manifold on the same CNC equipment they use for their NHRA Pro Stock and Pro Mod customers. No casting, no porting, no compromise.
