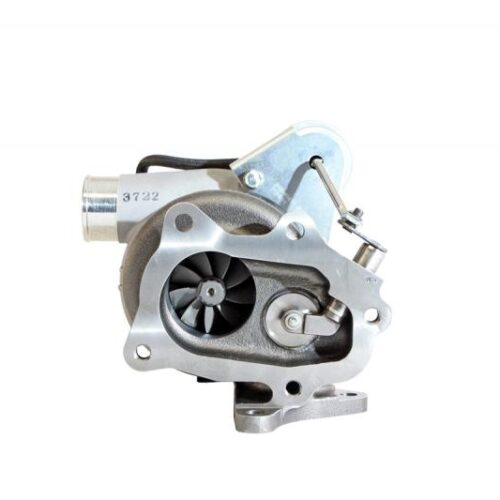

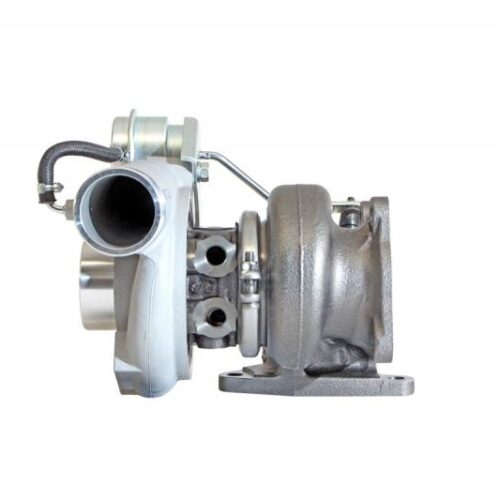

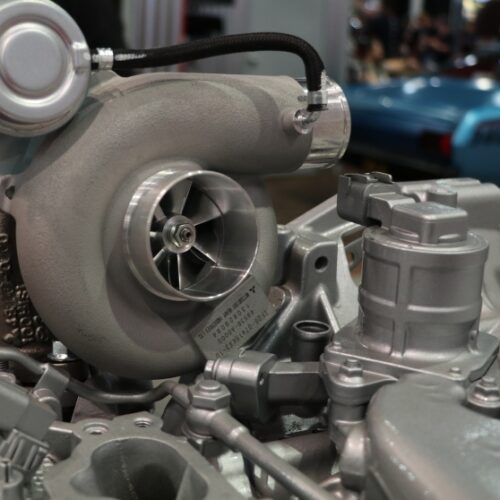

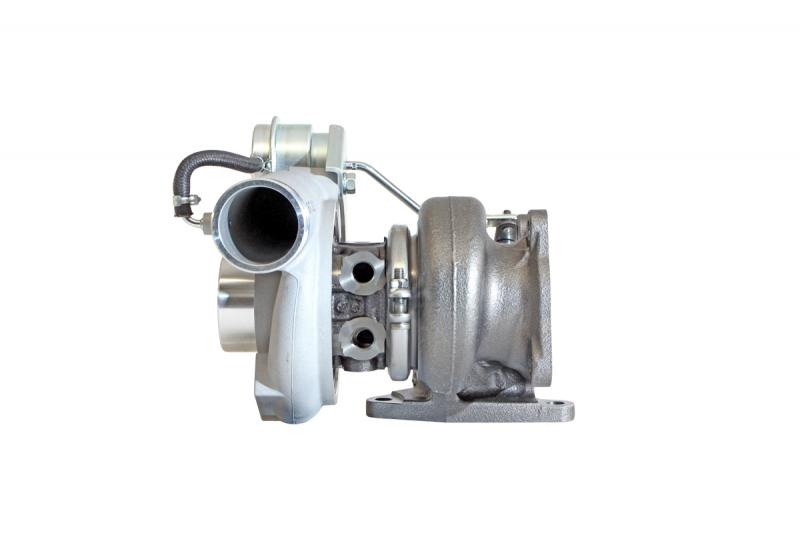

MHI Turbos 2004-2020 Subaru Impreza WRX /STi TF06 18K Turbocharger

THE ALL-NEW SUBARU TF06-07*18KX3 TURBO FROM MHI

COMPRESSOR SPECIFICATIONS

• Compressor Type: Forged-Milled Wheel (FMW) Billet
• Compressor Wheel OD (exducer):75mm
• Compressor Wheel Inducer: 55.1mm
• Max Flow Rate: 54 lb/min
• Compressor Housing: 2.4″ hose coupler inlet, 2.0″ hose coupler outlet

TURBINE SPECIFICATIONS

• Turbine type: Inconel Turbine Wheel
• Turbine Wheel Inducer: 61.5mm
• Turbine Wheel Exducer: 54mm
• Turbine Inlet/Outlet: OE SUBARU

FITMENT INFO

• 2002-2008 Subaru WRX
• *2009-2014 Subaru WRX – Requires modification to water lines and front mount intercooler
• 2004-2020 Subaru WRX STi
• 2004-2007 Subaru Forester
