Piper Cams 2012-2018 Ford Focus ST 2.0L EcoBoost Double Valve Spring Kit
- Piper VDSFECO20K Double Valve Spring Kit — High-RPM / high-boost upgrade over the Single Spring Kit on the 2.0L EcoBoost (Focus ST MK3)
- Stronger seat pressure, more valve control margin — designed for sustained high-RPM and big-boost builds

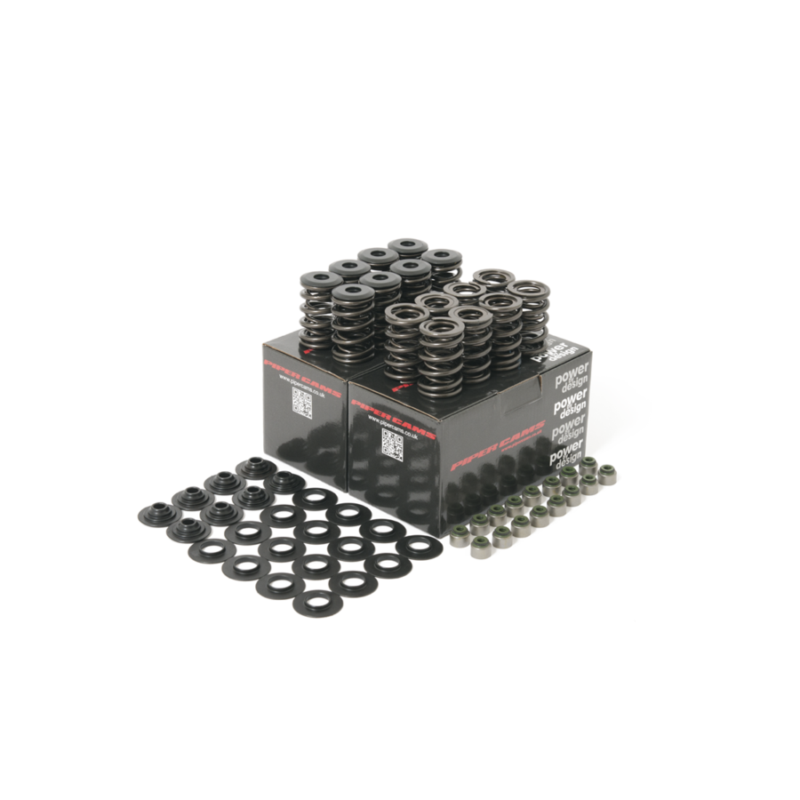

- Kit includes — springs, spring caps, oil seals, spring seats
- Authorized Piper Cams & Exhaust dealer — UK manufacturer · 3–4 week lead time · final sale
or as low as $58.16/mo with Affirm
Available
Piper Double Valve Spring Kit
2.0L EcoBoost · Focus ST MK3 · UK Made
What it is
High-RPM / high-boost upgrade over the Piper Single Spring Kit for 2.0L EcoBoost builds. Designed for sustained high-RPM track use, big-turbo builds running boost levels well above stock, or anyone planning to push past the Single Spring’s window. Includes spring caps, oil seals, and spring seats.
Pairs with: FECO20BP270B, FECO20BP285B, FECO20BP300B
Specifications
Spring Data
- Rate (N/mm)
- 52
- Rate (lbf)
- 297
- Seat Pressure
- 45 lbf · 20 kg
- Fitted Length
- 38mm
- Internal Ø
- 15.5mm
- Outside Ø
- 28.5mm
- Crush Height
- 22.27mm
Kit Contents
- Springs
- Set per engine
- Spring Caps
- Included
- Oil Seals
- Included
- Spring Seats
- Included
Before you install
Don’t install this kit on stock cams — the Single/Double Spring kits are designed for Piper’s performance grinds (BP270 / BP285 / BP300 / BP320). Running stock cams with these springs adds unnecessary valvetrain load. Call us if you’re unsure which spring goes with which cam.
Order terms
Pair with the right Piper cams
Spring kits are sized to specific grinds. Call us before ordering if you’re unsure — we install these daily.
