Piper Cams 2012-2018 Ford Focus ST 2.0L EcoBoost Single Valve Spring Kit
- Piper VSSFECO20K Single Valve Spring Kit — Mandatory companion to Piper performance camshafts on the 2.0L EcoBoost (Focus ST MK3)
- Stock springs cannot run aggressive cams — this kit prevents coil bind / valve float
- Kit includes — springs, spring caps, oil seals, spring seats
- Authorized Piper Cams & Exhaust dealer — UK manufacturer · 3–4 week lead time · final sale
or as low as $33.25/mo with Affirm
Available

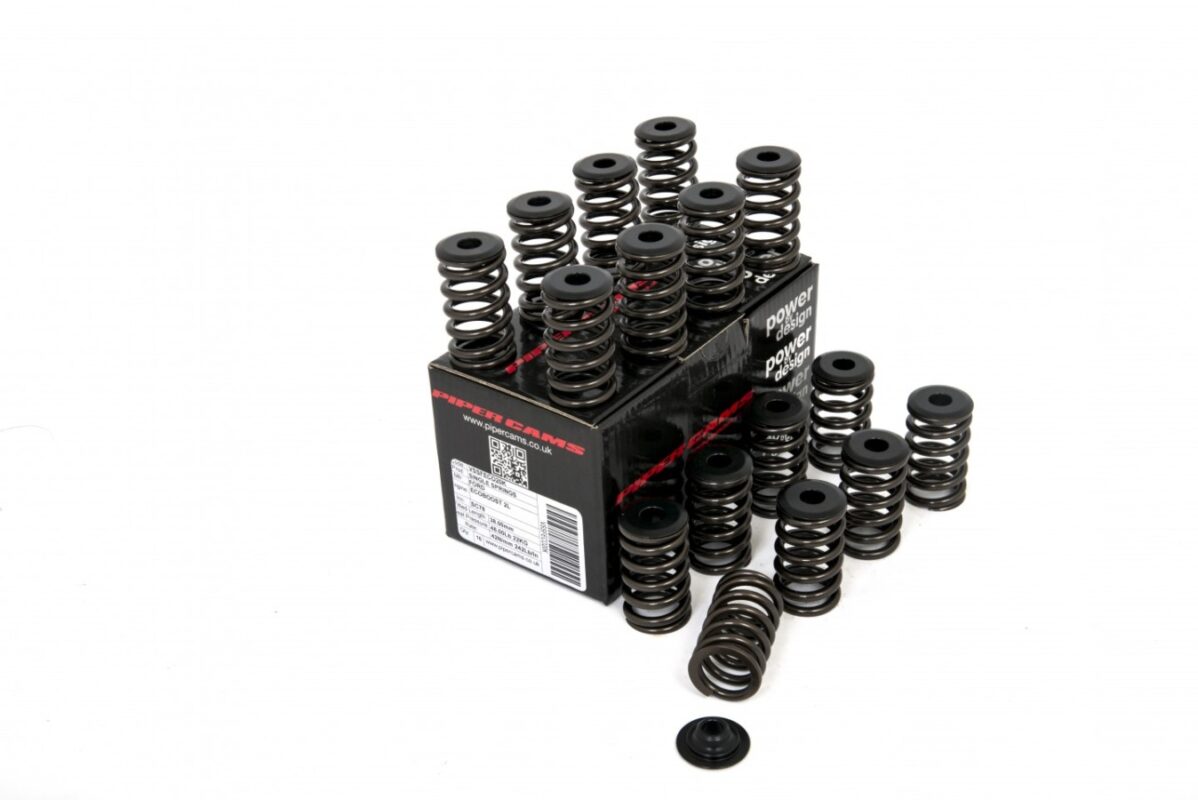

Piper Single Valve Spring Kit
2.0L EcoBoost · Focus ST MK3 · UK Made
What it is
Required for any Piper Fast Road, Ultimate Road, Rally, or Race grind on the 2.0L EcoBoost. Stock O.E. springs cannot hold the lift and duration of Piper’s performance camshafts — they coil-bind or float at the RPM the cams are designed for. This kit is the minimum spring upgrade required to install those camshafts safely.
Pairs with: FECO20BP270B, FECO20BP285B, FECO20BP300B
Specifications
Spring Data
- Rate (N/mm)
- 52
- Rate (lbf)
- 297
- Seat Pressure
- 45 lbf · 20 kg
- Fitted Length
- 38mm
- Internal Ø
- 15.5mm
- Outside Ø
- 28.5mm
- Crush Height
- 22.27mm
Kit Contents
- Springs
- Set per engine
- Spring Caps
- Included
- Oil Seals
- Included
- Spring Seats
- Included
Before you install
Don’t install this kit on stock cams — the Single/Double Spring kits are designed for Piper’s performance grinds (BP270 / BP285 / BP300 / BP320). Running stock cams with these springs adds unnecessary valvetrain load. Call us if you’re unsure which spring goes with which cam.
If you’re pushing further
For high-boost builds or sustained high-RPM track use, step up to the Piper VDSFECO20K Double Valve Spring Kit ($697.95). The Double Kit adds extra valve-control margin and is the right call if you’re running boost levels well above stock or planning track abuse.
Order terms
Pair with the right Piper cams
Spring kits are sized to specific grinds. Call us before ordering if you’re unsure — we install these daily.
