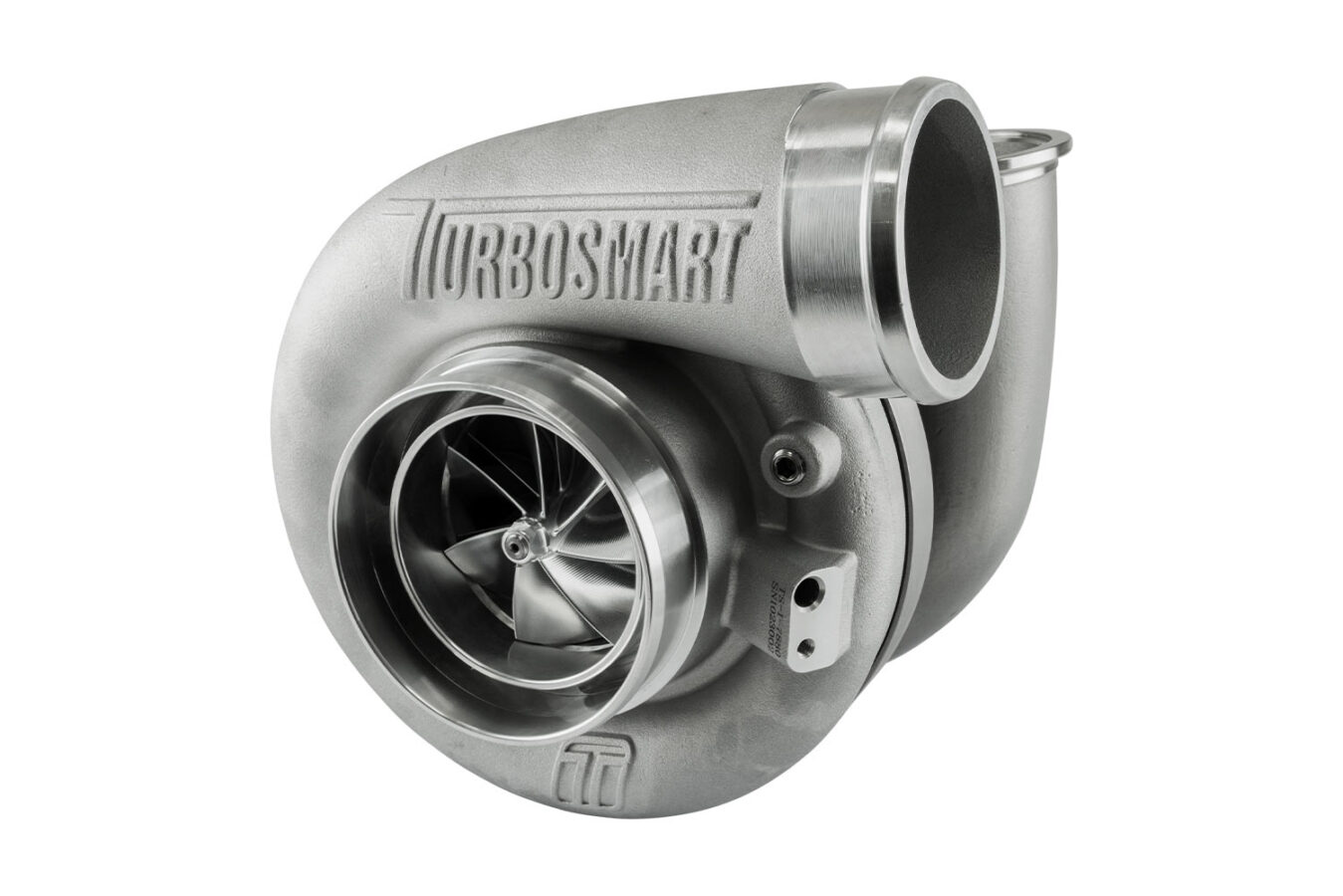

Turbosmart TS-1 Series Turbocharger

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered using advanced materials, innovative design, and modern manufacturing techniques—crafted to meet the high demands of motorsport professionals and performance enthusiasts alike.

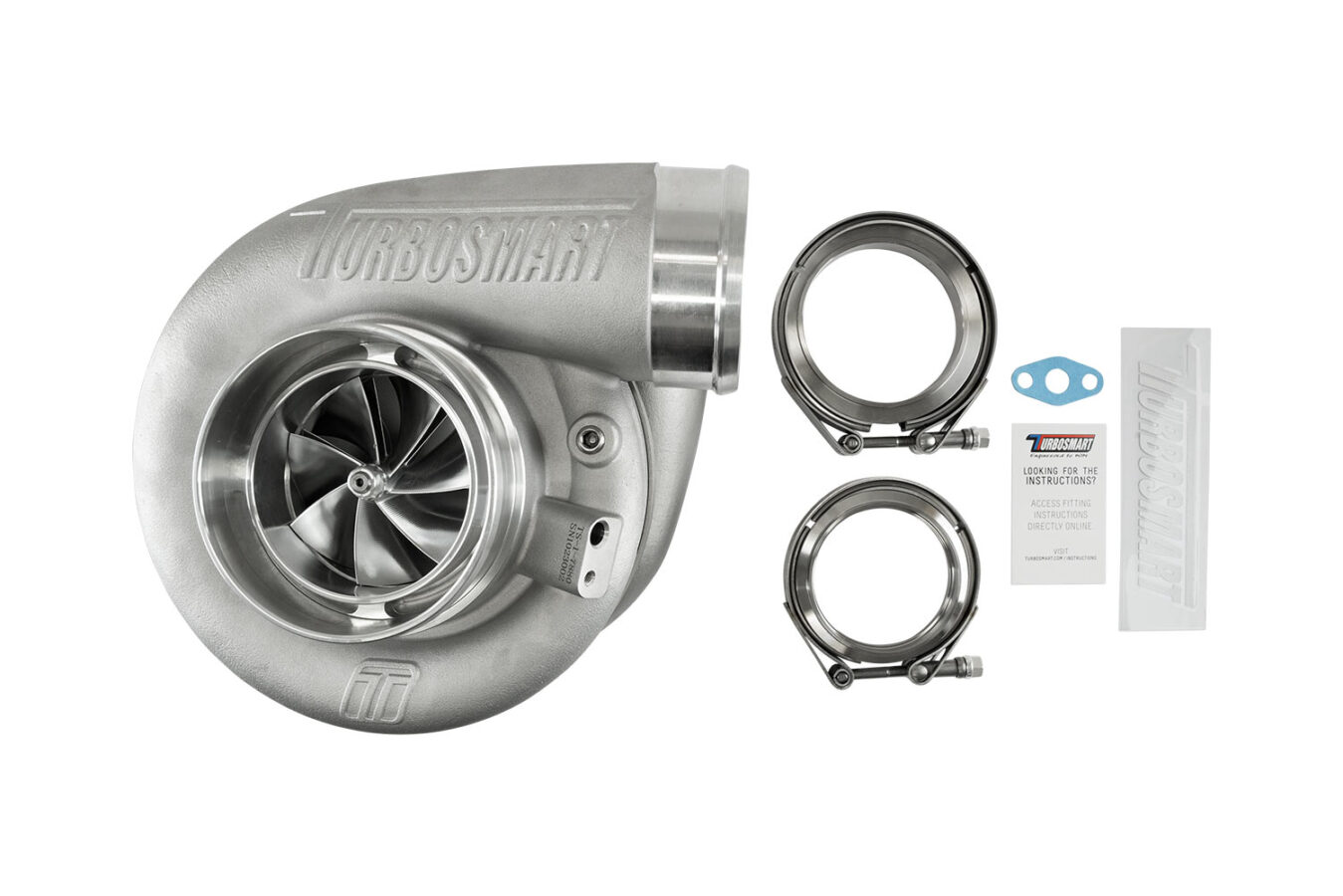

Every Turbosmart turbocharger comes standard with everything needed for installation, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings.

The TS-1 Series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and shaft system that delivers outstanding transient response. The ultra-low rotating mass is paired with aggressive compressor aerodynamics and a uniquely matched turbine wheel, ensuring optimal power and flow under high load conditions.

All Turbosmart turbochargers are designed with a complete engine system approach—reducing back pressure and maximizing turbine performance—while being smaller, lighter, and quicker in response than traditional solutions.

Available In:

• TS-1 oil-cooled turbochargers

• TS-2 oil and water-cooled turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Various A/R options

• Internal and external wastegate options

Key Features:

• Unmatched transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housing design for efficient A/R and flow

• 713C Inconel turbine wheel for extreme EGT conditions

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications:

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 78mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 80mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63 kg / 21.23 lbs

• Horsepower Rating: 1,140 – 1,350 HP
