UPR Products Plug N Play PCV Snap Fitting 90* Angle for Oil Catch Can 3/8 1/2 5/8
Available
One (1) fitting per unit. Select the size you need from the dropdown above. Buy multiple if your install uses more than one.
Overview

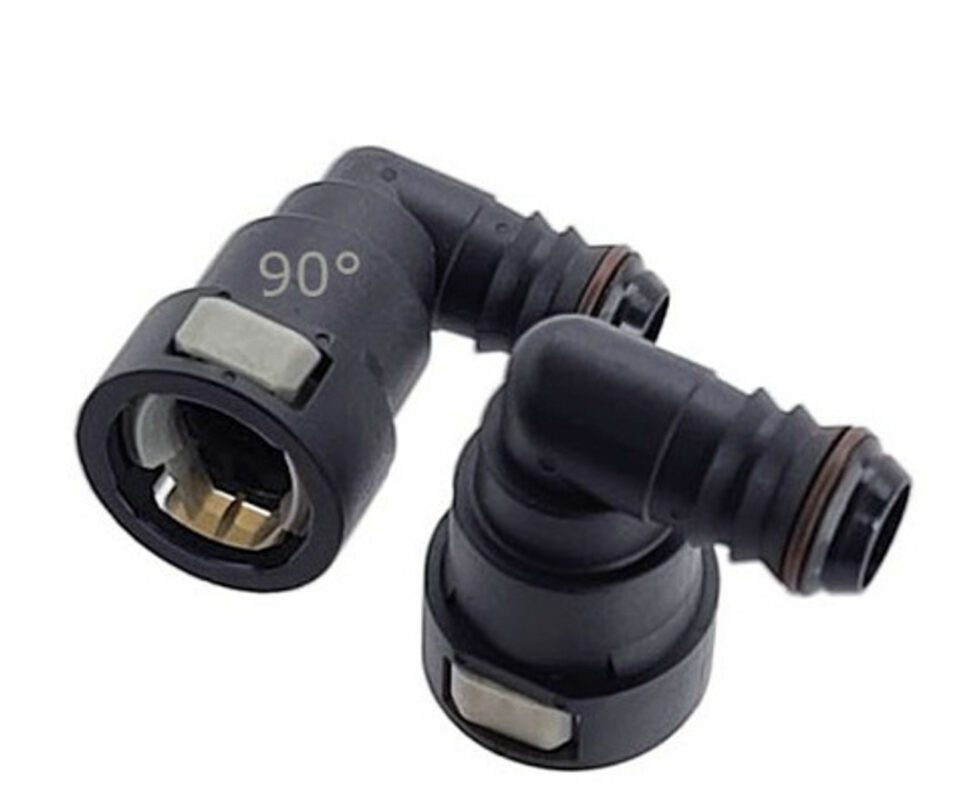

The UPR Plug N Play PCV Snap Fitting (90 Degree Elbow) is the exact fitting UPR uses on their own catch cans to connect to factory PCV lines. OEM-grade snap-lock design – press the fitting onto the PCV port, it clicks, and it stays seated until you manually depress the release tab. No tools. No clamps. No O-ring leaks.
This is the fitting to buy if you’re servicing an existing catch can install, routing a custom PCV layout, or your old fitting got damaged during a can swap. Four size variants cover the common PCV line sizes on Ford, GM, Mopar and the Coyote-specific left-hand 5/8 inch routing.
Size Guide
| Size | Orientation | Typical Application |
|---|---|---|
| 3/8 in | 90 degree elbow | Smaller PCV lines, aux breather routing |
| 1/2 in | 90 degree elbow | Mid-size PCV lines (Ford EcoBoost 2.3 compatible variant) |
| 5/8 in | 90 degree right-hand | Standard large PCV routing on most Ford/GM V8 |
| 5/8 in | 90 degree left-hand (Coyote) | Coyote-specific clean-side routing (Mustang GT, F-150 5.0) |
Construction
| Component | Spec |
|---|---|
| Fitting type | OEM-style snap-lock quick-connect |
| Angle | 90 degree elbow (all variants) |
| Internal seal | Oil-rated O-rings, factory-equivalent |
| Orientation | Direction-specific for 5/8 in variants (right-hand standard, left-hand Coyote) |
| Source | UPR Products – same fitting used on factory UPR catch can kits |
What’s Included
- One (1) 90 degree snap fitting in selected size and orientation
- Pre-installed O-ring seal
- No adapter, hose, or hardware – this is a fitting replacement only
Installation
- Time: 2 minutes.
- Difficulty: Tool-free. Press the fitting onto the factory PCV port – it will snap into place.
- Release: To remove, depress the snap-lock tab on the fitting and pull straight off.
- Orientation: Confirm right-hand vs left-hand for 5/8 in. Coyote engines use left-hand on the clean side – wrong orientation won’t clear underhood obstacles.
Companion UPR Parts
- UPR 5030 Series Replacement O-Ring Kit [2030-02] – $19.99
- UPR 1/4 NPT Drain Valve [H5032-74] – $9.99
- UPR Oil Catch Can Drain Line Kit [H5032-49] – $39.99
- UPR SS Magnetic Drain Plug [H5032-048] – $9.99
Compliance
This part is NOT CARB-certified and is for racing / off-road use only. NOT for sale or use in California when paired with emissions-related PCV modifications. Used as a direct factory replacement it presents no emissions change – but if your overall catch can system is non-CARB, the combined install is non-compliant in California.
Installation & Support
Based in Thousand Oaks, CA. Snap fittings are a DIY 2-minute swap – no shop time needed for this piece. If you’re building a full catch can install and want us to handle it: Shop rate $250/hr. Call 805-267-9762 or tap “Talk to Expert” if you’re unsure which size or orientation your engine uses. UPR authorized dealer – warranty claims route through us directly.
UPR offers unconditional lifetime warranty on all their manufactured products. Free ground shipping on orders above $99 (48 states).
