MAZ 2024-2026 Ford Mustang S650 R1 Evo Widebody Kit
or as low as $216.67/mo with Affirm
Build-To-Order · 10-20 Week Lead Time
The R1 Evo Widebody is hand-laid by Muscle Auto Zone after your order is placed. This is not a stocked kit — production begins after order placement and is queued in MAZ’s shop.
Build time by configuration: Rear Fiberglass kits ship in 8-10 weeks. Carbon vent variants add 2-4 weeks. Full carbon-fiber kits run 16-20 weeks for the full layup. Freight runs 5-7 business days on top of build time.
Total order-to-delivery: typically 10 to 20 weeks depending on selected configuration. Build slots are assigned at checkout and cannot be expedited.
By placing this order, you acknowledge this is a build-to-order item with the lead time above. Production begins after order placement; cancellation is not available once your slot is in build.
Overview

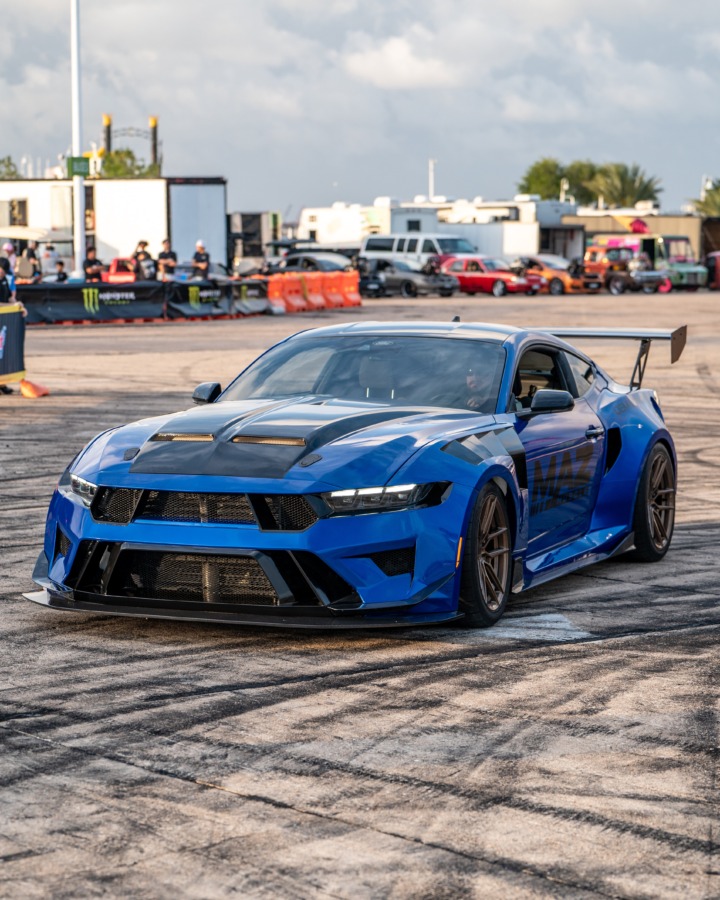

The R1 Evo is Muscle Auto Zone’s flagship widebody conversion for the 2024-2026 Mustang S650. Inspired by modern GT and time-attack race cars, this kit was developed with a focus on stance, airflow, and real performance function — not exposed hardware or cosmetic-only width.
The full kit increases total vehicle width by 7 inches at the front and 5.5 inches at the rear, delivering a significantly wider track and aggressive presence while maintaining clean OEM body lines through a flush-mounted, rivet-free installation.
All major aero surfaces were refined using CFD analysis. The kit reuses OEM mounting hard points where possible, and ships in raw fiberglass / carbon ready for body shop paint and prep.
Configuration Matrix
Six configurations available across two axes — Coverage (Rear conversion or Full conversion) and Material (Fiberglass / Fiberglass + Carbon Vent / Full Carbon Fiber).
| Coverage | Material | Price | MSRP |
|---|---|---|---|
| Rear | Fiberglass | $2,600 | $3,600 |
| Rear | Fiberglass + Carbon Vent | $3,200 | $4,900 |
| Rear | Carbon Fiber | $4,800 | $7,300 |
| Full | Fiberglass | $4,500 | $6,000 |
| Full | Fiberglass + Carbon Vent | $5,500 | $8,000 |
| Full | Carbon Fiber | $10,000 | $13,000 |
20% Deposit OR Pay In Full
Reserve your build slot with a 20% deposit at order time, or pay in full to skip the balance step. Either way the build slot is locked at MAZ as soon as we receive payment.
| Configuration | 20% Deposit | Pay In Full |
|---|---|---|
| Rear · Fiberglass | $520 | $2,600 |
| Rear · FG + Carbon Vent | $640 | $3,200 |
| Rear · Carbon Fiber | $960 | $4,800 |
| Full · Fiberglass | $900 | $4,500 |
| Full · FG + Carbon Vent | $1,100 | $5,500 |
| Full · Carbon Fiber | $2,000 | $10,000 |
Coverage Options — Rear vs Full
Rear Conversion (+5.5 inches): rear quarter panel widening plus the supporting flares, side skirts, and rear-bumper integration. Pairs well with stock front fascia for a “hot rod” rear-staggered stance.
Full Conversion (+7 inches front, +5.5 inches rear): rear conversion plus front fender flares, front bumper extensions, and front splitter integration. Squared front-and-rear footprint for race-car presence and matched track-width.

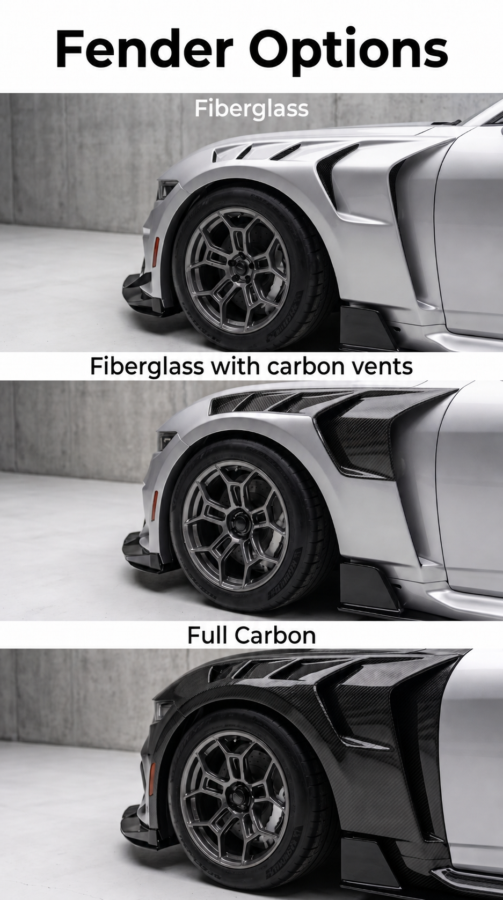

Material Construction
Fiberglass: hand-laid fiberglass shell, fully primed and paint-ready. Lightest budget option with fastest build time.
Fiberglass + Carbon Vent: fiberglass body with raw wet-carbon vent insert panels for two-tone OEM-style aesthetics where the body matches paint and the vents stay raw clear-coated carbon.
Full Carbon Fiber: entire kit hand-laid in autoclave-cured carbon fiber. Premium weight savings, factory-spec OEM panel weave, longest build time and highest investment.

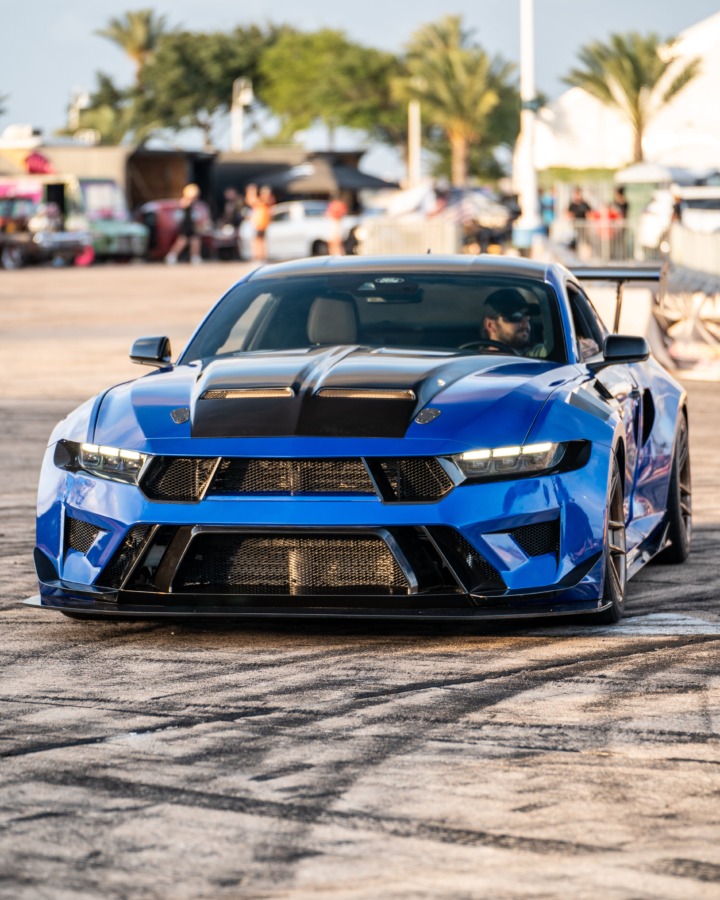

Fiberglass — primed shell, paint-ready

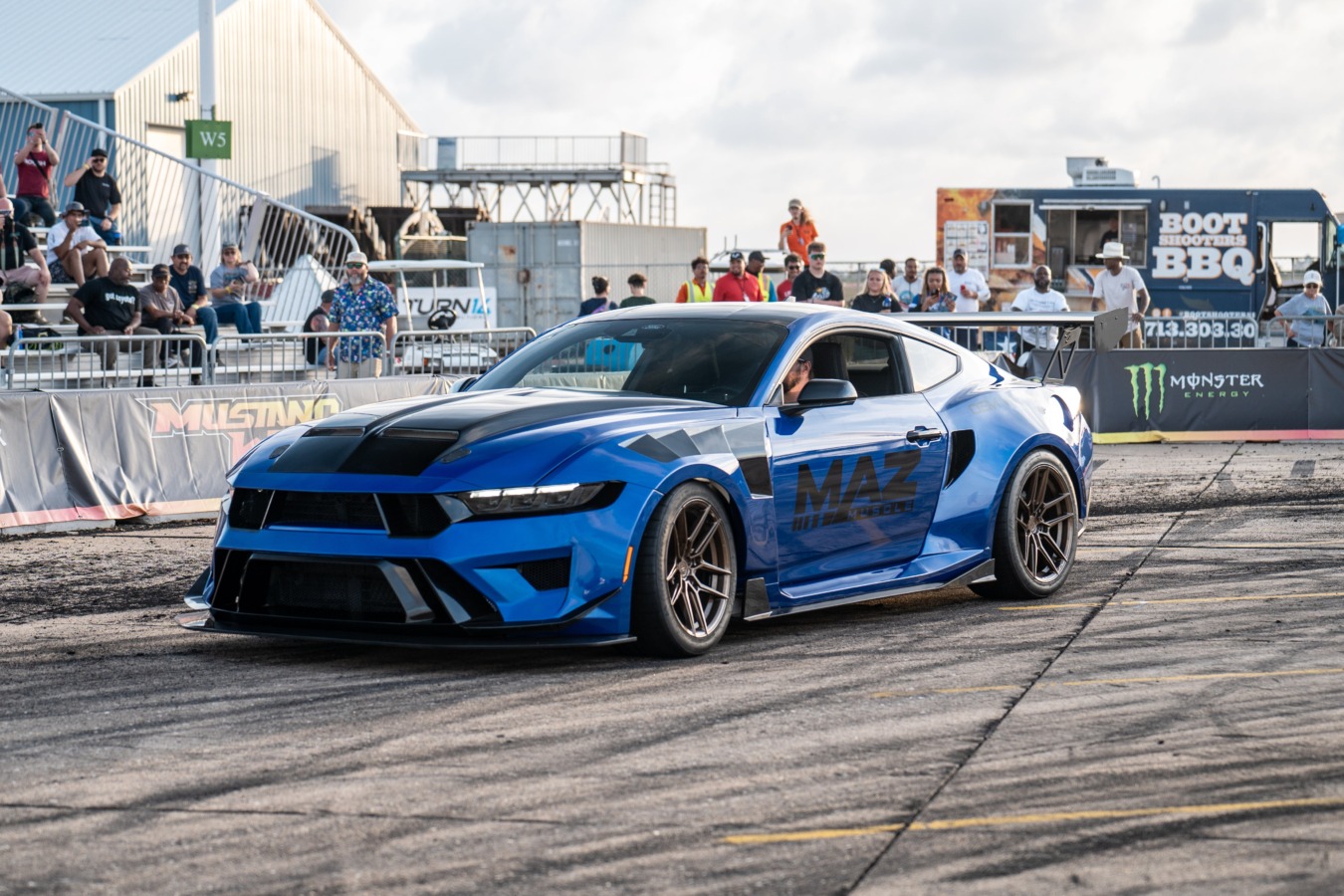

Fiberglass + Carbon Vent — FG body, wet-carbon vents

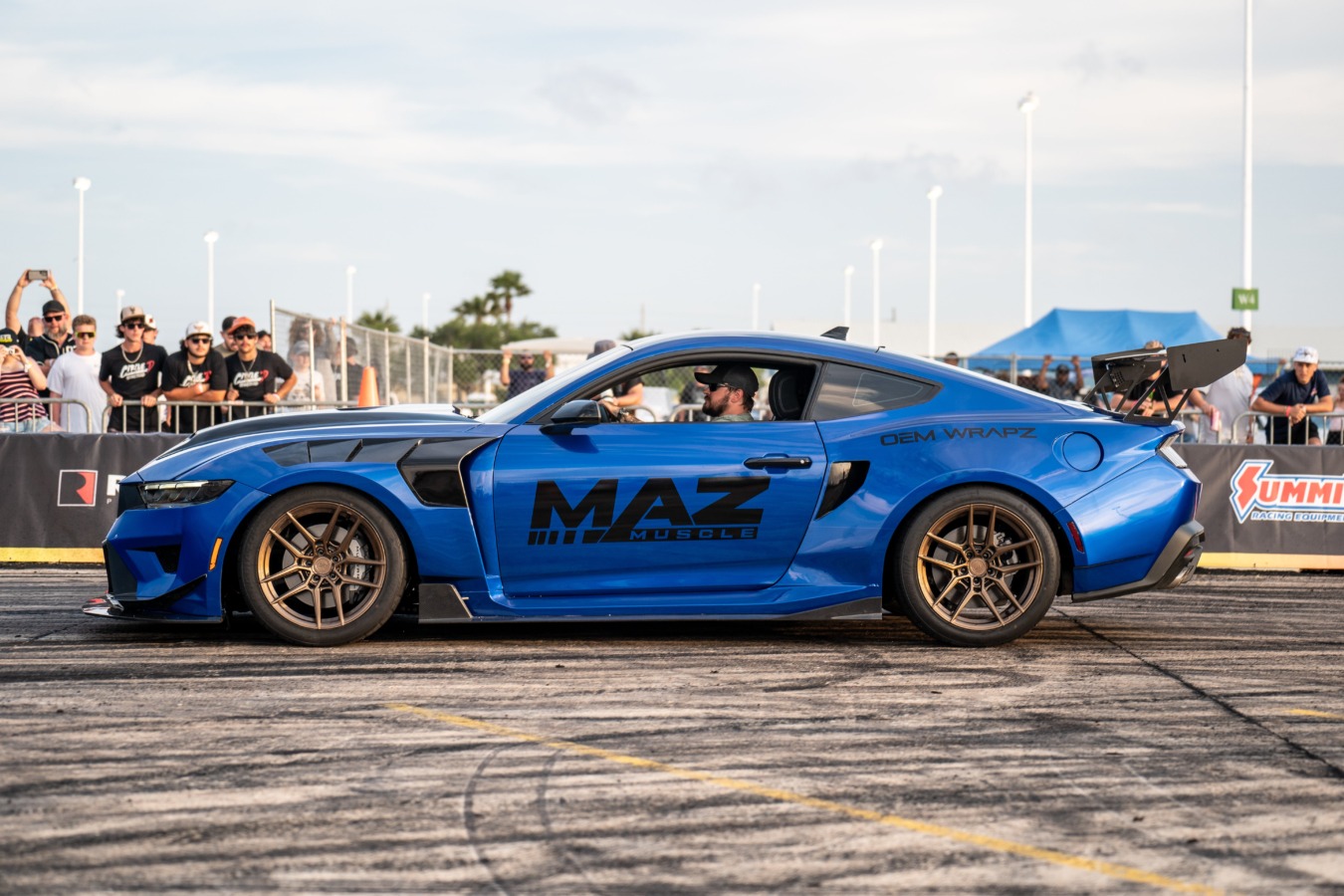

Full Carbon Fiber — autoclave-cured weave
Vehicle Fitment
Direct-fit conversion across all 2024-2026 Mustang S650 trims:
- 2024-2026 Ford Mustang S650 EcoBoost · 2.3L Turbo I4
- 2024-2026 Ford Mustang S650 GT · 5.0L Coyote V8
- 2024-2026 Ford Mustang S650 Dark Horse · 5.0L Coyote V8
Mounts to factory hard points with flush-fit rivet-free installation. Reuses OEM body lines where possible. Full conversion may require fender liner trimming for clearance with wider wheel-and-tire packages.

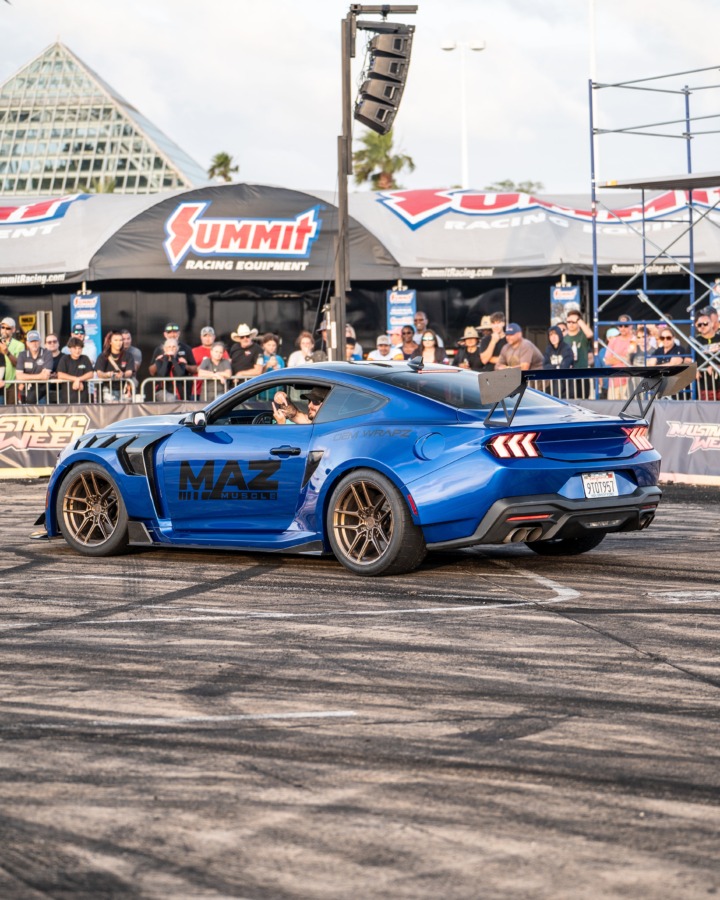

Flush-fit rear quarter flare seam — no rivets, no exposed hardware

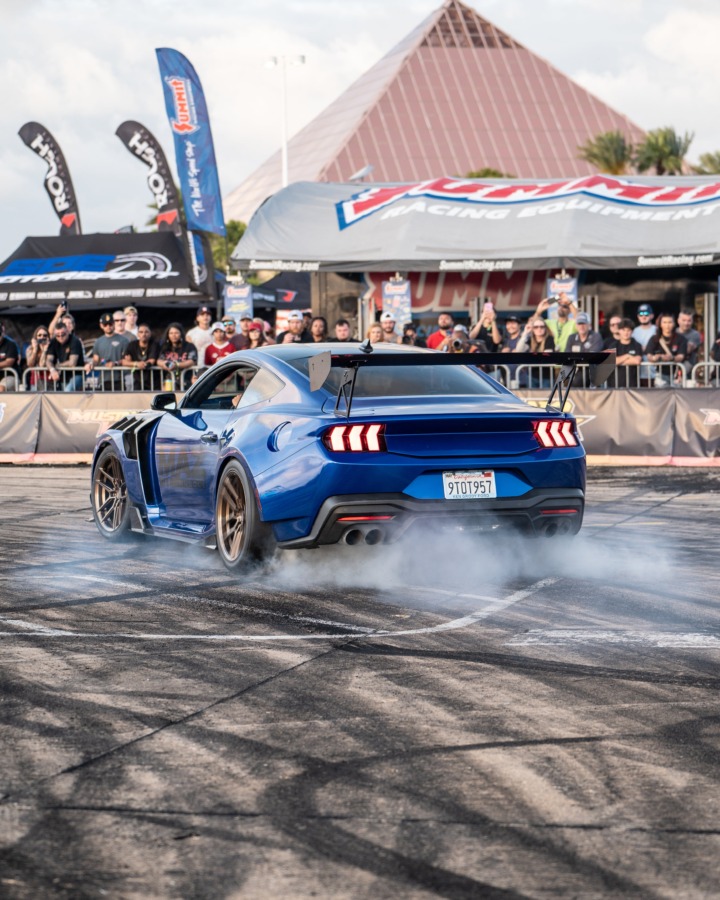

Side profile — clean OEM body lines preserved
Build, Install & Care
Factory finish: ships gel-coated and primed (fiberglass) with raw clear-coated wet-carbon for vent / carbon variants. Body-color paint and color-coat are not included — plan body shop work for paint match and panel prep.
Install: professional body shop install required. Rear conversion typically 12-16 hours. Full conversion 20-30 hours including front fender adaptation and bumper integration. Wheel-and-tire fitment should be planned before paint to confirm clearance.
Care: hand wash only. Avoid high-pressure spray on flare seams and bumper attachment points. Carbon panels benefit from yearly UV protectant application to prevent yellowing of resin clearcoat.
Hand-laid panel layup in MAZ shop

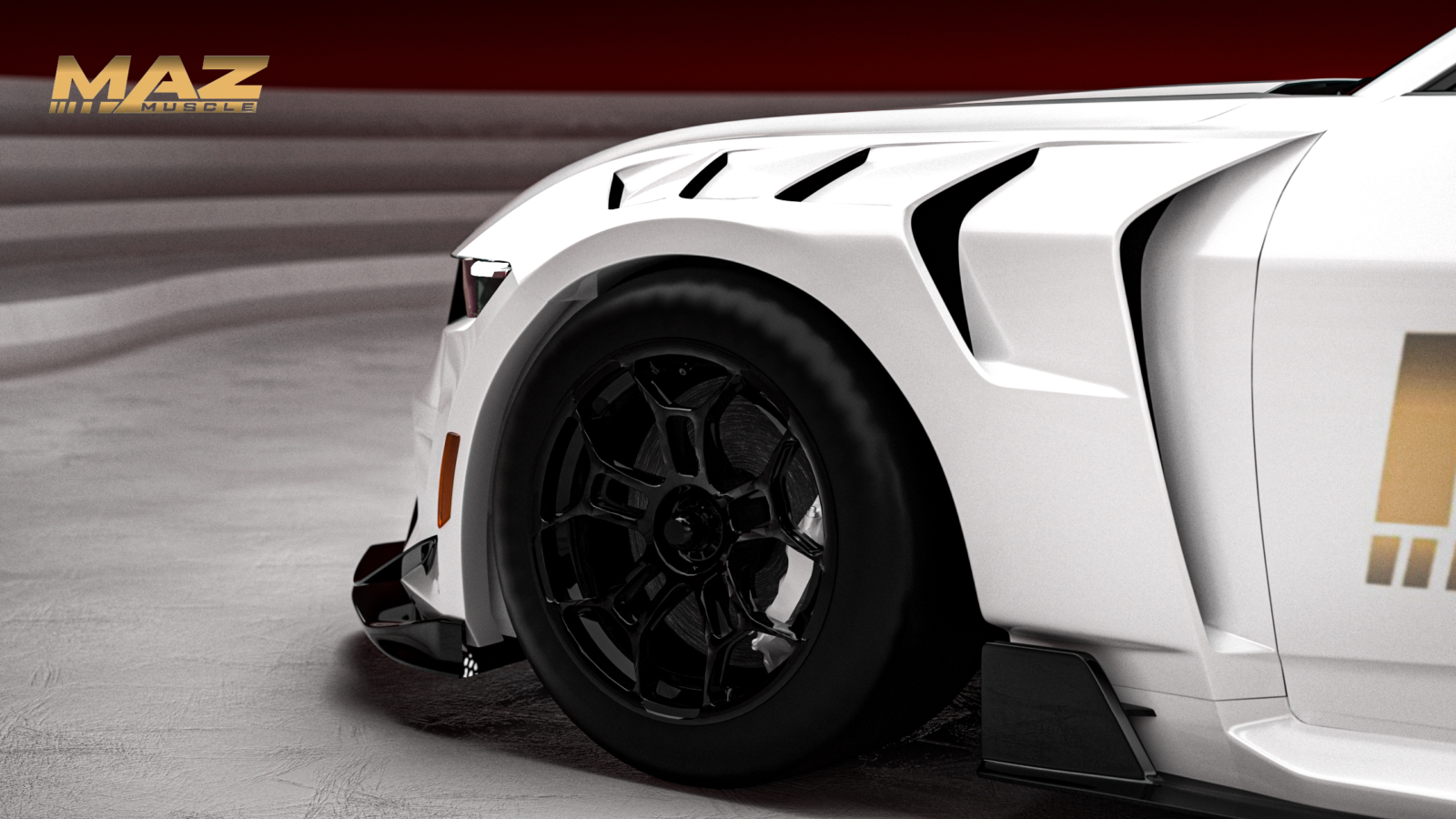

Front fender adaptation prep
Bumper-to-flare seam alignment
Test-fit on 2024 Mustang S650

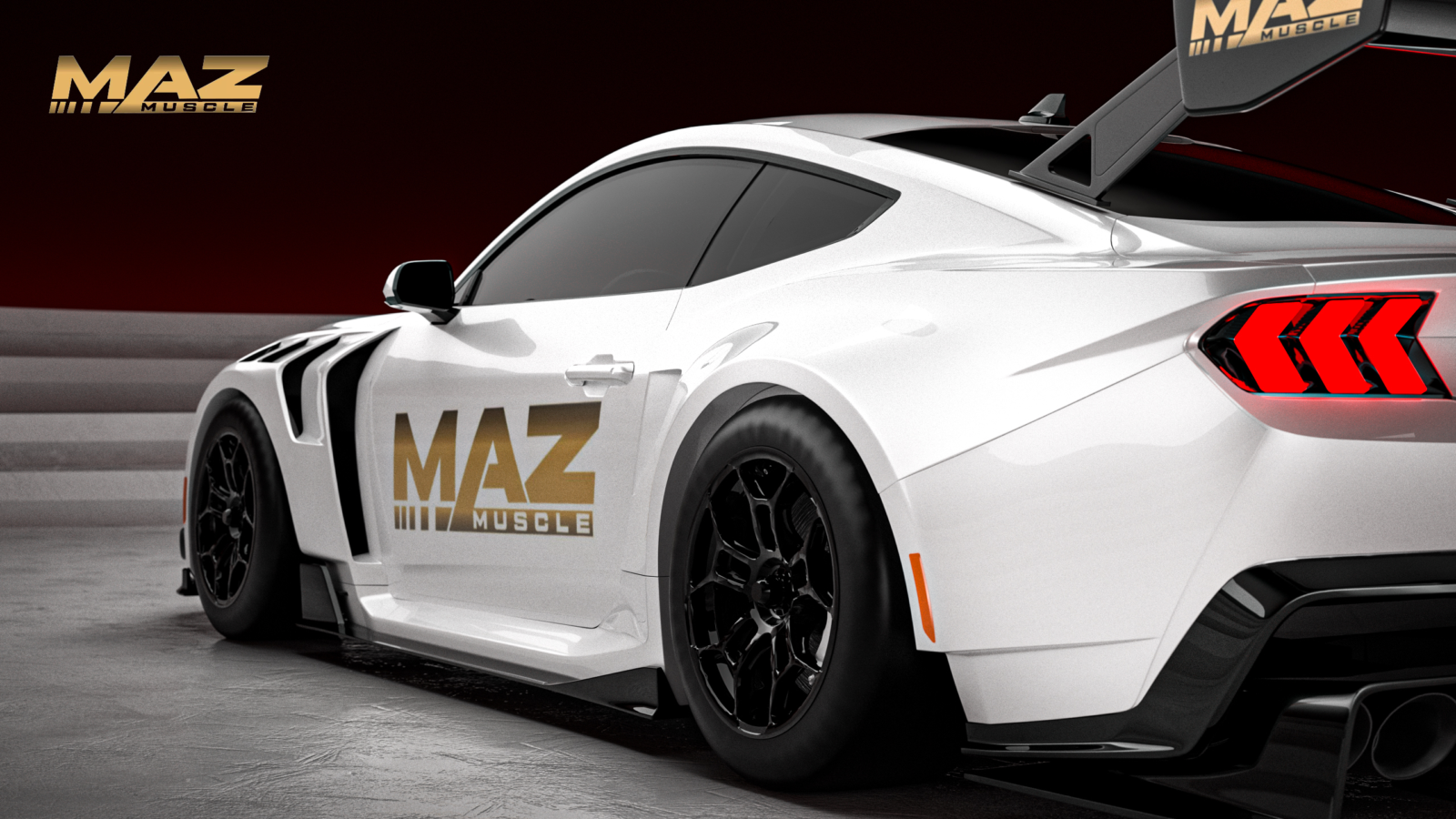

Rear flare integration

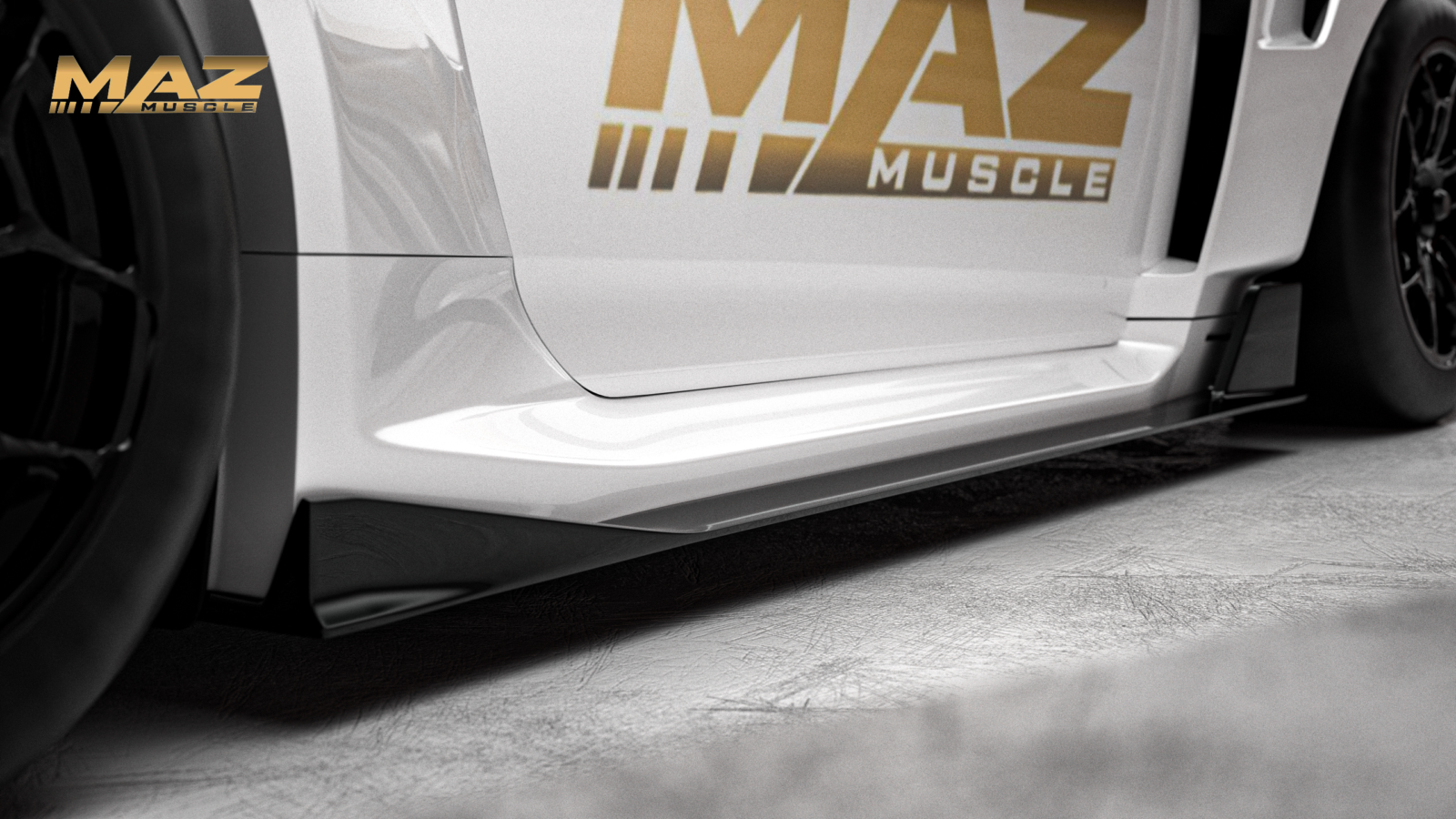

Side skirt-to-flare transition
