UPR 2024-2025 Ford Ranger + Ranger Raptor 3.0L/2.7L Single Valve Oil Catch Can (Plug N Play)
- 6oz Capacity
- Show Quality Black Anodized Finish
- Can measures 2.5" x 6"
- Prevents Oil from Entering Intake
- Exclusive 4-Stage Design Traps Oil
- Innovative Diffuser Tube and Chamber
- High-Quality CNC Machined Billet Aluminum
- Plug N Play ™ fittings at Catch Can connections
- 5/8" Oil Resistant Continental Braided Hose included
- Improves Fuel Economy, Throttle Response & Performance
or as low as $20.83/mo with Affirm
Available
10-minute install, no drilling, no factory electronics tampering. Watch before you start.
Overview
The UPR Plug N Play Single Valve Oil Catch Can is the purpose-built PCV trap for the 2024-2025 Ford Ranger platform. Works on the 2.7L EcoBoost Ranger AND the 3.0L Ranger Raptor – one kit, both trucks. Single-stage multi-chamber separator with 4-stage oil diffusion catches the vapor at the source before it rides into your intake.
Ranger 2.7L and 3.0L EcoBoost engines blow by significant oil vapor at mid-to-high load. Stock PCV routes that vapor right back into the intake charge, where it coats the intercooler core, degrades charge-cooler efficiency over time, and builds carbon on intake valves (GDI engines can’t self-clean like port-injected engines). This kit traps the oil before it ever touches the hot side of combustion.
Fitment
| Year | Platform | Engine |
|---|---|---|
| 2024-2025 | Ford Ranger | 2.7L EcoBoost V6 |
| 2024-2025 | Ford Ranger Raptor | 3.0L EcoBoost V6 |
Construction
| Component | Spec |
|---|---|
| Body material | T-6 6061 aluminum bar stock, CNC-machined |
| Finish | Black anodized |
| Capacity | 6 oz |
| Dimensions | 2.5 in x 6 in |
| Internal separation | Patented 4-stage multi-chamber diffuser |
| Hose | 5/8 inch oil-resistant Continental braided hose |
| Fittings | Plug N Play quick-release factory-style fittings – bolt-on, bolt-off, no residual marks for stock restore |
| Origin | Made in USA |
What’s Included

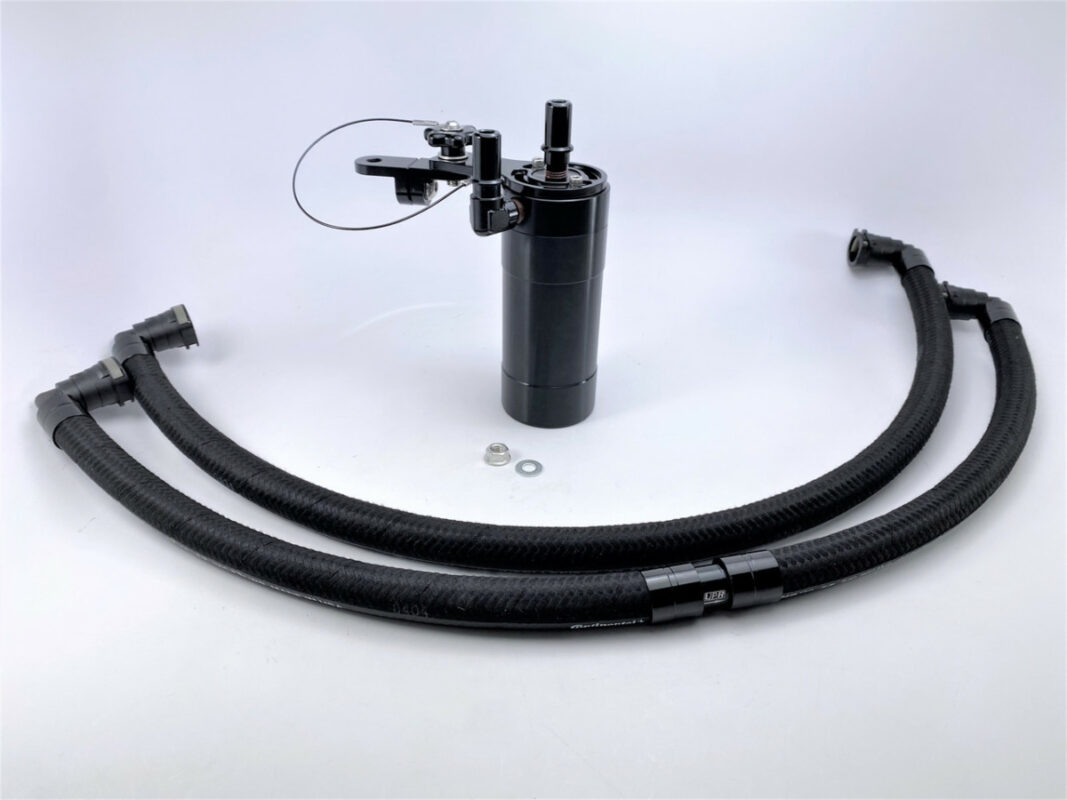

- Billet catch can body (black anodized, 6 oz capacity)
- 5/8 inch Continental braided hose (pre-cut)
- Billet hose end covers + plug-and-play quick-connect fittings
- Adjustable mounting hardware
- Install instructions + routing diagram
- Optional add-ons per your dropdown selections above (O-rings, magnetic drain plug, drain line kit, PCV fitting, check valves)
Installation
- Time: 10 minutes for a first-timer with basic tools.
- Difficulty: Plug-and-play. No drilling, no wiring mods, no tune.
- Tools: 10mm socket, flat-blade screwdriver for PCV quick-connect release, pliers for hose-end retention clips.
- Bracket mount: OEM hard points – bolts to factory-tapped locations.
- Remove factory fitting: Press collar inward, pull apart. Held by a retention clip – hold the ring firmly, it wants to stay seated.
- First drain: Check after 500-1000 miles. Expect 1-3 oz of captured oil on the first check. Drain interval stretches as blow-by stabilizes.
- Video walkthrough: Full visual guide embedded at the top of this page.
Companion UPR Parts
Stock up on replacement + upgrade components (also available as add-ons in the dropdowns above):
- UPR 5030 Series Replacement O-Ring Kit [2030-02] – $19.99
- UPR SS Magnetic Drain Plug [H5032-048] – $9.99
- UPR Oil Catch Can Drain Line Kit [H5032-49] – $39.99
- UPR Adjustable Hi-Flo Billet PCV Valve [5045-24] – $49.99
- UPR Pro-Series Billet Check Valve 5/8 inch [5044-03] – $49.99 each
Compliance
This part is NOT CARB-certified and is for racing / off-road use only. NOT for sale or use in California. UPR does not issue a CARB EO for this product. If you’re in California, check your state emissions requirements before ordering.
Outside California with a state-legality question? Call 805-267-9762 before ordering.
Installation & Support
Based in Thousand Oaks, CA. Shop rate $250/hr if you want us to install. Most customers do this in the driveway in under an hour. Call 805-267-9762 or tap “Talk to Expert” to coordinate. UPR authorized dealer – warranty claims route through us directly.
UPR offers unconditional lifetime warranty on all their manufactured products. Free ground shipping on orders above $99 (48 states).
